Appsys ProAudio ADX-16

£199.00

Inc 20% VAT

In Stock

Order by 2pm for next day delivery (Mon-Fri)


Shipping Information

Synthax Audio UK Logo

Free Delivery On All Orders Over £50.00

All orders from our webshop over £50.00 can be shipped with free delivery:

  • For orders over £50.00, this will be via a next working day delivery courier service
  • For orders under £50.00 this will be via First Class Royal Mail postage* (unless a different courier option is selected at checkout)

*Please note: Royal Mail First Class is NOT guaranteed next day delivery. For guaranteed next working day (or Saturday) delivery, please select one of our other courier options (see delivery options below).

Delivery Notifications

You will receive an email to the address you have supplied to us when your order has been dispatched.

Delivery Methods and Timescales

The delivery time scale is specified on the product page to indicate when you should expect to receive your order. If all item(s) are in stock and your order was placed before 2pm, subject to passing necessary checks, your order will be shipped the same day. Orders received just after 2pm are also often dispatched the same day, but this cannot be guaranteed.



Delivery Options

Royal Mail – First Class Recorded Delivery*

  • Delivery Time – We cannot guarantee delivery time via Royal Mail. Whilst items shipped using Royal Mail First Class usually take 1 - 2 days, please note this is NOT a guaranteed next day delivery service. If this is a problem, please select one of our courier service options.

*Only available on orders with a value of less than £50

Courier – Next Working Day Service

  • Price = Free (Orders of £50+) / £9.95 (Orders of less than £50)
  • Delivery Time – Next working day from date of dispatch (see above)

Courier – Pre-noon, Next Working Day Service

  • Price = £9.95 (Orders of £50+) / £19.95 (Orders of less than £50)
  • Delivery Time – Next working day from date of dispatch (see above).

Courier – Saturday Delivery Service

  • Price = £19.95
  • Delivery Time – The first Saturday following date of dispatch (see above). Note that for guaranteed Saturday delivery, orders must be placed before 2pm on the Friday. Orders placed after 2pm may still arrive on Saturday, but this cannot be guaranteed.

Due to the nature of the products we sell, we operate a strict fraud screening process and therefore we are only able to deliver to the billing address.

In the event of a delay, we will contact you either by email or telephone as soon as reasonably possible.

While 99% of UK locations are valid for next day/Saturday delivery, there are a few remote locations which are not covered.

Synthax Audio (UK) cannot deliver outside of the UK and Republic of Ireland*.

*RME products cannot be shipped to the Republic of Ireland.



Missed Deliveries

If you are not in to receive the order at the time delivery is attempted, a card will normally be left to notify you of the missed delivery attempt. This will allow you to either telephone the courier company to arrange a re-delivery at a more convenient time or collect it from your local courier depot or Royal Mail sorting office. For security reasons, all items require a signature.

If for any reason the item is returned to us (e.g. incorrect address specified, multiple failed delivery attempts), then we will inform you immediately by email as soon as we receive the item. From this point forth, you will be given a choice whether you wish us to re-dispatch the item or cancel the order. Please refer to our Cancellations & 14 Day Returns Procedure for more details. For items where delivery failed through no fault of Synthax Audio (UK), you will be liable for the original shipping charge, any courier surcharges and any subsequent delivery charges.



Late Deliveries or Dispatch

We are able to ship almost every order in the specified timescale. However, in very rare circumstances there can be an unforeseen delay. If this does happen, we will make it our priority to get your order dispatched from our warehouse as soon as reasonably possible.

There are also rare cases, beyond our control, when the delivery company itself has a problem which causes a delay in transit. In these situations we will do our utmost to liaise with the relevant delivery company to ensure delivery is completed as swiftly as possible.

Consequential Loss for Late Deliveries

If a delivery is late, then we will provide a refund of any delivery fee that we charged you. We do not provide financial compensation to cover consequential losses, e.g. for time taken off work to receive a delivery, or if the item is intended as a gift and you have to purchase the same item from a more expensive retailer.



Terms of Service

Our full terms of sale can be viewed here.

Customer Rating: (0)

Bidirectional ADAT/TOSLINK
Extender Kit

Includes

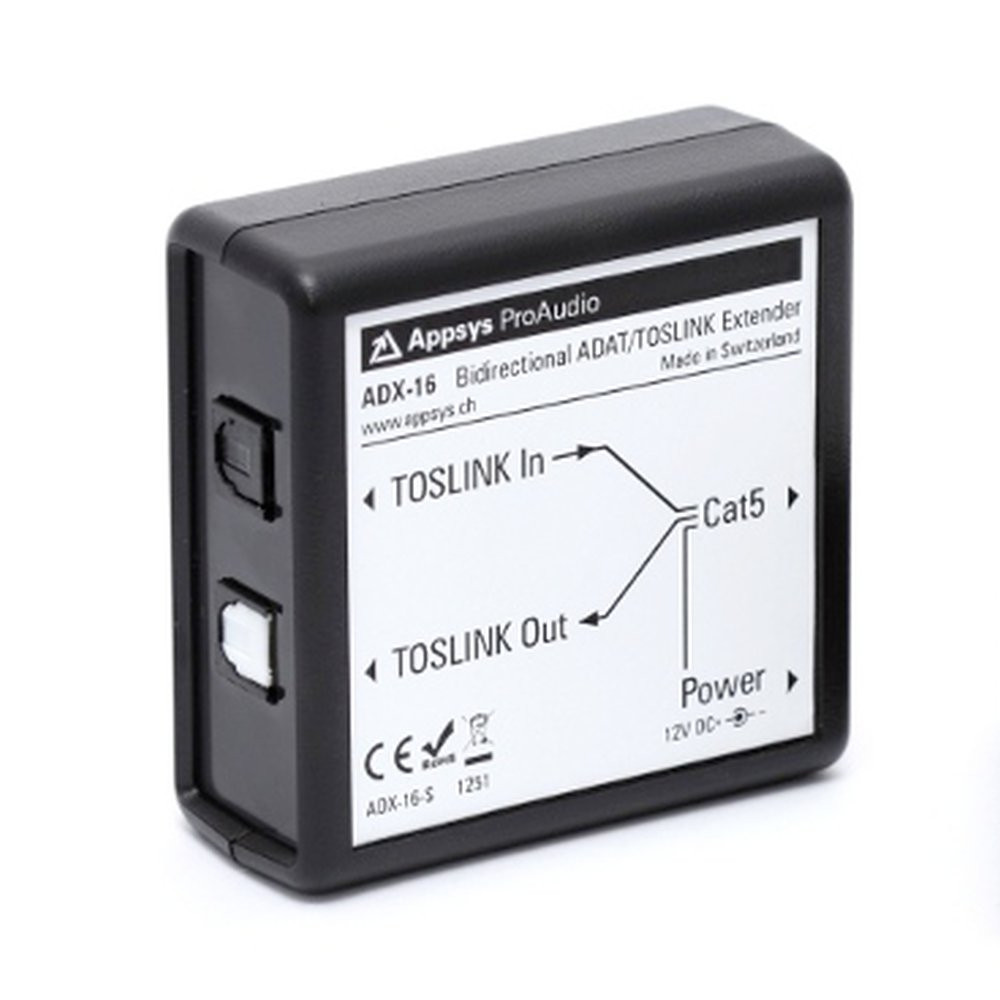

  • Converter Box ADX-16-S (1xTOSLINK In + 1xTOSLINK Out to Cat5 with power supply)
  • Converter Box ADX-16-R (1xTOSLINK In + 1xTOSLINK Out to Cat5)
  • AC adapter in "green" switching technology

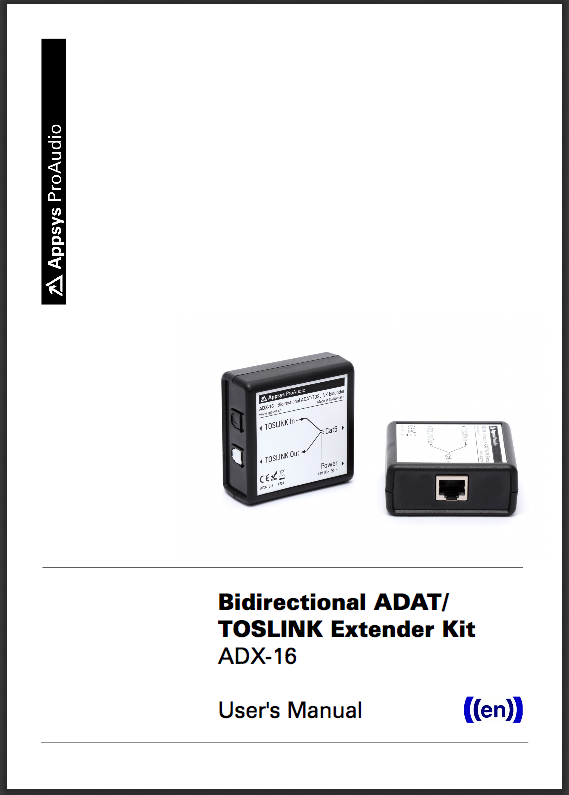

  • Printed manual

Description

Bidirectional ADAT/TOSLINK Extender Kit

The ADX-16 Kit has been designed to overcome the length limitations (5m/16 ft) of optical TOSLINK® interconnects running ADAT Lightpipe®, S/PDIF® and other protocols.

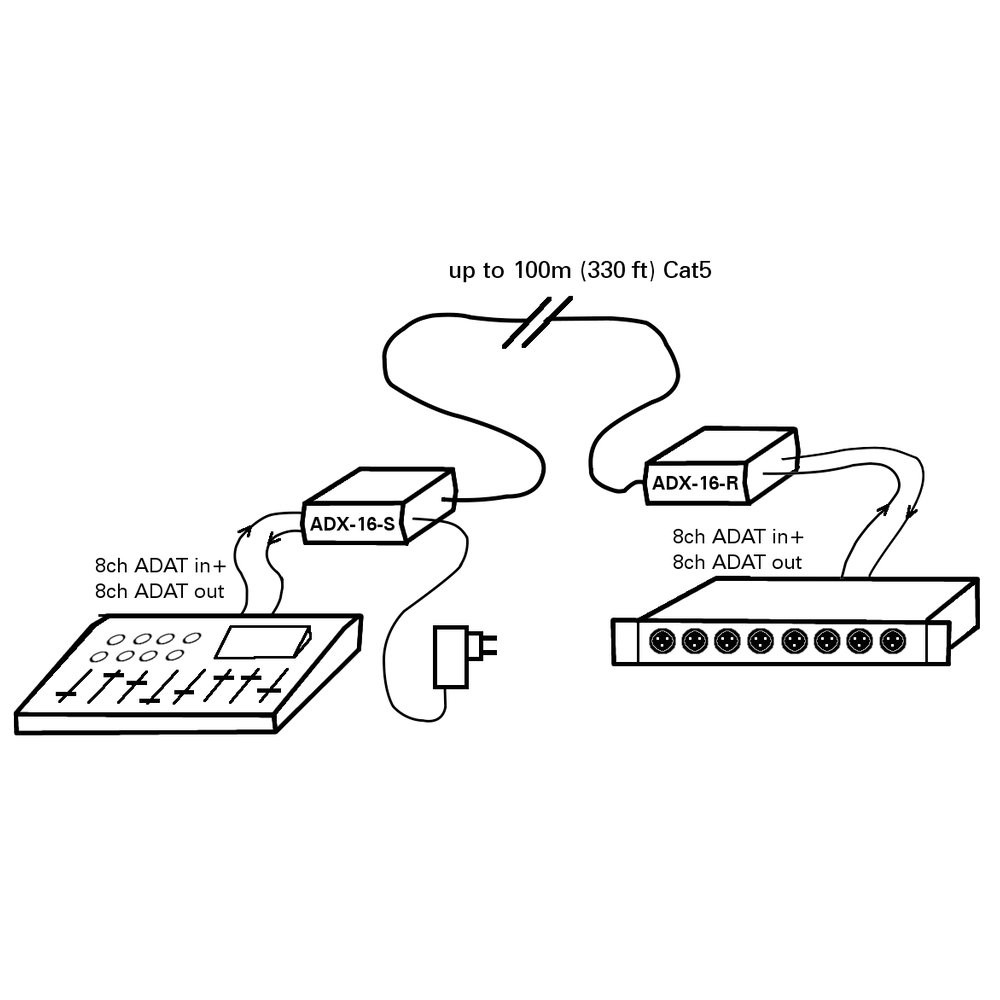

The kit enables you to run two TOSLINK connections (one in each direction) over a single Cat5 cable and up to 100m / 330ft. in length, opening up a range of new possibilities (e.g. for audio distribution within a building).


Applications

  • Economic digital 8x8 snake with lowest latency
  • Recording of 8 channels from a remote location, with master clock transmitted to the remote unit
  • Interconnection of ADAT enabled equipment (e.g. DAWs and digital mixers)
  • If analog conversion is needed at one or both ends, we recommend using 8-channel ADC/DACs (e.g. Behringer ADA8000 or Focusrite Octopre mkII Dynamics) on the respective end(s)

Features

  • Bidirectional transmission over up to 100m/330ft. using a single Cat5 cable
  • Reliable, lossless, true bit-transparent transmission
  • Near-zero latency (< 1µs)
  • Compatible with any data format which can be sent over TOSLINK (ADAT, SPDIF, AC-3/Dolby Digital, DTS ...)
  • Quality product "Made in Switzerland"

Specifications

Parameter

Value
Maximum length of Cat5 cable 100m / 330 ft
Supported data formats ADAT (8ch@48kHz, 4ch@96kHz/SMUX, 2ch@192kHz/QMUX per direction)
S/PDIF (up to 2ch@96kHz per direction)
Dolby Digital 5.1 (AC-3)
DTS
all other formats capable of TOSLINK transmission (NRZ encoding)
Note: Both directions operate independent from each other
Latency added to the link < 1μs when run over 100m
Power supply 12V DC, 150mA. Plug: OD=5.5mm, ID=2.5mm, center positive
Operating temperature 0...50°C
Storage temperature 0...70°C, non-condensing
Dimensions L x D x H: 66.5 x 66.5 x 28mm (each unit)
Weight 60g (each box)
