Description


SERIES
Multi-format. Highly Affordable. Most flexible.
Format Boards (AUX)
Insert and switch any AUX board in every main FLX unit
and create the converter of your choice.

AUX-TDM

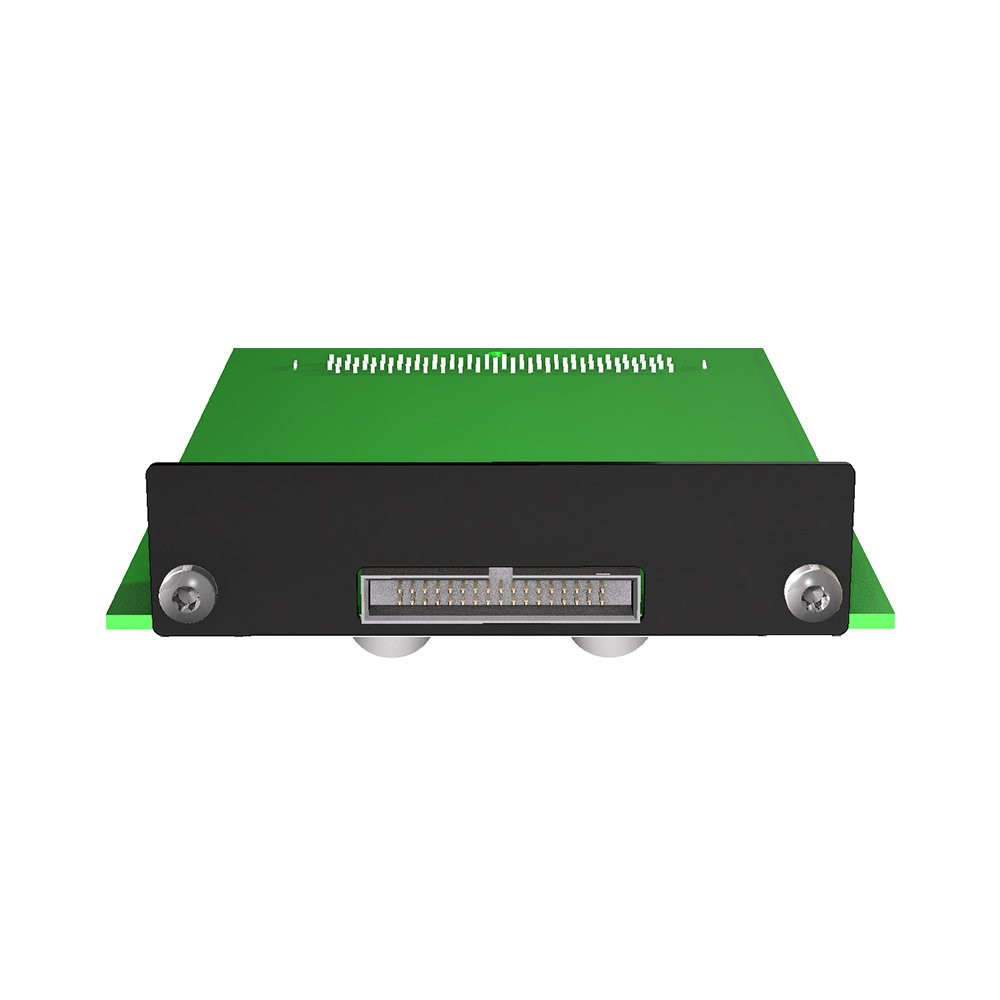

The Appsys Flexiverter AUX-TDM card provides up to 64 x 64 channels Time Division Multiplexing (TDM) interface on a 3.3V LVCMOS I/O.
It supports four lines of data plus BCLK/LRCLK/MCLK/MUTE outputs, and four lines of data plus BCLK/LRCLK/MUTE inputs.
The AUX-TDM can be fitted into any Flexiverter (FLX) for the following purposes:
- To use the FLX as standalone converter between the built-in format and this extension card
- To add extra output splits to existing FLX devices by "tapping" channels of another conversion
- To add additional channels/protocols to the FLX when used in a 'double-Flexiverter' or 'Flexiverter+Multiverter' configurations.
For a detailed description of possible configurations, please refer to the manual of your base FLX device.

Box Contents
• 1 x AUX-TDM
• 1 x slot cover plate
• 1 x 34-pin, 0.635mm pitch ribbon cable (length: 30cm/1ft).
• Paper manual
Specification
Parameter | Value |
---|---|
Dimensions | 118 x 80mm (W x H) |
Weight | 40g |
Operating temperature | 0..+55°C, non-condensing |
Storage temperature | -40..+85°C, non-condensing |
Inputs |
Up to 64 channels TDM16 (4 lines with 16ch each) Up to 32 channels TDM8 (4 lines with 8ch each) Up to 16 channels TDM4 (4 lines with 4ch each) Up to 8 channels stereo (4 lines with 2ch each) LRCLK (left/right clock). Polarity: frame starts with falling edge BCLK (bitclock): Data is sampled on rising edge |
Outputs |
Up to 64 channels TDM16 (4 lines with 16ch each) Up to 32 channels TDM8 (4 lines with 8ch each) Up to 16 channels TDM4 (4 lines with 4ch each) Up to 8 channels stereo (4 lines with 2ch each) LRCLK (left/right clock). frame starts with falling edge BCLK (bitclock): Data changes on falling edge MCLK: 256*LRCLK |
Cable lengths | 30cm / 1 ft. maximum |
Sample rates | 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz |
Latency | Interface <> Flexiverter internal: 2 samples |
