Calrec AD5840
Calrec Hydra2 AD5840
4 x Mic/Line In (XLR)
Description

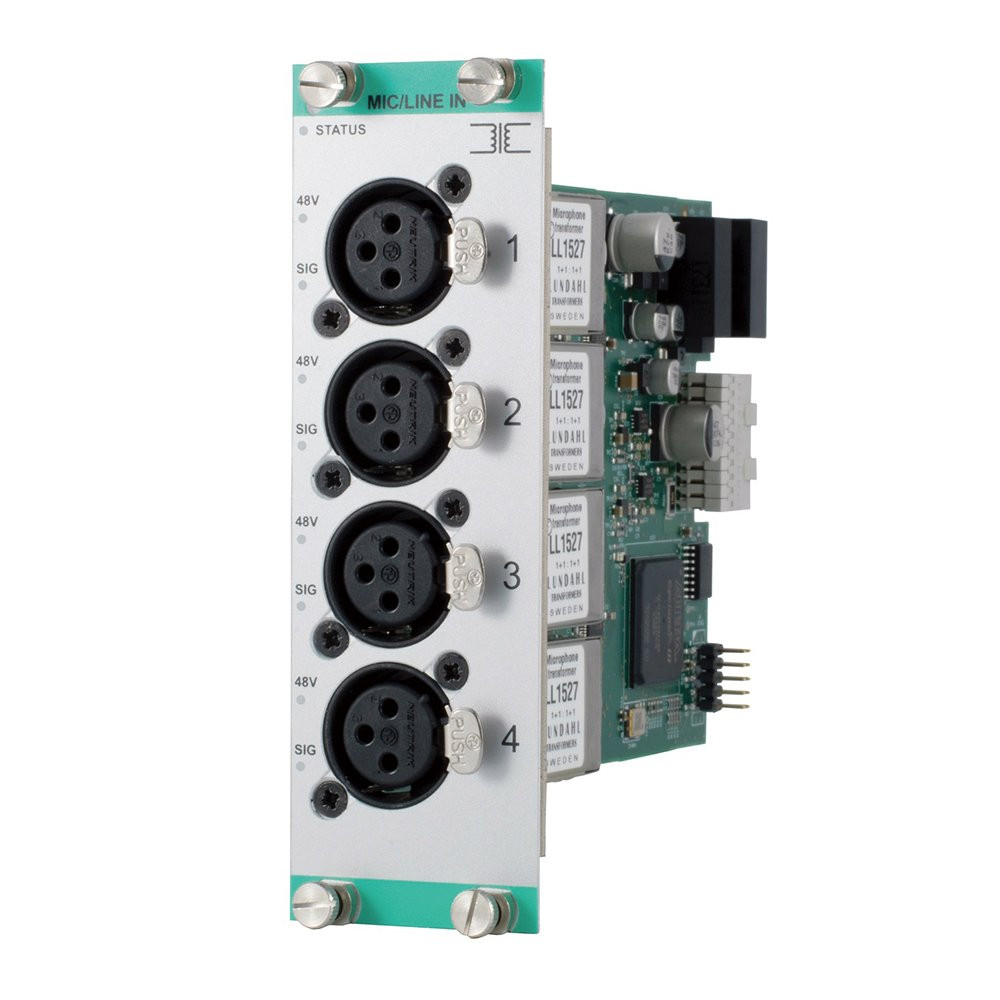

Calrec Hydra2 AD5840
4 x Mic/Line In (XLR)
The AD5840 provides 4 balanced mic / line level analogue inputs to the Hydra2 network in a 2 slot-wide module. The audio interface is via 4 female XLR connectors.
Front panel LEDs indicate audio signal presence for each input, lighting green for signals above -60dBFS.
Each input also has front panel LED indicators which light red when 48 V phantom power is on.
The standard modular I/O status LED flashes green once the card has booted and lights solid green once a connection between the card and the Hydra2 interface has been established.
Call 01727 821 870 for more information.

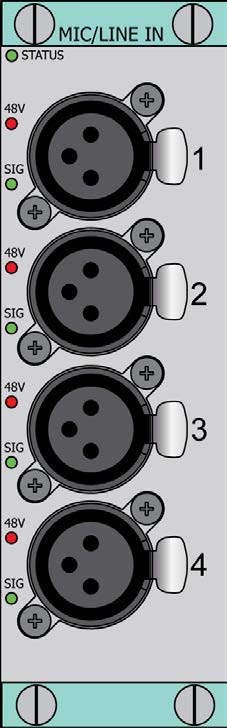

Front Panel

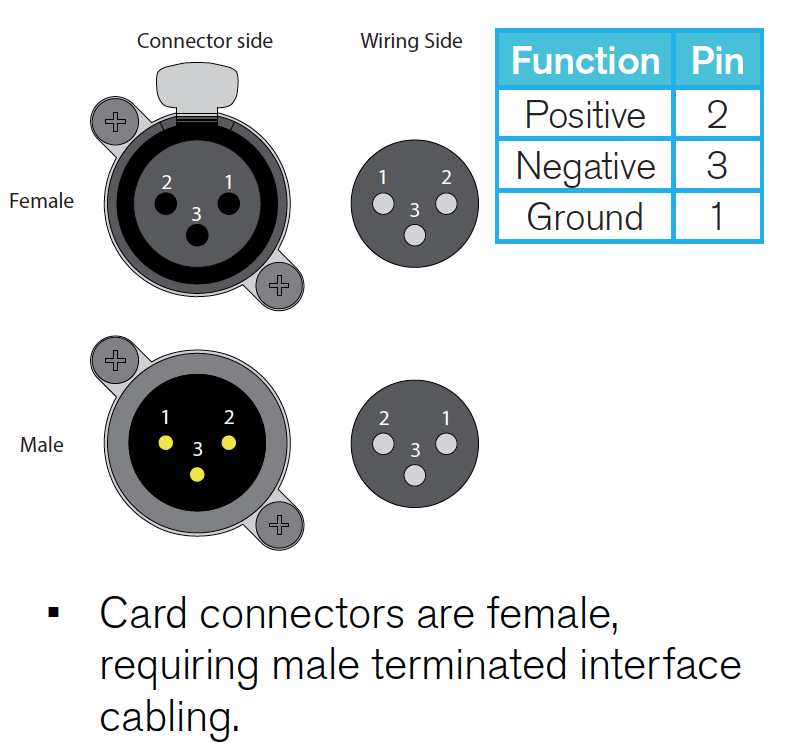

Wiring Information
Specifications
Calrec Hydra2 AD5840
|
Format |
Analogue |
|
Type |
Balanced Mic/Line Level |
|
Inputs |
4 |
|
Outputs |
0 |
|
Input Gain Range |
-18 dB to +78 dB, remotely controlled per |
|
Phantom Power |
48 V remotely switchable per input |
|
Input Impedance |
2 kΩ @ Mic Level / 10 kΩ @ Line level (auto-switching) |
|
ADC |
24 bit |
