Calrec AD6057
Calrec Hydra2 AD6057
8 x Analogue Mic/Line Level Inputs (D-Type)
Description
Calrec Hydra2 AD6057
8 x Analogue Mic/Line Level Inputs (D-Type)

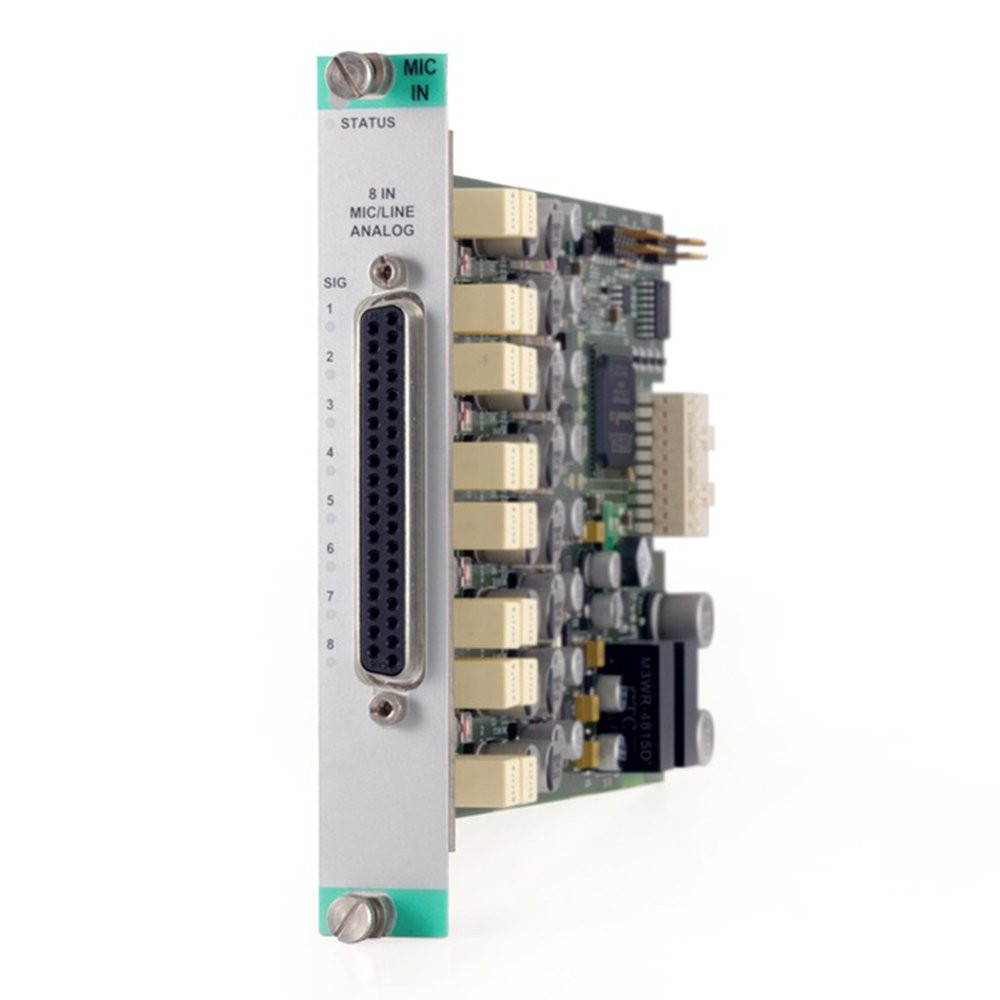

The AD6057 provides 8 balanced mic / line level analogue inputs to the Hydra2 network in a 1 slot-wide module. The audio interface is via a 37 pin female D-Type connector.
Front panel LEDs indicate audio signal presence for each input, lighting green for signals above -60dBFS.
The standard modular I/O status LED flashes green once the card has booted and lights solid green once a connection between the card and the Hydra2 interface has been established.
Call 01727 821 870 for more information.

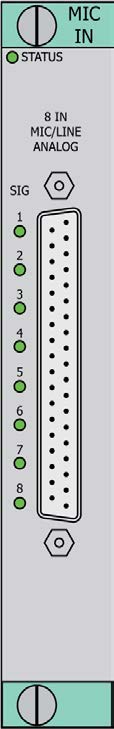

Front Panel

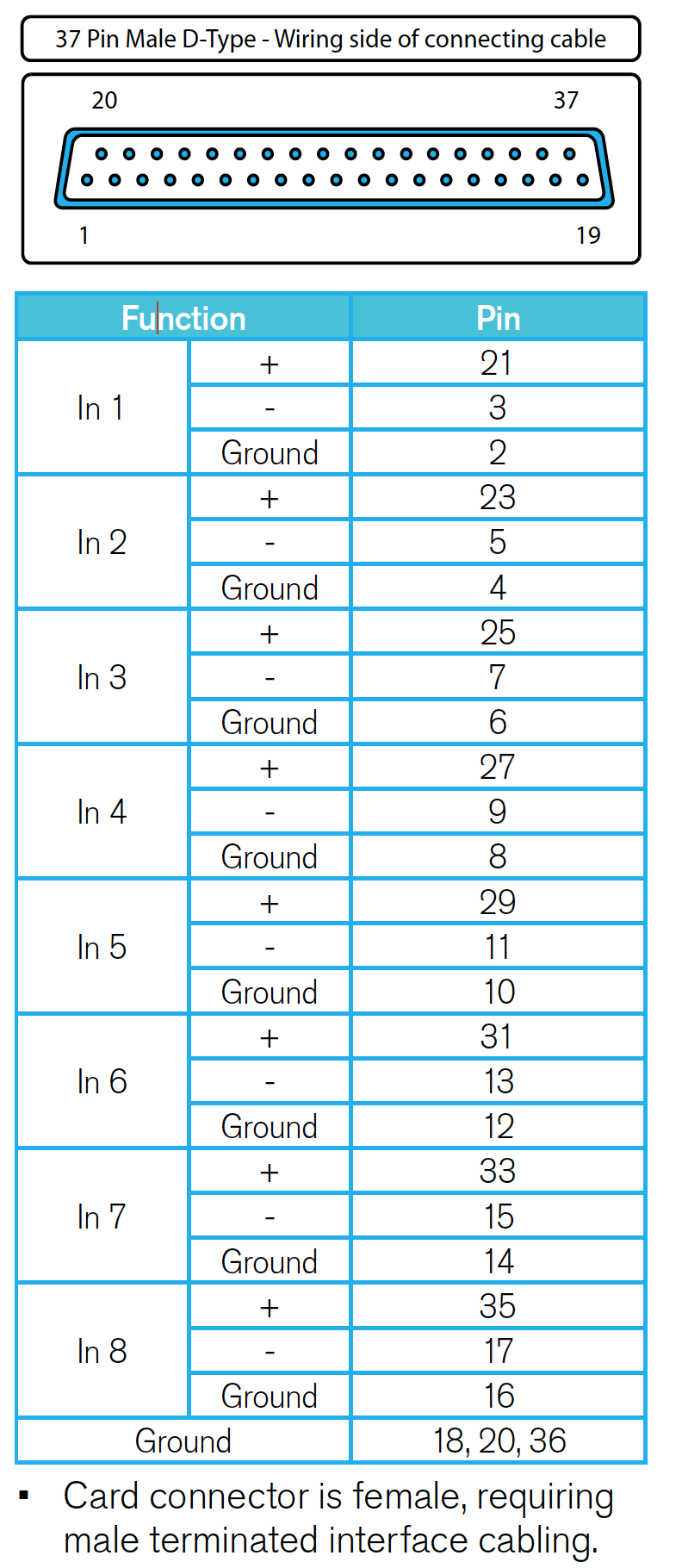

Wiring Information
(click to enlarge)
Specifications
Calrec Hydra2 AD6057
|
Format |
Analogue |
|
Type |
Balanced Mic/Line Level |
|
Inputs |
8 |
|
Outputs |
N/A |
|
Input Gain Range |
-18dB to +78dB, remotely controlled per input |
|
Phantom Power |
48V remotely switchable per input |
|
Input Impedance |
5 kΩ |
|
ADC |
24 bit |
