Calrec AD6365

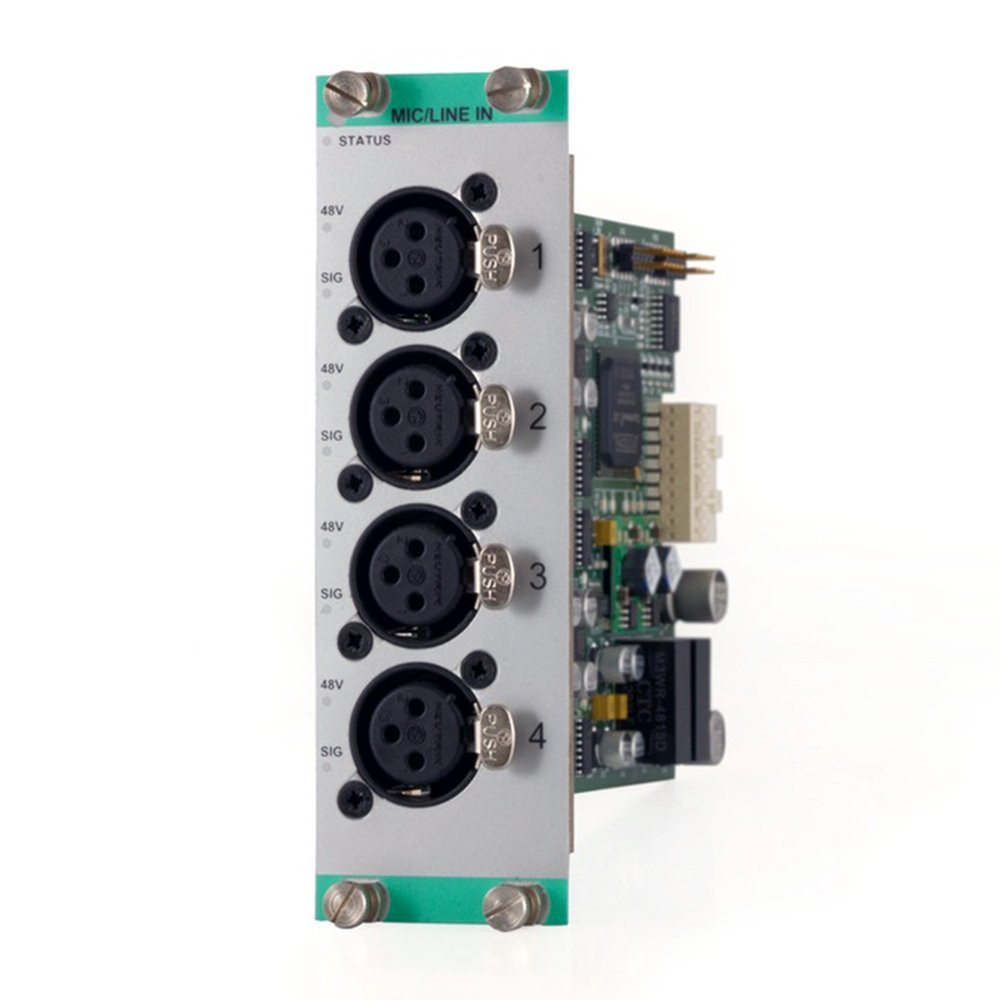

Calrec Hydra2 AD6365

4 x Transformer Mic/Line In (XLR)

The AD6365 provides 4 transformer isolated balanced mic / line level analogue inputs to the Hydra2network in a 2 slot-wide module. The audio interface is via 4 female XLR connectors.

Transformer based I/O has the benefits of being isolated, and therefore protecting hardware from damage due to adverse currents, reducing susceptibility to noise from poor earthing, and their ability to be fed directly with either a balanced or an unbalanced signal.

Transformer based circuits provide high performance, with many audiophiles and music production users preferring the “warm" sound brought by transformers.

Front panel LEDs indicate audio signal presence for each input, lighting green for signals above -60dBFS.

Each input also has front panel LED indicators which light red when 48V phantom power is on.

The standard modular I/O status LED flashes green once the card has booted and lights solid green once a connection between the card and the Hydra2 interface has been established.

Call 01727 821 870 for more information.

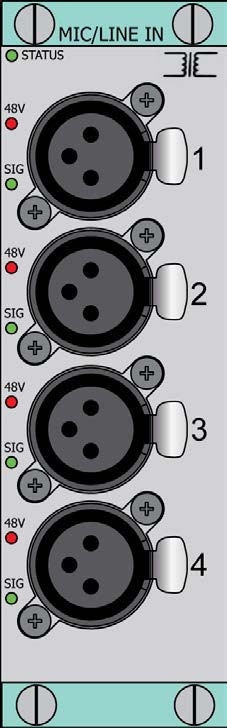

Front Panel

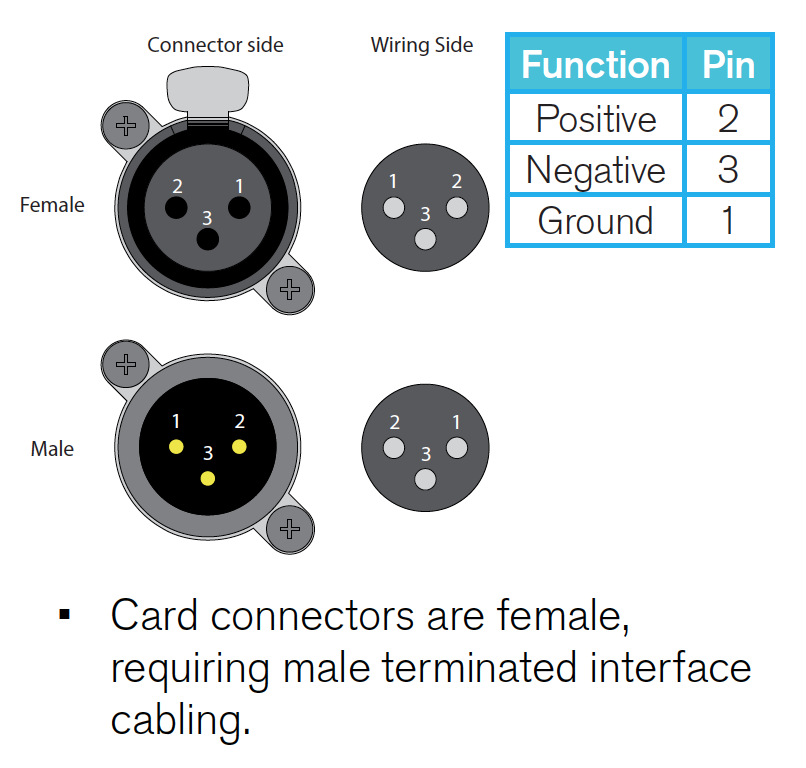

Wiring Information
