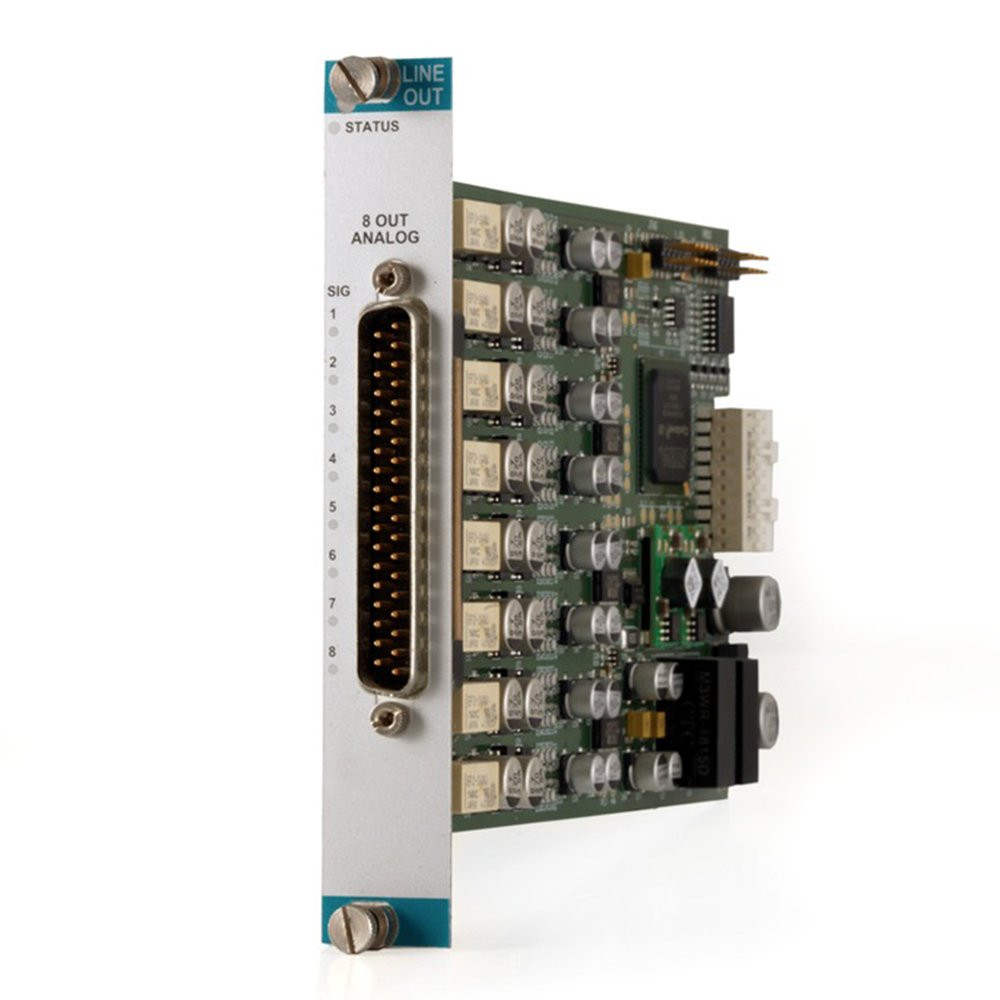

Calrec DA5839

Calrec Hydra2 DA5839

8 x Analogue Line Out (D-Type)

The DA5839 provides 8 balanced analogue line level outputs from the Hydra2 network in a 1 slot-wide module.

The audio interface is via a 37 pin male D-Type connector.

Front panel LEDs indicate audio signal presence for each output, lighting green for signals above -60dBFS.

The standard modular I/O status LED flashes green once the card has booted and lights solid green once a connection between the card and the Hydra2 interface has been established.

Call 01727 821 870 for more information.

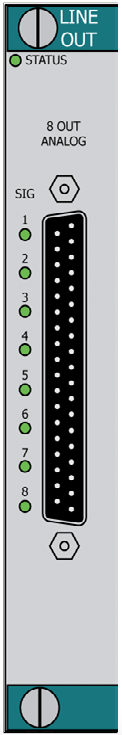

Front Panel

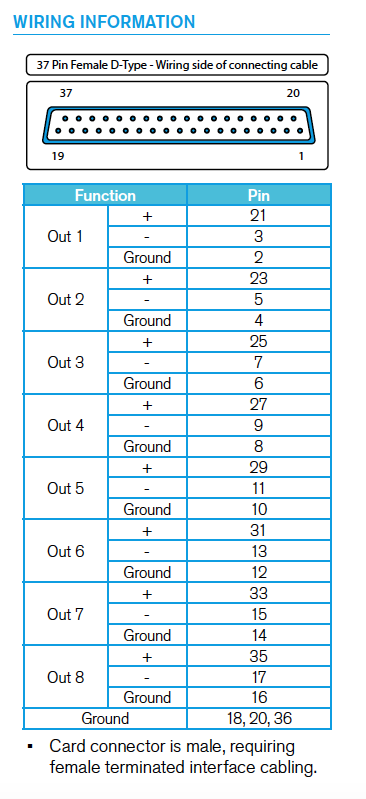

Wiring Information

(click to enlarge)
