Calrec DA5867

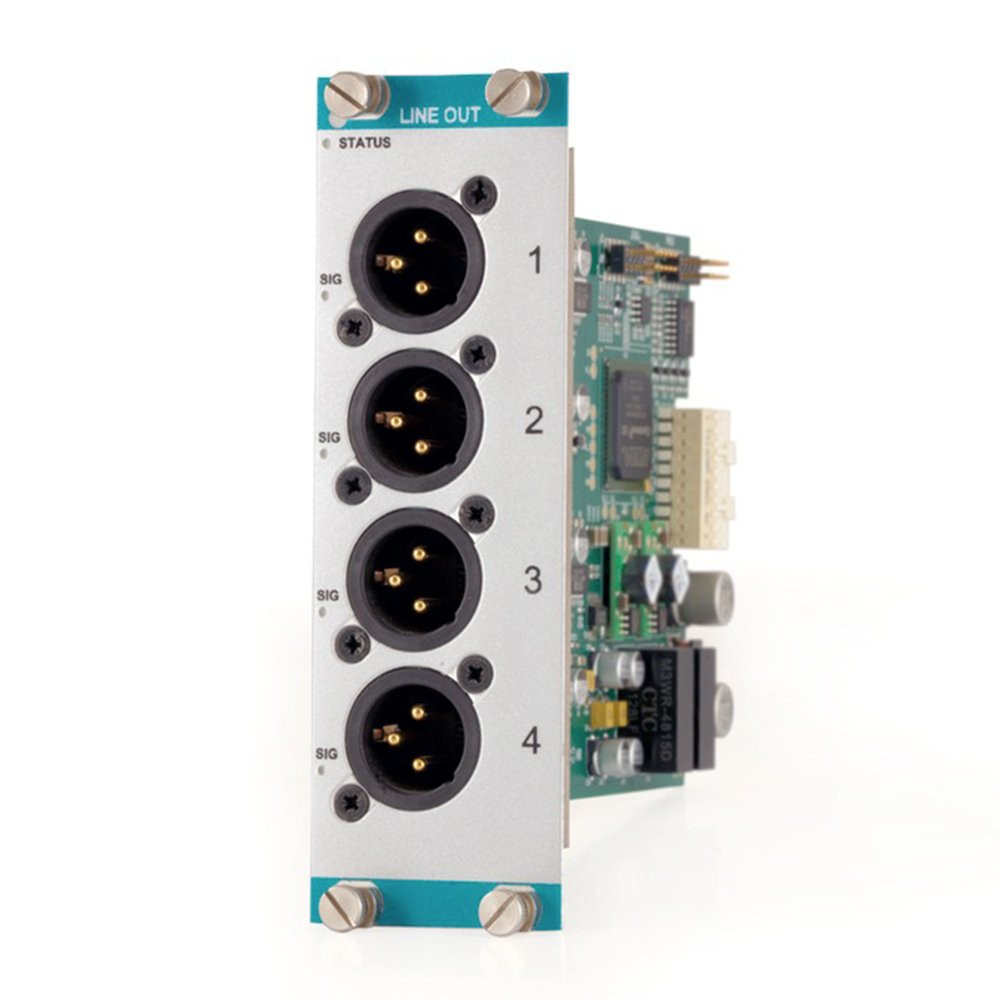

Calrec Hydra2 DA5867

4 x Line Out (XLR)

The DA5867 provides 4 balanced analogue line level outputs fromthe Hydra2 network in a 2 slot-wide module. The audio interface is via the 4 male XLR connectors.

Front panel LEDs indicate audio signal presence for each output, lighting green for signals above -60 dBFS.

The standard modular I/O status LED flashes green once the card has booted and lights solid green once a connection between the card and the Hydra2 interface has been established.

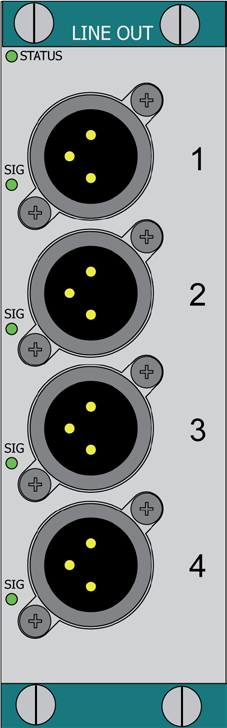

Front Panel

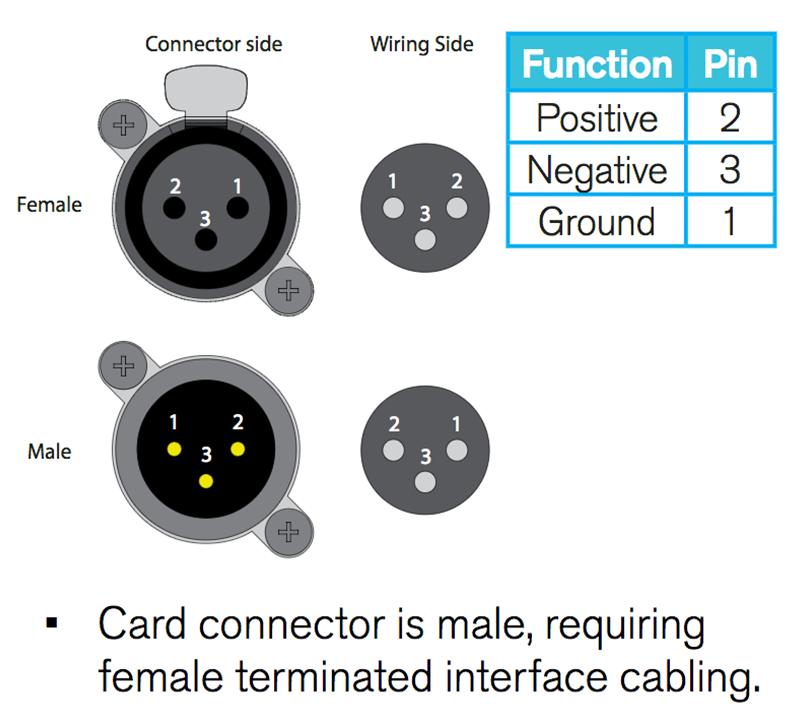

Wiring Information
