Calrec JB5860 Digital I/O
Calrec JB5860 Digital I/O
4 x Digital AES Input (BNC)
Description

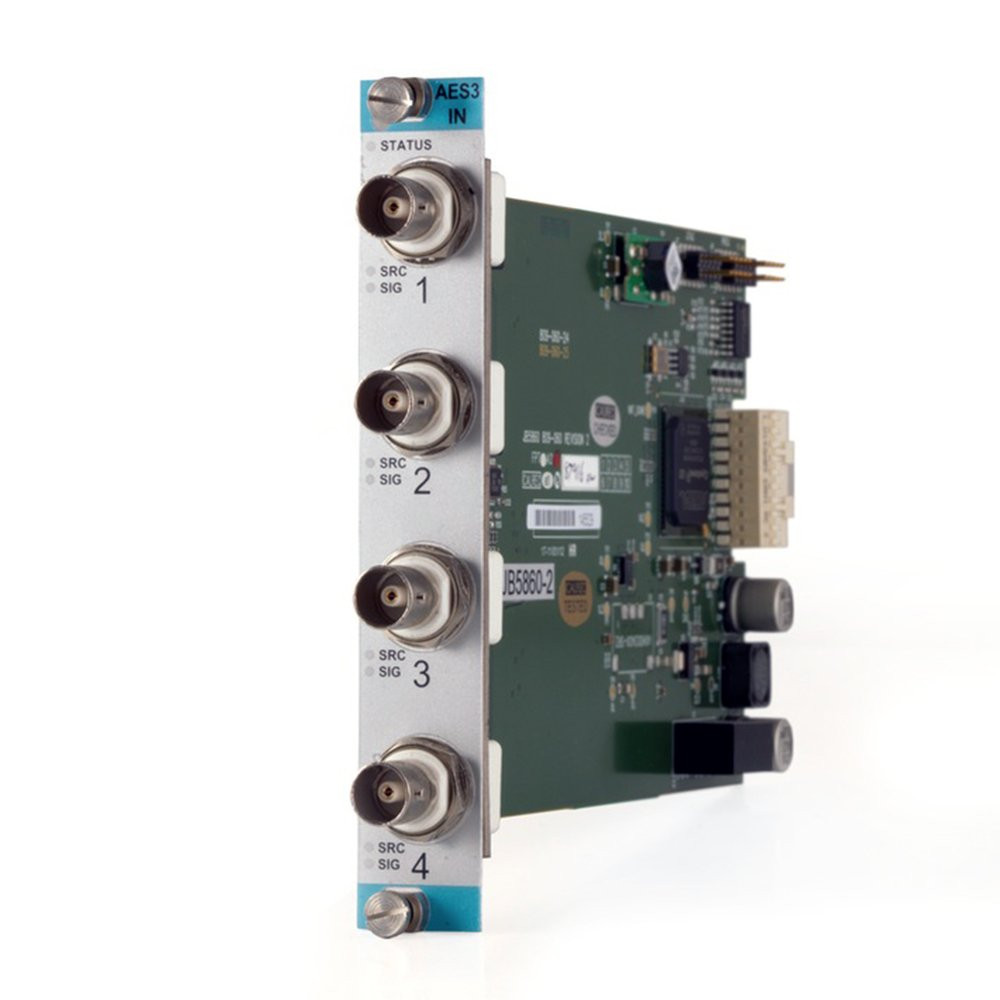

Calrec Hydra2 JB5860
The JB5860 provides 4 unbalanced digital AES3 inputs to the Hydra2 network in a 1 slot-wide module. The audio interface is via BNC connectors.
Front panel LEDs indicate AES signal presence for each input, lighting green when receiving a valid AES carrier signal (irrespective of audio content).
Each input also has an “SRC" LED indicator which lights yellow when the sample rate convertor is active.
The standard modular I/O status LED flashes green once the card has booted and lights solid green once a connection between the card and the Hydra2 interface has been established.
Call 01727 821 870 for more information.

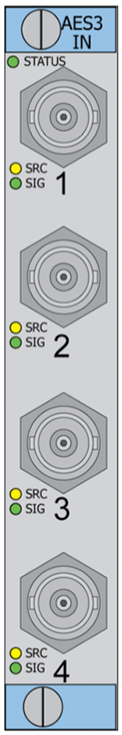

Front Panel
Specifications
Calrec Hydra2 JB5860
| Format | Digital |
| Type | AES3 (75 Ω unbalanced) |
| Input Range | 0.3V-1.2 V Pk-Pk |
| Audio Connector | BNC |
| Inputs | 4 |
| SRC | 24 bit, remotely switchable per input. |
