Calrec Hydra2 JD5842
8 In, 8 Out Digital AES (D-Type)

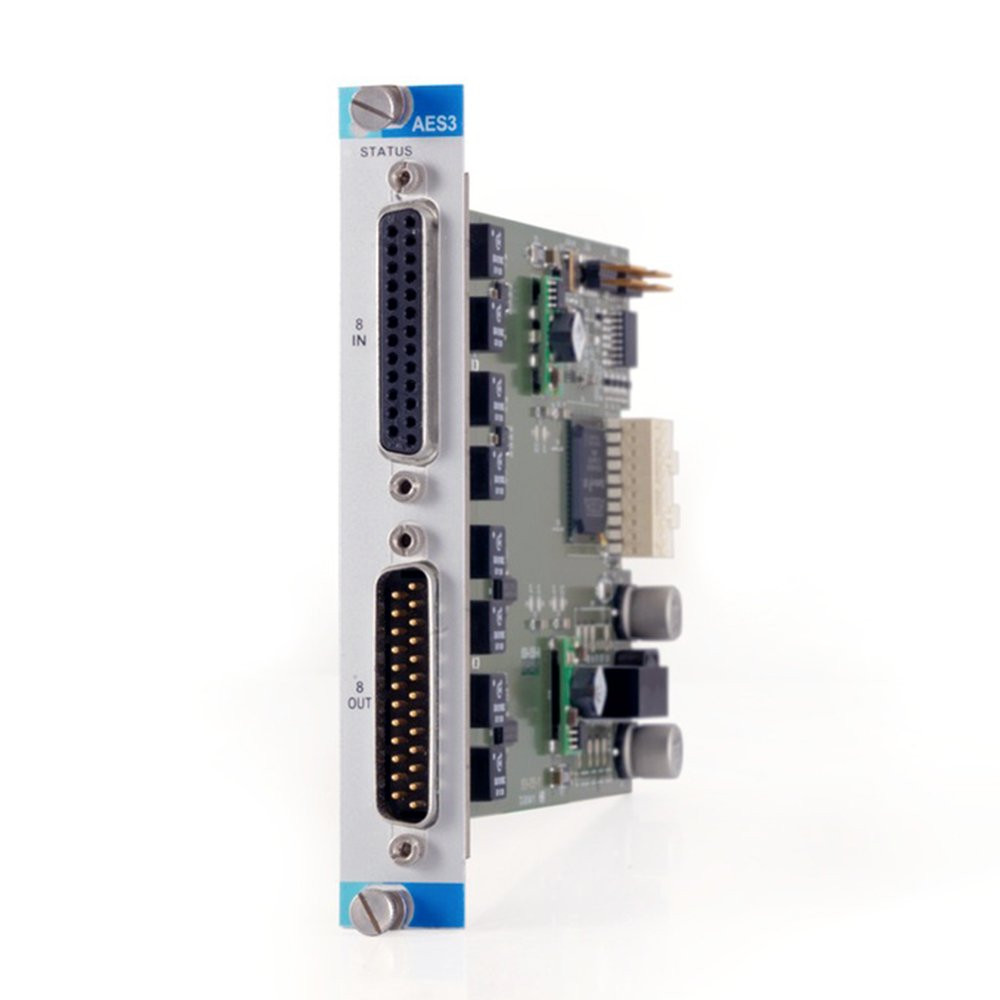

The JD5842 balanced digital AES3 card provides 8 inputs and 8 outputs to / from the Hydra2 network in a 1 slot-wide module.
Audio interfacing is via 25 pin D-Type connectors, female for inputs, male for outputs.
The standard modular I/O status LED flashes green once the card has booted and lights solid green once a connection between the card and the Hydra2 interface has been established.
Call 01727 821 870 for more information.

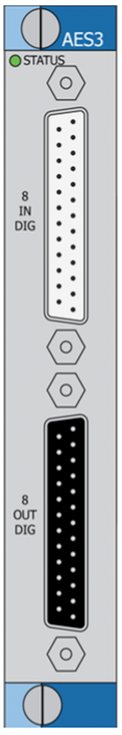

Front Panel

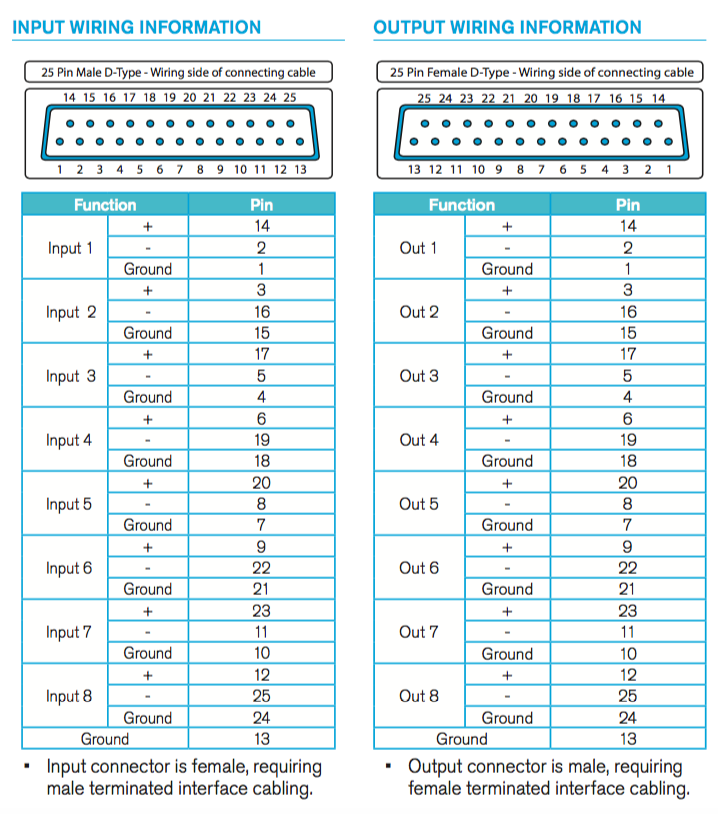

Wiring Information
(Click to enlarge)
Specifications
Calrec Hydra2 JD5842
| Format | Digital |
| Type | AES3 (110 Ω balanced) |
| Input Range | 0.2 V - 7.0 V Pk-Pk |
| Output Voltage | 3.5 V nominal into 110 Ω |
| Audio Connectors | Inputs - 25 pin female D-Type Outputs - 25 pin Male D-Type |
| Inputs | 8 |
| Outputs | 8 |
| SRC | 24 bit, remotely switchable per input. |
