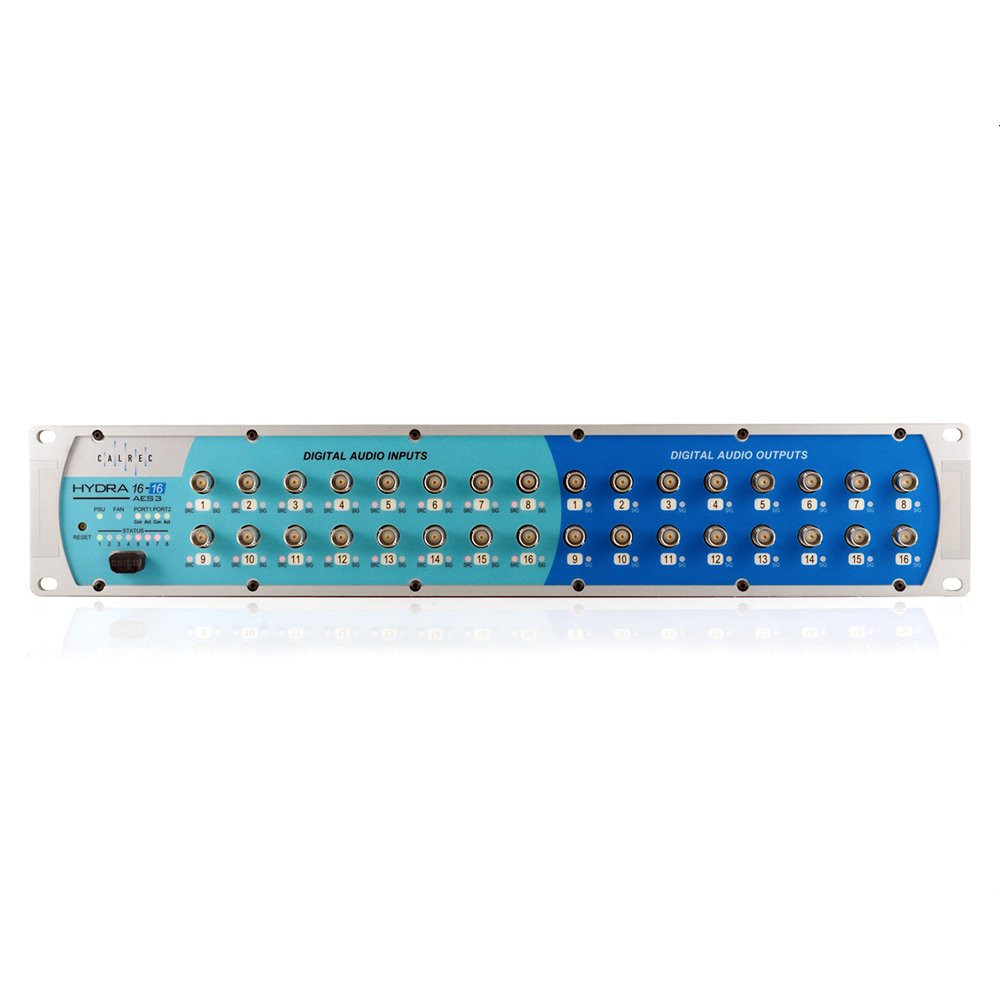

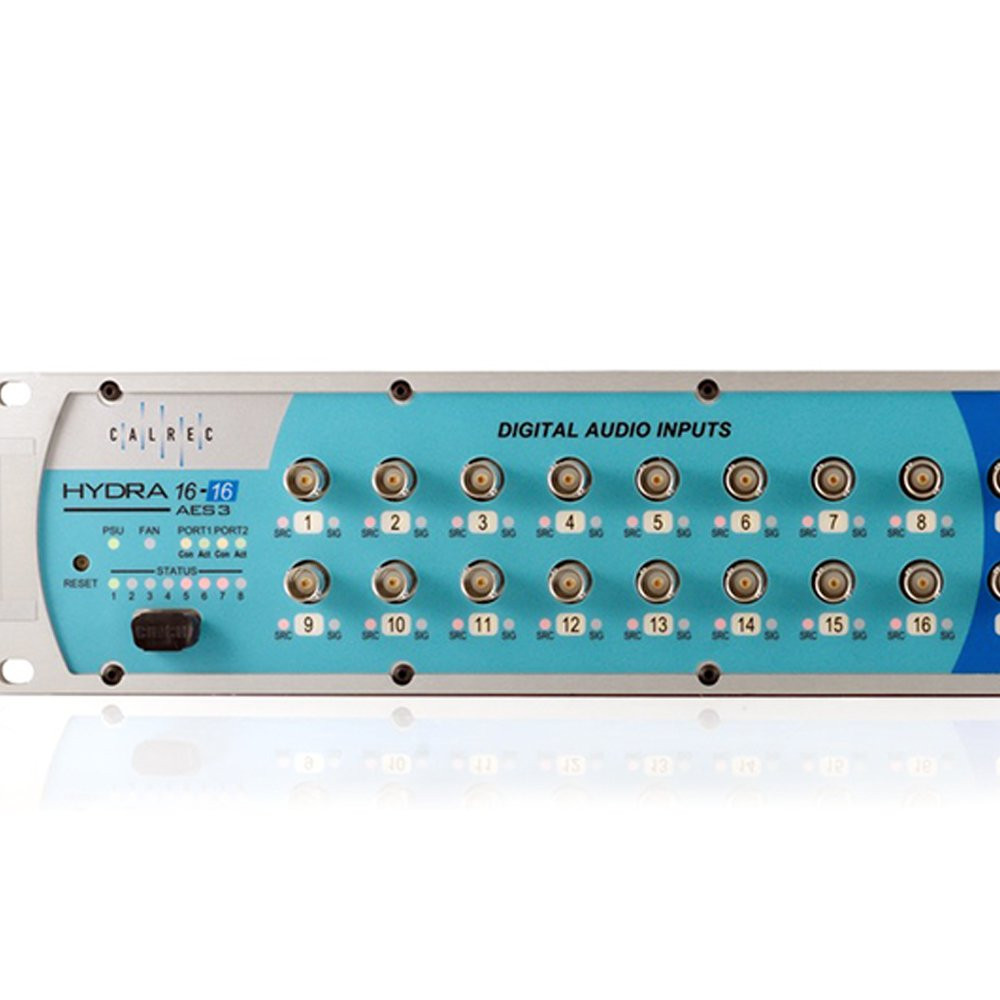

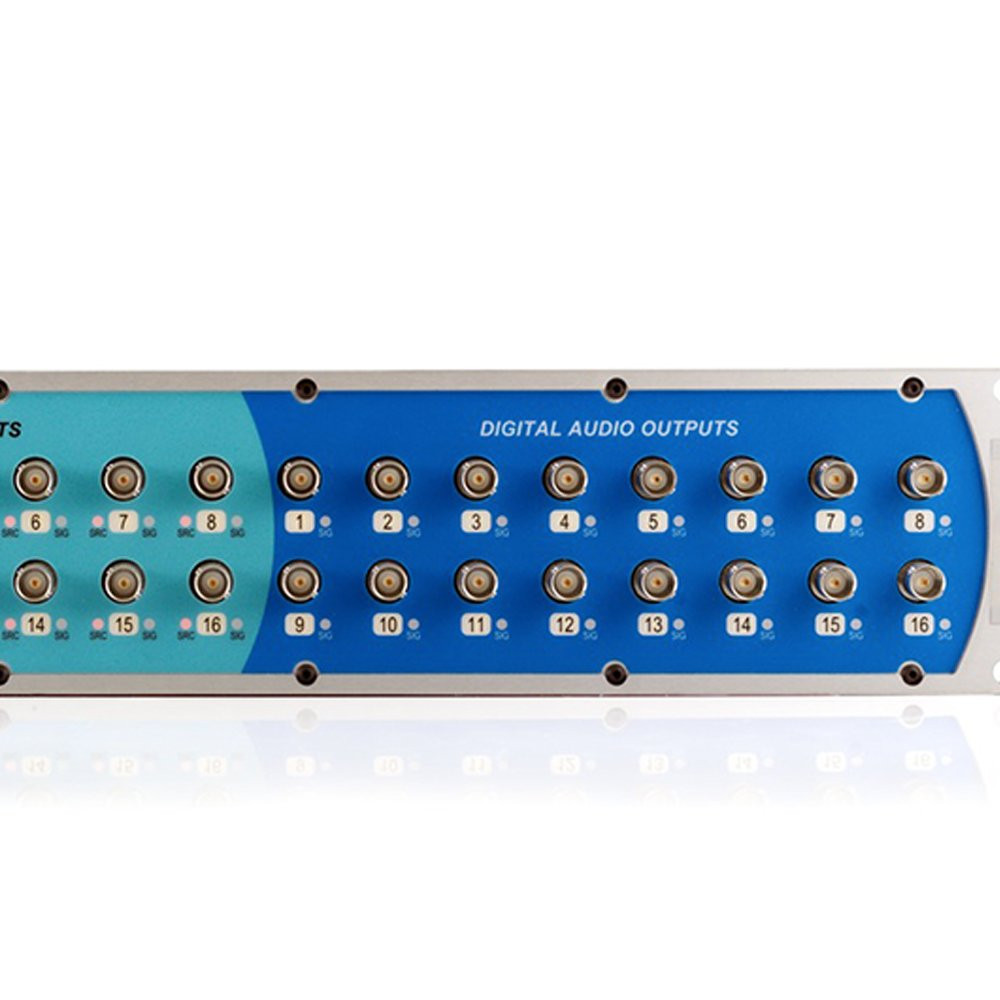

Calrec Hydra2 JB5606

Digital AES3 16 In/16 Out – BNC

Please note: a version of this product which connects via AES67 is also available – contact us for pricing.

Description

Calrec Hydra2 JB5606

A range of Calrec fixed format digital AES3 I/O units are available offering various quantities of inputs and outputs via unbalanced 75 Ω BNC connections.

Balanced 110 Ω AES I/O is an option for modular I/O boxes only.

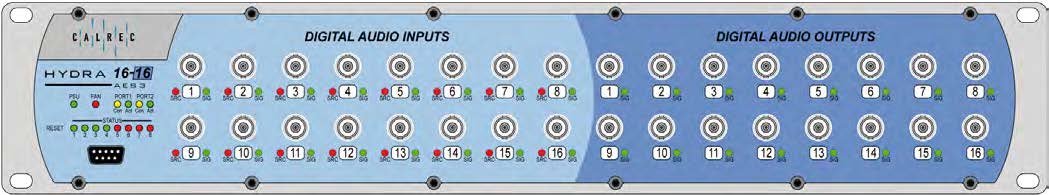

Calrec Hydra2 JB5606 - Front-Panel-View - Synthax Audio UK

(click to enlarge)

Sample rate convertors

SRCs can be switched in on each input remotely by any control surface on the Hydra2 network which has been granted access.

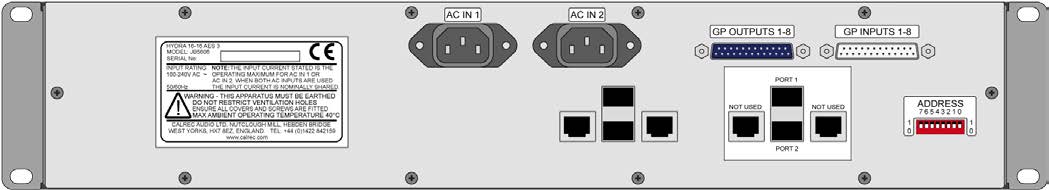

Calrec Hydra2 JB5606 - Rear-Panel-View - Synthax Audio UK

(click to enlarge)

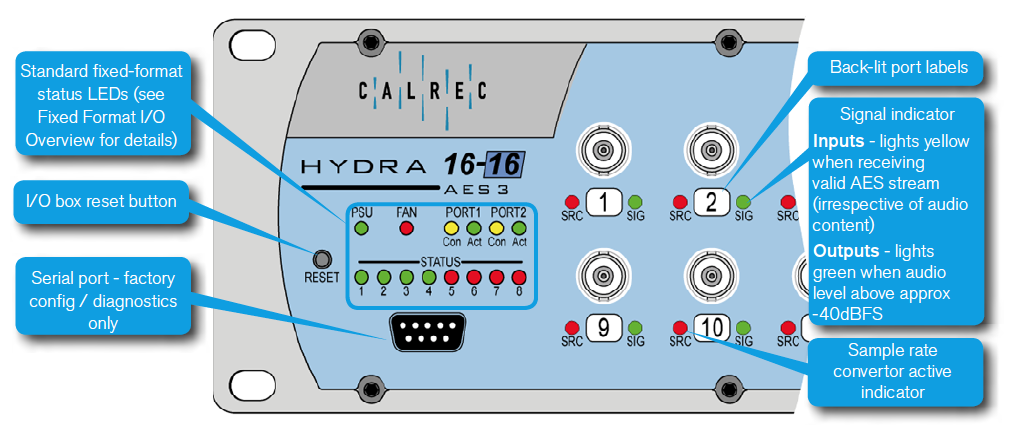

Calrec - Fixed Format Digital IO - Synthax Audio UK

(click to enlarge)

Specifications

Calrec Fixed Format I/O Specifications

Format

Digital

Type

AES3 - 24 bit, Unbalanced.

Impedance

75 Ω

Connector Type

BNC

Input Signal Range

0.3-1.2 V Pk-Pk

Output Signal

1 V Pk-Pk (nominal)

Calrec Hydra2 JB5606 Specifications

Format

Digital AES3 unbalanced

Inputs

16

Outputs

16

Audio Connectors

BNC

GPIO compatible

Yes

Height

2U

Width

19' rackmount (483 mm)

Depth

9' (230 mm)

Depth inc rear mating connectors

12' (300 mm)

Approx Weight

8.6 lbs (3.9 kg)

Input Power

100-240 V AC, 0.24-0.13 A RMS, 50/60 Hz

Acoustic Noise

26 dB-SPL A-Weighted, 1 m from source
