DirectOut SPLIT.CONVERTER (Discontinued)
MADI format converter
and signal splitter
This product has been discontinued - please contact us for an alternative solution.
- Simultaneous conversion between optical and coaxial MADI signals
- 4x MADI I/O ports with choice of optical and BNC MADI connections
- Supports all common sample rates (up to 192 kHz) and MADI formats (48k/96k frame 56/64 channels)
- Independent I/P selection for each O/P port
- Dual redundant power supplies for reliability
Description
DirectOut SPLIT.CONVERTER

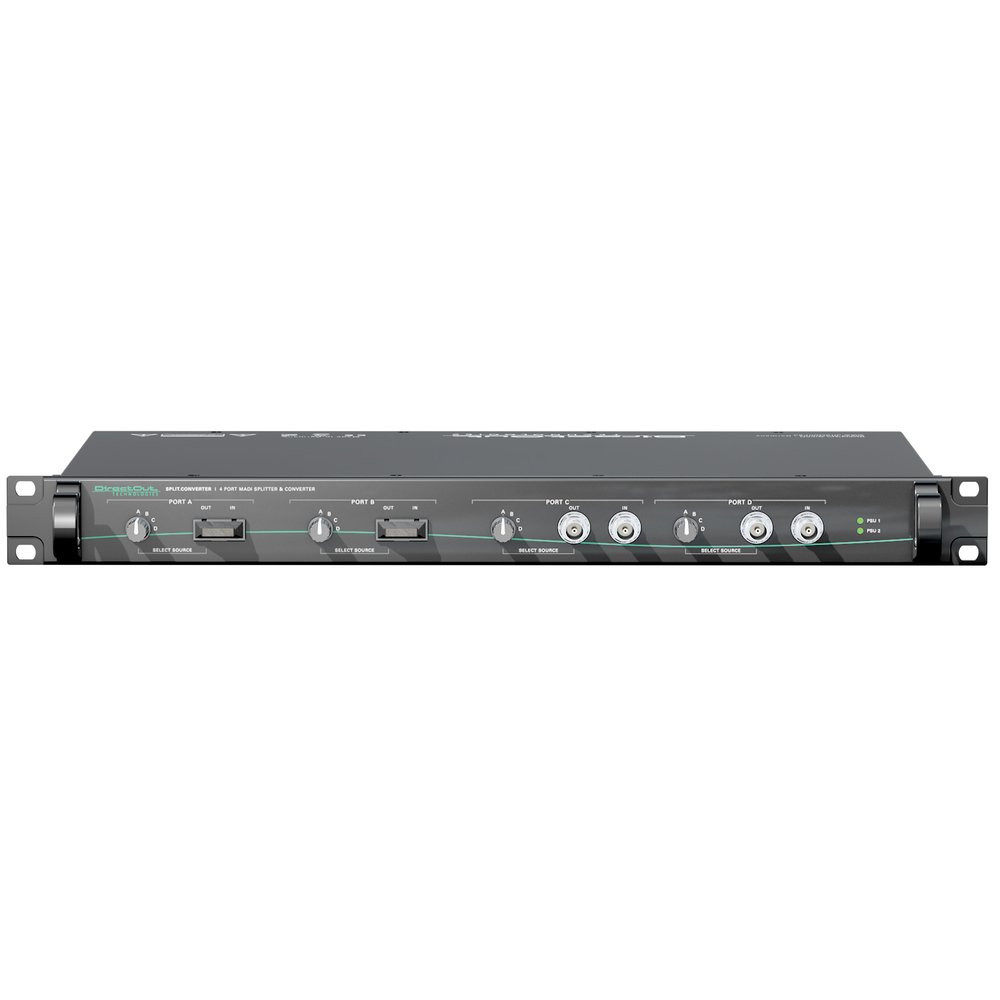

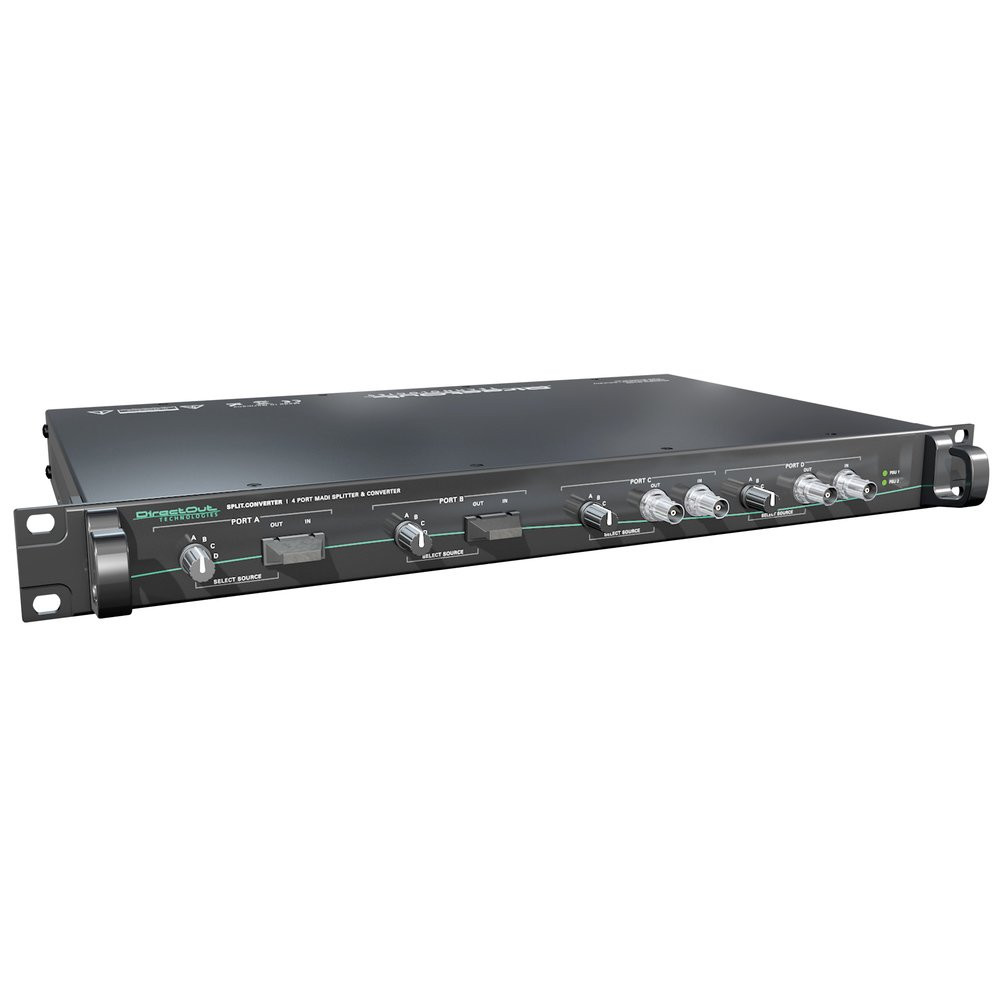

The DirectOut SPLIT.CONVERTER is a combined MADI format converter and signal splitter. It allows for instantaneous conversion of optical MADI signals into coaxial signals and vice versa. Using the straightforward source selector on the front panel, each MADI output port can be fed by any input port.
All ports are fully independent from each other allowing the SPLIT.CONVERTER to route and convert up to four asynchronous MADI streams simultaneously.
Two I/O configurations are available:
- 2 x coaxial (BNC) & 2 x optical SC (single-mode or multi-mode)
- 4 x optical SC (single-mode or multi-mode)
Bit transparent
The routing is bit transparent and works without delay. All common
sample rates (up to 192 kHz) and MADI formats (48k/96k frame, 56/64
channels) are supported. This means that even proprietary adaptions of
MADI (AES10) will pass through the unit in their native state.
Applications
- Switching converter units between control rooms
- Redundancy splitter/switch for recording or live sound applications
- Splitter for live sound application (FoH, monitoring, recording)
Safe operation

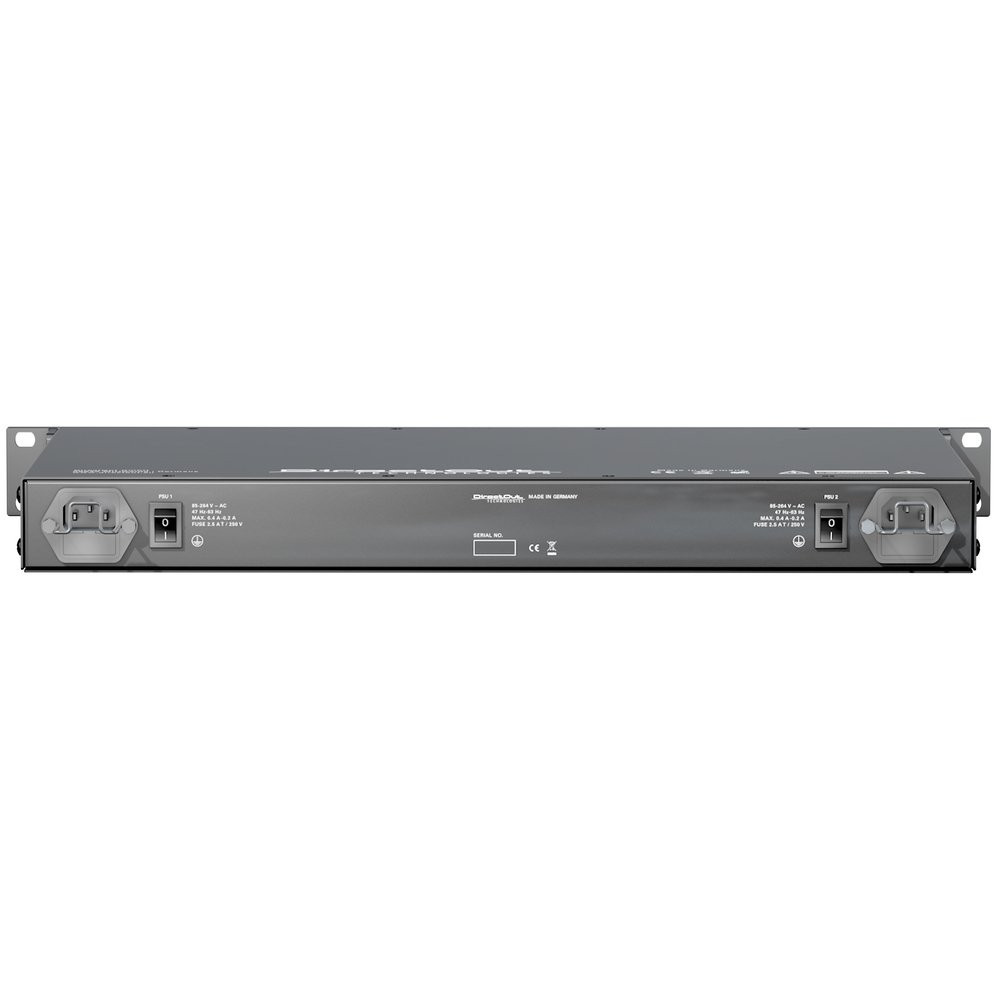

Thanks to two phase-redundant power supplies with separate IEC inlets and AC power switches on the rear panel the device offers the highest reliability.
Specifications
Interfaces | |
MADI ports (I/O): | 2 x SC-Socket multi-mode 2 x coaxial BNC, 75 Ω or 4 x SC-Socket multi-mode |
Global | |
Power supply: | 2 x 84 V to 264 V AC / 47 Hz to 63 Hz / safety class 1, phaseredundant |
Power Consumption: | 25 W |
Dimensions: | Width 19'' (483 mm) Height 1 RU (44.5 mm) Depth 10'' (254 mm) |
Weight: | about 3 kg |
Device variants | |
Single-mode: | MADI port: SC-Socket single-mode |
