DirectOut EXBOX.SG
MADI to Waves SoundGrid
Bridge and Router
Please note: the price displayed is the current list price.
Contact us for the best deal!
- 3x MADI I/O - 1x SC fibre (MM), 1x coaxial & 1x empty SFP slot BNC, SC fibre & SFP cage
- 64ch SoundGrid For SFP transceivers
- 256 x 256 Routing matrix
- 4-port network switch for direct computer connection
- Supports 56ch/64ch MADI; 48k/96k Frame and S/MUX
- Dual DC power inputs for redundant operation (1 x PSU included). EXBOX.RAV can also be powered via PoE
- 1U high, 1/3-rack width
Optional:
- Rackmount
- Second Power Supply / PSU
If you have any questions or need any further information, please feel free to contact us.
Description

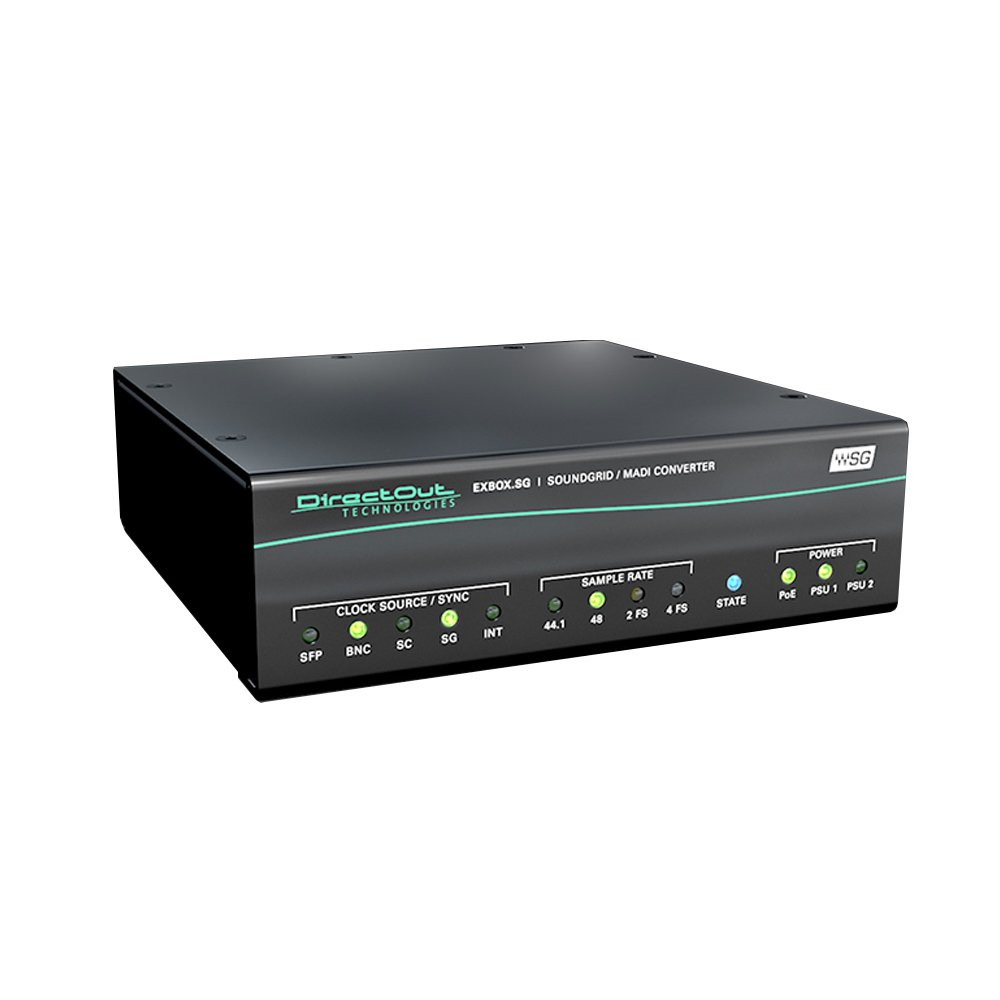

DirectOut EXBOX.SG
The DirectOut EXBOX.SG is a SoundGrid / MADI converter linking Waves' audio networking technology SoundGrid and MADI (AES10).
Equipped with three MADI ports and four network ports, the EXBOX.SG offers low latency conversion of 128 audio channels between SoundGrid and MADI.
The same size as the other devices in DirectOut's popular EXBOX series (1/3 of 19’’) - and combined with the rock-solid housing and redundant power supplies - the EXBOX.SG is a perfect connectivity tool for mixing in OB vans, live sound environments, and recording studio applications integrating numerous Waves and third party plugins.
Overview

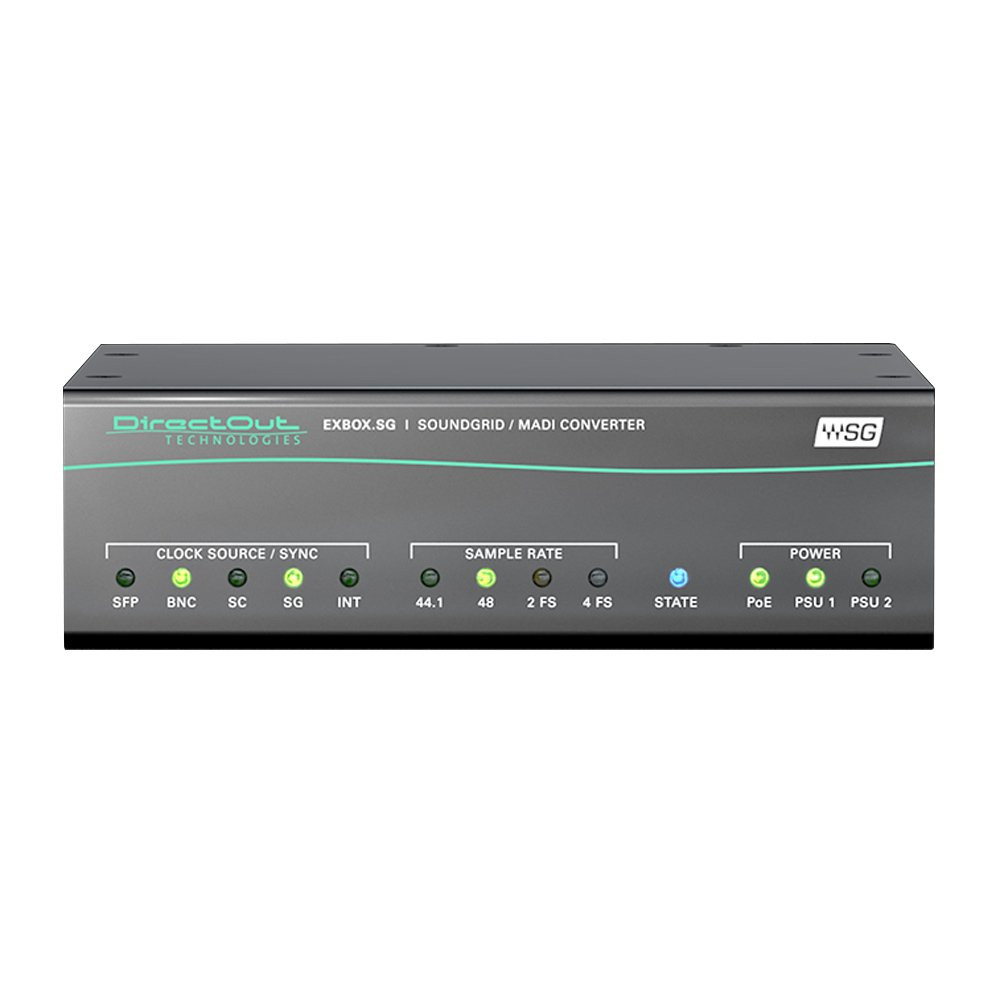

LEDs at the front panel inform about clocking, sample rate, device state and power supply at a glance.
Audio Streaming
Interfacing with up to 128 audio channels at 48 kHz or 64 audio channels at 96 kHz is supported.
All-round Functionality

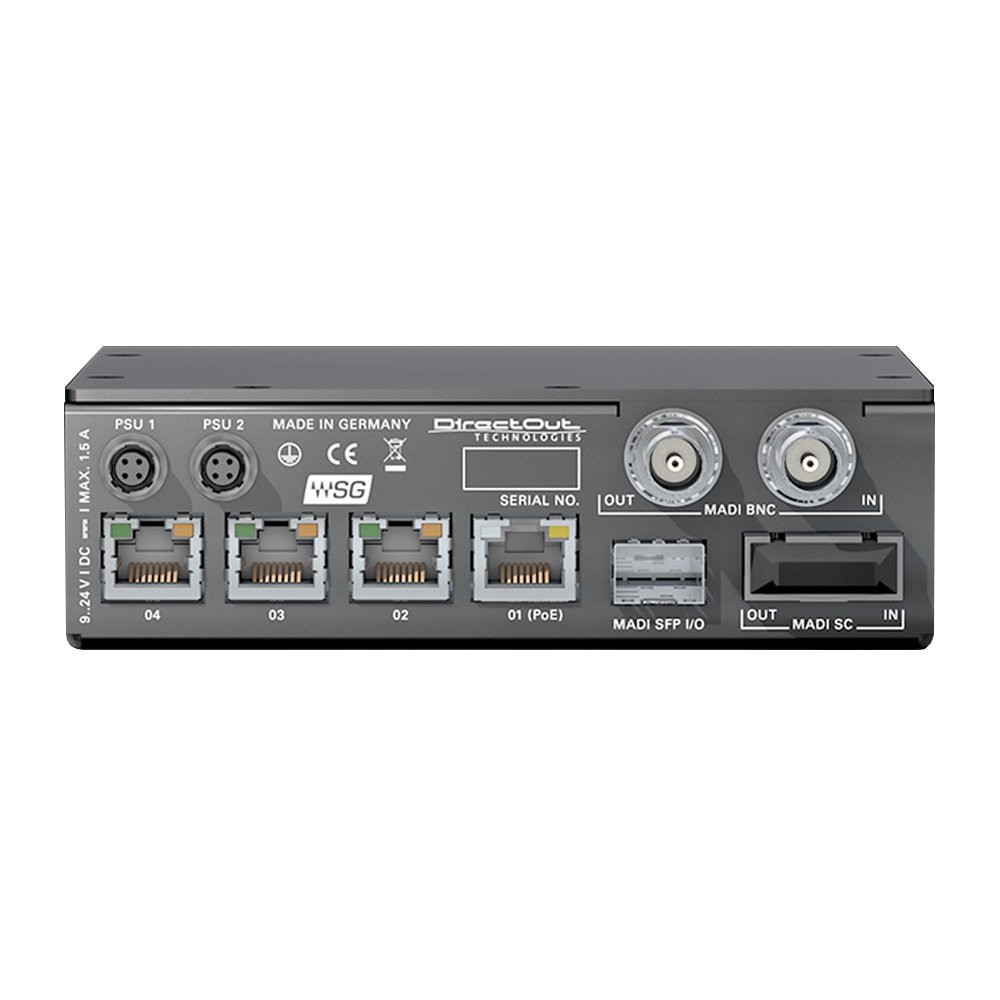

EXBOX.SG offers highest flexibility as it provides three MADI ports of different interface types:
- Optical SC (single-mode or multi-mode)
- Coaxial (BNC)
- SFP
The Small Form Factor Pluggable cage can be fitted with any SFP module suitable for the particular application.
Built-in-switch
Four network ports can be used to connect directly to redundant recording systems and plugin servers without the need of an additional switch.
Remote Control
EXBOX.SG is managed by a Soundgrid device control panel and globcon control.
Safe Operation
The device can be powered by up to two external power-supplies with lockable plugs as well as PoE (Power over Ethernet).
Rack Ready

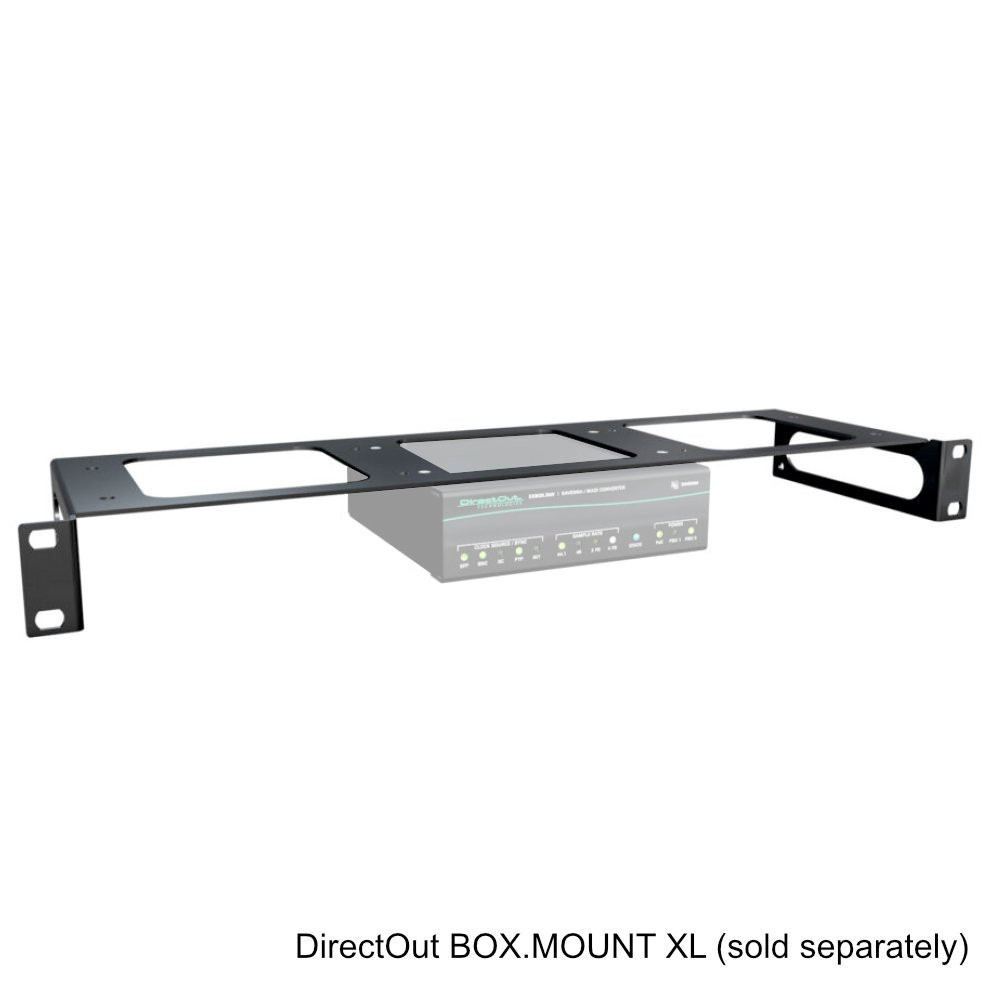

Each EXBOX can be mounted into a standard 19’’-rack by using the optional kit BOXMOUNT.XL. Up to three devices may fit side-by-side within 1 RU.
Specifications
Interfaces | |
MADI ports (I/O): | 1 x coaxial BNC, 75Ω 1 x optical SC-Socket multi-mode 1 x SFP (empty cage without module) |
Network: | 3 x RJ45 Socket (1 Gbit/s) 1 x RJ45 Socket (1 Gbit/s, PoE) |
Digital | |
Sample rates: | 44.1, 48, 88.2, 96, 176.4, 192 kHz (+/- 12,5%) |
MADI formats: | 48k / 96k Frame, 56 / 64 channel, S/MUX |
Network Audio | |
Network-Layer: | 2 |
Number of channels (I/O): | 128 (@1 FS), 64 (@2 FS) |
Standard: | SoundGrid |
Sync | |
Network: | SoundGrid |
Word Clock In: | 1 x coaxial BNC (MADI input switchable) |
Communication | |
Remote Software: | Soundgrid control panel, globcon |
Remote Methods: | MIDI over Network |
Global | |
Power Supply: | external, 2 x Hirose (9 - 24V)*, 1 x PoE (IEEE 802.3af) |
Dimensions: | Width 140 mm Height 42 mm Depth 140 mm |
Weight: | about 1 kg |
Accessory | |
SFP modules (LC single-mode or multi-mode) BOXMOUNT.XL for 19'' rack mount |
Device variants | |
Single-mode: | MADI port: SC-Socket single-mode |
Dual PSU | optional available |
Notes | |
* 1 x power supply included |
