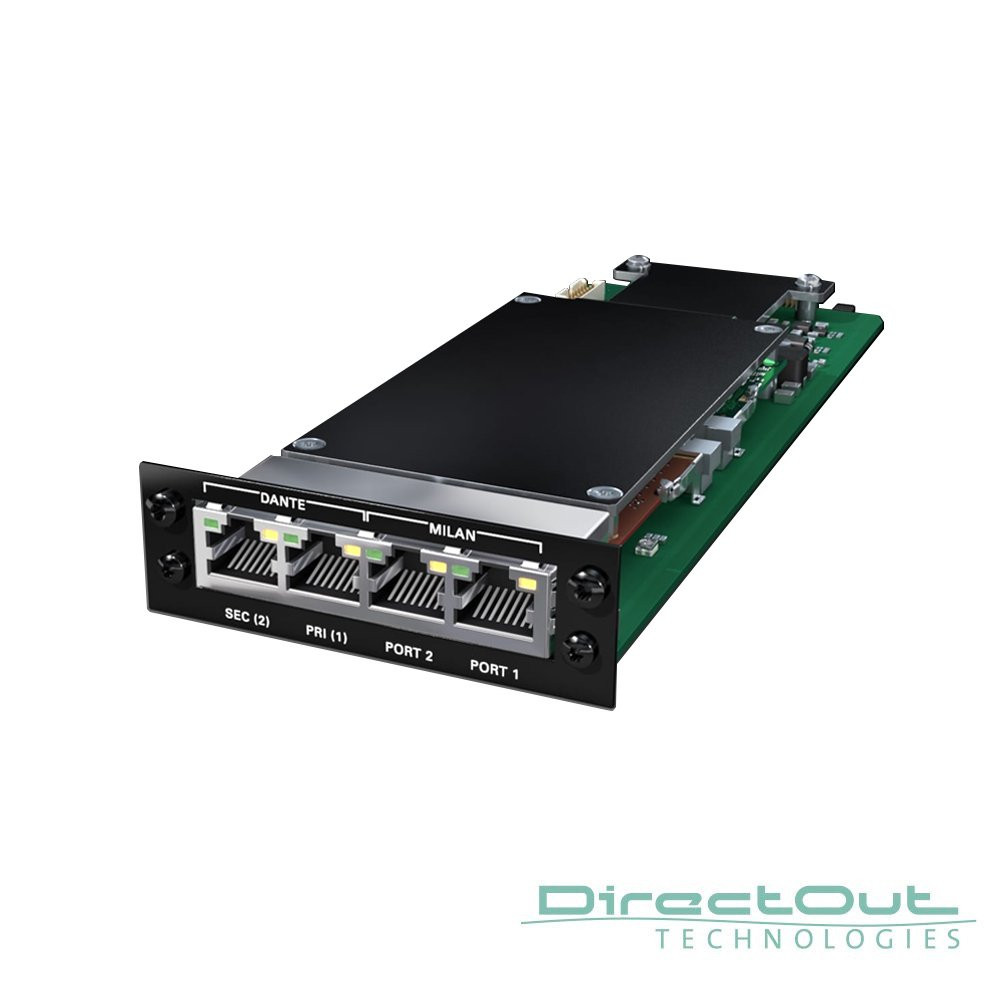

DirectOut DANTE.MILAN.SRC.IO Module
Dual Network Audio module
for DirectOut Prodigy & Maven Series
Please note: the price displayed is the current list price. Contact us for the best deal!
- Dual Audio Network Module for PRODIGY and MAVEN Series with sample rate converter (HD SRC) on board to interface 128 channels of Dante and MILAN streams.
Features Dante
- 32 streams
- 64 channels (1 FS), 32 channels (2 FS), 16 channels (4 FS)
- Sample rate 44.1 kHz up to 192 kHz
- Sample rate conversion (HD SRC on board, FastSRC™ in PRODIGY / MAVEN Series)
- Stream redundancy‚ primary/secondary
- Switch configurable (Primary / Secondary)
- Ethernet layer 3 ('Audio over IP')
- AES67 Mode available (limited to 48kHz)
- ST-2110-30 via Dante Domain Manager (limited to 48kHz)
- 2 x RJ45 gigabit ethernet
- Remote control via Dante Controller, browser and globcon, DDM ready
Features MILAN
- 64 channels (1 FS), 32 channels (2 FS), 16 channels (4 FS)
- Sample rate 44.1 kHz up to 192 kHz
- Sample rate conversion (HD SRC on board, FastSRC™ in PRODIGY / MAVEN Series)
- Switch configurable (Internal AVB switch)
- Ethernet layer 2
- 2 x RJ45 gigabit ethernet
- Remote control via ATDECC controller (i.e. Hive) and browser
If you have any questions or need any further information, please feel free to contact us.
Description
DANTE.MILAN.SRC.IO Module
The DirectOut DANTE.MILAN.SRC.IO is a dual audio network module for the PRODIGY Series and MAVEN.A to interface with 64 channels each of Dante and MILAN* streams.
One module, two audio engines
Hosting two audio network boards the module offers 2 x 64 of two different audio protocols - Dante and MILAN*. This allows to interface with two audio protocols in a single A Slot of MAVEN.A or PRODIGY.MC. With the two A Slots of a PRODIGY.MP the coverage can be extended by a third or even fourth audio protocol.
Sample Rate Conversion
Individual HD SRC for bi-directional sample rate conversion is on board as a standard. The PRODIGY and MAVEN Series also offers low latency sample rate conversion (FastSRC) for input and output. The two audio network boards can be operated at different sample rates.
Dual network modules ensure a seamless connection across clock boundaries and different audio protocols on a single module.
Stream Redundancy
There are 2 x 2 independent network interfaces to connect each protocol via a second stream (primary/secondary or Port 1 / Port 2).
The amount of audio channels per protocol is reduced at higher sample rates - 32 channels @ 2 FS or 16 channels @ 4 FS.
Dante is an audio networking technology from Audinate.
Milan is an audio networking technology created and maintained by Pro Audio market leaders in the Avnu Alliance®. Milan™ is a standards-based deterministic network protocol for real time media.
