DirectOut PRODIGY.MP (Mainframe)
Modular Audio Processor
with FPGA-based DSP & SRC
Please note: the price displayed is the current list price. Call us for the best deal!
If you are interested in the DirectOut Prodigy.MP, we highly recommend contacting us to discuss pricing and which modules you require.
- Modular audio converter and router with DSP
- Up to 416 inputs and 420 outputs
- FPGA-based DSP for EQ, delays and summing matrices
- Support for multiple formats

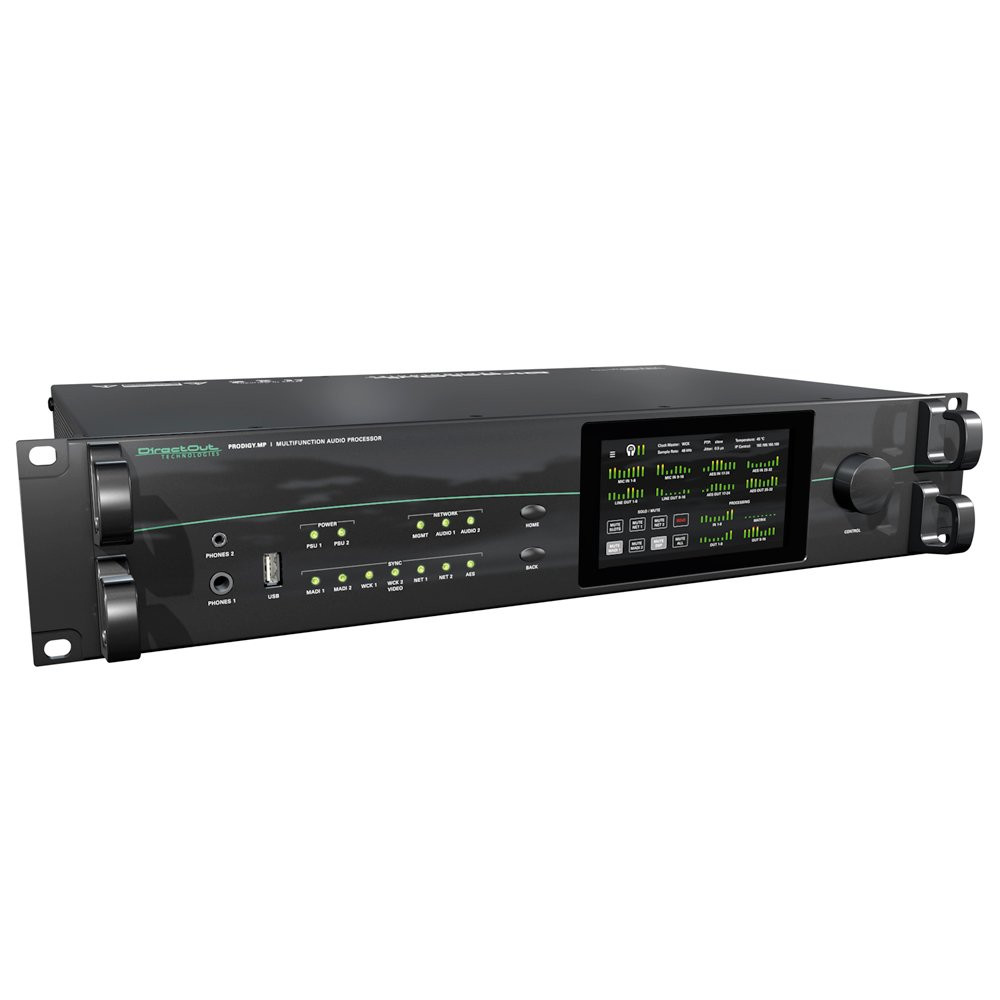

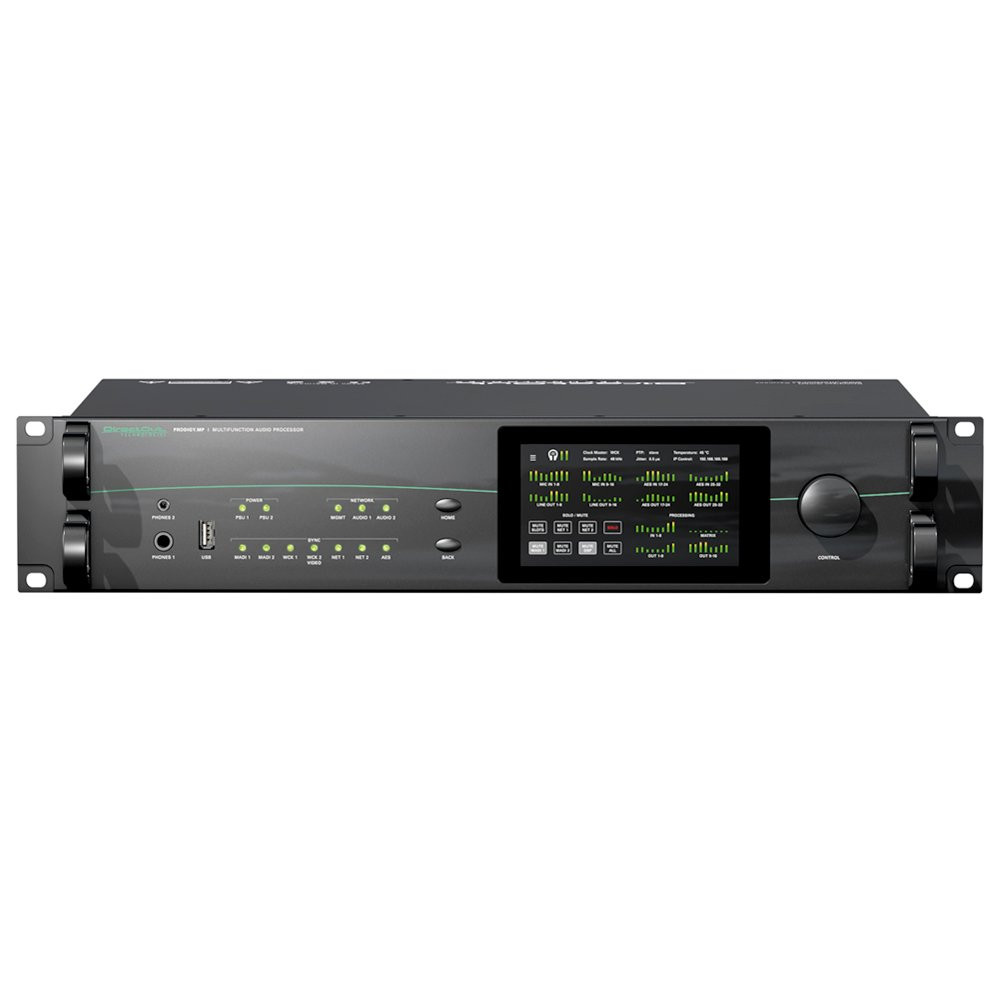

- Front panel, touch-screen control
- Remote control via Globcon software (Mac, PC & Linux)
- Sample Rate Conversion and full routing at up to 192 kHz
Please note the price shown is for the mainframe only. The PRODIGY is highly customisable and requires some configuration before purchase.
Contact us to discuss your requirements!
Description
DirectOut PRODIGY.MP

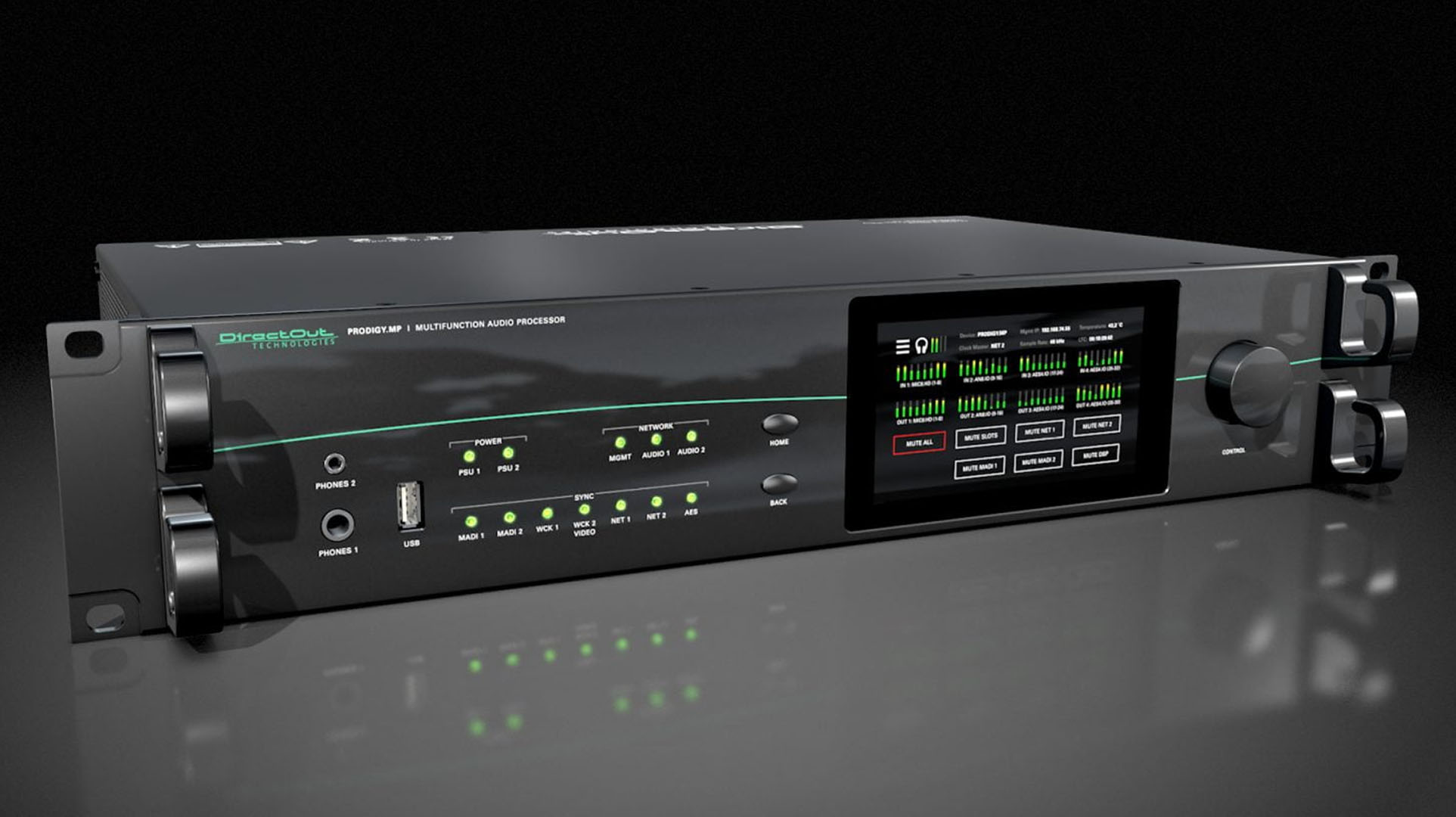

The DirectOut PRODIGY.MP is a multifunction audio processor designed to address numerous applications in pro audio, broadcast, installation and studio applications.
Fully modular, the PRODIGY.MP provides:
- Flexible analogue and digital I/O options
- Dual networked audio
- DSP (EQ, Delay, Limiter, Matrix/Mixing, Inserts…)
- Sample Rate Conversion
- Multiple sync generation/handling/distribution
- Powerful software control via globcon
- Future-proofing via updates / upgrades
Essential & Unlimited
The DirectOut Prodigy.MP is available in two different versions, Essential or Unlimited.
Note: the Unlimited license must be chosen at the time of purchase. The Essential version cannot be upgraded at a later date.
Prodigy.MP Essential
- Router and Converter
- Two AoIP I/O slots for AES67/Ravenna/ST2110-30, Dante & Soundgrid .IOs - with or without SRC Two MADI I/O slots for BNC, SC MM, SC SM & SFP .IOs
- Four 8ch Mic, analogue line or AES3 .IO slots
- FastSRC low latency sample-rate decoupling for AoIP and MADI I/O
- 32 Input Managers and Summing Buses
- Advanced Mirror Mode - dual-unit pairing and protection for critical applications
- LTC Reader; BLDS, Tone and Noise generators
- globcon networked and shared control
- Powerful Hub, Mix-matrix and Processor for Live Sound and Broadcast
- 32 ea Dynamics, FIR & IIR EQ & Delay assignable DSP
- 32 Flex Channels with freely assignable I/P or O/P DSP slots
- 32 Input Managers
- 16 Mix Matrices - 8x 16x4; 8x 8x8 with freely assignable OP DSP slots
- 32 Summing Buses
- Optional SRCs for AoIP port decoupling
Prodigy.MP Unlimited
Everything included with the PRODIGY.MP Essential plus:
- All current and future Options and Licenses
Add-on Licenses
A number of add-ons are available for the PRODIGY Series, such as integration with control protocols (Ember+, OSC, Automator Script engine, SNMP, Lawo Home IP Management), as well Loudness Metering and Automix functionality.
Each of these optional features requires an additional license, and several can be purchased together as a bundle. Contact us for more information.
Want to know more configuring the PRODIGY.MP?
Contact Us to discuss your requirements.
Modular Approach, Maximum Flexibility

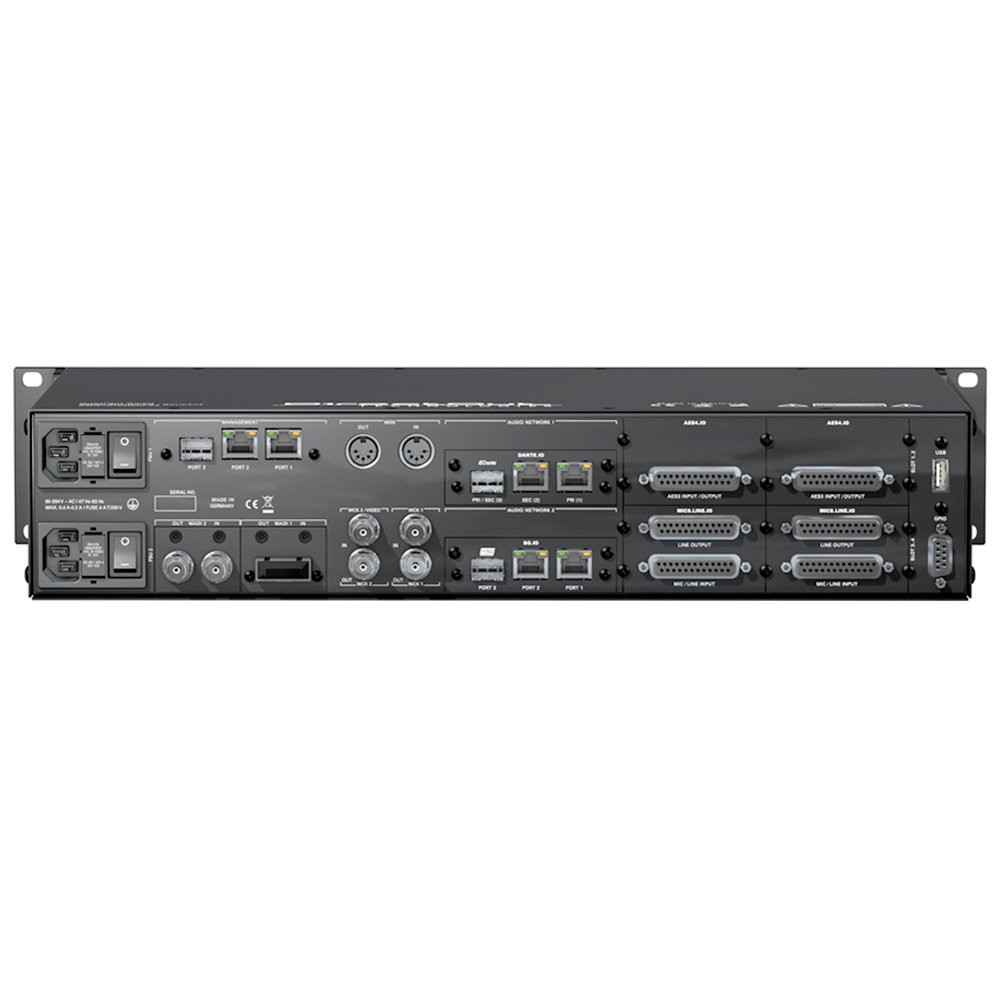

The PRODIGY.MP's I/O includes four local slots for analogue line-level/mic input and AES3 modules. With eight channels per module and interface direction, PRODIGY.MP provides up to 32 local inputs and outputs.
The hardware additionally supports two MADI and two network audio options. MADI slots can be equipped with BNC, SC optical and SFP modules, while network audio boards add Dante, RAVENNA/AES67 or SoundGrid, and increase channel capacity to 416 inputs/420 outputs.
DSP, SR & Sync management
With FPGA-based processing, user-definable processing paths and pick-off points, analog and digital inserts, outputs and summing matrices, PRODIGY.MP boasts very low latency DSP for EQ (FIR and IIR filters), Time Adjust/Delays and Limiters.
The internal DSP reference can be set to Word Clock or Video input, any network/digital input, or internally generated clock.
Sample Rate Converters on AES inputs and free-running MADI and network I/Os are available, allowing simultaneous Media/Format/Sample Rate and Sync conversion, DSP and full routing at up to 192 kHz.
Control Is Key, Multiple Access Locally & Remotely

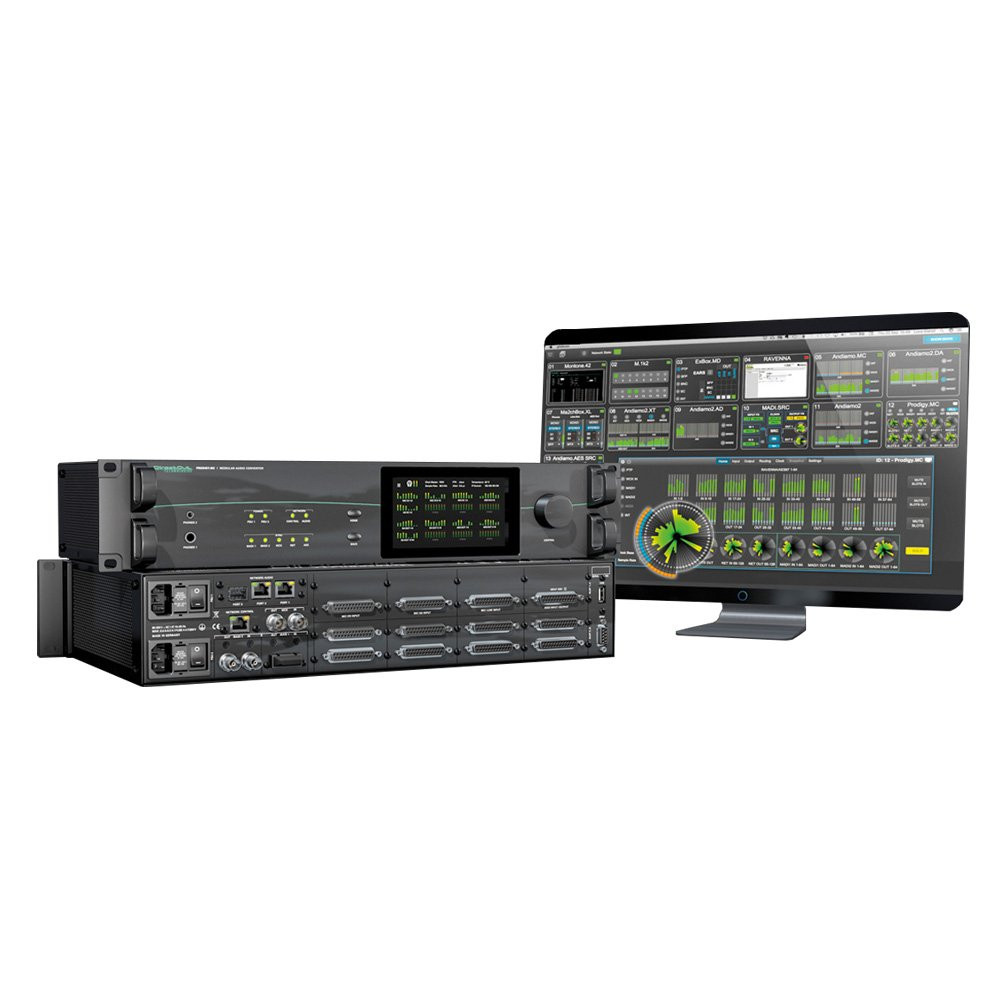

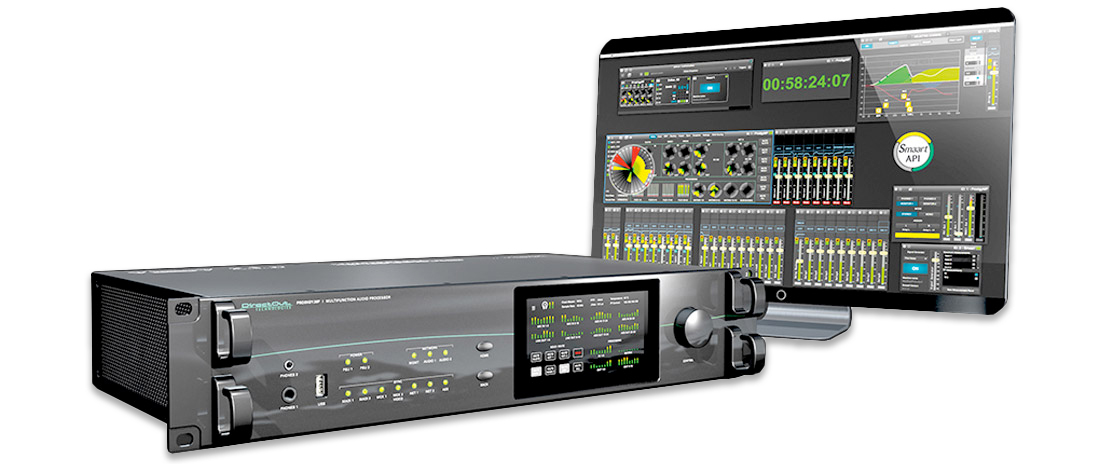

GlobCon is DirectOut's customisable software platform, offering professional users a powerful and continually evolving tool able to manage any type or size of production environment in a contemporary, flexible, ergonomic and cost-effective way.
Specifically designed to support the professional entertainment and live music industries, GlobCon provides extensive management and control for both point-to-point (e.g. MADI) and audio-networked systems (Dante, Ravenna), with access to matrix mixers, summing busses, and effects like EQ, Dynamics and Delay.
Available for both Mac and PC, globcon is a ”plug and play” solution that allows multiple users to share control of devices using a standard Ethernet infrastructure, enabling large audio networks to be monitored from multiple positions within a venue, arena or any other large-scale production.
The software is available for download from the globCon website, providing integrated control and management of any number of DirectOut devices via an Ethernet network, USB and MIDI ports.
Networked Audio & Seamless Interoperability
PRODIGY.MP’s network audio modules accommodate audio formats including DirectOut’s AES67-compliant RAVENNA stack that supports SMPTE ST2110-30/31 and ST2022-7 for redundant streaming.
With the 64-channel Dante option, the hardware can be a front-end for audio consoles, or a standalone converter, DSP, SRC and routing system.
Waves Audio’s SoundGrid offers extremely low latency, and 128 channels of audio processing for live sound, studio and broadcast.
Waves servers can be connected via SoundGrid for plug-in inserts. Virtual soundcards for macOS and Windows can directly interface with any DAW for multitrack recording and virtual soundchecking.
Secure Operation, Monitoring

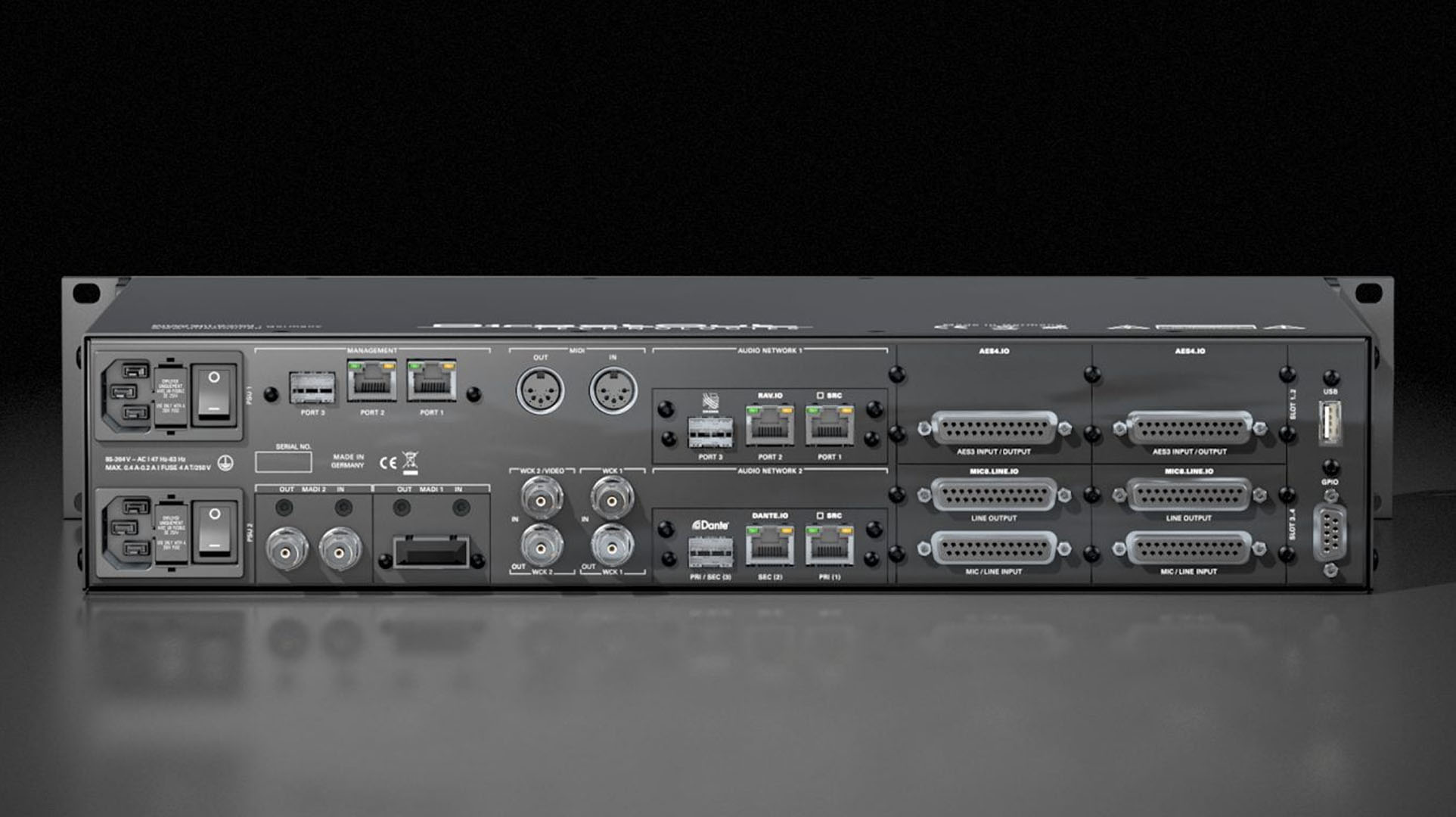

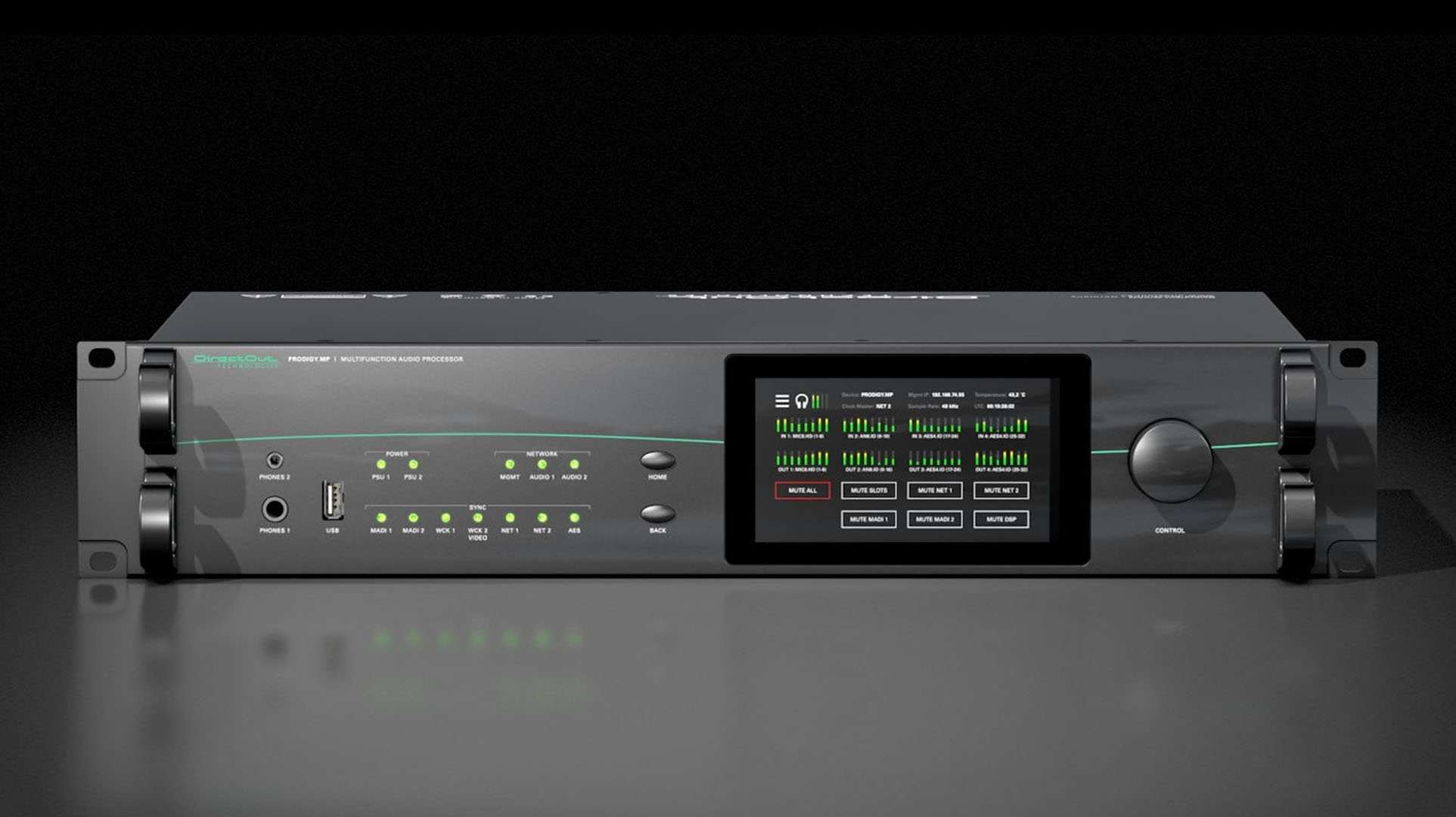

Two front panel headphone outputs provide monitoring of any I/O at the device. Two phase-redundant power supplies with separate IEC inlets and AC power switches support hardware redundancy.
An internal switch on the network module also ensures redundancy for the network domain.
While the Dante module supports Dante redundancy, the RAVENNA module offers stream redundancy in accordance with ST2022-7.
EARS (Enhanced Automatic Redundancy Switching) is available for several combinations of inputs.
Multi Format - Build your own perfect audio converter
The DirectOut PRODIGY.MP supports modular I/O cards in the following formats:
Analogue
- Analogue Ins (Mic/Line)
- Analogue Outs (Line)
Digital (with or without SRC)
- MADI coaxial
- MADI optical
- MADI SFP
- AES-3
AoIP / Network Audio (with or without SRC)
- RAVENNA / AES67
- Dante
- AVB / MILAN
- SoundGrid
Audio Interface
- USB Interface (powered by RME Audio)
See the full range of DirectOut IO modules

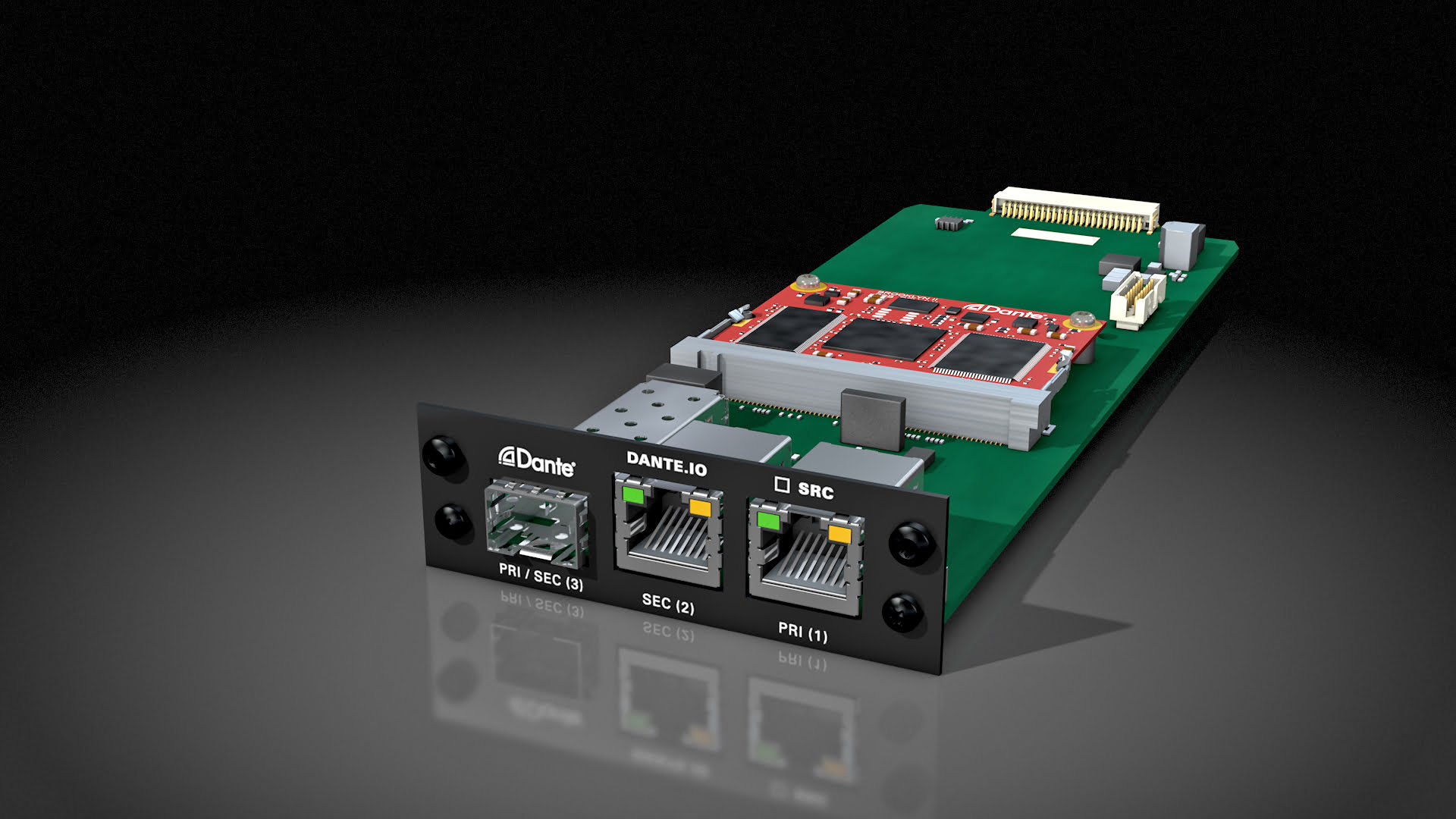

DirectOut Dante I/O Module for PRODIGY, MAVEN and ANDIAMO Series

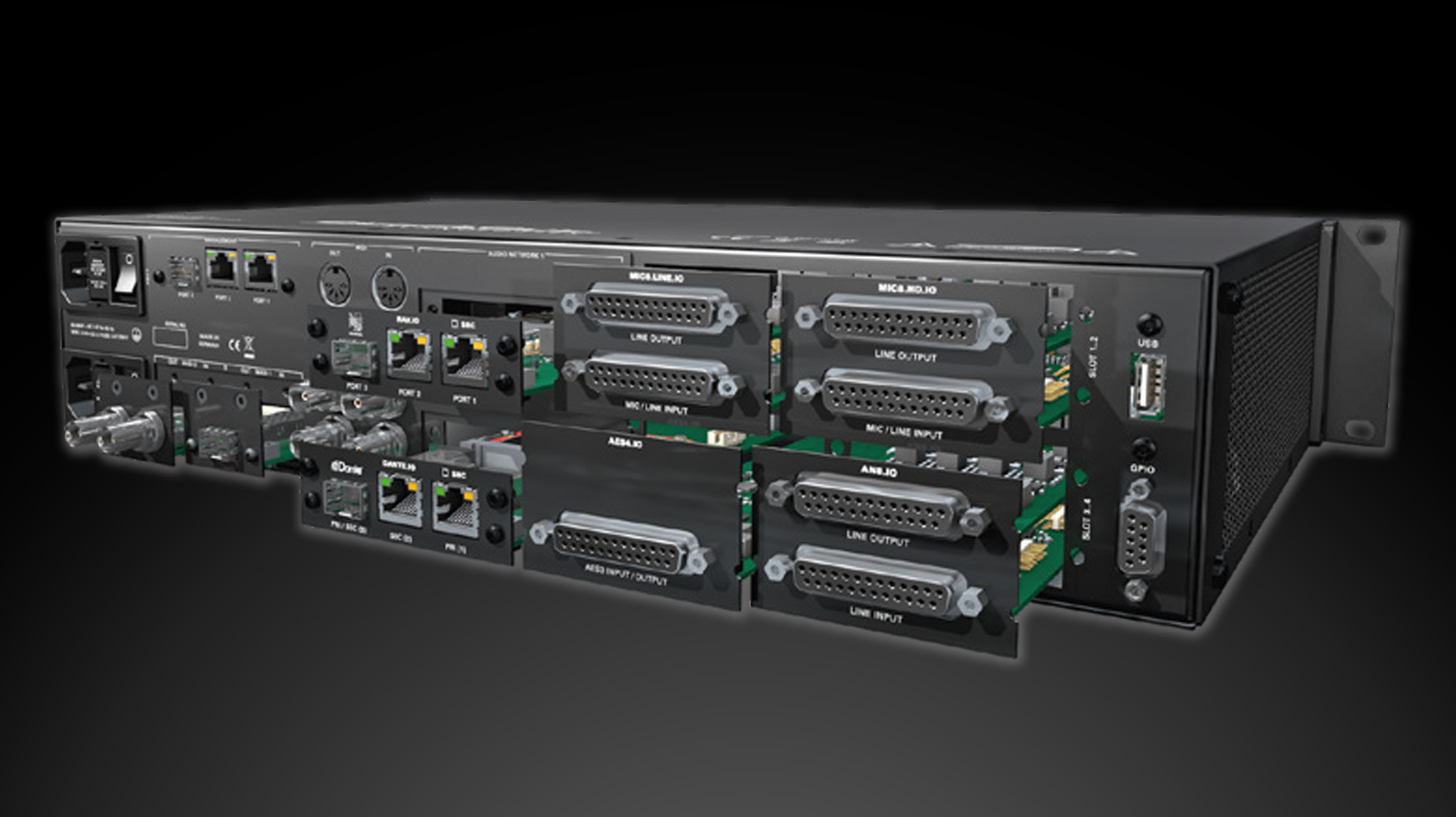

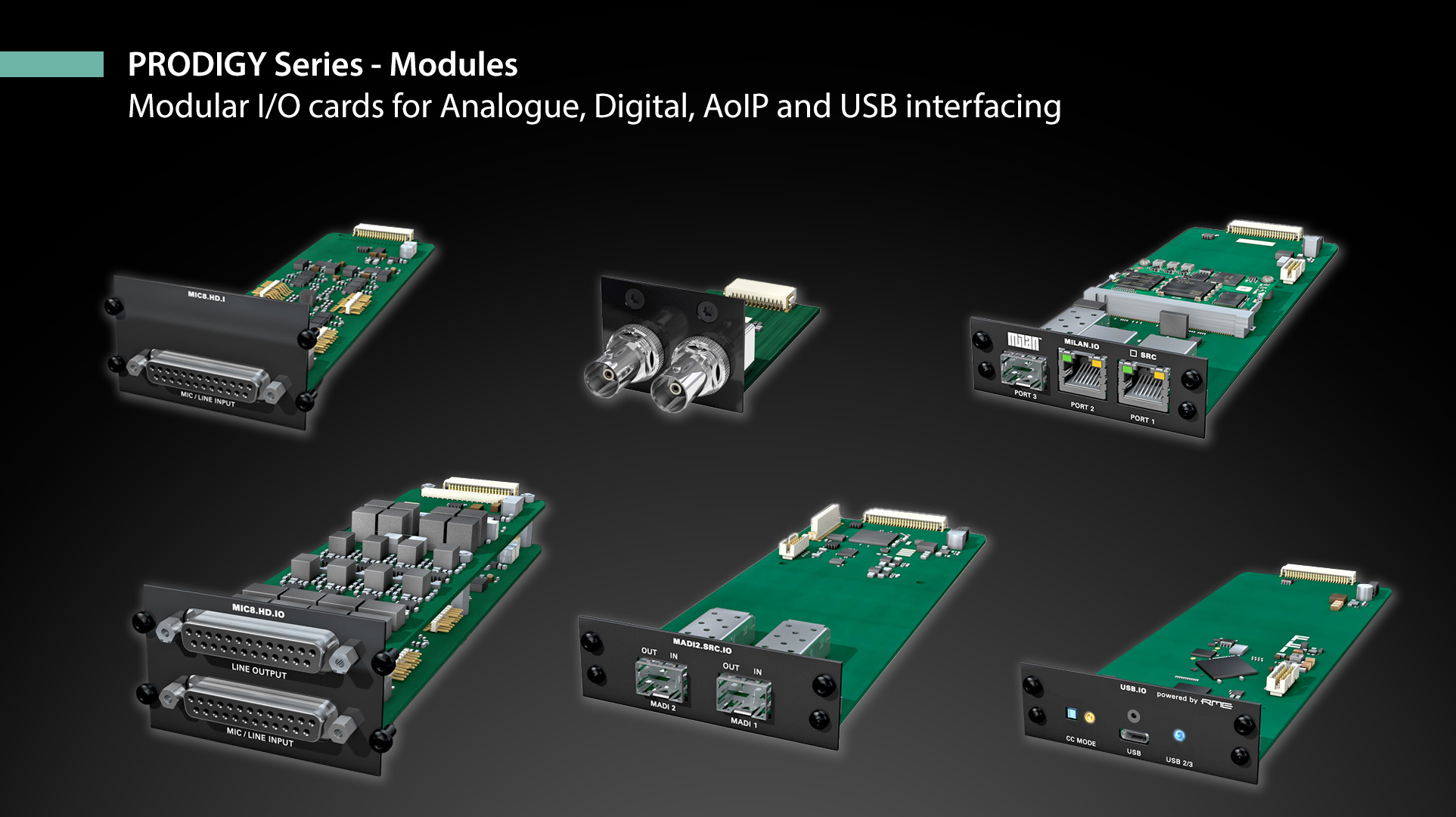

Modules - I/O

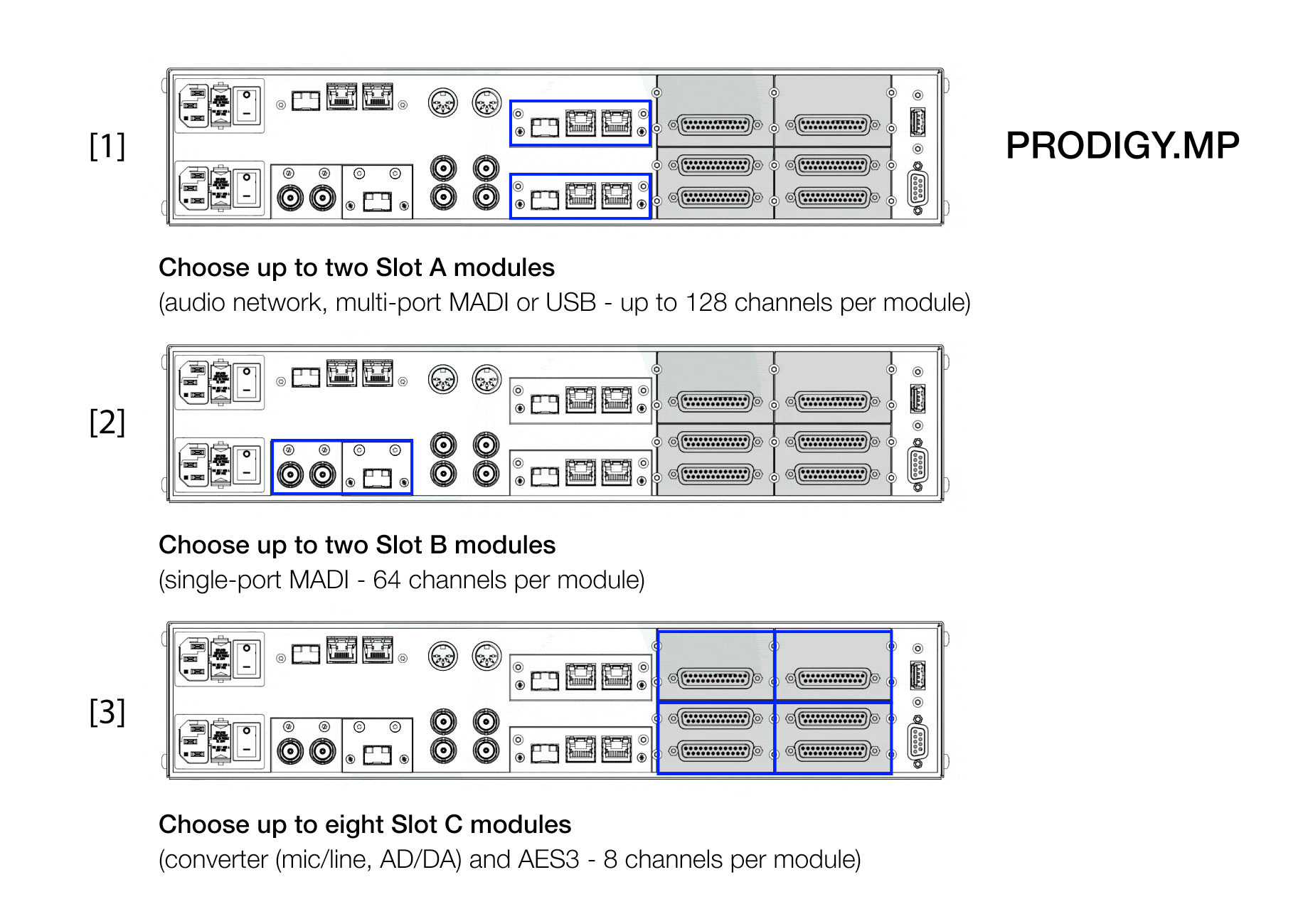

The DirectOut Prodigy.MP features the following modular slots; two A slots, two B slots and four C slots:
- A slot - audio network, multi-port MADI or USB - up to 128 channels per module
- B slot - single-port MADI - 64 channels per module
- C slot - converter (mic/line, AD/DA) and AES3 - 8 channels per module
The channel capacity sums up to 416 inputs and 420 outputs which are managed with a channel-based routing matrix.
Want to know more configuring the PRODIGY.MP?
Contact Us to discuss your requirements.
Specifications
| Converter Modules | |
| AN8.IO | 8 ch line input / output, 2 x DSUB-25, balanced |
| AN8.I | 8 ch line input, 1 x DSUB-25, balanced |
| AN8.O | 8 ch line output, 1 x DSUB-25, balanced |
| MIC8.HD.I | 8 ch mic high densitiy input, 1 x DSUB-25, balanced |
| MIC8.LINE.IO | 8 ch mich input / line output, 2 x DSUB-25, balanced |
| AES4.IO | 4 port AES3 input / output, 1 x DSUB-25 (8 audio channels) |
| AES4.SRC.IO | 4 port AES3 input with SRC / output, 1 x DSUB-25 (8 audio channels) |
| MADI Modules | |
| BNC.IO | 64 ch MADI, 1x coaxial BNC input, 1x coaxial BNC output, 75 Ω |
| SC.IO | 64 ch MADI, 1x SC-Socket duplex multi-mode (single mode on request) |
| SFP.IO | 4 ch MADI, 1x SFP cage (matching SFP modules available from DirectOut) |
| Network Modules | |
| RAV.IO | Network Audio RAVENNA / AES67 (2x RJ45, 1x SFP) |
| DANTE.IO | Network Audio DANTE (2x RJ45, 1x SFP) |
| SG.IO | Network Audio Waves SoundGrid (2x RJ45, 1x SFP) |
| Digital | |
| Sample rates: | 44.1, 48, 88.2, 96, 176.4, 192 kHz (+/- 12,5%) |
| MADI formats: | 48k / 96k Frame, 56 / 64 channel, S/MUX |
| Analog I/O | |
| Analog I/O level (line): | +15 / +18 / +24 dBu changeable via jumper on module |
| MIC8.HD.I * | |
| Input sensitivity: | -56 dBu to +24 dBu |
| EIN: | -128 dBu |
| SNR: | -115 dBFS (20 Hz - 20 kHz) / -118 dB(A)@ 0dB Gain |
| THD @ -1 dBFS: | -113 dB |
| Frequency response: | -0.15 dB (10 Hz) / -0.15 dB (20 kHz) |
| PAD: | 30 dB (switchable) |
| Phantom Power: | + 48 V (switchable) |
| MIC8.LINE.IO * | |
| Input sensitivity: | -55 dBu to +24 dBu |
| SNR: | -115 dBFS (20 Hz - 20 kHz) / -118 dB(A)@ 0dB Gain |
| THD @ -1 dBFS: | -113 dB |
| Frequency response: | -0.5 dB (10 Hz to FS/2) |
| PAD: | 30 dB (switchable) |
| Phantom Power: | + 48 V (switchable) |
| A/D | |
| SNR: | -117.6 dB RMS (20 Hz - 20 kHz) / -119.9 dB(A)) |
| THD @ -1 dBFS: | -119 dB |
| Frequency response: | -0,15 dB (10 Hz) / -0,15 dB (20 kHz) |
| D/A | |
| SNR: | -116.8 dB RMS (20 Hz - 20 kHz) / -119.5 dB(A) |
| THD @ -1 dBFS: | -109 dB |
| Frequency response: | -0,5 dB (10 Hz) / -0,15 dB (20 kHz) |
| Additional Interfaces | |
| Headphone Output #1: | 1 x 6.3 mm TRS jack, mono/stereo Output level: max. +18 dBu SNR: -115 dB RMS (20 Hz - 20 kHz) / -118 dB(A) THD+N @ 0 dBFS: -105 dB @ 600 Ω |
| Headphone Output #2: | 1 x 3.5 mm TRS jack, mono/stereo Output level: max. +12 dBu SNR: -115 dB RMS (20 Hz - 20 kHz) / -118 dB(A) THD+N @ 0 dBFS: -105 dB @ 600 Ω |
| Word Clock I/O: | 2 x coaxial BNC (75 Ω termination switchable), AES11 (DARS also supported), WCK 2 switchable to Video Sync |
| MIDI | 2 x DIN socket |
| GPIO | 2 x GPI (MOSFET switch) 2 x GPO (MOSFET switch) |
| USB | 2 x USB 2.0 for legacy control of ANDIAMO devices and project save and recall |
| Signal DSP | |
| DSP | Gain/Mute, EQ, Dynamics, Delay, Summing Matrix |
| SRC | Synchronous / asynchronous sample rate conversion |
| Communication | |
| Remote Software: | globcon software control integrated web server with UI (HTML, JavaScript) |
| External Management / Remote Protocols: | SNMP SWP-08 |
| Remote Network: | 2 x RJ45 Gigabit Ethernet, 1 x SFP |
| Global | |
| Power supply: | 2 x 84 V to 264 V AC / 47 Hz to 63 Hz / safety class 1, phaseredundant |
| Power Consumption: | 25 to 80 W, module dependent |
| Display: | 5.0” Backlight LED LCD IPS Transmissive Resolution: 480 x 854 px |
| Local Control: | 1 x Encoder knob with push functionality 2 x Push-Buttons |
| Dimensions: | Width 19'' (483 mm) Height 2 RU (89 mm) Depth 10'' (254 mm) |
| Weight: | about 10 kg |
* preliminary values, subject to change
No liability for misprints and technical changes assumed.
