Dynaudio Acoustics M4 MkII

To purchase this product please:

Contact us

Customer Rating: (0)

Four-way Main Studio Monitor

Features

  • Main Monitor
  • 4-way hybrid
  • Frequency response: 35Hz - 20kHz
  • Maximum SPL: 130dB stereo (at 2 metre)
  • Crossover frequencies: 250Hz, 2kHz, 5kHz
  • Total harmonic distortion: 1% at 90dB
  • Recommended amplifier power: Four channels: 500-1000W/channel per speaker

Drivers

  • High frequency: Esotar 3
  • High mid: 56mm soft dome
  • Low mid: 2 x 17cm MSP
  • Low frequency: 2 x 30cm MSP

Amplifier recommendation

  • Dynaudio Acoustics DA40/80 DSP, DCA800/1400

Weight & Dimensions

  • Cabinet: (H x W x D) 900 x 850 x 680mm
  • Weight: 97kg
  • Finish: Black textured paint

Addtional Options

  • Hardwood cabinet: Oak, cherry, walnut, maple
  • Custom cabinet sizes: Available on request

Description

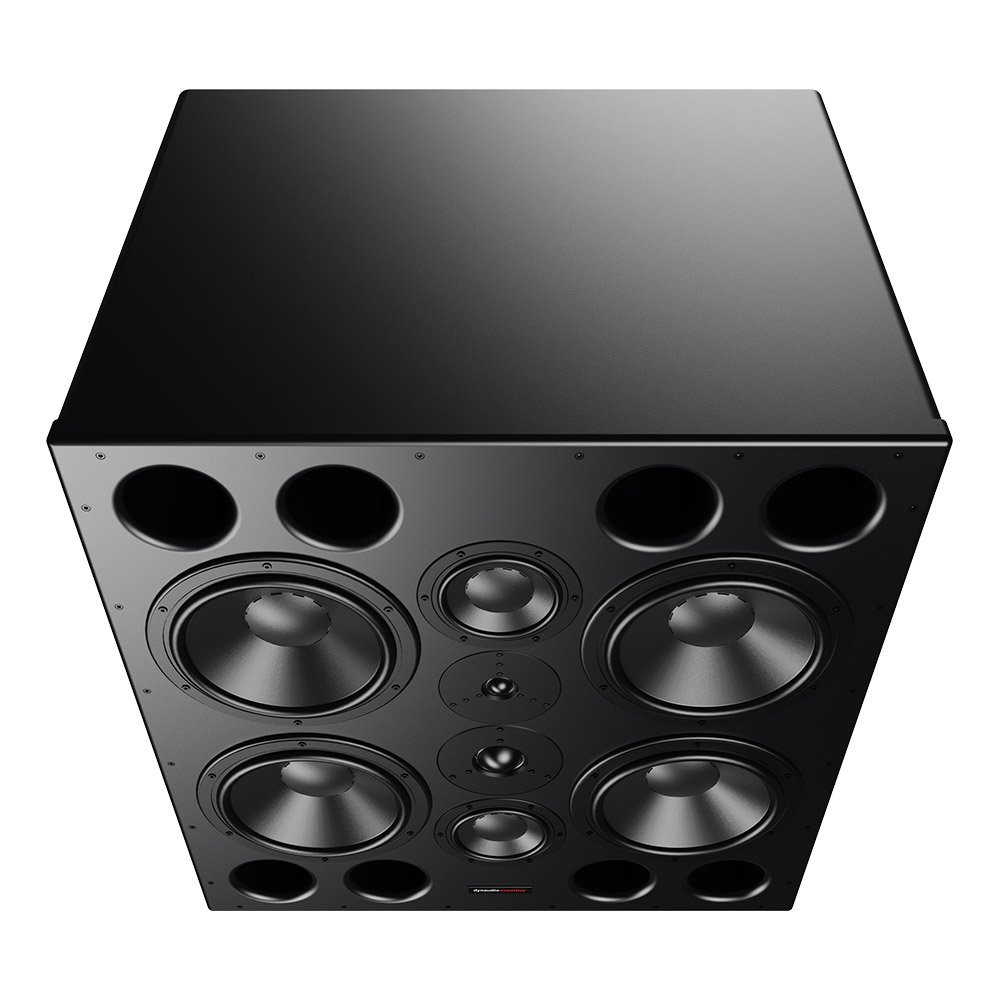

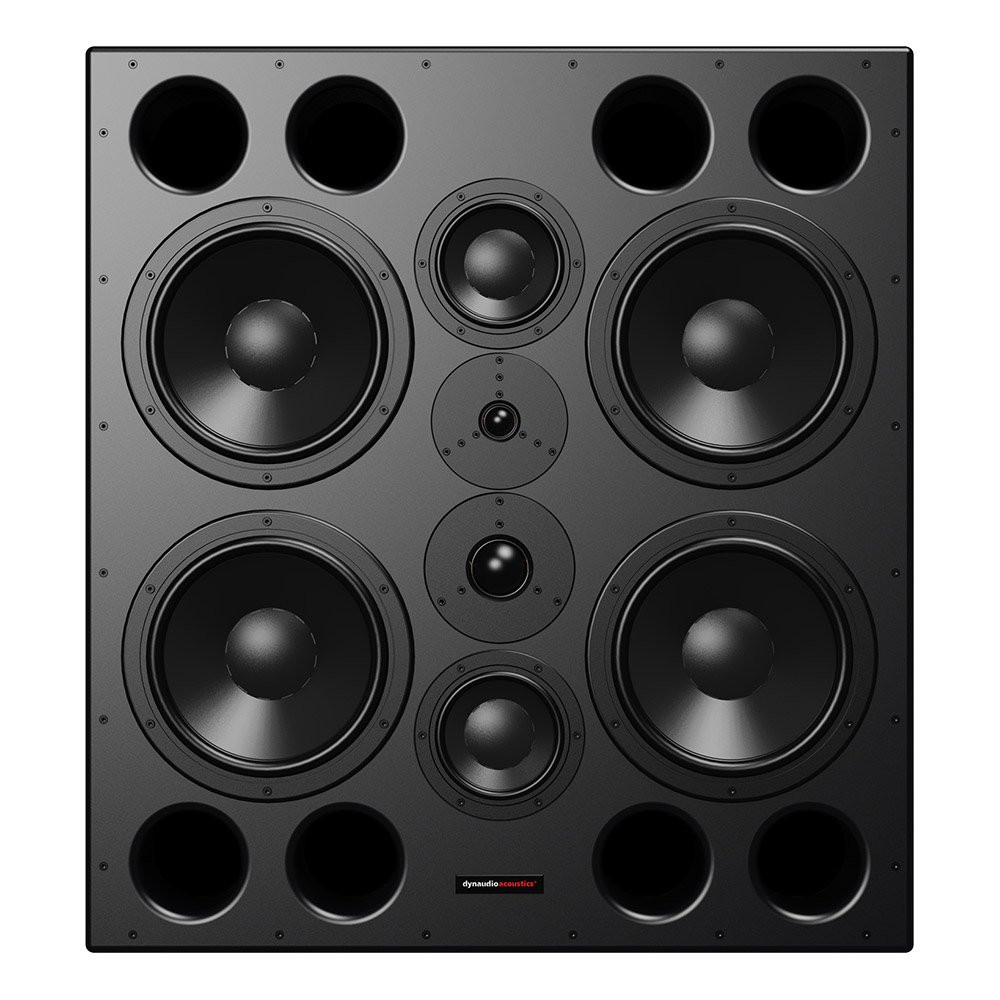

Dynaudio Acoustics M4 MkII

The M4 by Dynaudio Acoustics is a high quality, high-power loudspeaker system for use in large music studio monitoring applications.

Designed to provide accurate, distortion-free monitoring at high power levels, the M4 MkII maintains exceptional quality at all times under all drive conditions.

The bass section consists of four 300mm MSP (Magnesium Silicate Polymer) drivers with 100mm ferrofluid-cooled voice coils.

The low-mid section uses two 170mm MSP drivers with 75mm voice coils and neodymium magnets.

The upper-midrange driver utilises Dynauio's 54mm, critically doped fabric dome Esotar model, ensuring low distortion and excellent transient response.

And the high-frequency unit is the legendary Esotar 3, designed to reproduce distortion-free transients of up to 1000 watts.

Both Esotar units are fitted with enhanced double-magnet motors, and a high-power passive crossover links the high-mid and tweeter.

A compact version of the system with two bass drivers is also available for smaller mix rooms.



Want to discuss your requirements?

Choosing the correct speakers for your room starts with a conversation. Thanks to our close relationship with Dynaudio Acoustics, we can help you can help you design the perfect loudspeaker system for your project.

Whether you're working in stereo, surround sound (5.1/7.1) or immersive audio formats like Dolby Atmos, we’ll ensure you're installing the perfect number of speakers and amplifiers for your space.

If you’re considering the Dynaudio M-series MkII for your recording studio or dubbing theatre, or would like to arrange a practical demonstration, give us a call on 01727 821 870 or contact us via our webform to discuss your requirements.

Mix engineer in front of console at Air Studios

Everything you need to hear...

When you're the one sitting at the mix position, you know that to send a project out into the wild is to nail your colours to the mast. You're staking your reputation on it every time.

So are the artists - the ones who know their instruments and their craft as well as they know themselves (often even better).

And all of you know that what goes in absolutely must come out. Perfectly.



Precision and Power: The Studio Standard

Audio professionals at an eyebrow-raising proportion of the world's most influential studios swear by Dynaudio Acoustics M-series main monitors. They know that when they listen - sometimes all day and long into the night, without fatigue - they're hearing exactly what they need to hear. Mistakes, madness, moments of genius. Everything.

This range of passive monitors has been created to meet the most unreasonable demands of power, accuracy and outright SPL. It's for two-channel work, fully immersive projects, broadcast, dubbing, big-screen... anything that requires the highest level of control.

The M-series MkII uses upgraded Dynaudio technology across the board. New crossovers, woofers, midrange drivers (Magnesium Silicate Polymer and precision-coated soft-dome versions) and the legendary Esotar 3 soft-dome tweeter mean even better clarity. So even when you're working with a wall of sound, you'll be able to pick out the details that matter.



Relied on by professionals the world over

Each model is available in a variety of finishes to suit your studio (you can specify custom ones too, if you're feeling particularly fancy). And we'll work with you to hone your room design if you'd like us to.

The M-series has been trusted for decades by Academy Award and BAFTA winners, Grammy winners, documentary makers, filmmakers and more behind the desk at studios including Abbey Road, NRG, Netflix, AIR, Quad, Pinewood, Shepperton and Disney.

That's a reputation worth listening to.



Recording studio with Dynaudio Acoustics M-series Dolby Atmos rig



Specifications

Status Current
Segment Pro
Series Dynaudio Acoustics
Application Music recording and mixing
Type 4-way hybrid
Frequency response 35Hz – 20kHz
Maximum SPL at 2 metre 130dB stereo
Crossover frequencies 250Hz, 2kHz, 5kHz
Total harmonic distortion 1% at 90dB
Recommended amplifier power Four channels: 500-1000W/channel per speaker
Cabinet dimensions (H x W x D) 900 x 850 x 680mm
Weight 97kg
Finish Black textured paint
High frequency driver Esotar 3
High mid driver 56mm soft dome
Low mid driver 2x 17cm MSP
Low frequency driver 2x 30cm MSP
Amplifier recommendation Dynaudio Acoustics DA40/80 DSP, DCA800/1400
Optional: Hardwood cabinet Oak, cherry, walnut, maple
Custom cabinet sizes On request
