Dynaudio Acoustics M3FX (Centre)
Three-way Screen Loudspeaker
Features
- Screen Monitor
- 3-way hybrid
- Frequency response: 35Hz – 20kHz
- Maximum SPL: 125dB stereo (at 2 metre)
- Crossover frequencies: 250Hz and 2500Hz
- Total harmonic distortion: 1% at 90dB
- Recommended amplifier power: Two channels: 500-1000W/channel per speaker
Drivers
- High frequency: 28mm soft-dome in short waveguide
- Midrange: 2x 17cm MSP
- Low frequency: 4x 30cm MSP
Amplifier recommendation
- Dynaudio Acoustics DA40/80 DSP, DCA800/1400 (with filters)
Weight & Dimensions
- Cabinet: (H x W x D) 1300 x 900 x 515mm
- Weight: 110kg
- Finish: Black textured paint
Addtional Options
- Hardwood cabinet: Oak, cherry, walnut, maple
- Custom cabinet sizes: Available on request
Description

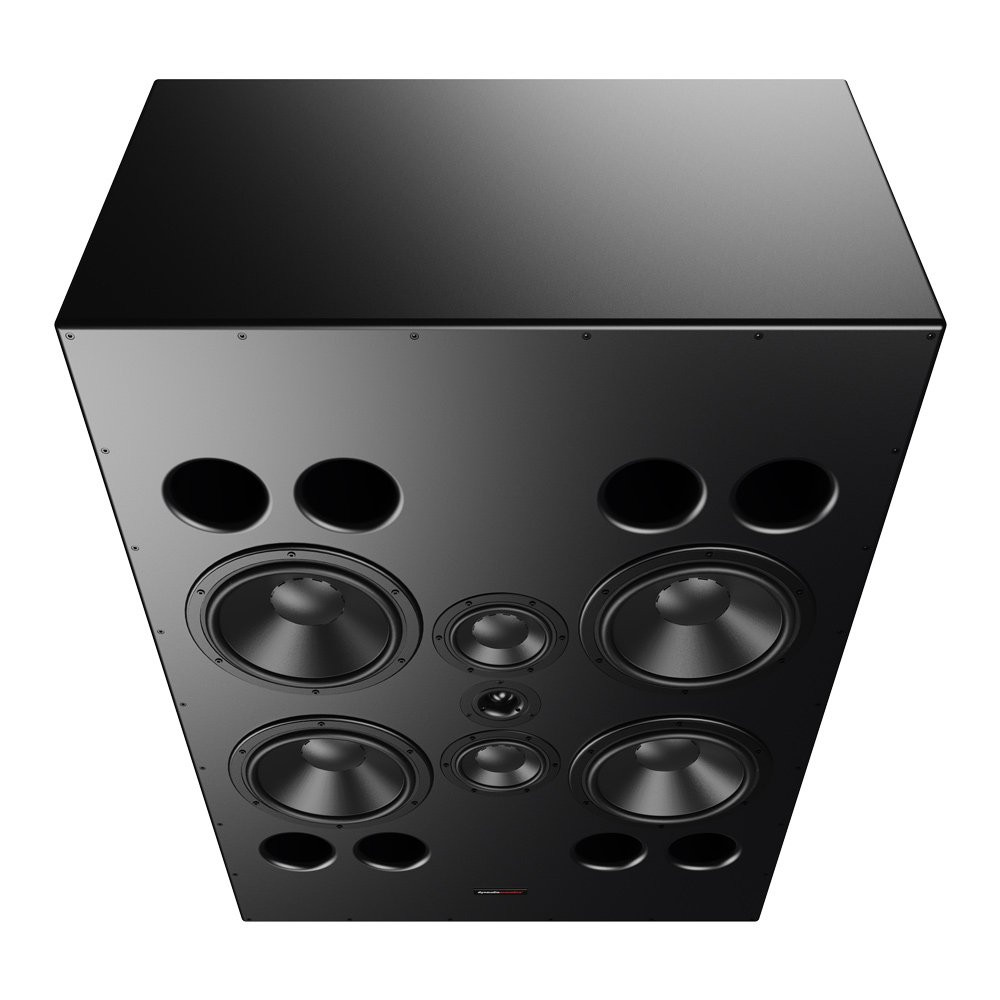

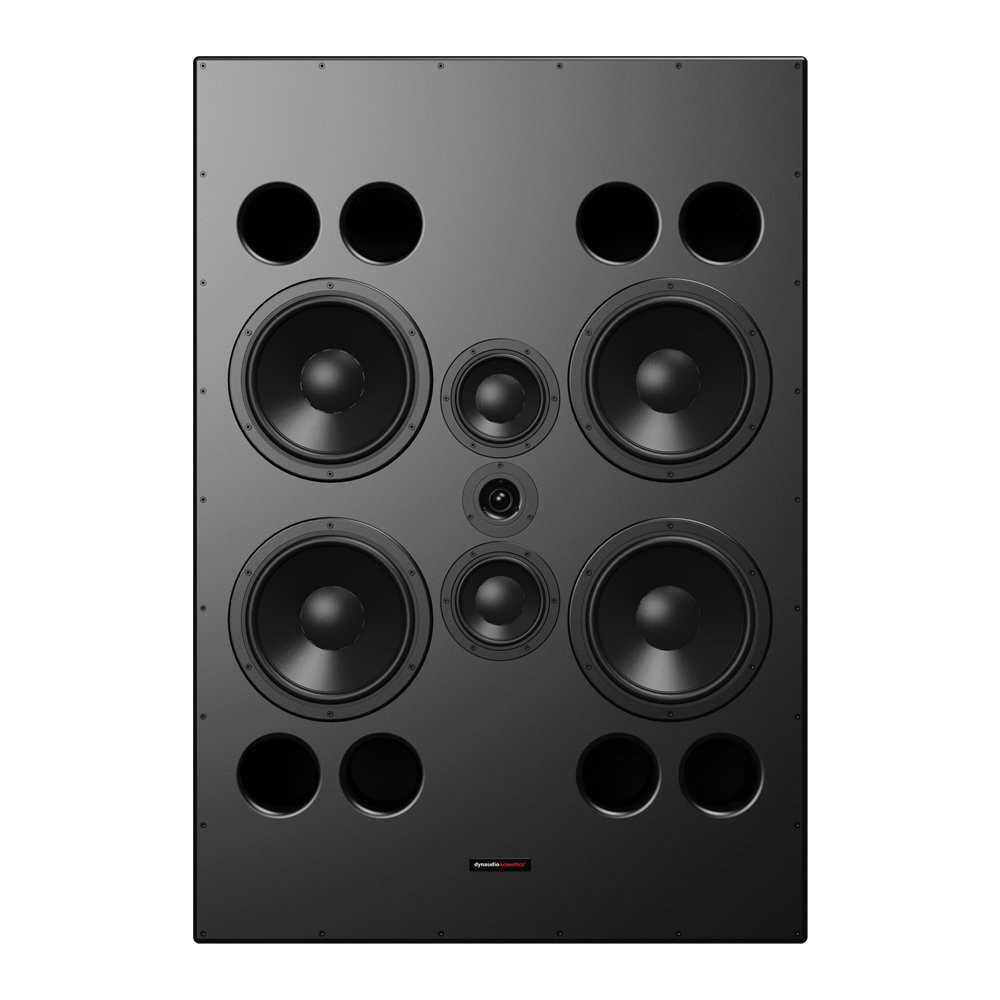

Dynaudio Acoustics M3FX
High-quality monitoring for medium-size TV and film dubbing stages.
The M3FX is a high power loudspeaker system for use in large film and TV post-production studios where the console is up to 8m from the screen.
Combine it with Dynaudio Acoustics subwoofers and surround speakers, and it forms an ideal immersive monitoring system for formats including Dolby Atmos HE 7.1.4 and 9.1.4, and full Atmos theatrical multi-channel.
The system is delivered in left-right and centre versions.
The bass section consists of four 300mm MSP (Magnesium Silicate Polymer) low distortion drivers with 100mm ferrofluid-cooled voice coils.
The midrange section consists of two 170mm drive units with 75mm voice coils and neodymium magnets.
The high-frequency unit is the D260H soft-dome with short waveguide. Inside, there's a highpower passive crossover linking the mids and tweeter.
These speakers are supplied as two way active. Recommended amps include the Dynaudio Acoustics DA series with onboard DSP, or DCA series with built-in filters.
Want to discuss your requirements?
Choosing the correct speakers for your room starts with a conversation. Thanks to our close relationship with Dynaudio Acoustics, we can help you can help you design the perfect loudspeaker system for your project.
Whether you're working in stereo, surround sound (5.1/7.1) or immersive audio formats like Dolby Atmos, we’ll ensure you're installing the perfect number of speakers and amplifiers for your space.
If you’re considering the Dynaudio M-series MkII for your recording studio or dubbing theatre, or would like to arrange a practical demonstration, give us a call on 01727 821 870 or contact us via our webform to discuss your requirements.
Everything you need to hear...
When you're the one sitting at the mix position, you know that to send a project out into the wild is to nail your colours to the mast. You're staking your reputation on it every time.
So are the artists - the ones who know their instruments and their craft as well as they know themselves (often even better).
And all of you know that what goes in absolutely must come out. Perfectly.
Precision and Power: The Studio Standard
Audio professionals at an eyebrow-raising proportion of the world's most influential studios swear by Dynaudio Acoustics M-series main monitors. They know that when they listen - sometimes all day and long into the night, without fatigue - they're hearing exactly what they need to hear. Mistakes, madness, moments of genius. Everything.
This range of passive monitors has been created to meet the most unreasonable demands of power, accuracy and outright SPL. It's for two-channel work, fully immersive projects, broadcast, dubbing, big-screen... anything that requires the highest level of control.
The M-series MkII uses upgraded Dynaudio technology across the board. New crossovers, woofers, midrange drivers (Magnesium Silicate Polymer and precision-coated soft-dome versions) and the legendary Esotar 3 soft-dome tweeter mean even better clarity. So even when you're working with a wall of sound, you'll be able to pick out the details that matter.
Relied on by professionals the world over
Each model is available in a variety of finishes to suit your studio (you can specify custom ones too, if you're feeling particularly fancy). And we'll work with you to hone your room design if you'd like us to.
The M-series has been trusted for decades by Academy Award and BAFTA winners, Grammy winners, documentary makers, filmmakers and more behind the desk at studios including Abbey Road, NRG, Netflix, AIR, Quad, Pinewood, Shepperton and Disney.
That's a reputation worth listening to.
Specifications
Status | Current |
Segment | Pro |
Series | Dynaudio Acoustics |
Application | Post-production and music |
Type | 3-way hybrid |
Frequency response | 35Hz – 20kHz |
Maximum SPL at 2 metre | 125dB stereo |
Crossover frequencies | 250Hz and 2500Hz |
Total harmonic distortion | 1% at 90dB |
Recommended amplifier power | Two channels: 500-1000W/channel per speaker |
Cabinet dimensions (H x W x D) | 1300 x 900 x 515mm |
Weight | 110kg |
Finish | Black textured paint |
High frequency driver | 28mm soft-dome in short waveguide |
Midrange | 2x 17cm MSP |
Low frequency driver | 4x 30cm MSP |
Amplifier recommendation | Dynaudio Acoustics DA40/80 DSP, DCA800/1400 (with filters) |
Optional: Hardwood cabinet | Oak, cherry, walnut, maple |
Custom cabinet sizes | On request |
Want to know more?
Give us a call on 01727 821 870 or contact us via our webform to discuss your requirements.
