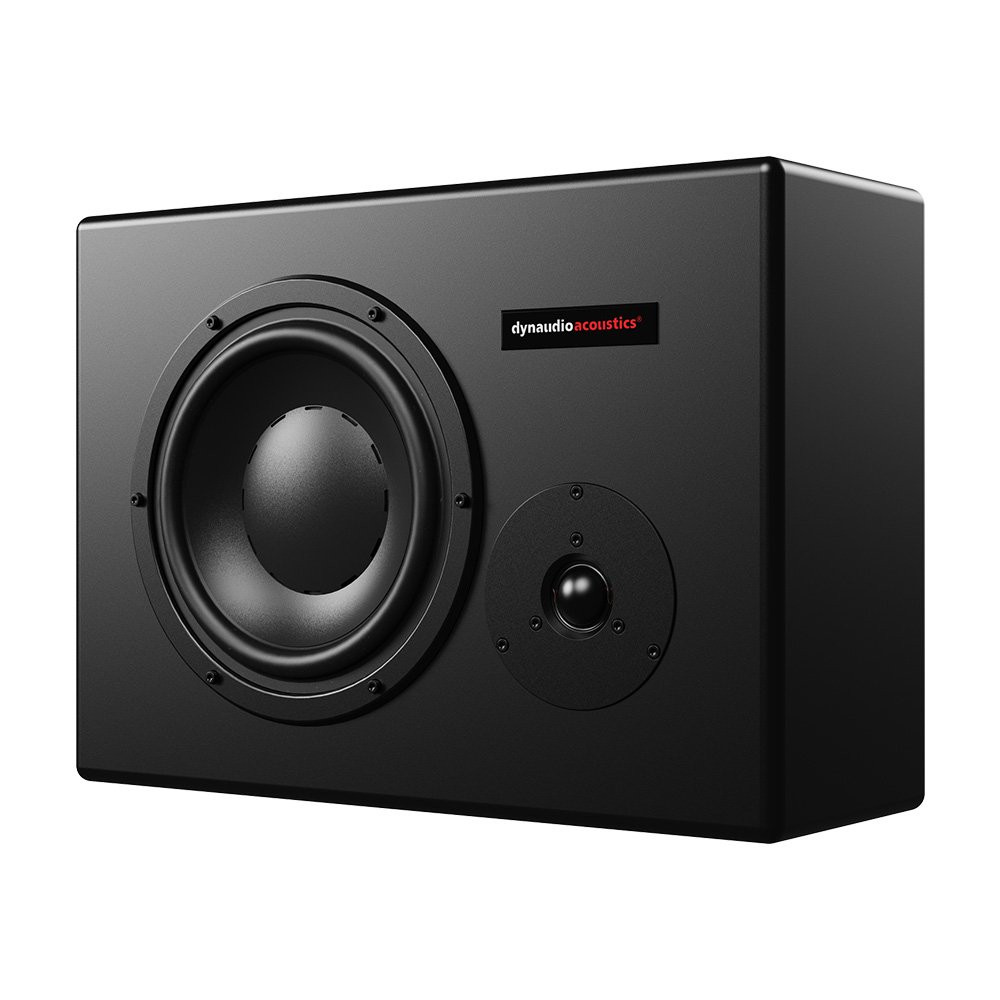

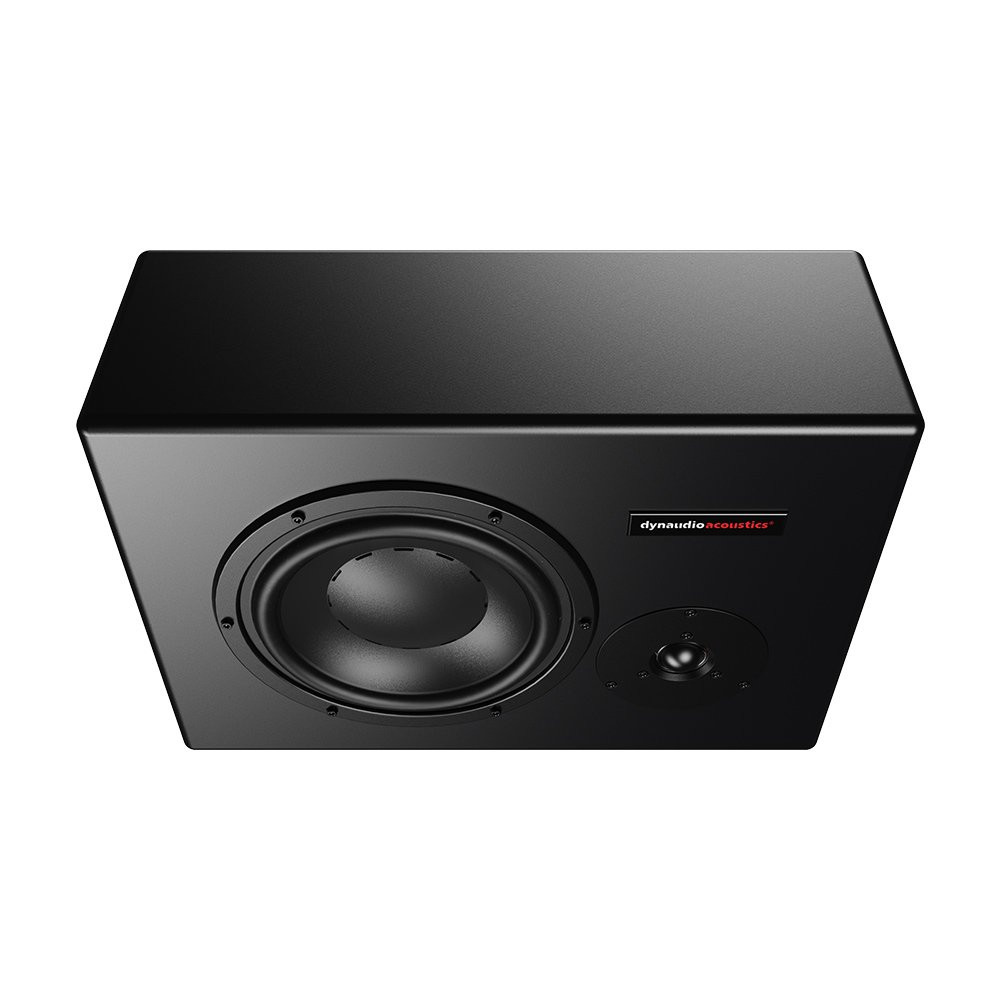

Dynaudio Acoustics MF15 (Horizontal)

To purchase this product please:

Contact us

Customer Rating: (0)

Two-way passive Surround Monitor

Features

  • Surround Monitor (Horizontal)
  • 2-way passive surround
  • Frequency response: 60Hz – 20kHz
  • Maximum SPL: 114dB
  • Crossover frequencies: 2000Hz
  • Total harmonic distortion: 1% at 90dB
  • Recommended amplifier power: Dynaudio Acoustics DA20 4-channel

Drivers

  • High frequency: 28mm soft-dome
  • Low frequency: 24cm MSP

Amplifier recommendation

  • Dynaudio Acoustics DA20 4-channel

Weight & Dimensions

  • Cabinet: (H x W x D) 320 x 452 x 178mm
  • Weight: 10kg
  • Finish: Black textured paint

Addtional Options

  • Hardwood cabinet: Oak, cherry, walnut, maple
  • Custom cabinet sizes: Available on request

Description

Dynaudio Acoustics MF15 (Horizontal)

Compact surround speaker for immersive audio applications.

The MF15 is a compact surround speaker for immersive audio applications including music and post-production, ideally suited to Dolby Atmos HE 7.1.4 and 9.1.4 configurations.

As a passive speaker, it's compact and really easy to install. The MF15's shallow enclosure makes it a perfect fit for Dolby Atmos systems in smaller control rooms with low ceilings.

It can be used in conjunction with all M-series enclosures according to the room requirements, and M-Series subs for bass management.

The drivers perfectly complement Dynaudio Acoustics screen speakers to give seamless sound movement around the theatre in Atmos applications.

The MF15 is available in horizontal and vertical formats, or custom configurations to suit all applications.



Want to discuss your requirements?

Choosing the correct speakers for your room starts with a conversation. Thanks to our close relationship with Dynaudio Acoustics, we can help you can help you design the perfect loudspeaker system for your project.

Whether you're working in stereo, surround sound (5.1/7.1) or immersive audio formats like Dolby Atmos, we’ll ensure you're installing the perfect number of speakers and amplifiers for your space.

If you’re considering the Dynaudio M-series MkII for your recording studio or dubbing theatre, or would like to arrange a practical demonstration, give us a call on 01727 821 870 or contact us via our webform to discuss your requirements.

Mix engineer in front of console at Air Studios

Everything you need to hear...

When you're the one sitting at the mix position, you know that to send a project out into the wild is to nail your colours to the mast. You're staking your reputation on it every time.

So are the artists - the ones who know their instruments and their craft as well as they know themselves (often even better).

And all of you know that what goes in absolutely must come out. Perfectly.



Precision and Power: The Studio Standard

Audio professionals at an eyebrow-raising proportion of the world's most influential studios swear by Dynaudio Acoustics M-series main monitors. They know that when they listen - sometimes all day and long into the night, without fatigue - they're hearing exactly what they need to hear. Mistakes, madness, moments of genius. Everything.

This range of passive monitors has been created to meet the most unreasonable demands of power, accuracy and outright SPL. It's for two-channel work, fully immersive projects, broadcast, dubbing, big-screen... anything that requires the highest level of control.

The M-series MkII uses upgraded Dynaudio technology across the board. New crossovers, woofers, midrange drivers (Magnesium Silicate Polymer and precision-coated soft-dome versions) and the legendary Esotar 3 soft-dome tweeter mean even better clarity. So even when you're working with a wall of sound, you'll be able to pick out the details that matter.



Relied on by professionals the world over

Each model is available in a variety of finishes to suit your studio (you can specify custom ones too, if you're feeling particularly fancy). And we'll work with you to hone your room design if you'd like us to.

The M-series has been trusted for decades by Academy Award and BAFTA winners, Grammy winners, documentary makers, filmmakers and more behind the desk at studios including Abbey Road, NRG, Netflix, AIR, Quad, Pinewood, Shepperton and Disney.

That's a reputation worth listening to.



Recording studio with Dynaudio Acoustics M-series Dolby Atmos rig



Specifications

Status Current
Segment Pro
Series Dynaudio Acoustics
Application Music and post production
Type 2-way passive surround
Frequency response 60Hz – 20kHz
Maximum SPL at 2 metre 114dB
Crossover frequencies 2000Hz
Total harmonic distortion 1% at 90dB
Sensitivity 90dB/2.83v/1m
Impedance 4 Ohms
Recommended amplifier power 100-500 watts
Cabinet dimensions (H x W x D) 320 x 452 x 178mm
Weight 10kg
Fixing 4x M8 threaded inserts in the back allow fixing to a range of brackets
Finish Black textured paint
High frequency driver 28mm soft-dome
Midrange driver N/A
Low frequency driver 24cm MSP
Amplifier recommendation Dynaudio Acoustics DA20 4-channel
Optional: Hardwood cabinet Oak, cherry, walnut, maple
Custom cabinet sizes On request

Want to know more?

Give us a call on 01727 821 870 or contact us via our webform to discuss your requirements.
