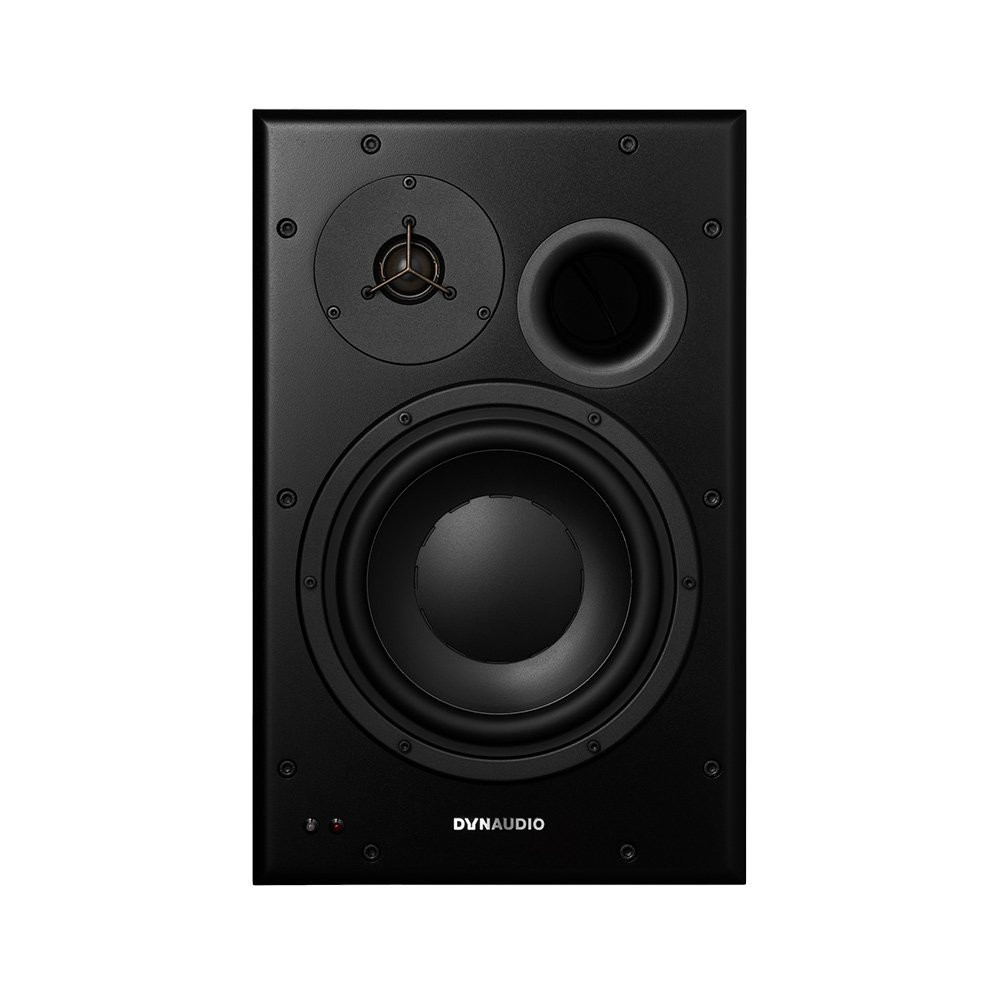

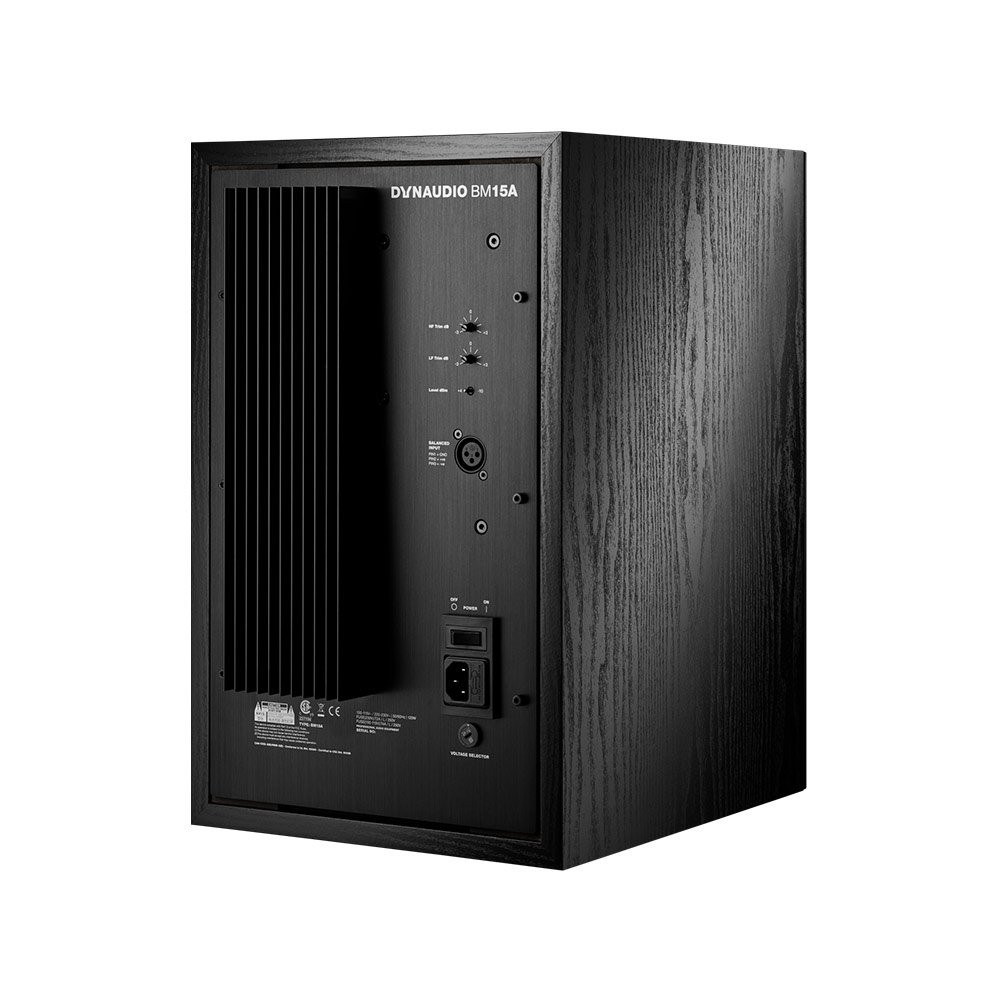

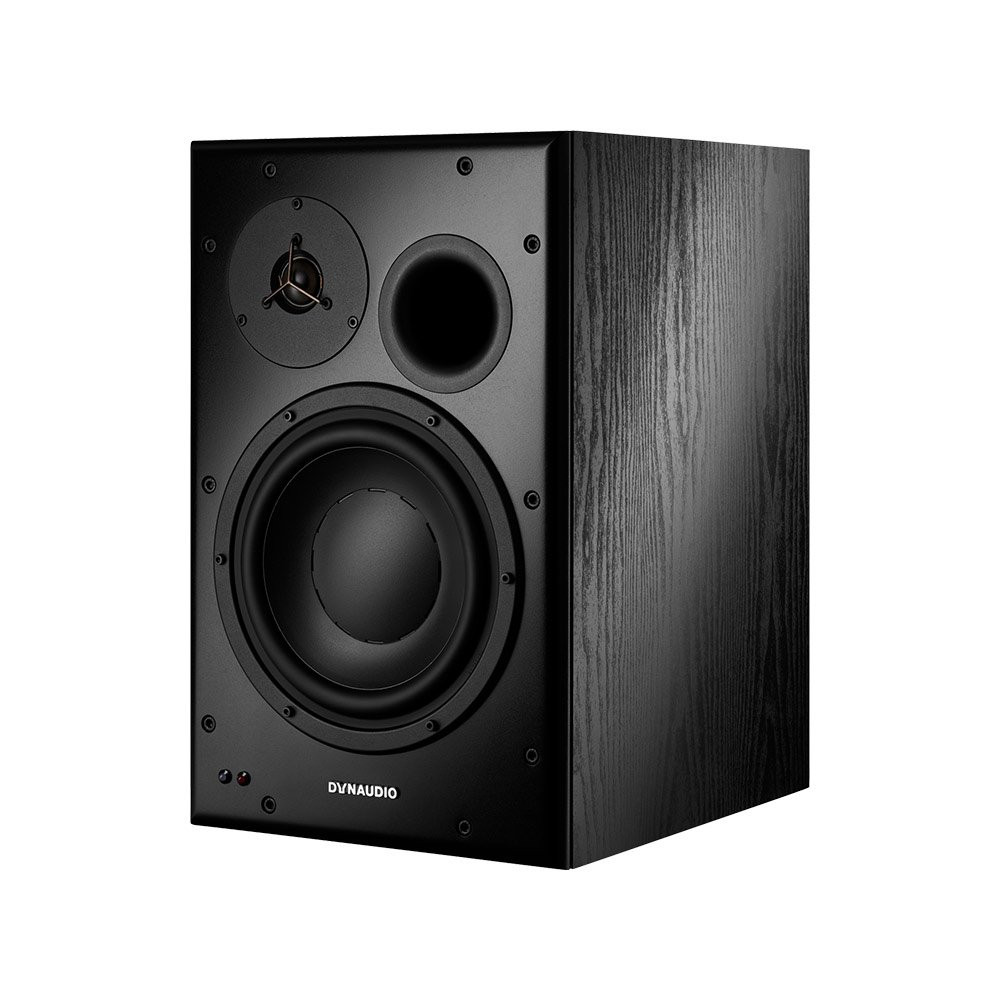

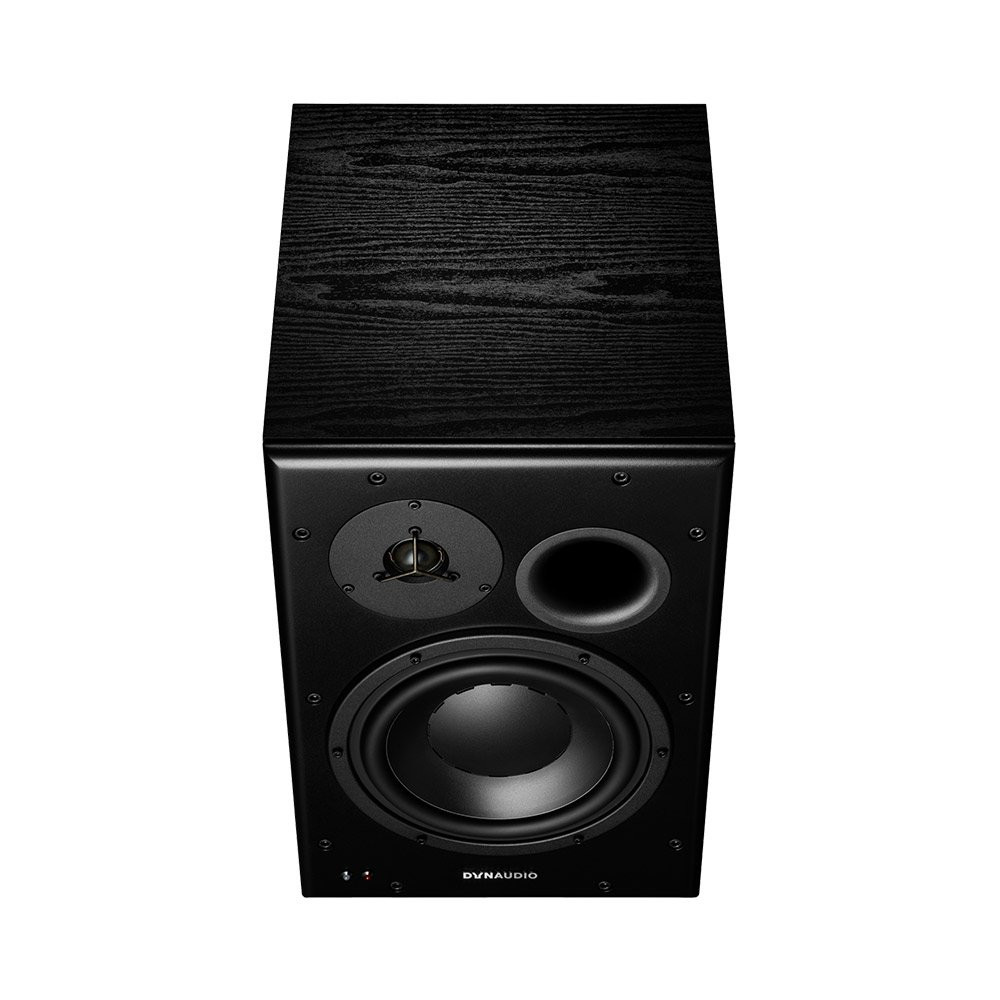

Dynaudio BM15A [Left] (single)
Dynaudio Classic
Active 2-Way Nearfield Monitor
- Left side studio monitor
- Dual, high performance discrete MOSFET amplifiers
- Phase-aligned crossover
- Handcrafted drivers with aluminum voice coils
- Frequency range: 40 Hz - 22 kHz
- Woofer 200 Watt - Tweeter 100 Watt
- 124 dB RMS
- Dimensions (W x H x D): 290 x 454 x 388 mm
- Weight: 18.6kg
- Made in Denmark
Description
Dynaudio BM15A Active Monitor Speakers
The Dynaudio BM15A is a revolutionary nearfield monitor offering exceptionally high performance. Its full range extended bass response makes it the perfect nearfield monitor, particularly for commercial studios, project studios and post production facilities.
The BM15A is a relatively large 2-way active system comprising of a large 240mm (10") woofer, a special version of the Dynaudio ESOTEC soft dome tweeter and an electronic phase-aligned crossover, which feeds the build-in dual, high performance discrete MOSFET amplifiers.
The ESOTEC HF driver spells quality and headroom due to a dynamic headroom of 1000W, and the 240mm (10") bass driver is world-renowned for its 100mm (4") aluminium alloy voice coil, which outperforms most 300mm (12") drivers in terms of power output and sheer punch.
The electronics offer complex protection circuitry helping to prevent accidental damage to the drivers, while still providing maximum transient response.
The BM15A monitor is front ported for powerful and extended low frequency response, and the elegant matte cabinet has radius edges on the front baffle to reduce boundary effects and improve the overall sound quality.
Dynaudio BM15A Features
- Handcrafted aluminum drivers
- High-resolution 1.1" soft dome tweeter, pure aluminum voice coil
- 10" woofer, 4" pure aluminum voice coil
- 2 channel high grade 100/200Watt RMS amplifiers
- 124dB SPL peak power output
- Frequency response of 40Hz to 22kHz
- HF & LF analog trim filters
Specification
System: | 2-way Active Nearfield Monitor |
---|---|
Frequency Response (±3dB): | 40Hz - 21kHz |
Max SPL 1m, pair (IEC Long Term): | 124dB RMS |
Max SPL 2m, 5.1 (IEC Long Term): | 125,5dB RMS |
Input level for 85 dB SPL @ 1m (+4/-10): | -18dBu RMS / -34dBu RMS |
Input level for max peak SPL (+4/-10): | +16dBu peak / -1dBu peak |
Power consumption: | Idle: 40W / Max: 300W |
Amplifier power: | Tweeter: 100W / Woofer: 200W |
Resonance Frequency: | 39Hz |
Model: | BM15A |
---|---|
Internal Cabinet Volume: | 27,5 liters |
Principle: | Bass reflex |
Crossover Frequencies: | 1800Hz |
Crossover Slope: | 30dB/oct |
Tweeter: | Esotec 28mm soft dome, rear chamber, Magnetic fluid. 4 mm die-cast alu front, |
Woofer: | 240mm/10”, One-piece molded polyprop cone, 100 mm/4” pure alu voice coil |
Weight: | 18.6kg / 41lbs |
Dimensions (W x H x L): | 290 x 454 x 388mm / 11.4” x 17.9” x 15.2” |
