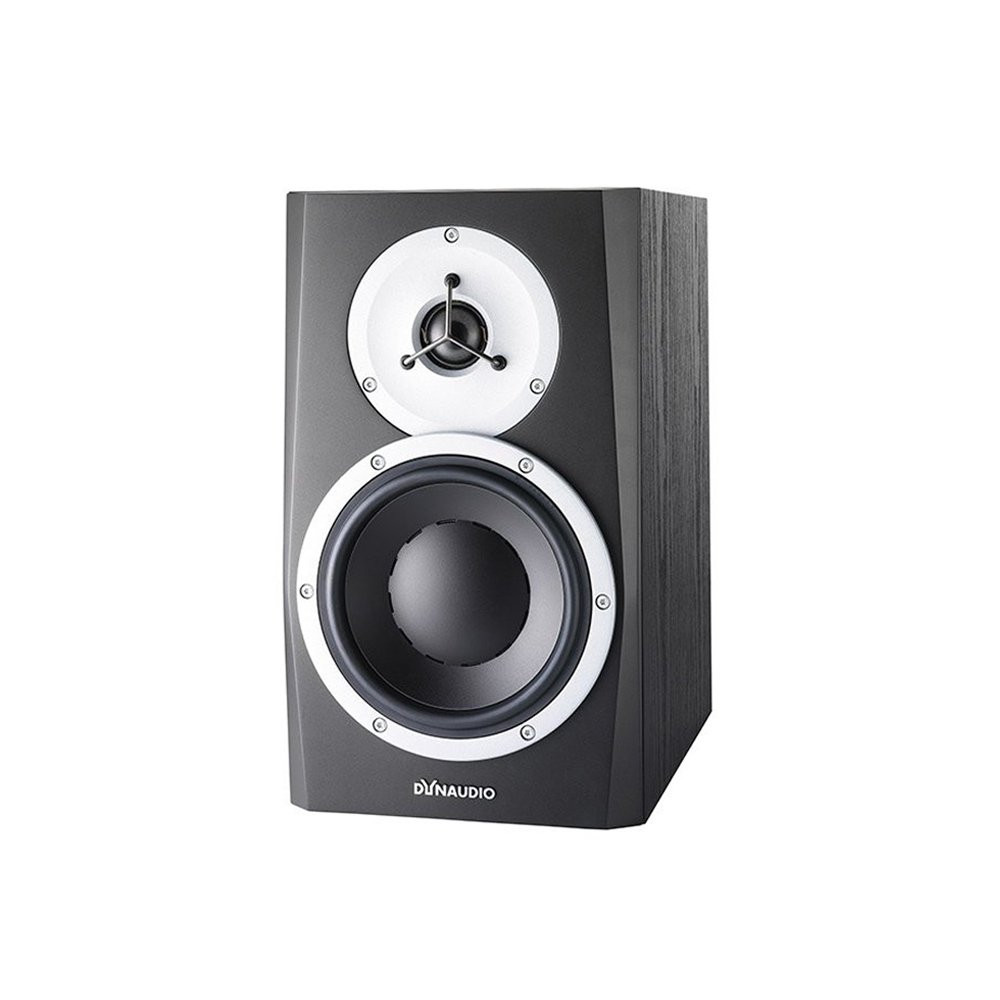

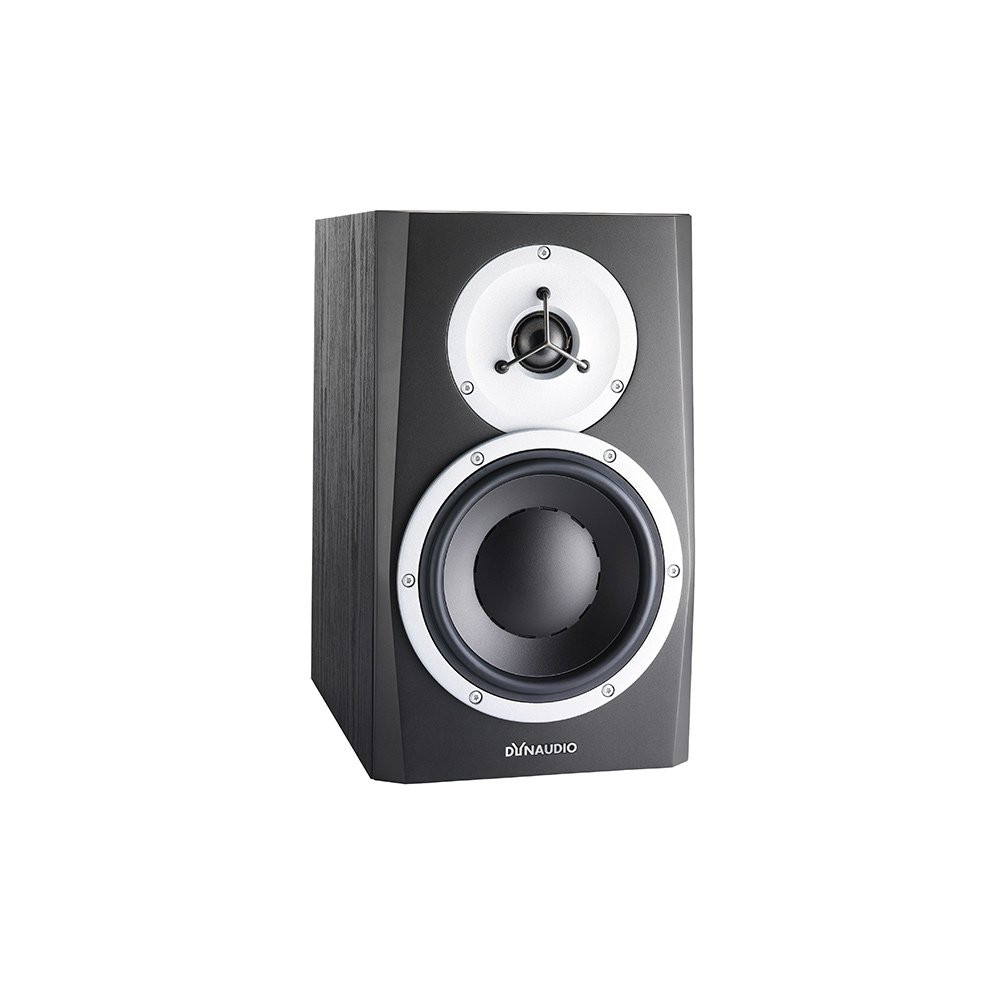

Dynaudio BM5 Mk III (single)
Dynaudio Classic
2-Way Active Nearfield Monitor
- 7" Active Nearfield Studio Monitor
- XLR and RCA inputs
- Handcrafted drivers with aluminum voice coils
- Class-D Amplification with DSP
- Frequency Response (±3dB): 42Hz – 24kHz
- Woofer 200 Watt - Tweeter 100 Watt
- 118dB peak
- Dimensions (W x H x L): 186 x 320 x 296mm
- Weight: 7.7kg
- Made in Denmark
Description
Dynaudio BM5 MkIII Active Nearfield Monitors
The Dynaudio BM5 MkIII is the next generation of the
extremely successful BM5 active monitor range.
The new BM5 mkIII has greater SPL, broader frequency range and it's hand-crafted drivers deliver an ultra-high dynamic range and the overall performance level that would normally only be found in much larger, more expensive monitors.
A large diameter voice coil surrounds the magnet for superior linearity. An aluminum voice coil former and wire are low mass, so transient response is quick and accurate.
The diaphragm and dust cap are moulded as one piece in patented low-mass, highly rigid Magnesium Silicate Polymer providing unrivaled accuracy.
Dynaudio BM5 MkIII Features:

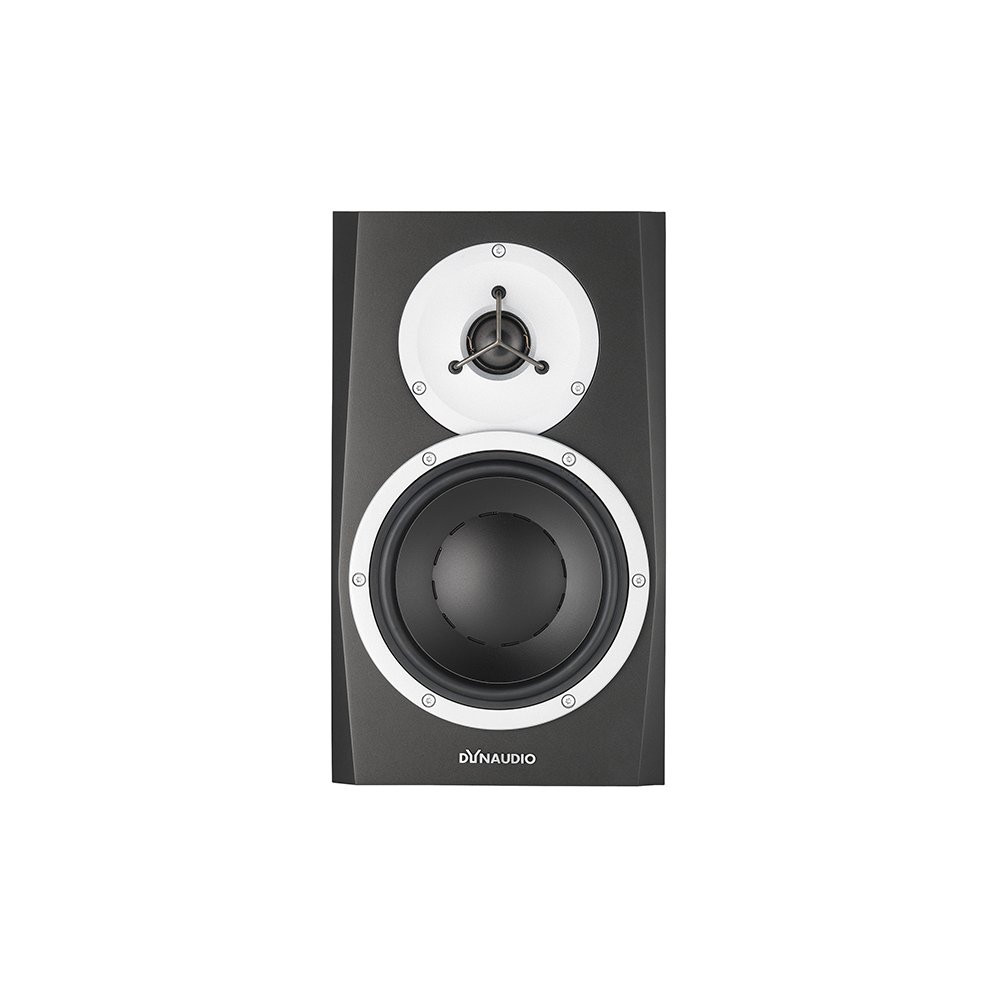

- Extended excursion 7" woofer with pure aluminium voice coil.
- 1.1" soft dome tweeter with pure aluminium voice coil.

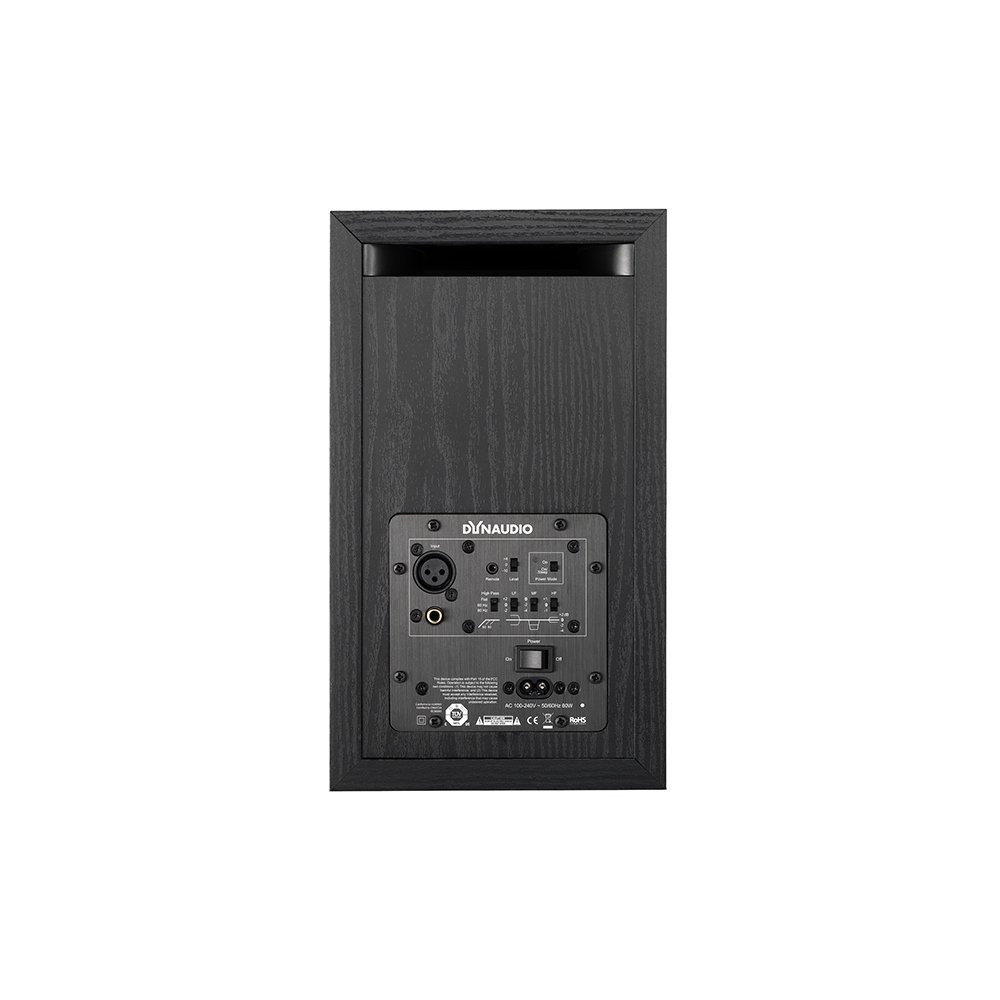

- Flexible operation with XLR and RCA inputs
- Optional Dynaudio Professional Volume Box for precision level control
- Higher SPL and greater frequency and power response to many others in its class
- 50W LF and 50W HF RMS Class D amplifier with DSP crossover
- 118dB SPL peak power output
- Frequency response of 42Hz-24kHz
- Extended bass with BM9S II or 14S II precision subwoofers
- HF, MF, LF analog room filters allow flexible positioning
- High pass filters at 60/80Hz for perfect subwoofer adaption
- Input sensitivity switch (-10/+4dB range)
- Made in Denmark
Specification
System: | Two-way Active Precision Nearfield Monitor |
---|---|
Frequency Response (±3dB): | 42Hz – 24kHz |
Input level for 85 dB SPL @ 1m: | 100mVrms |
Max SPL 1m, normal room: | 118dB peak |
Power consumption: | Standby: 0.3W Idle: 5.8 Max: 94 W |
Amplifier power: | Tweeter: 50W Woofer: 50W |
Resonance Frequency: | 45Hz |
Principle: | Bass reflex |
---|---|
Crossover Frequencies: | 1900Hz |
Crossover Slope: | 12dB/oct |
Tweeter: | D-281 - 28 mm soft dome, rear chamber, magnetic fluid 4 mm aluminum front Pure aluminum wire voice coil |
Woofer: | 165mm molded aluminum frame/ one piece thermo formed MSP cone 75 mm voice coil with pure aluminum wire on aluminum former |
Weight: | 7,7kg / 16.9lbs |
Dimensions (W x H x D): | 186 x 320 x 296mm / 7.3” x 12.5” x 11.6” |
