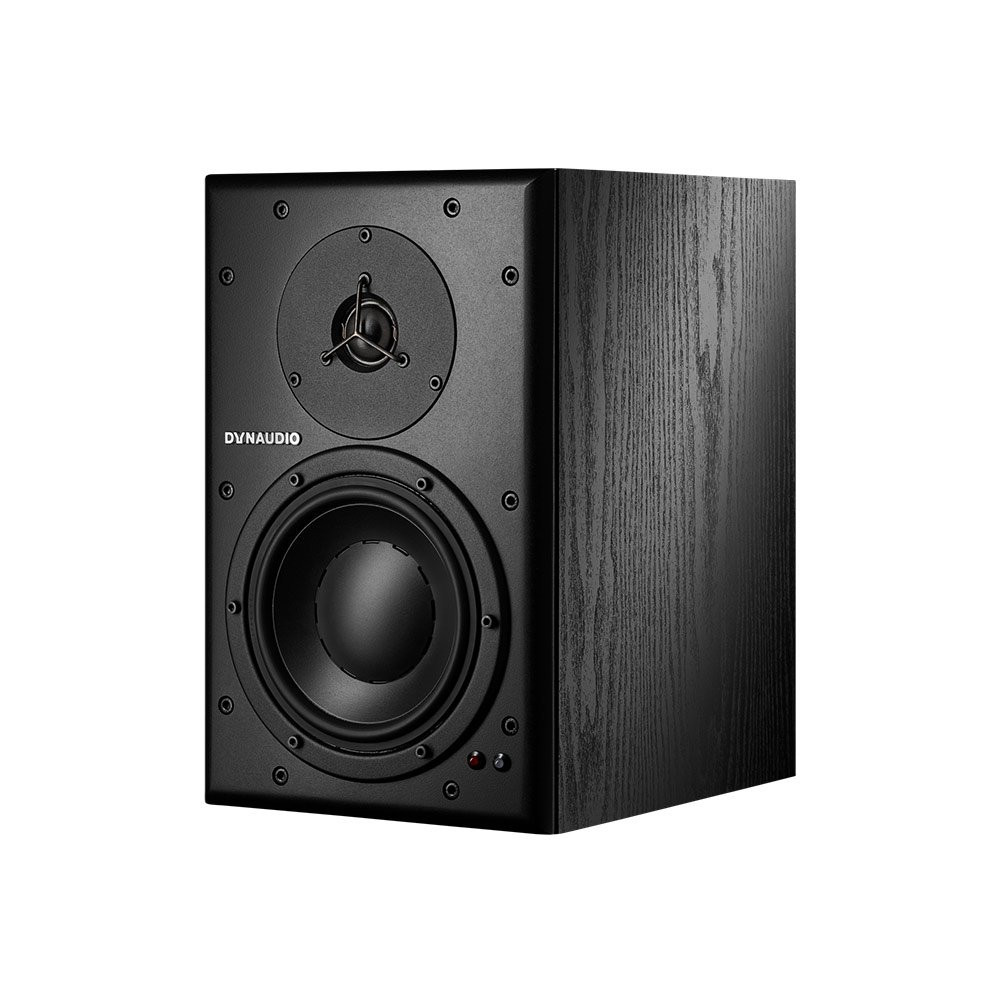

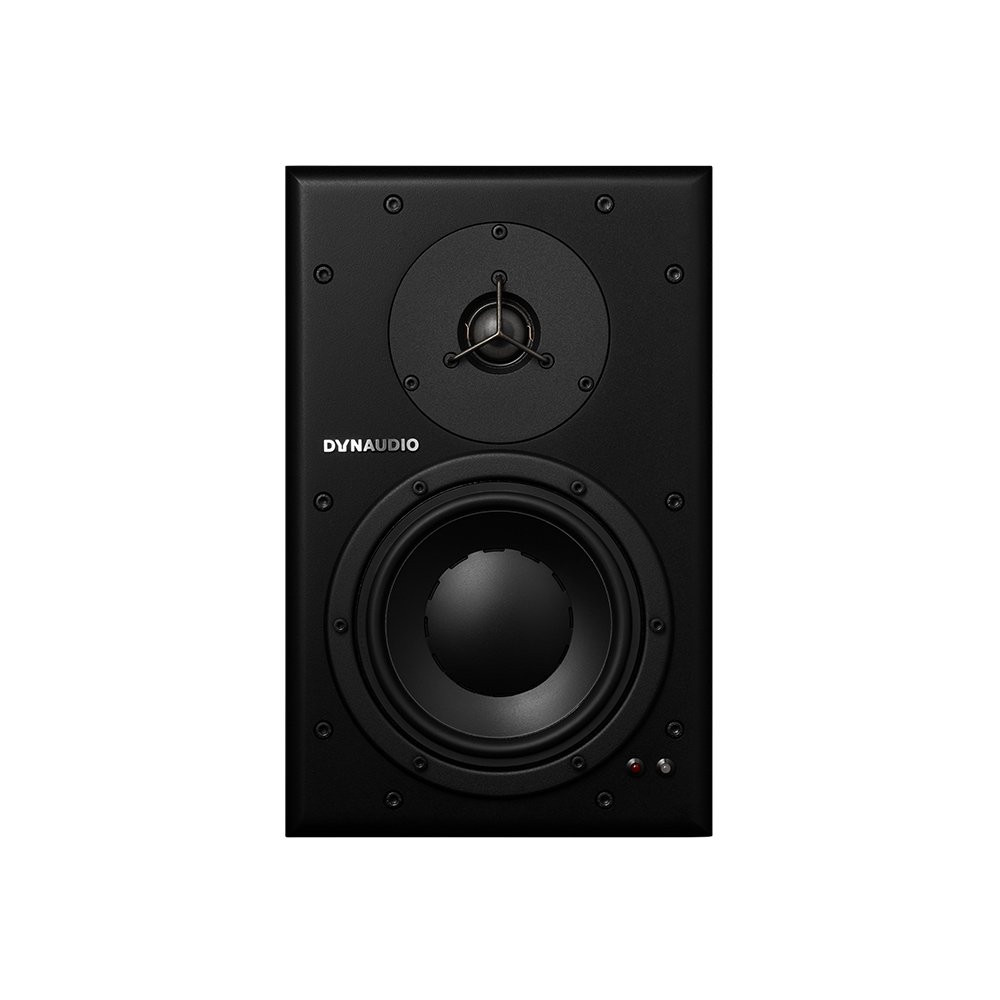

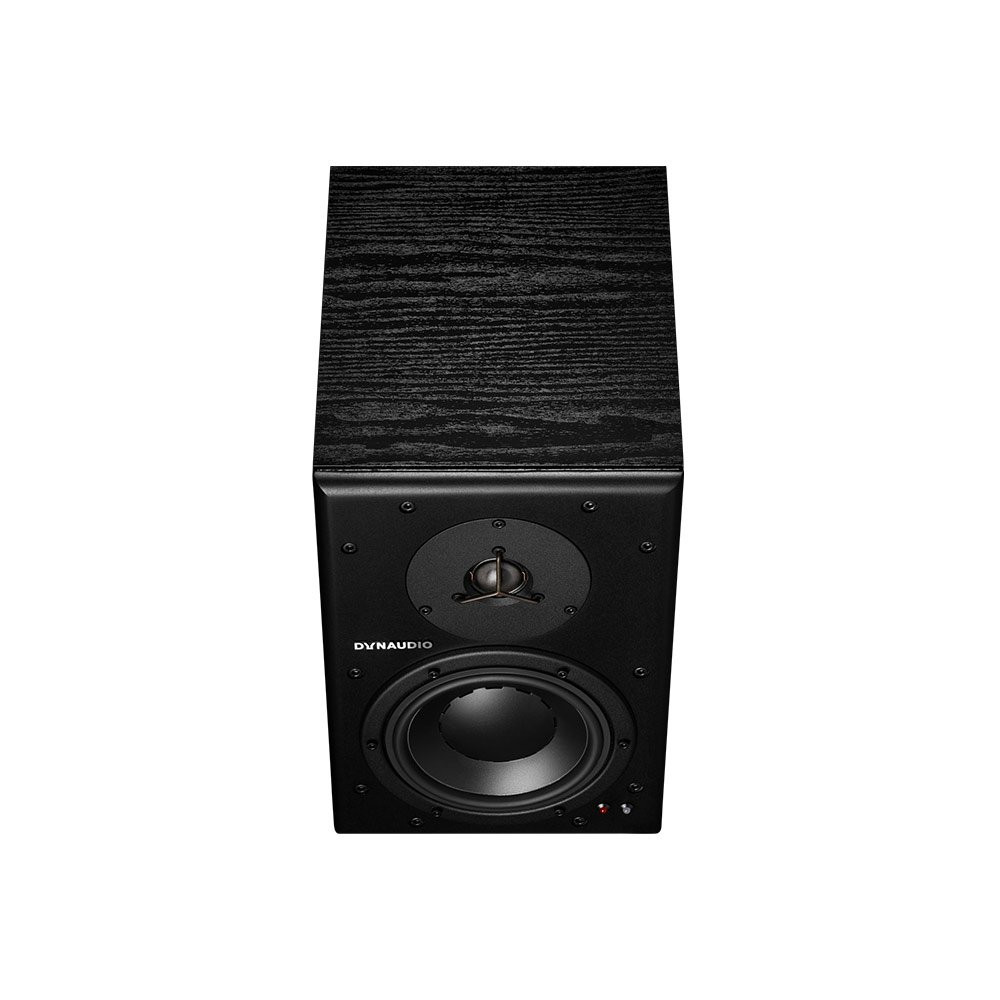

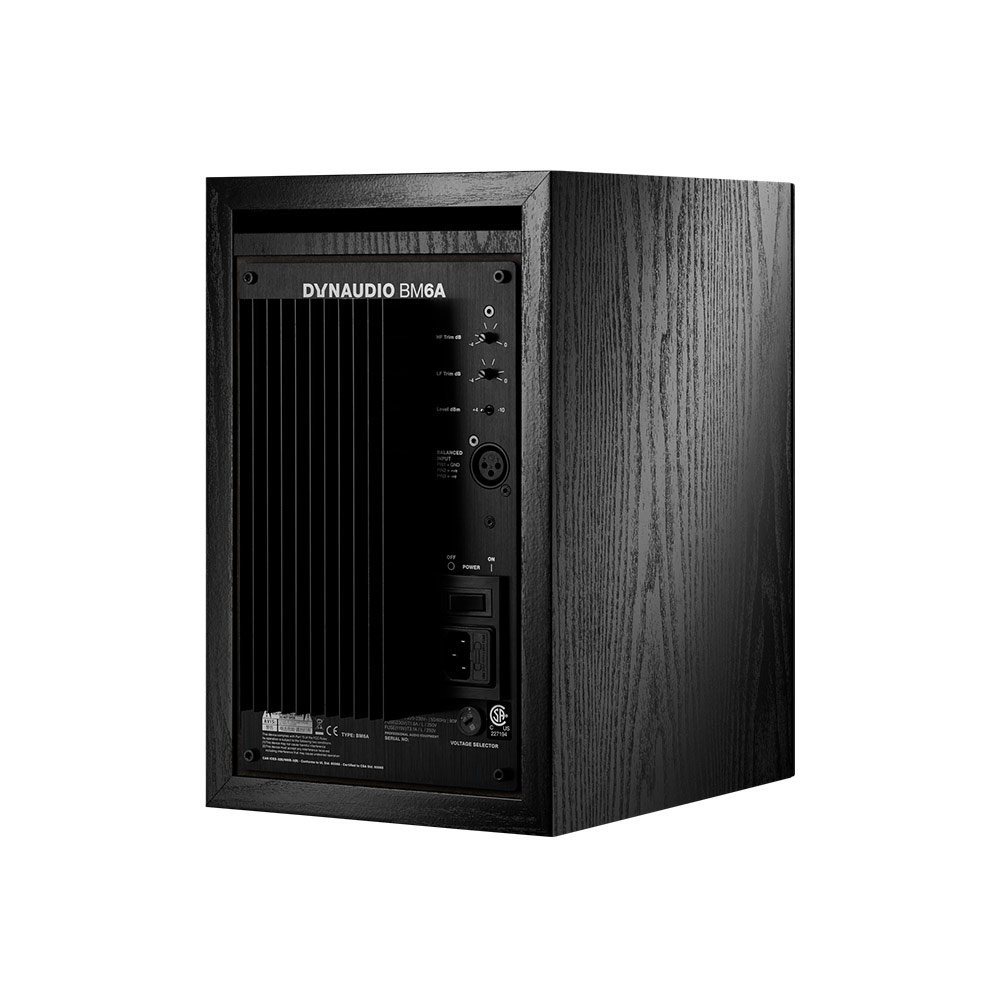

Dynaudio BM6A (single)
Dynaudio Classic
2-Way Active Nearfield Monitor
- Dual, high performance discrete MOSFET amplifiers
- 4th order phase-aligned crossover
- Handcrafted drivers with aluminum voice coils
- Frequency range: 41Hz - 21kHz
- Tweeter 100 Watt
- Woofer 100 Watt
- 118dB SPL peak power output
- Dimensions (W x H x L): 217 x 338 x 321mm
- Weight: 11kg
- Made in Denmark
Description
Dynaudio BM6A
The Dynaudio BM6A is an active studio monitor suitable for a range of applications covering every aspect of sound engineering and reproduction, including music and speech monitoring and mixing, radio station, OB vehicles, edit suites, post production, recording studios and playback rooms.
Their small size combined with their brilliant performance also make them suitable for use as rear channel speakers in surround systems. In combination with the 9S or 18S subwoofer, the BM6A is also well suited for a full-blown 5.1 system in smaller rooms. The BM 6A features an electronic 4th order phase-aligned crossover with a crossover point at 2.2kHz, which feeds two high performance discrete MOSFET amplifiers rated at 100W each.
The low frequency section is driven by a low frequency equalizer offering a choice between extended, critical damped response or more conventional higher Qt response for more level but less low frequency output. Included in the electronics is a complex protection circuit, which helps to prevent accidental damage to the drivers, yet still providing maximum transient response.
The Dynaudio BM 6A is housed with an elegant matte cabinet with radius edged construction on the front baffle to reduce boundary effects and improve overall sound quality.
Dynaudio BM6A Features
- Handcrafted aluminum drivers
- High-resolution 1.1" soft dome tweeter, pure aluminum voice coil
- 7" woofer, pure aluminum voice coil
- 2 channel high grade 100-Watt RMS amplifier
- 118dB SPL peak power output
- Frequency response of 41Hz to 21kHz
- HF & LF analog trim filters
Specification
System: | 2-way Active Nearfield Monitor |
---|---|
Frequency Response: | 41Hz - 21kHz |
Max SPL 1m, pair (IEC Long Term): | 118dB RMS |
Max SPL 2m, 5.1 (IEC Long Term): | 119,5dB RMS |
Input level for 85 dB SPL @ 1m (+4/-10): | -12dBu RMS / -28 dBu RMS |
Input level for max peak SPL (+4/-10): | +16dBu peak / -1dBu peak |
Power consumption: | Idle: 25W / Max: 200W |
Amplifier power: | Tweeter: 100W / Woofer: 100W |
Resonance Frequency: | 49Hz |
Internal Cabinet Volume: | 9,5 liters |
---|---|
Principle: | Bass reflex |
Crossover Frequencies: | 2200Hz |
Crossover Slope: | 24dB/oct |
Tweeter: | Esotec 28mm soft dome, rear chamber, Magnetic fluid. 4 mm die-cast alu front, |
Woofer: | 17cm, 75mm pure alu wire voice coil, One piece molded polypropylene cone |
Weight: | 11kg |
Dimensions (WxHxL): | 217 x 338 x 321mm |
