Dynaudio LYD 7 (single)
Active Nearfield Monitor

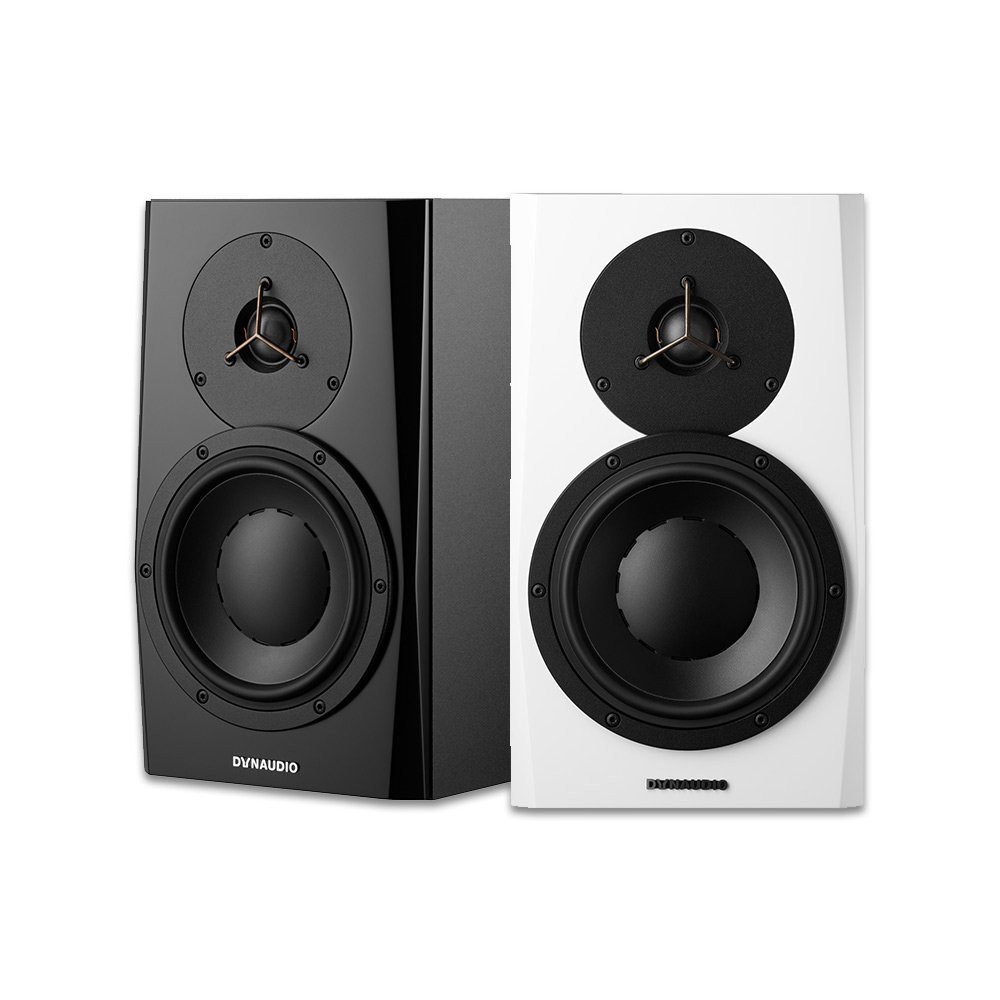

- Available in Black and White
- With 7" woofer
- 96 kHz / 24-bit Class-D amplifier
- Power: 50 W Woofer / 50 W tweeter
- DSP crossover with crossover frequency at 4300 Hz
- Maximum level: 109 dB SPL @ 1 m
- Frequency range: 45 Hz - 22 kHz
- Input sensitivity switch (-6 / 0 / +6 dB)
- Bass Extension Control (+10 Hz / +5 dB, 0, -10 Hz / -5 dB)
- Position control: Presets for free or wall-mounted installation
- Sound balance control: Tilt filter (dark, neutral, bright) for adjustment according to preference
- XLR input balanced
- RCA input unbalanced
- Dimensions (W x H x D): 186 x 320 x 296 mm
- Weight: 8 kg
Description
Dynaudio LYD 7 Studio Monitor
Versatile, powerful and precise – exactly as they should be
A 7in personal reference monitor, designed from the ground-up to bring supreme precision to your mixes
This monitor uses sophisticated DSP to extend or its curtail low-frequency response by 10Hz, while Position and Sound Balance controls let you fine-tune for total neutrality in your environment. Its larger 7in woofer helps extend bass, while the low-mass aluminium voice-coil, vented ferrite magnet and MSP driver take care of precision.
Versatile, powerful and precise – exactly as they should be
Monitoring in an untreated room can never be considered ideal. Fortunately, Dynaudio’s ‘LYD’ series is here to make accurate, clean sound for the home or project studio a reality.
Dual 50-watt power amps power a thumping 7” driver and smooth soft-dome tweeter for precise audio reproduction. Dynaudio also included 3 handy switches to ensure it’s quick and easy to find the best sound to suit your room.
Firstly, a Position switch filters reflective interference when in place within 20” of a wall.
Next up, a ‘Sound Balance’ selector increases or limits brightness dependent on the characteristics of your room – perfect for switching between rooms with treated and bare walls.
Lastly, is a 3-way ‘Bass Extension’ switch to give you control of your Dynaudio LYD-7’s low end in 10Hz increments.
Incredible consistency
Dynaudio monitors are designed to speak the truth so you get exactly what you need: an exact reproduction of your mix. Great mixing derives from attention to detail while striving for a final mix that goes way beyond the sum of its parts. Dynaudio believe that the same principle applies when designing ultimate monitors.
Utmost care in selection of materials and production combined with the industry's most thorough and extensive testing program allow the LYD 5’s monitors to achieve 100 percent consistency - not just between different pairs, but also when crossing pairs or relying on pairs in different locations.
And due to Dynaudio’s unique driver technology, the LYD 5’s monitors are neutral and uncoloured. The smooth clarity in combination with the outstanding dynamic capabilities of these monitors ensure that you can work long hours without ear fatigue.
Features
-
Nearfield Monitor with 7" Woofer
-
Bi-amped speaker design with 2 x 50W and state-of-the-art Class-D amplification
-
Bass extension to extend or curtail the low end frequency response
-
Two different tunings: one for free standing and one designed for speakers within 50 cm of wall
-
Sound balance to influence the overall response of the speaker
-
Made in Denmark
Specification
Max SPL (1m, pair): | 109dB |
---|---|
Principle: | Bass reflex |
Crossover Frequency: | 4.3kHz |
Tweeter: | 1in soft dome |
Mid: | N/A |
Woofer: | 7in |
Dimensions (W x H x D): | 186 x 320 x 296mm |
Weight: | 8kg |
Sensitivity (85dB @ 1m, free field): | |
+6dB: | 50mV |
0dB: | 100mV |
-6dB: | 200mV |
Amplifier: | |
---|---|
Power (Tweeter/Woofer): | HF 50W/LF 50W |
Type: | Class-D |
Power consumption standby: | <0.5W |
Power consumption max.: | 100W |
Input voltage: | 90 - 264V AC, 50 - 60Hz |
Inputs: | XLR balanced / RCA unbalanced |
Outputs: | N/A |
Cut-off frequencies -6dB limits: | |
Bass extension +10Hz: | 65Hz - 21kHz |
Bass extension 0Hz: | 55Hz - 21kHz |
Bass extension -10Hz: | 45Hz - 21kHz |
Free field frequency response: | 55Hz - 19kHz |
