Dynaudio LYD 8 (single)
Active Nearfield Monitor
with 8" Woofer

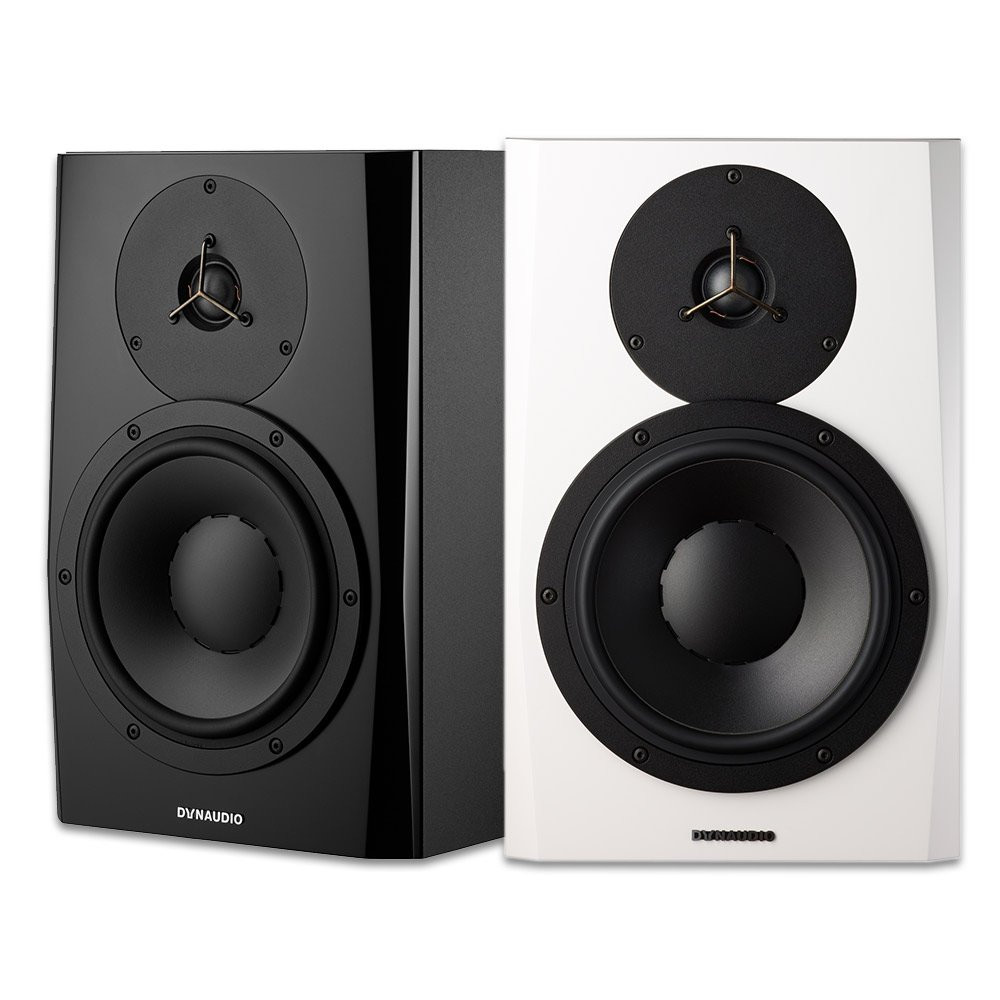

- Available in Black and White
- 8" woofer
- 96 kHz/ 24-bit Class-D amplifier
- Power: 80 W woofer / 50 W tweeter
- DSP crossover with crossover frequency at 3.9 kHz
- Maximum level: 112 dB SPL @ 1m
- Frequency range: 45 Hz - 22 kHz
- Input sensitivity switch (-6 / 0 / + 6 dB)
- Bass Extension Control (+10 Hz / + 5 dB, 0, -10 Hz / -5 dB)
- Position control: Presets for free or wall-mounted installation
- Sound balance control: Tilt filter (dark, neutral, bright) for adjustment according to preference
- XLR input balanced
- RCA input unbalanced
- Dimensions (W x H x D): 234 x 369 x 328 mm
- Weight: 10.2 kg
Description
Dynaudio LYD 8 Studio Monitor
Astonishing accuracy across the board
Precision, power… and properly honest reproduction. With a pair of LYD 8s taking charge of your music, you can be assured a pitch-perfect performance.
With its 8in MSP woofer and state-of-the-art DSP, LYD 8 provides the kind of performance, precision and bass heft that dreams (and maybe hit albums) are made of.
Like the rest of the range, these nearfield monitors let you tune their sound for their position in the room, feature handmade drivers, and contain advanced Class-D amps.
Versatile, powerful and precise – exactly as they should be
Monitoring in an untreated room can never be considered ideal. Fortunately, Dynaudio’s ‘LYD’ series is here to make accurate, clean sound for the home or project studio a reality.

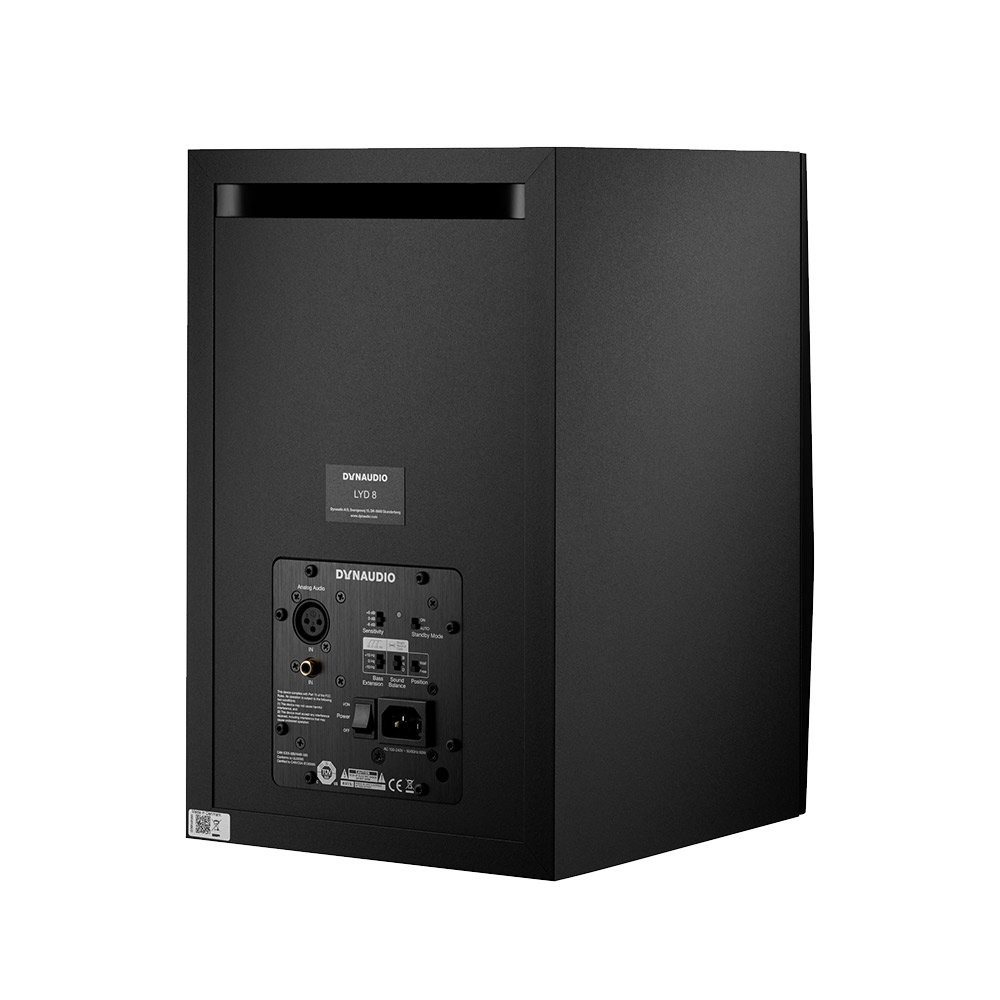

Dual 50-watt power amps power a thumping 8” driver and smooth soft-dome tweeter for precise audio reproduction. Dynaudio also included 3 handy switches to ensure it’s quick and easy to find the best sound to suit your room.
Firstly, a Position switch filters reflective interference when in place within 20” of a wall.
Next up, a ‘Sound Balance’ selector increases or limits brightness dependent on the characteristics of your room – perfect for switching between rooms with treated and bare walls.
Lastly, is a 3-way ‘Bass Extension’ switch to give you control of your Dynaudio LYD-8’s low end in 10Hz increments.
Incredible consistency
Dynaudio monitors are designed to speak the truth so you get exactly what you need: an exact reproduction of your mix. Great mixing derives from attention to detail while striving for a final mix that goes way beyond the sum of its parts.
Dynaudio believe that the same principle applies when designing ultimate monitors.
Utmost care in selection of materials and production combined with
the industry's most thorough and extensive testing program allow the LYD
8’s monitors to achieve 100 percent consistency - not just between
different pairs, but also when crossing pairs or relying on pairs in
different locations.
And due to Dynaudio’s unique driver technology, the LYD 8’s monitors are neutral and uncoloured. The smooth clarity in combination with the outstanding dynamic capabilities of these monitors ensure that you can work long hours without ear fatigue.
Features
-
Nearfield Monitor with 8" Woofer
-
Bi-amped speaker design with 50W HF/80W LF and state-of-the-art Class-D amplification
-
Bass extension to extend or curtail the low end frequency response
-
Two different tunings: one for free standing and one designed for speakers within 50 cm of wall
-
Sound balance to influence the overall response of the speaker
-
Made in Denmark
Specification
Max SPL (1m, pair): | 112dB |
---|---|
Principle: | Bass reflex, rear port |
Crossover Frequencies: | 3.9kHz |
Tweeter: | 1in soft dome |
Mid: | N/A |
Woofer: | 8in |
Dimensions (W x H x D): | 234 x 369 x 328mm |
Weight: | 10.2kg |
Sensitivity (85dB @ 1m, free field): | |
+6dB: | 50mV |
0dB: | 100mV |
-6dB: | 200mV |
Amplifier: | |
---|---|
Power (Tweeter/Woofer): | HF 50W/LF 80W |
Type: | Class D |
Power consumption standby: | <0.5 W |
Power consumption max.: | 100 W |
Input voltage: | 90 - 264 V AC, 50 - 60 Hz |
XLR balanced | |
Inputs: | RCA unbalanced |
Outputs: | N/A |
Cut-off frequencies -6dB limits: | |
Bass extension +10Hz: | 65Hz - 21kHz |
Bass extension 0Hz: | 55Hz - 21kHz |
Bass extension -10Hz: | 45Hz - 21kHz |
Free field frequency response: | 55Hz - 19kHz |
