Ferrofish Verto 64 (ADAT <> Dante)
64 x 64 ADAT <> Dante Converter
- Compact digital format converters
- Seamlessly integrate your ADAT devices into an exsiting Dante Network
- Freely Convert between ADAT & Dante (and vice versa)
Connections
- 1 x MADI I/O (Coaxial)
- 1 x MADI I/O (Optical SFP)
- 1 x Dante I/O (Primary & Secondary, 1Gbit)
- 1 x MIDI I/O
- 1 x Wordclock I/O
Dimensions
- 220 x 90 x 45 mm (W x D x H)
(without rack-mounts)
Description

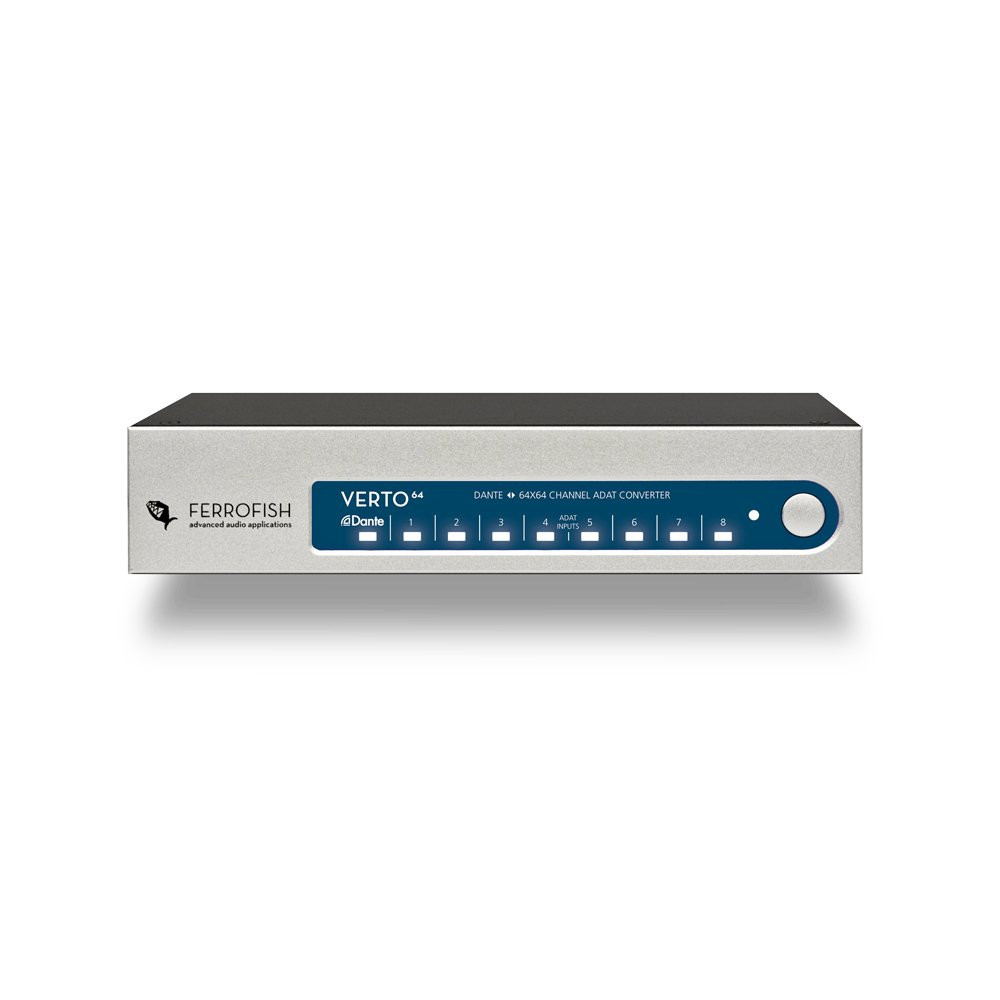

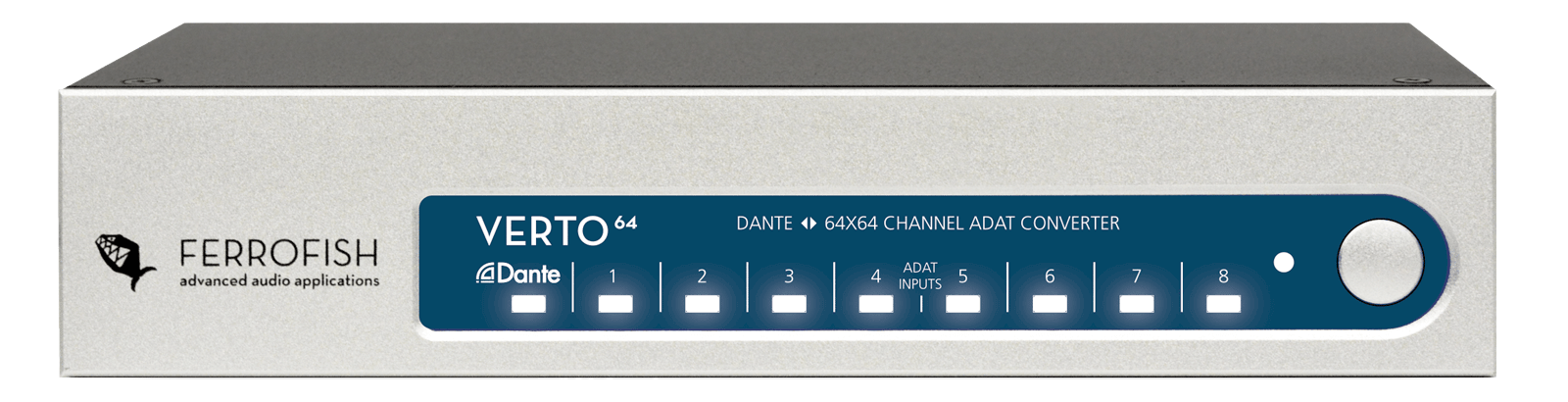

Ferrofish Verto64
Dante is the de facto standard for networking audio equipment. With the Verto64 it’s now possible to easily integrate up to 64 x 64 channels via ADAT into a Dante network. No matter which ADAT device you use – the Verto64 makes all channels immediately avalilable in the network: “plug and play”.
Dante is the de facto standard for networking audio equipment. With the Verto64 it’s now possible to easily integrate up to 64 x 64 channels via ADAT into a Dante network. No matter which ADAT device you use – the Verto64 makes all channels immediately avalilable in the network: “plug and play”.
The ultra compact device has 16 ADAT connectors: 8 for transmitting, and 8 for receiving digital data (8 channels each).
On the Dante side there are two RJ45 sockets, also prepared for redundant operation. The Verto64 supports up to 96kHz sample rate, MIDI jacks for firmware update and BNC wordclock jacks for external synchronisation.
A MADI <> Dante version is also available:
64×64 MADI Interface: VERTOMX
An additional 19″ rack mount kit is available here.
Your ADAT equipment deserves to be Dante Verto‘d. All of it.
Dante Plug & Play
Integrate the Verto64 seamlessly into your Dante network. Just plug it in and the device is visible on the network and ready to be routed freely using the Dante Controller software. Together with the Dante Virtual Soundcard, also from Audinate, the Verto64 turns into a high channel count ADAT audio interface.
Additional features
The Verto64 is equipped with a MIDI port for update devices and two BNC wordclock connectors. This way an external Wordclock can be fed to the Dante network, or the Dante wordclock can be used for external devices.

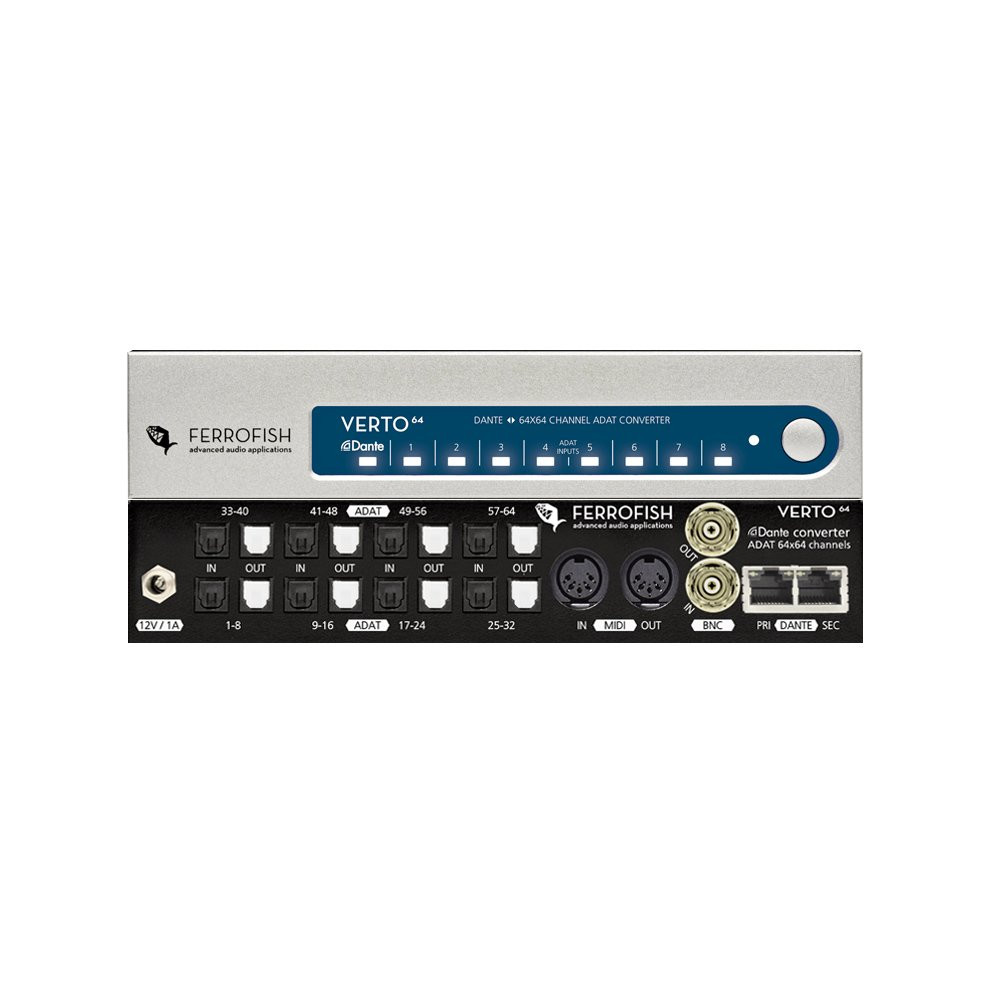

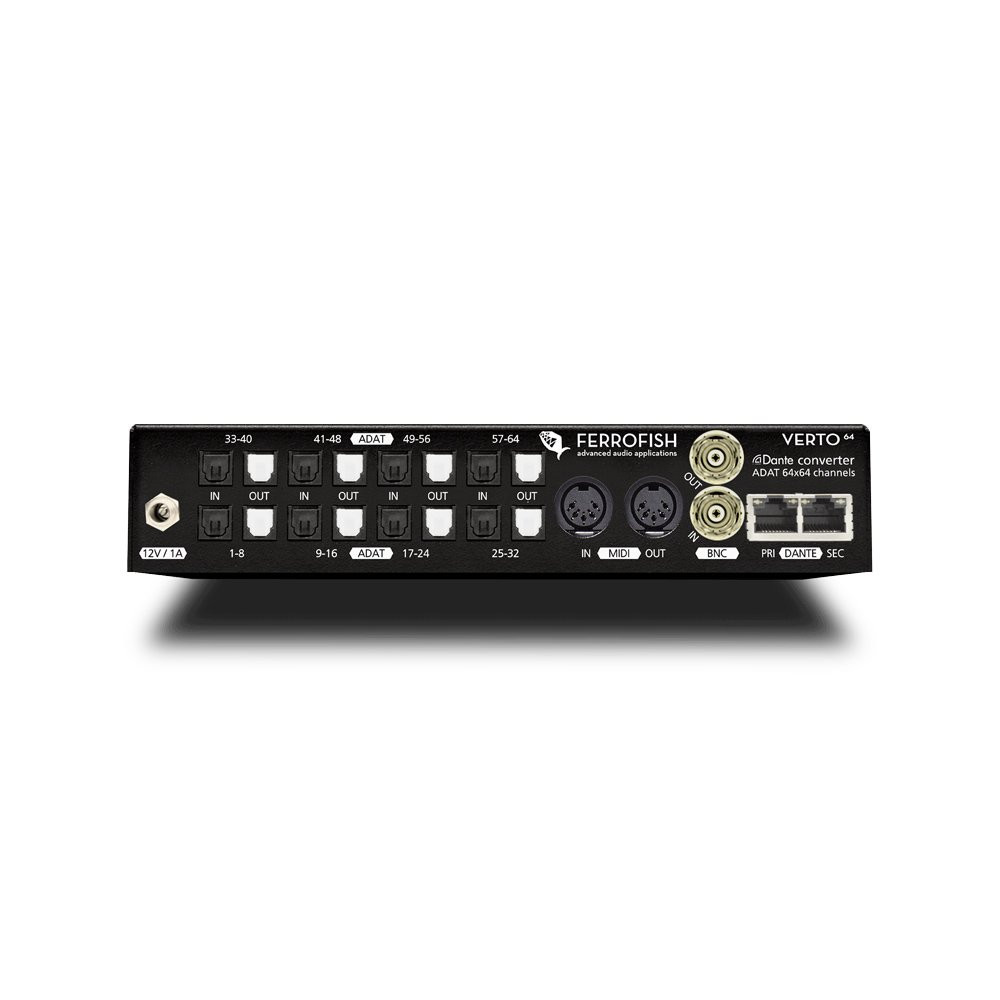

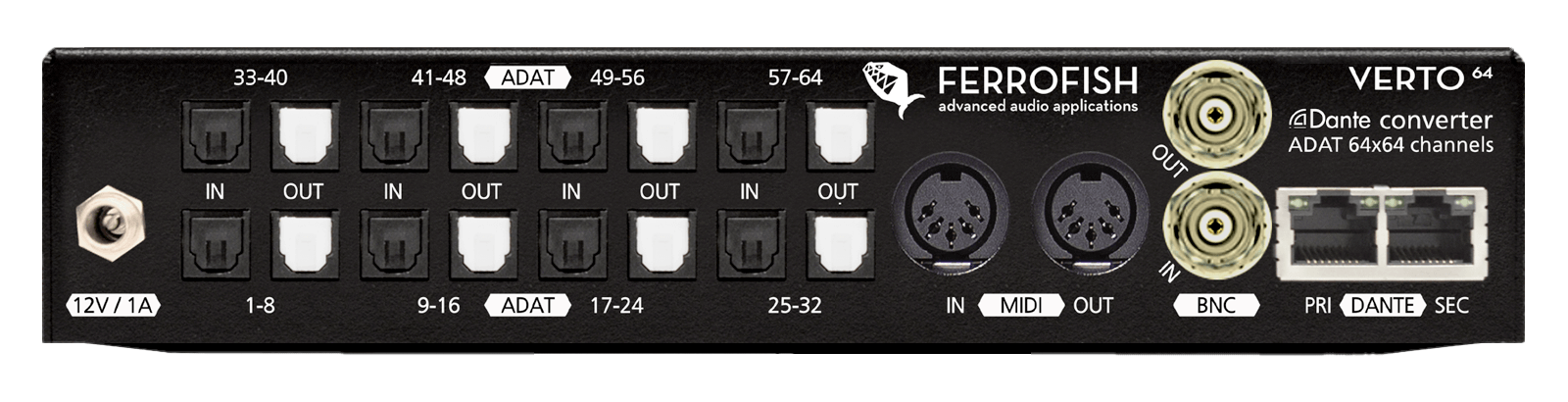

Verto64 INPUTS & OUTPUTS
64 ADAT I/O Channels <> 64 Dante I/O Channels
8 x ADAT I/O (TOSLINK)
Each ADAT port can transfer eight channels at a sample rate of 48 kHz (= 64 In + 64 Out channels). With 96 kHz it is possible to convert 32 Dante I/O to ADAT (S/MUX2).
MIDI I/O
A MIDI I/O Interface in 5Pin DIN configuration is also included to update the unit using a simple USB-MIDI Interface.
Word Clock I/O
BNC with 75 Ohm termination. Set to on by default – can be changed with the remote software via the network connection.
Dante Network I/O (redundant)
Two RJ-45 ports connect to any Dante audio network. Simply connect a LAN Ethernet cable (CAT5/CAT6) to the primary port. The secondary port takes automatically over in case of a network error (Dante Port Redundancy).
Verto64 – 64×64 channel ADAT Dante converter
Dantify your equipment!
Seamless integration of up to 2 x 8 ADAT devices into the fastest growing Audio-over-IP Eco System.
Specification
Features
VERTO 32 |
VERTO 64 |
VERTO MX |
|
---|---|---|---|
Dante |
2 x RJ-45 Dante Port (Ethernet) |
||
Sample frequency |
44,1 kHz – 96 kHz |
44,1 kHz – 96 kHz |
44,1 kHz – 192 kHz |
ADAT I/O |
4 x TOSLINK |
8 x TOSLINK |
--- |
MADI I/O |
--- |
--- |
1 x optical |
I/O Channel Count @48kHz |
32 |
64 |
64 |
I/O Channel Count @96kHz |
16 |
32 |
32 |
I/O Channel Count @192kHz |
--- |
--- |
16 |
MIDI-over-MADI |
--- |
--- |
yes |
MIDI I/O |
1 x MIDI 5pin input, 1 x MIDI 5pin output |
||
Wordclock |
1 x BNC input, 1 x BNC output |
||
Dimensions |
9,5“ / 1HE |
