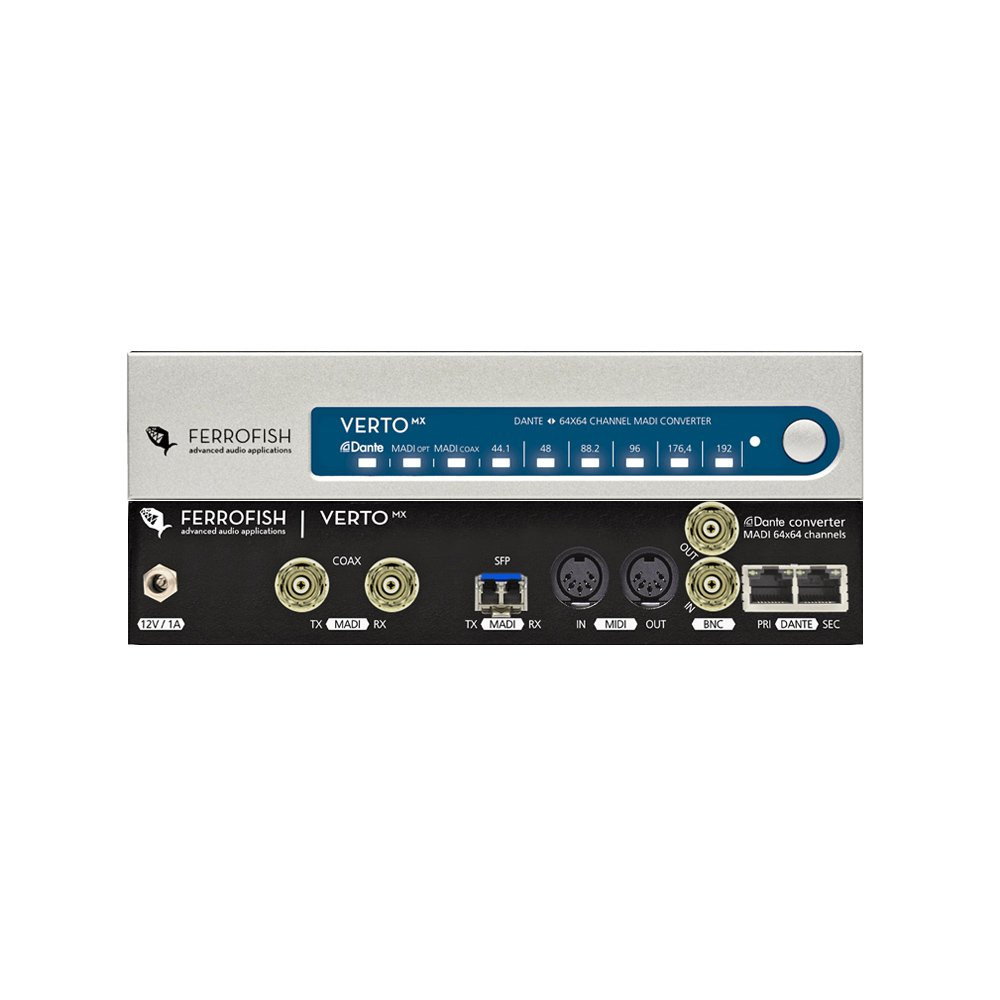

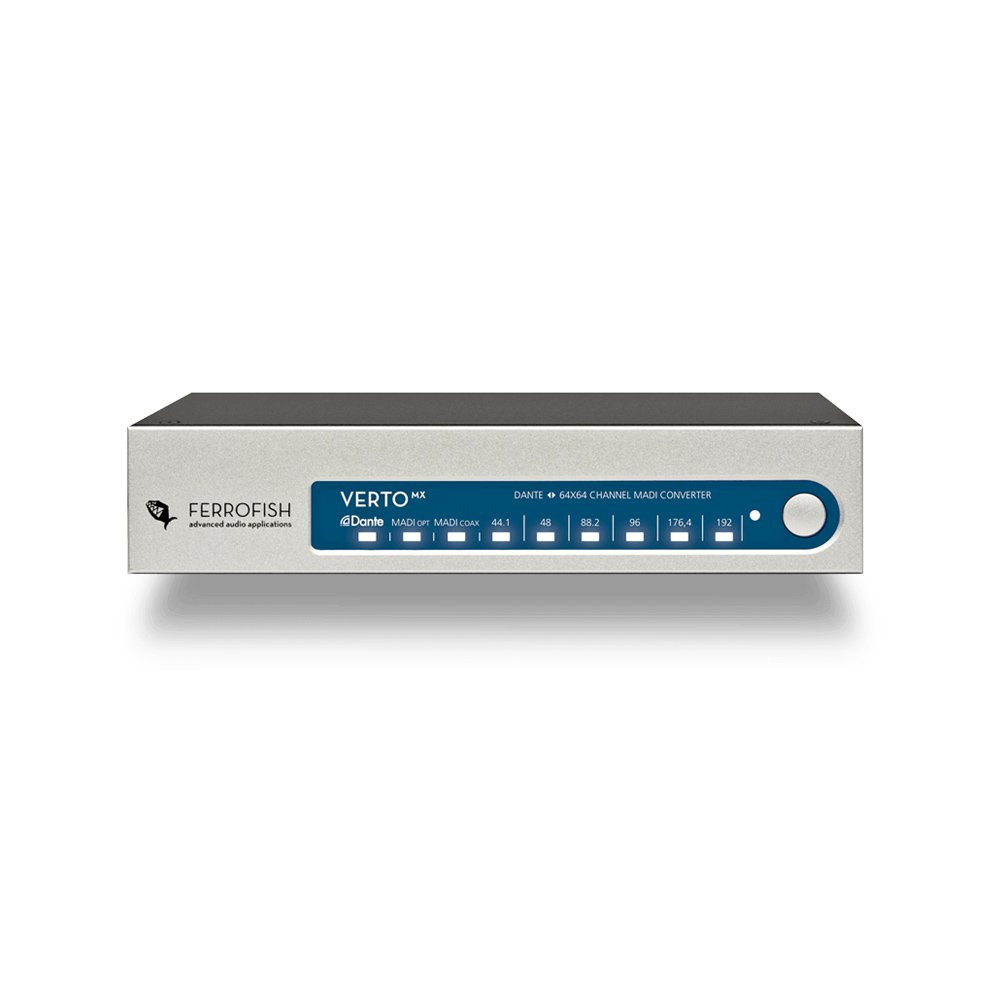

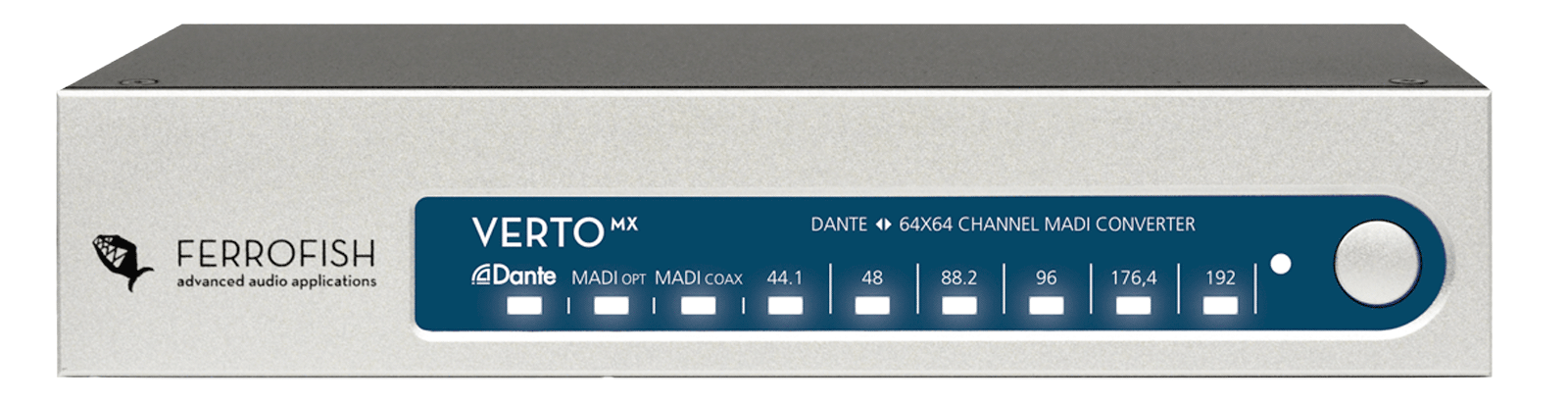

Ferrofish Verto MX (MADI <> Dante)
64 x 64 MADI <> Dante Converter
- Compact digital format converters
- Seamlessly integrate your MADI devices into an exsiting Dante Network
- Freely Convert between MADI & Dante (and vice versa)
Connections
- 1 x MADI I/O (Coaxial)
- 1 x MADI I/O (Optical SFP)
- 1 x Dante I/O (Primary & Secondary, 1Gbit)
- 1 x MIDI I/O
- 1 x Wordclock I/O
Dimensions
- 220 x 90 x 45 mm (W x D x H)
(without rack-mounts)
Description
Ferrofish VertoMX
Dante is the de facto standard for networking audio equipment. With the VertoMX it’s now possible to easily integrate your existing beloved MADI equipment into a Dante network. Whether mixer or MADI converter – the VertoMX makes all 64 x 64 MADI channels immediately avalilable in the network: “plug and play”.
The ultra compact device has two MADI interfaces, so both optical and coaxial equipment can be connected. If the MADI signal fails, the other interface is automatically switched so that secure redundant operation can be configured.
ATTENTION: Due to technical limitations the VertoMX does not work with the Blackmagic Constellation series.
On the Dante side there are two RJ45 sockets, also prepared for redundant operation. The VertoMX supports up to 192kHz sample rate, MIDI jacks for updates, and BNC wordclock jacks for external synchronization.
An ADAT <> Dante version is also available:
64×64 ADAT Interface: VertoMX
An additional 19″ rack mount kit is available here.
VertoMX - the ultimate upgrade to your MADI equipment.
Dante Plug & Play Eco System
Integrate the VertoMX seamlessly into your Dante network. Just plug it in and the device is visible on the network and ready to be routed freely using the Dante Controller software. Together with the Dante Virtual Soundcard, also from Audinate, the VertoMX turns into a MADI audio interface.
Redundant MADI I/O
The VertoMX has two MADI interfaces: optical and coaxial. These are operated redundantly if required, by switching to the other port in case of failure. The optical interface is modular: The MADI SFP module can be easily replaced, for example, with a Singlemode module.
Additional features
The VertoMX is equipped with a MIDI port and two BNC wordclock connectors. This way an external Wordclock can be fed to the Dante network, or the Dante wordclock can be used for external devices.

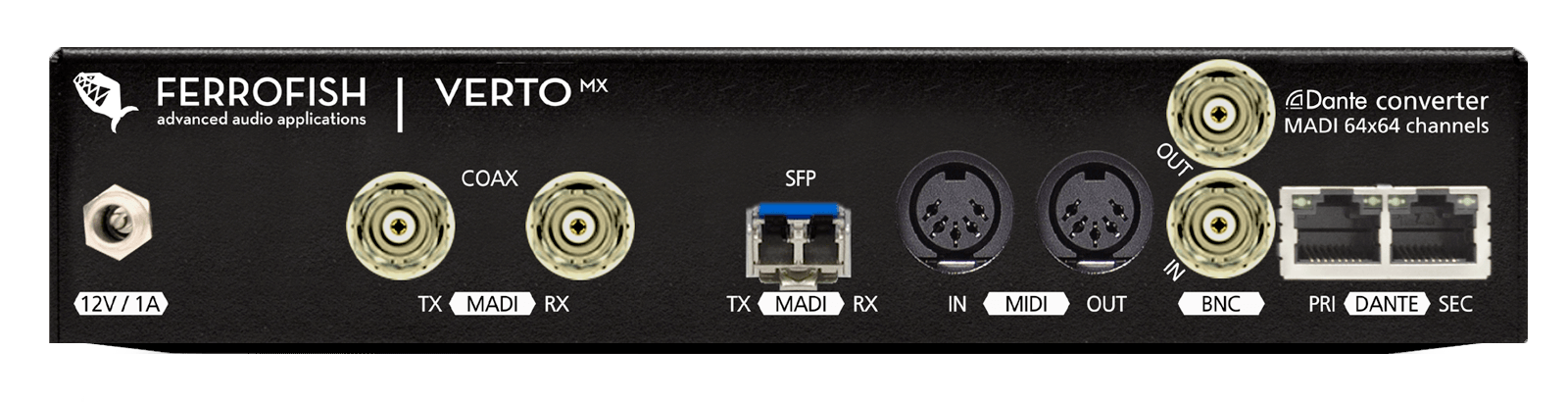

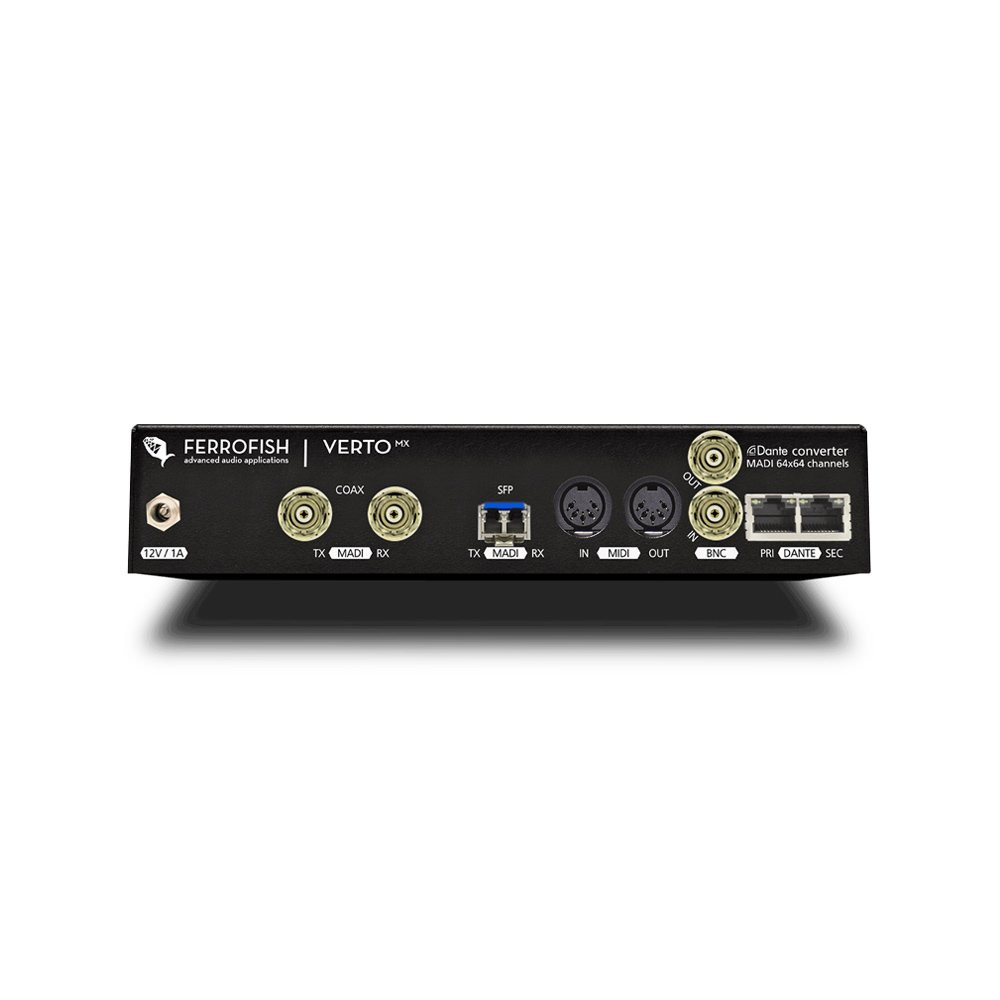

VertoMX INPUTS & OUTPUTS
64 MADI I/O Channels <> 64 Dante I/O Channels
MADI I/O (redundant)
MADI SFP (optical Multimode) + MADI Coaxial. Singlemode SFO module optional. The LC connector connects to SC via an included adapter cable. A SFP module with coax I/O is optionally available.
MIDI I/O
The integrated MIDI I/O ports in DIN 5pin format can be used to update the units' internal firmware using a simple USB-MIDI device.
Word Clock I/O
BNC with 75 Ohm termination. Set to on by default – can be changed with the remote software via the network connection.
Dante Network I/O (redundant)
Two RJ-45 ports connect to any Dante audio network. Simply connect a LAN Ethernet cable (CAT5/CAT6) to the primary port. The secondary port takes automatically over in case of a network error (Dante Port Redundancy).
VertoMX – 64×64 channel MADI Dante converter
Compact. Professional. Dantified!
Seamless integration of professional MADI devices into the fastest growing Audio-over-IP Eco System. For Live, Studio, Broadcast and House of Worship applications.
Specification
Features
VERTO 32 |
VERTO 64 |
VERTO MX |
|
---|---|---|---|
Dante |
2 x RJ-45 Dante Port (Ethernet) |
||
Sample frequency |
44,1 kHz – 96 kHz |
44,1 kHz – 96 kHz |
44,1 kHz – 192 kHz |
ADAT I/O |
4 x TOSLINK |
8 x TOSLINK |
--- |
MADI I/O |
--- |
--- |
1 x optical |
I/O Channel Count @48kHz |
32 |
64 |
64 |
I/O Channel Count @96kHz |
16 |
32 |
32 |
I/O Channel Count @192kHz |
--- |
--- |
16 |
MIDI-over-MADI |
--- |
--- |
yes |
MIDI I/O |
1 x MIDI 5pin input, 1 x MIDI 5pin output |
||
Wordclock |
1 x BNC input, 1 x BNC output |
||
Dimensions |
9,5“ / 1HE |
