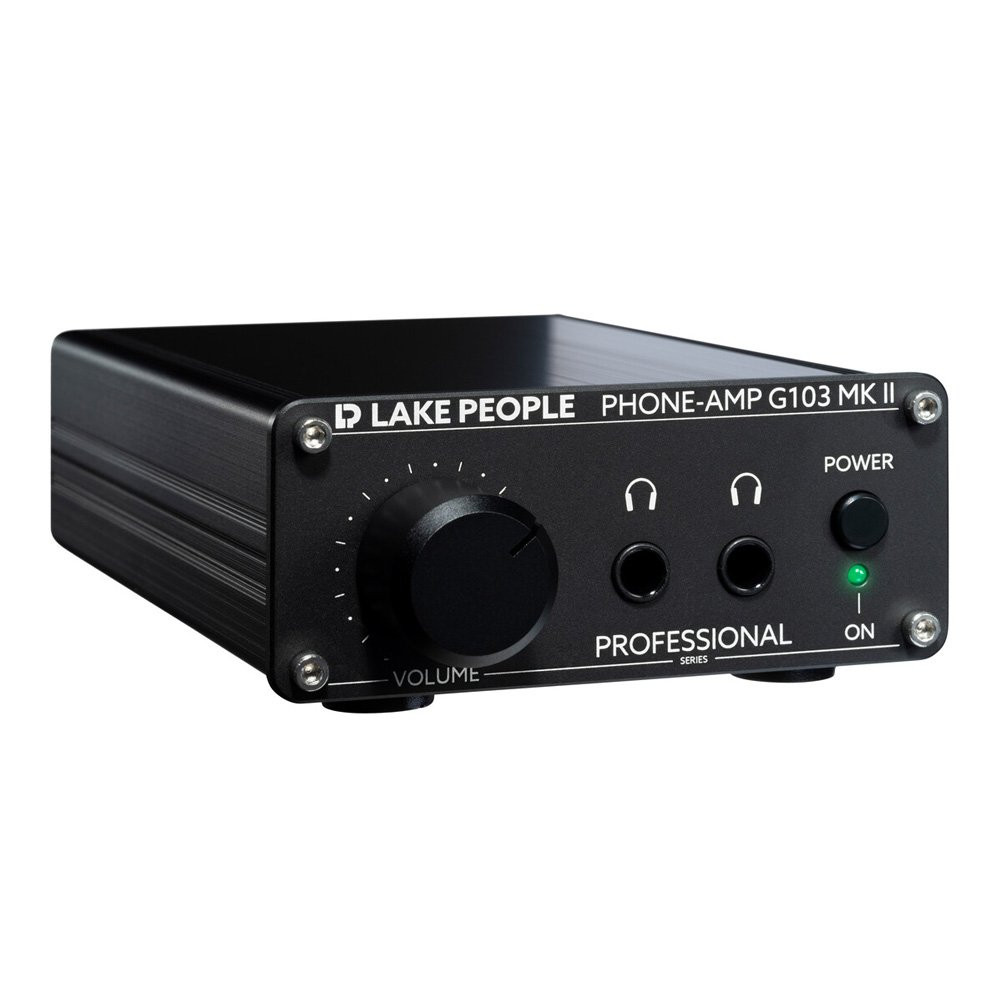

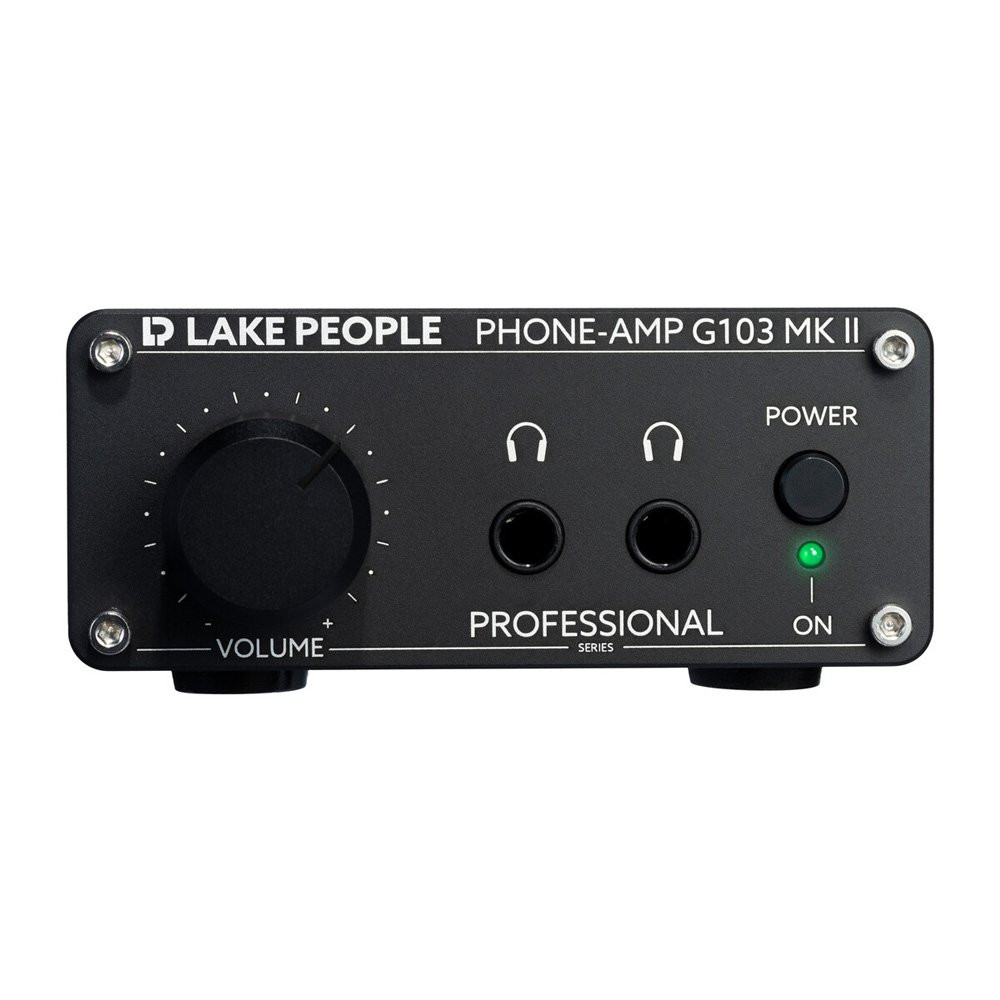

Lake People G103-P MKII
Stereo Headphone Amplifier
- Powerful headphone amplifier for 8 - 600 Ohm headphones
- Balanced inputs via XLR
- 2 x Stereo headphone outputs on 6.3mm connections
- Alps RK14 Potentiometer level control with excellent synchronisation and low crosstalk
- Made in Germany
In the box
- 1 x Phone-Amp G103-P MKII
- 1 x Power Cable
- 1 x Manual
Description
Lake People G103-P MKII
The Lake People Phone-Amp G103-P MKII is a stereo headphone amplifier designed for recording studios and live sound. Unlike most comparable models with a fixed output gain, the G103-P MKII features adjustable gain via its internal jumpers, to better match specific headphone characteristics. As a result, this headphone amplifier is able to drive nearly all existing headphones - from 8 … 600 ohms load impedance.

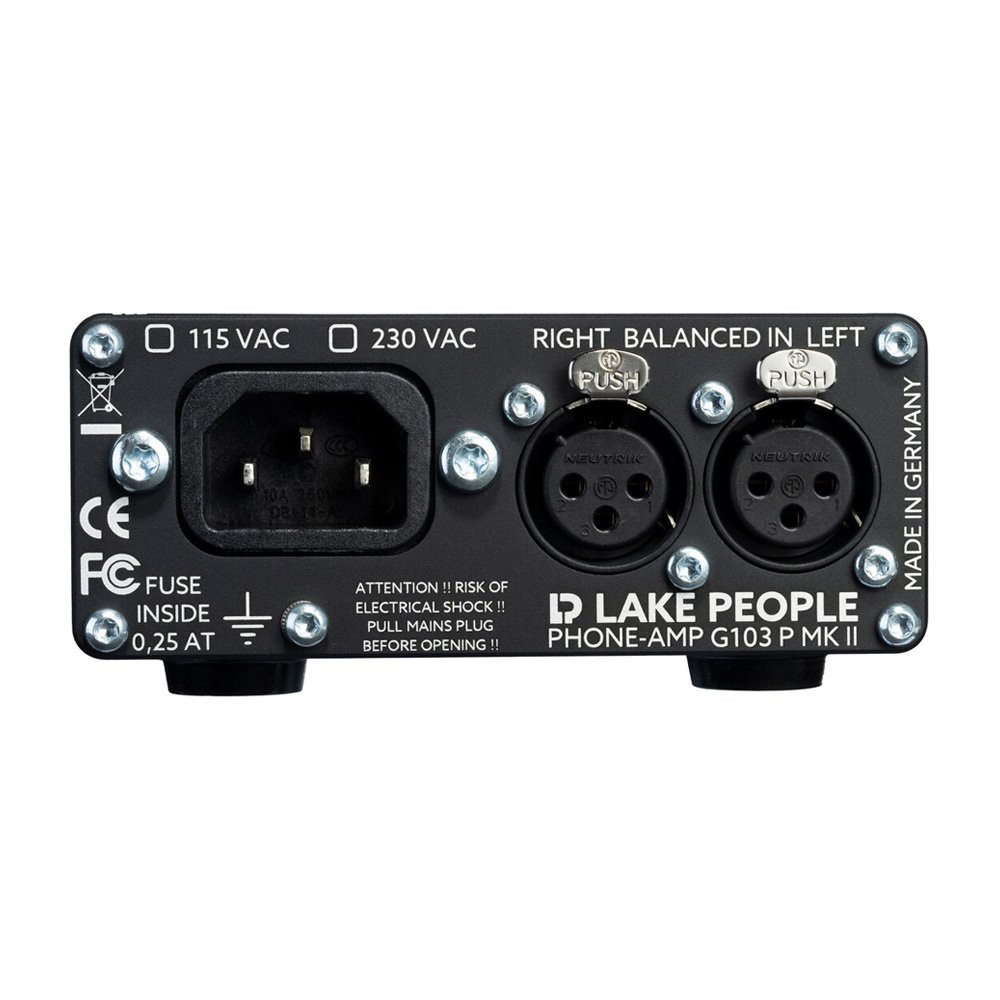

The G103-P MKII features balanced analogue inputs on XLR connections.
Because of its noise- and THD-optimized circuitry layout, G103-P MKII covers high quality demands.
Despite the compact dimensions, the G103-P MKII offers optimum flexibility and high power. Reliability even under rough or improper handling conditions has been another important goal of development. Thus, the unit is absolutely long-term short-circuit proof.
In addition, the G103-P MKII is equipped with filters to prevent overload by inaudibly low and high frequencies.
The case of G103-P MKII is made of black anodized aluminium, including the front- and back panels, providing high mechanical stability and resistance against the roughest of conditions on the road. The outer case provides excellent electrical conductivity for optimum EMC characteristics, limiting against any unwanted electromagnetic interference.
Mains power is connected via a three-pin IEC/CEE socket and a matching three-wire mains cable. The unit is factory-set to a mains voltage of 230 V AC.
Mains voltage may vary between 190 and 250 without any effect on flawless operation. The built-in mains transformers provide the internal supply voltages of approx. +/- 25 V.
Specifications
Item number: | 1008211 |
Dimensions | 105 x 42 x 160 mm (WxHxD) |
Dynamic range | > 124 dB (A-bew.) |
Output impedance | < 0,1 ohm |
Input sensitivity | +6 dB |
Input impedance | 10 kOhms |
Colour | black |
Housing | Desktop |
max. input level | +21 dBu |
Noise | < -102 dBu (A-wtd) |
Frequency range | 10 Hz - 150 kHz (- 3dB) |
Crosstalk | - 90 dB (1 kHz) / -70 dB (15 kHz) |
Amplifier channels | 2 |
