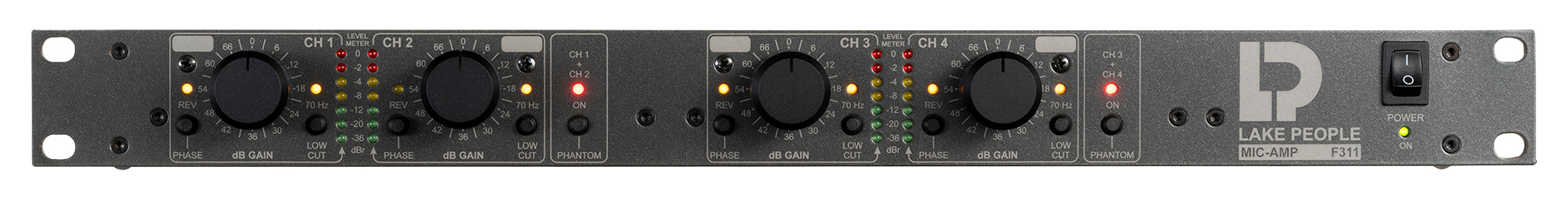

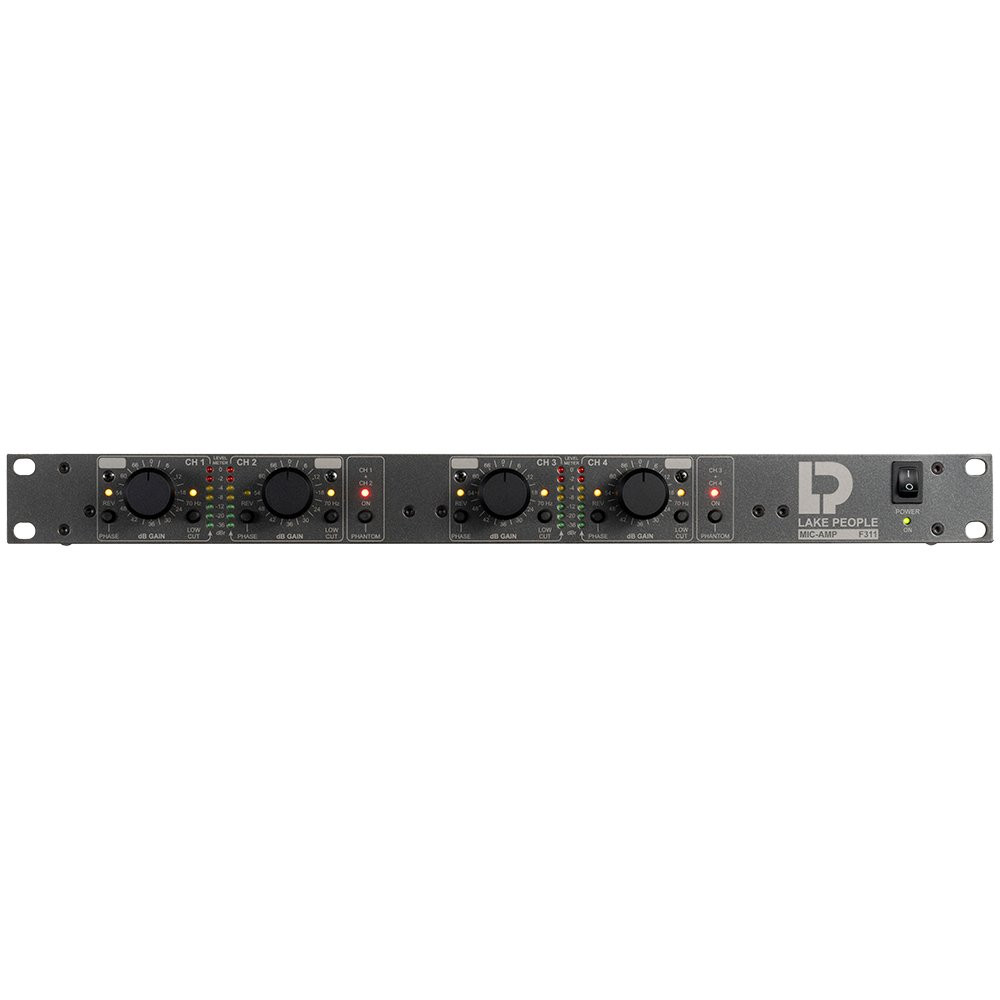

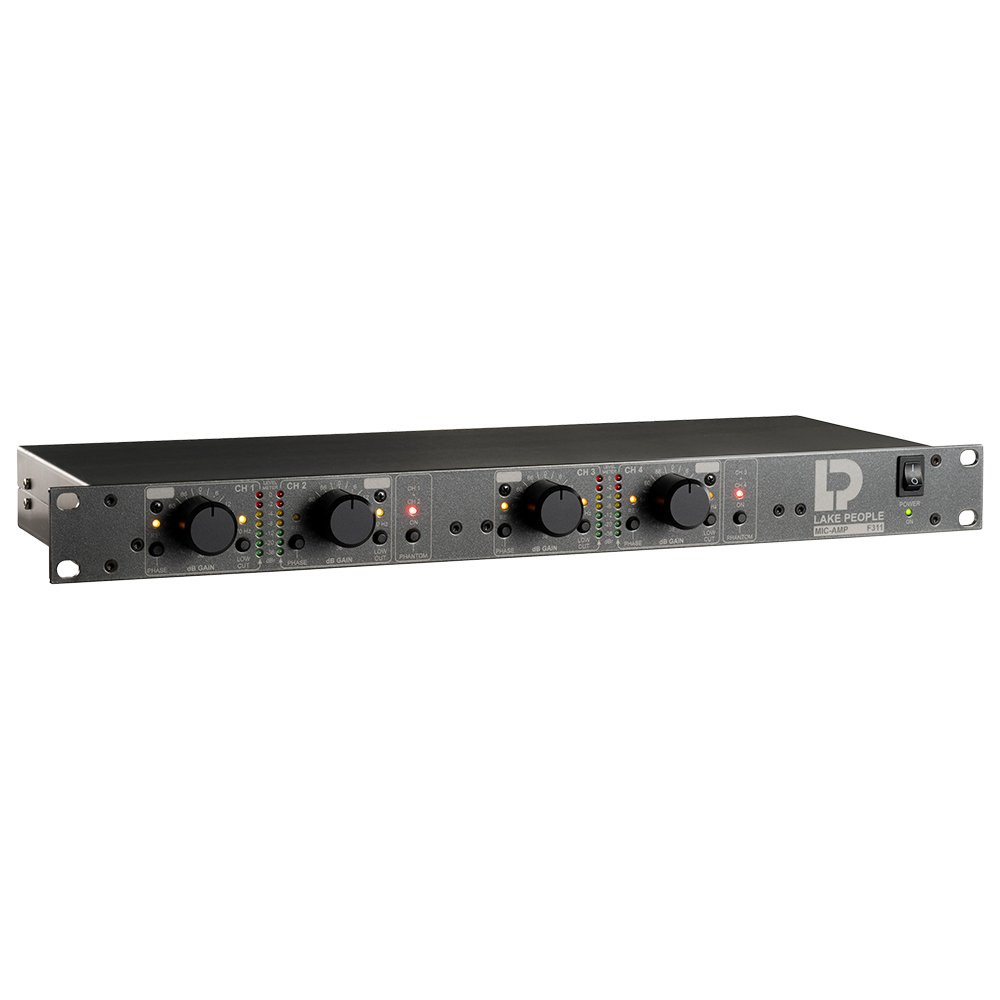

Lake People Mic-Amp F311 Q
Professional 4-Channel
Microphone Preamplifier

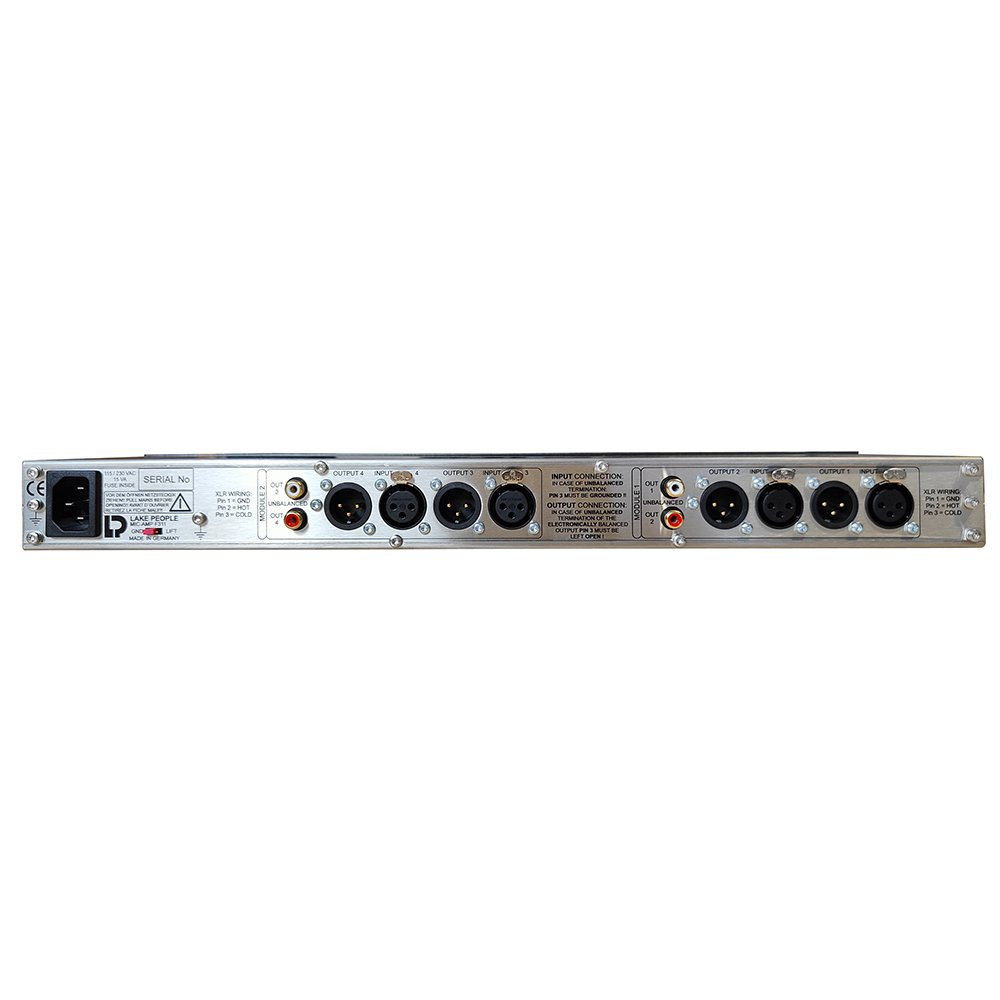

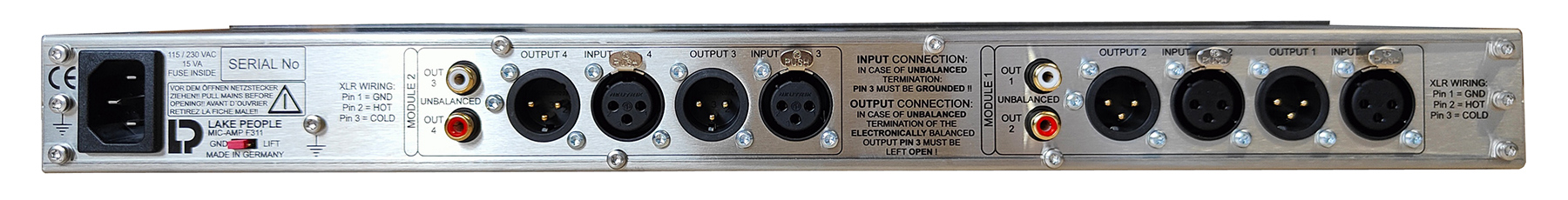

- Electronically balanced inputs and outputs via XLR
- Unbalanced outputs via cinch/RCA
- Switchable Lo-Cut, 12 dB/Oct. with 70 Hz corner frequency
- 7-stage level display, -36 … 0 dBr, internally calibratable
- Precise step switch for adjusting the gain
- Phantom power 48v can be switched for 2 channels each
- Extremely broadband frequency response 5 Hz - 150 kHz @ - 3dB
- 0 ... +66 dB switchable in 12 steps of 6 dB each
- Noise -129 dB at 60 dB gain
- Unbalanced outputs via RCA
- Made in Germany
In the box
- 1 x PHONE-AMP F311 Q
- 1 x Power Cable
- 1 x Printed Manual
Description
Lake People Mic-Amp F311 Q
The F-SERIES from Lake People encompasses top-tier audio products, boasting exceptional features, superior technical specifications, and impeccable craftsmanship.
The MIC-AMP F311 Q is a four-channel ultra-low noise microphone preamplifier with excellent audio performance, 66dB of gain, plus low cut, Phase invert and 48v Phantom power.
Ideal for "on-location" recording, bypassing insufficient mixing console preamps or "direct-to-tape" sessions.
Gain is settled with costly 12-step switches and so exactly reproducable and equal for both channels.
Forget simple and cheap gain adjustments via potentiometers - Lake People leaves that to the competition!
The amp is mains powered via a ISC/CEE socket with either 230 or 115 V AC (internally switchable).


Specifications
Item number | 1006621 |
Dimensions | 483 x 44 x 166 mm (WxHxT) |
Output Impedance | < 30 Ohm |
Input Impedance | 5 kOhm |
Additional Features | Lo-Cut, 48V phantom power, phase reversal, 4-stage level display |
Housing | 19" / 1 HE |
Max. Output Level | > +25 dBu |
Max. Input Level | > +21 dBu |
Mic Gain | 0 - +66 dB |
Noise | -129 dB (@ 60 dB gain) |
Power Supply | Internal 230 V / 115 V AC |
THD+N (@ -1 dBFs) | < 0.001 % |
Frequency Range | 5 Hz - 70 kHz (-3 dB) |
Amplifier Channels | 4 |
