Lauten Audio LS-308 Microphone

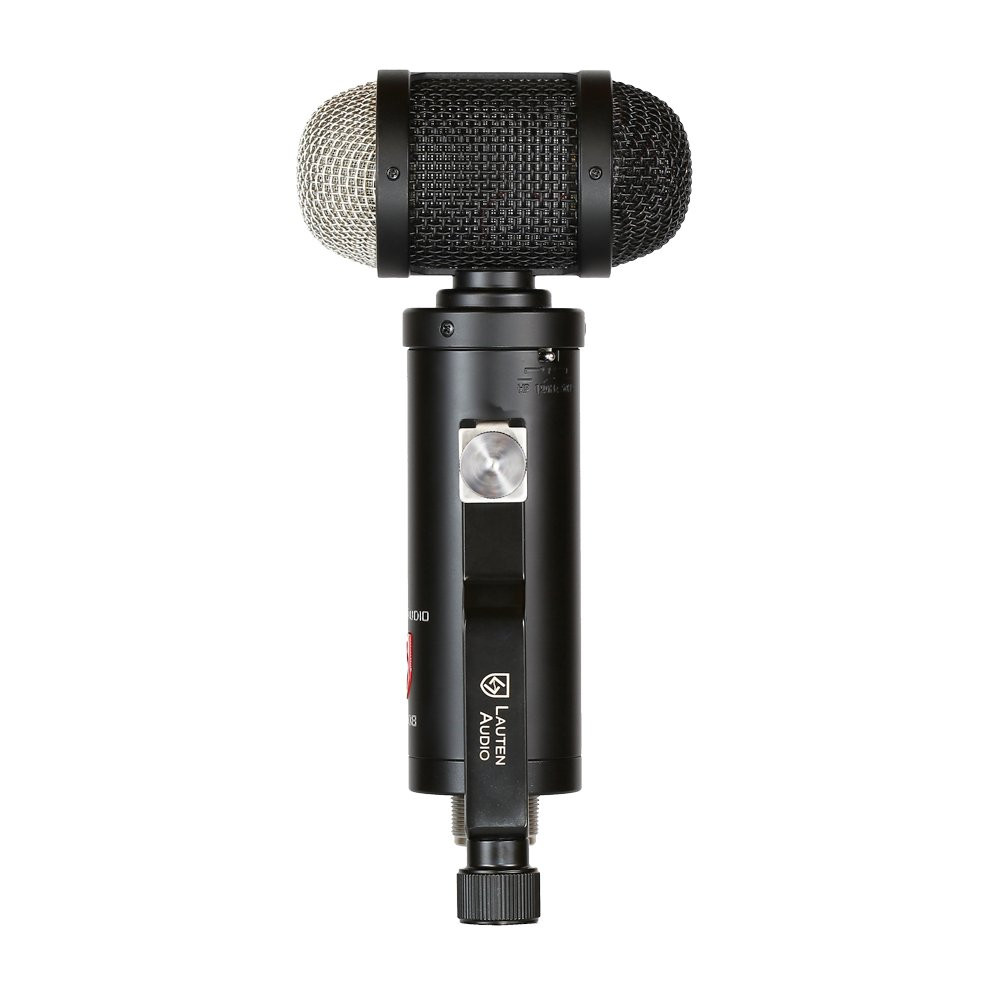

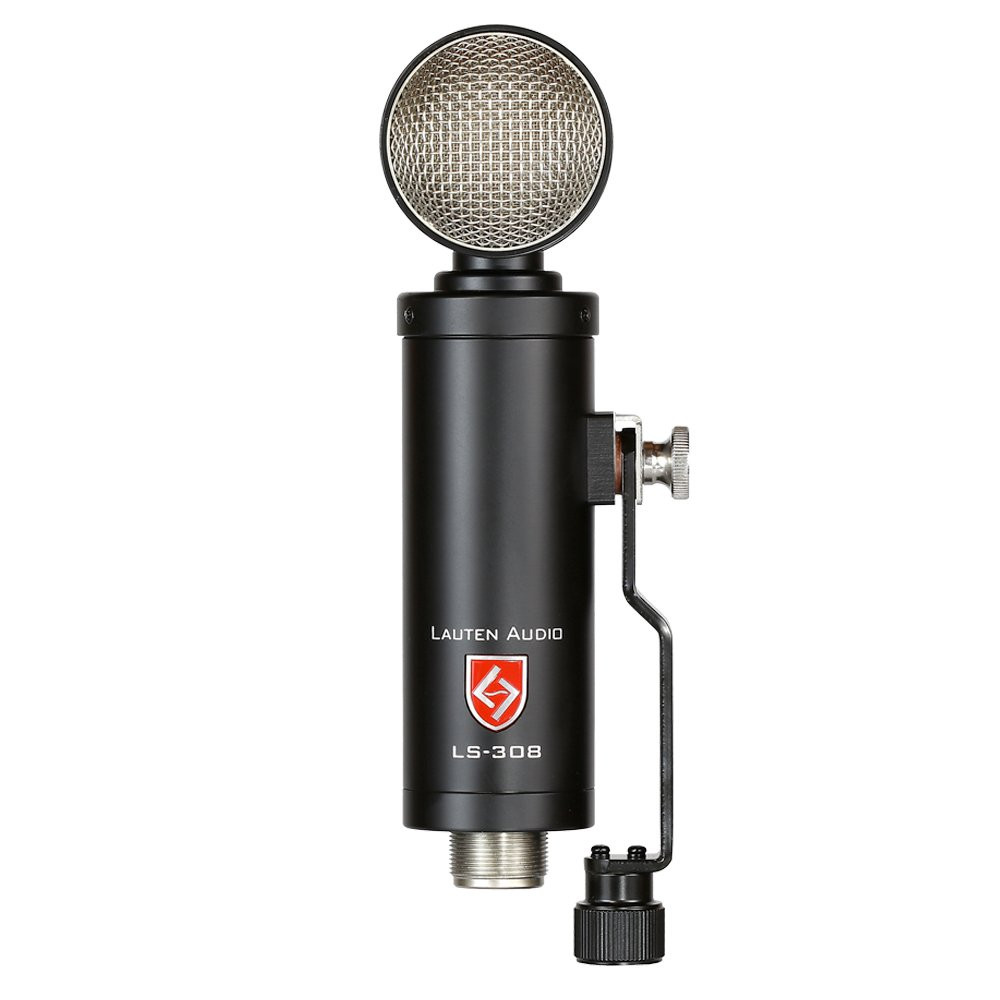

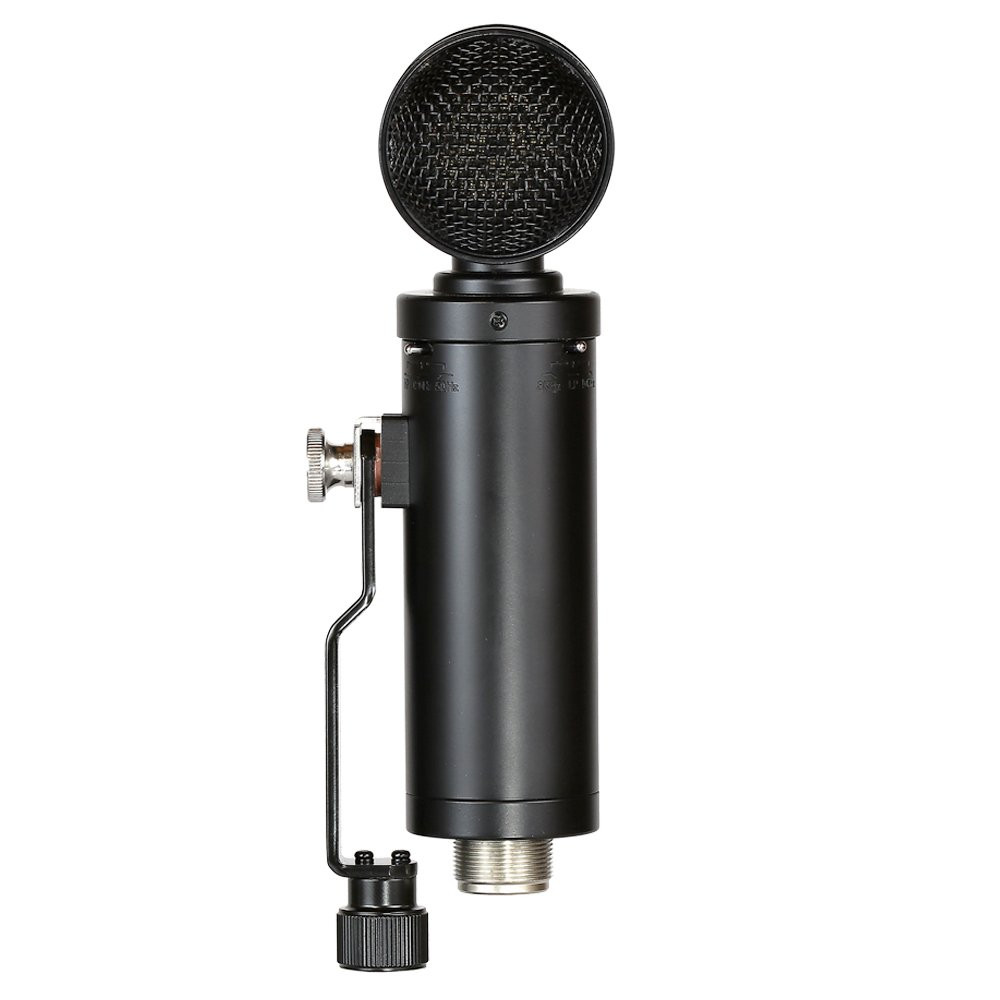

Lauten Audio LS-308
Noise-rejecting, large-diaphragm
condenser microphone
- Professional noise-rejecting microphone
- Designed for use in challenging recording situations, where isolation is difficult to achieve
- Large-diaphragm condenser
- 270° degrees of off-axis sound rejection
- Internally shock mounted transducer elements to help reduce rumble and handling
- Full 120dB (135dB total) of dynamic range without the need of additional attenuation
- Independent 2-stage low and high-cut frequency switches
- Internally shock mounted pressure gradient condenser elements
Included Accessories
- Detachable side swing arm mount
- Hard mount for added mounting versatility
- Foam windscreen to protect the transducer element from plosives, wind, and debris
- Hard-case that fits all accessories and built for the rigours of the road.
Description
Lauten Audio LS-308
The LS-308 is a noise rejecting, high-dynamic range microphone to be used as a problem solver in challenging recording situations when isolation is needed but difficult to achieve.
Designed for use in studio, broadcast, and sound reinforcement environments when sources are in very close proximity and isolation of those sources is difficult; for example, a small commentators booth with multiple commentators, or rejecting drums from a guitar amp on a tight stage.
The LS-308 is a large-diaphragm condenser microphone featuring exceptional off-axis frequency rejection combined with ultra-high dynamic range. Constructed from high-quality components and outfitted with frequency shaping high and low-cut filters, the LS-308 offers excellent handling capabilities. It includes two different mounting options, a foam windscreen, and a road case.
The LS-308 is a great choice for:
- When off-axis rejection is important
- Highly dynamic instruments in noisy environments
- Close micing drums and guitars both studio and on-stage
- Close-quarter broadcast booths when off-axis rejection is essential
- Podcast and Voice-overs when off-axis rejection is essential
Excellent Off-Axis Noise Rejection
The LS-308 offers 270 degrees of side and rear frequency rejection reducing nearby sound by up to 25dB. The rejection is achieved with Lauten Audios’ unique dual, large-diaphragm pressure gradient transducer element in combination with its specially designed circuit.
The LS-308 is intended for use in multi-person close-proximity vocal dialogue, like close-quarter broadcast commentary, or when the rejection of other instruments, crowds, etc., in a live studio, on-stage or sound reinforcement is desired.
The LS-308 does not require pre-attenuation and can handle 135dB+ of SPL. The circuit also allows for an ultra-wide 120db of dynamic range. These features give engineers the ability to capture high dynamic sources, and in noisy environments.
The Independent, multi-stage, high and low-cut filters help engineers balance recordings at the microphone and aid in successfully capturing the source. The 2-stage low-cut aids in reducing low frequency rumble and proximity effect. The 2-stage high-cut helps tame high frequencies.
Unlike any microphone of its kind on the market today, the LS-308 offers exceptional noise rejection and dynamic-range capabilities for recording in challenging environments.
Features
- Professional noise-rejecting microphone
- Designed for use in challenging recording situations, where isolation is difficult to achieve
- Large-diaphragm condenser
- 270° degrees of off-axis sound rejection
- Internally shock mounted transducer elements to help reduce rumble and handling
- Full 120dB (135dB total) of dynamic range without the need of additional attenuation
- Independent 2-stage low and high-cut frequency switches
- Internally shock mounted pressure gradient condenser elements
- Swing-arm mount with 135 degrees of movement (removable)
- Included threaded hard mount
- Included foam windscreen for plosive and wind rejection
Independent High and Low-Cut Filters
The fully independent, multi-stage high and low-cut filters help engineers balance recordings at the microphone and aid in successfully capturing the performance reducing the need for mixing.
The 2-stage low-cut aids in reducing low-end rumble, muddiness, and proximity effect.
The 2-stage high-cut helps tame bright instruments and high frequencies.

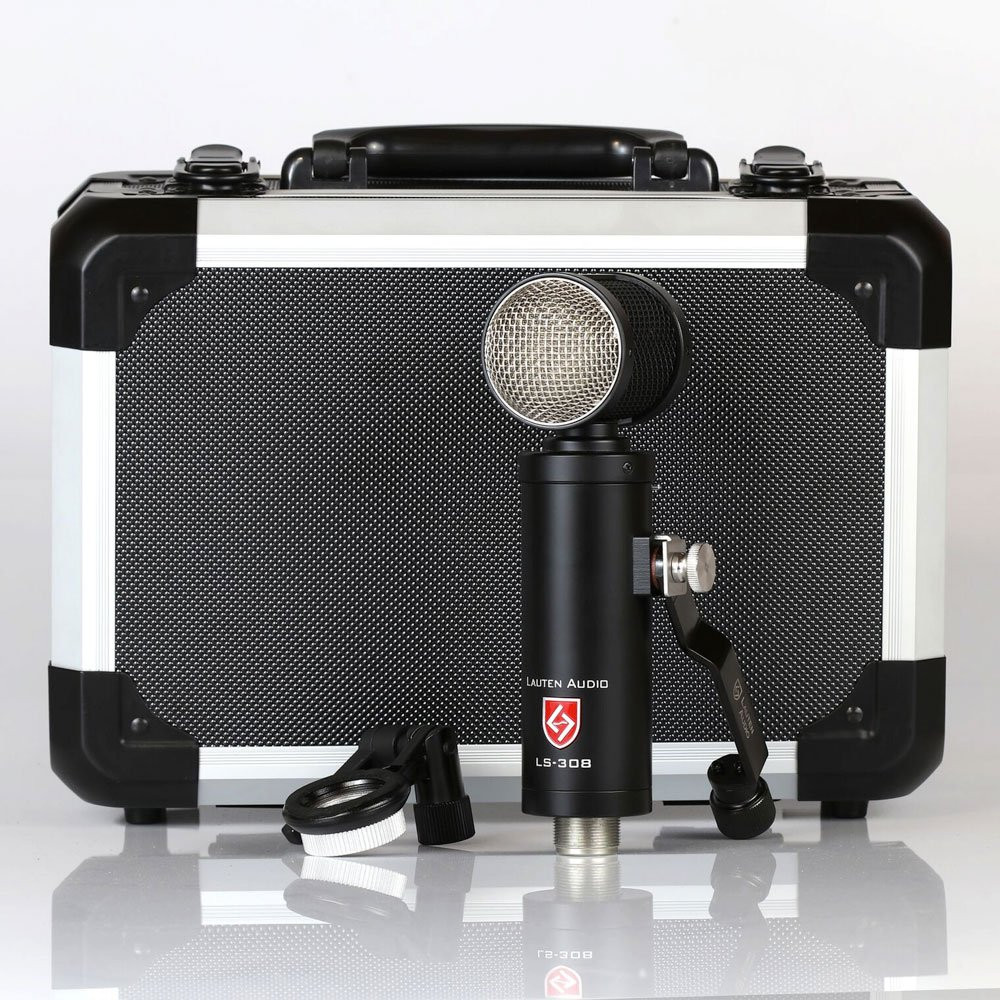

Included Accessories
Fully accessorized both internally and externally, the LS-308 comes with the following:
- Internally shock mounted transducer elements to help reduce rumble and handling.
- Detachable side swing arm mount
- Hard mount for added mounting versatility
- Foam windscreen to protect the transducer element from plosives, wind, and debris
- Hard-case that fits all accessories and built for the rigors of the road.
Specifications
Specifications
- Type:Side-Address (Silver Grill) Pressure gradient large-diaphragm transducer microphone.
- Polar Patterns:Second-order cardioid
- Circuit: JFET transistor with transformer balanced output
- Frequency Range: 20Hz-20KHz
- Dynamic Range: 135dB (>120dB (15dB to 135dB)) without the need of internal or external attenuation
- Impedance: >150 ohms
- SPL Handling: >135dB (0.5% THD @ 1000Hz)
- Self-noise Level: <15dB-A
- Sensitivity: 1.5mV/Pa -56dBV (0 dB=1V/Pa 1kHz)
- Connector: 3-pin XLR
- Power Requirement: +48v Phantom power
Special Features
- 50 & 120Hz Low-cut Filter
- 8 & 10 kHz High-cut Filters
Weight
- Microphone only: 1.25lbs – 0.57kg
- w/ swing arm: 1.4lb – 0.64kg
- w/ hard mount: 1.5lbs – 0.68kg
- w/ case and accessories – 4.6lbs –2.09kg
Dimensions
- Height: 7.25in (18.4cm)
- Width: (w/ arm): 2.46in (6.25cm)
- Depth: 3.75in (9.53cm)

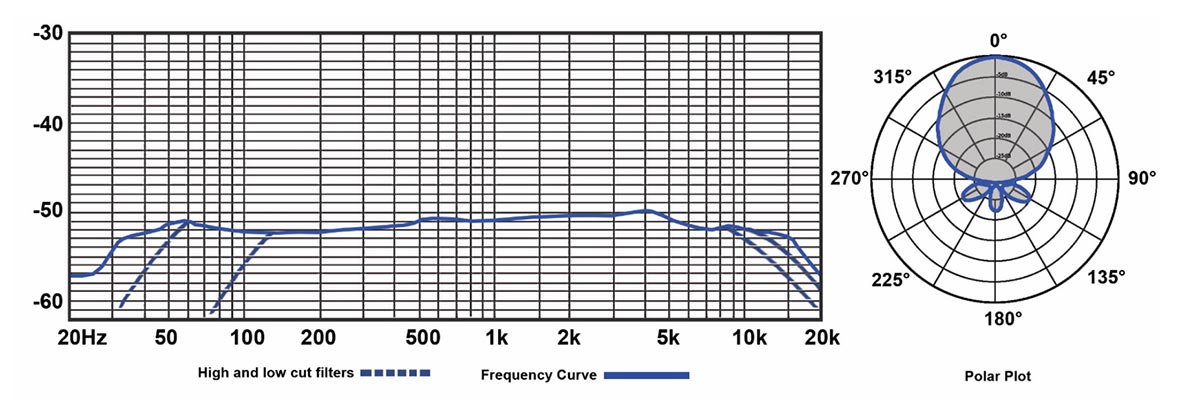

Lauten Audio LS-308 Microphone - Frequency Response Chart & Polar Pattern (click image to enlarge)
