Luminex GigaCore 10

Versatile. Effortless. Reliable.

By far the most versatile Luminex Gigabit switch to be built to date, the plug-and-play GigaCore 10 has been designed specifically for the challenges and rigours of the live events and touring industry, where
effortless set up, flexible use options, compact size and rugged reliability are key.

Versatile.

Discover network flexibility in its true nature. The unit can be mounted in a truss, on a wall or in a rack, which makes it suitable for many applications.

And with the easy group function, it’s a piece of cake to modify groups, change port settings or add devices to the network, without having to reprogram the entire system.

Effortless.

The GigaCore’s plug-and-play technology is a real time-saver for all AV professionals.

The fully pre-configured Ethernet switch has an easy group function with RGB LED indicators, that is easily configured through an intuitive web interface.

You can set-up one solid converged network for lighting, audio and video in just minutes without bandwidth issues.

Reliable.

With its robust housing and rugged connectors, the GigaCore 10 is sure to become the all-time favourite switch for touring and live events.

The software is validated against all common protocols in the AV industry and will flawlessly work with almost every fixture you connect to the network.

For ultimate reliability, two units can be combined in a 1U rack space and operate in a primary/secondary mode.

Luminex's Araneo network software

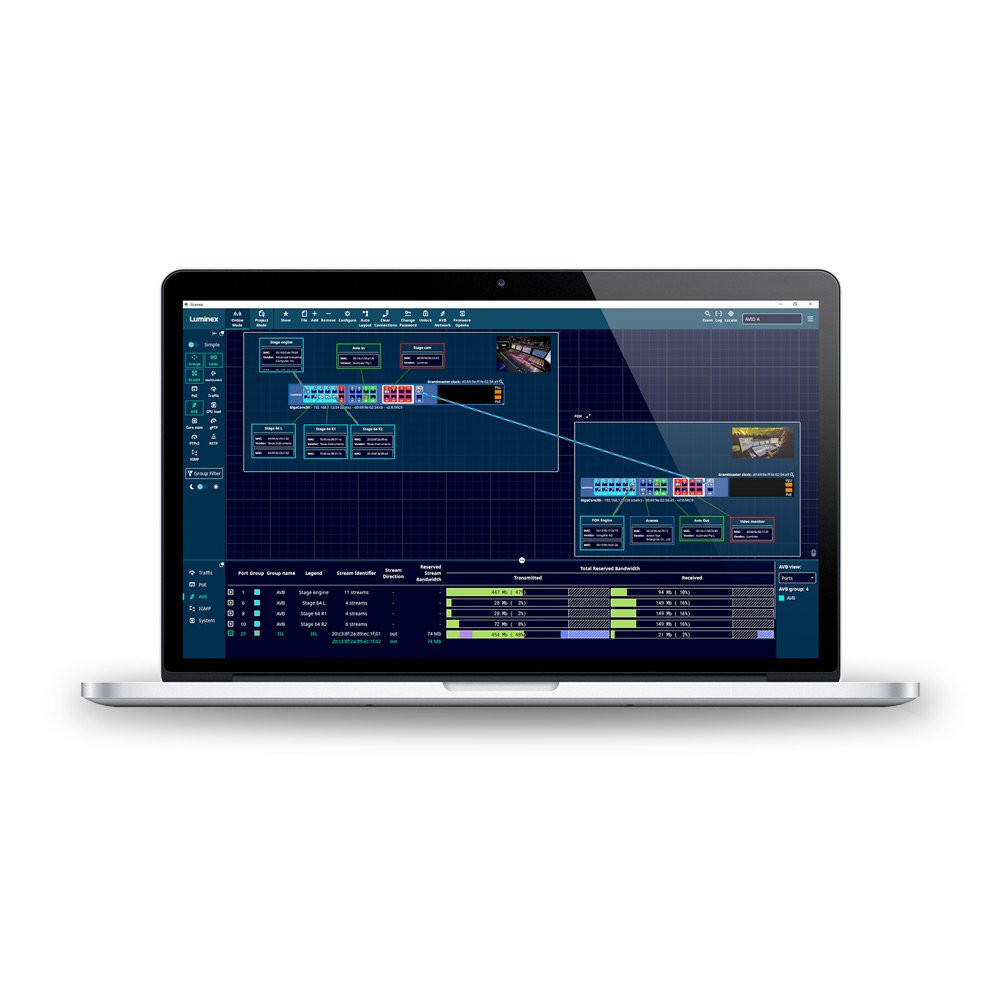

Araneo to manage and monitor the complete system

All GigaCore switches can be managed with a single network-wide tool: Araneo

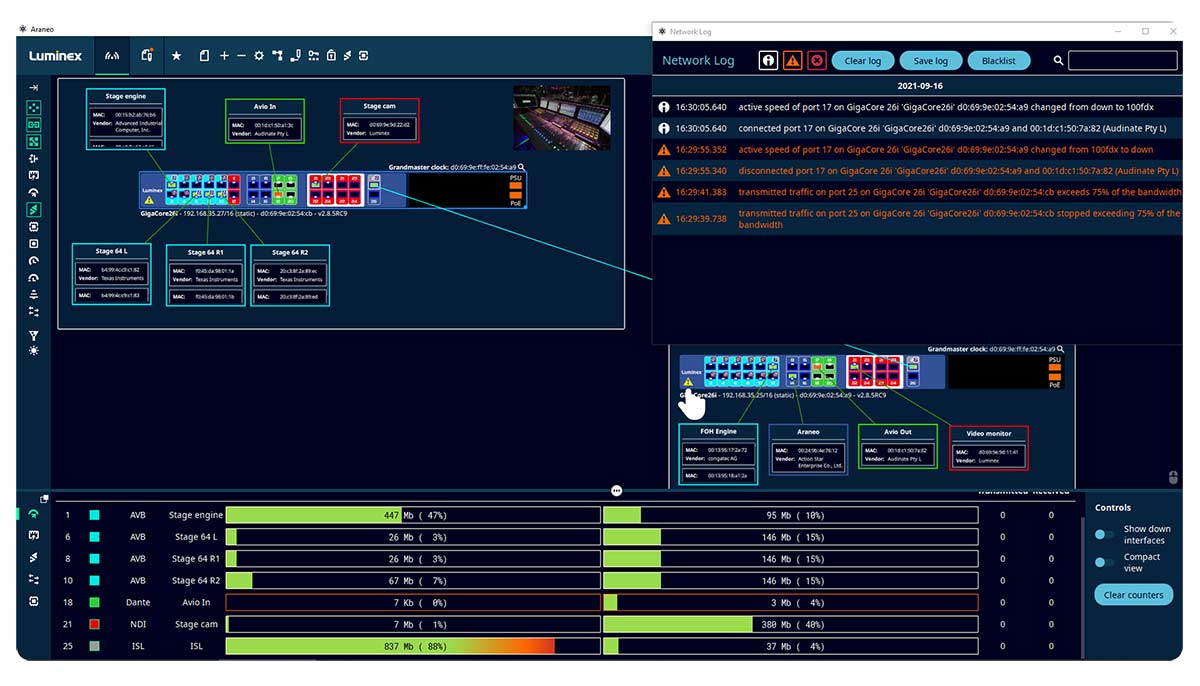

Araneo’s online mode shows everything you need to know about the status of your GigaCore network. Data streams and topology are visualized as are the port status of every GigaCore. Monitor your network with confidence and act before the show gets interrupted!

In the Offline mode, Araneo lets you plan in advance the complete network topology and all Gigacore settings. Reducing network commissioning time to a mere click of a button.

Find out more about Araneo

Tailored for AV industry

• Pre-configured settings that are common in the AV industry, such as QoS and IGMP snooping.

Easy set-up with intuitive web interface

• Easy group function with pre-configured VLAN’s for a quick set-up (without IT knowledge).

RGB LED indication

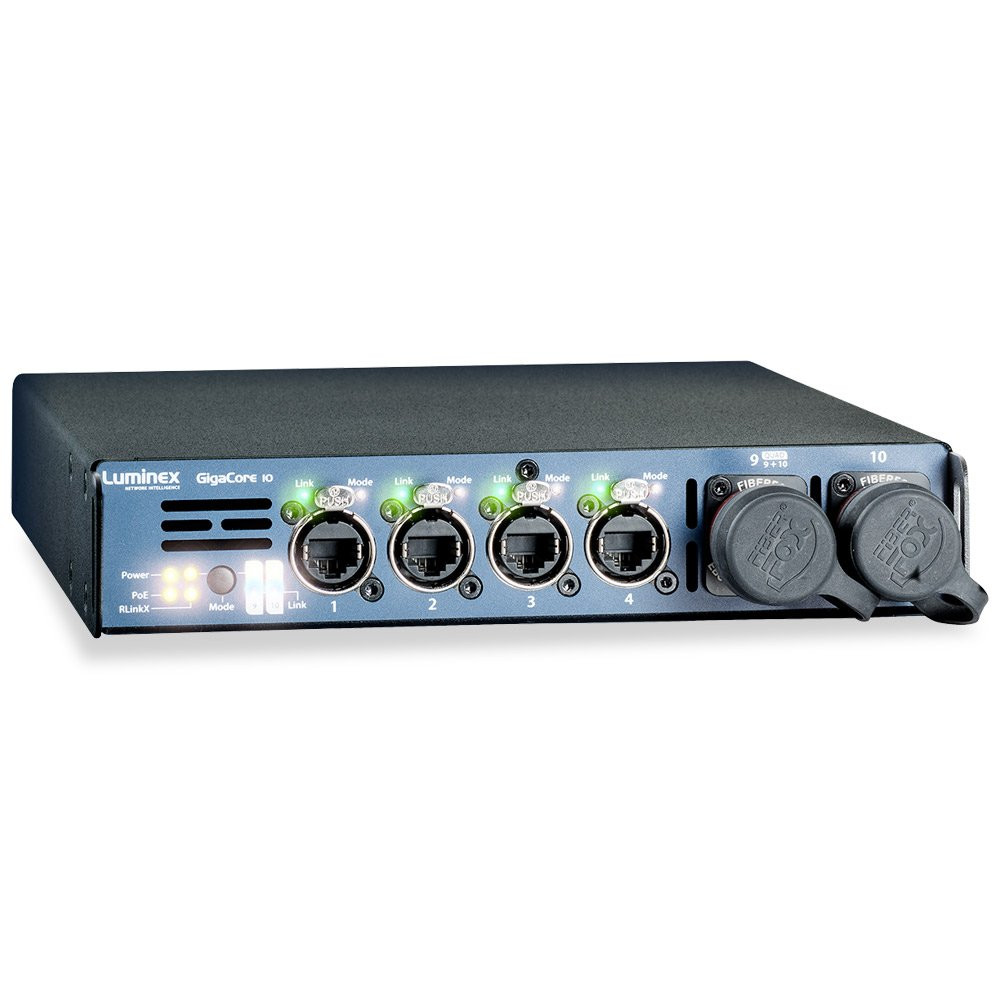

• Quickly identify groups, PoE+ status and redundancy settings through the front panel’s coloured LEDs.

Link Aggregation

• Aggregate several Inter-Switch Links (ISL) into one virtual link to increase bandwidth between switches.

Ultimate link redundancy

• RlinkX redundancy protocol automatically takes over signal in milliseconds in case of a link failure.

PoE+ (optional)

• Deliver up to 130W over Ethernet to power up fixtures, nodes, cameras, intercom systems and other devices.

The ultimate touring companion with rugged Fiber.

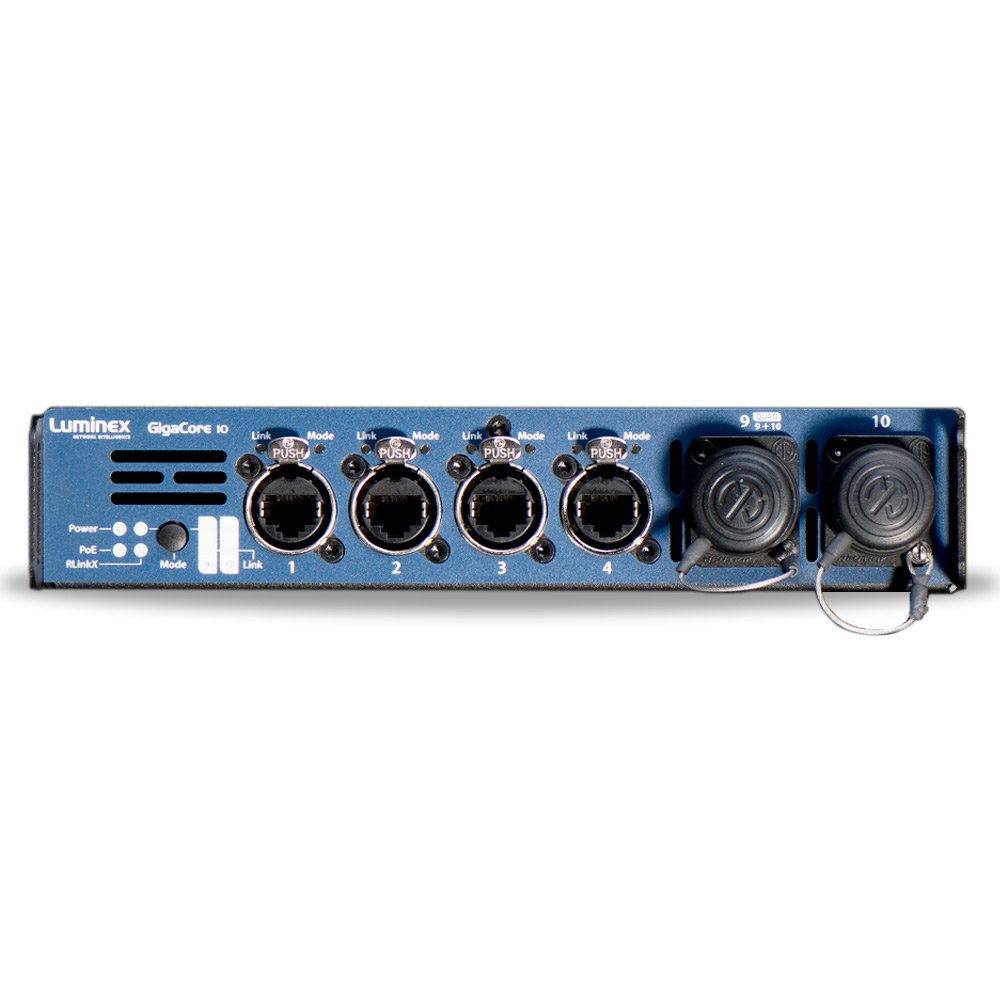

The GigaCore 10 has two slots for rugged Fiber connectors (option between Neutrik of Fiberfox) for long distance coverage.

So when harsh environments such as tours and live events are your daily life, the GigaCore 10 is likely to become your best friend you can always rely on.

Power

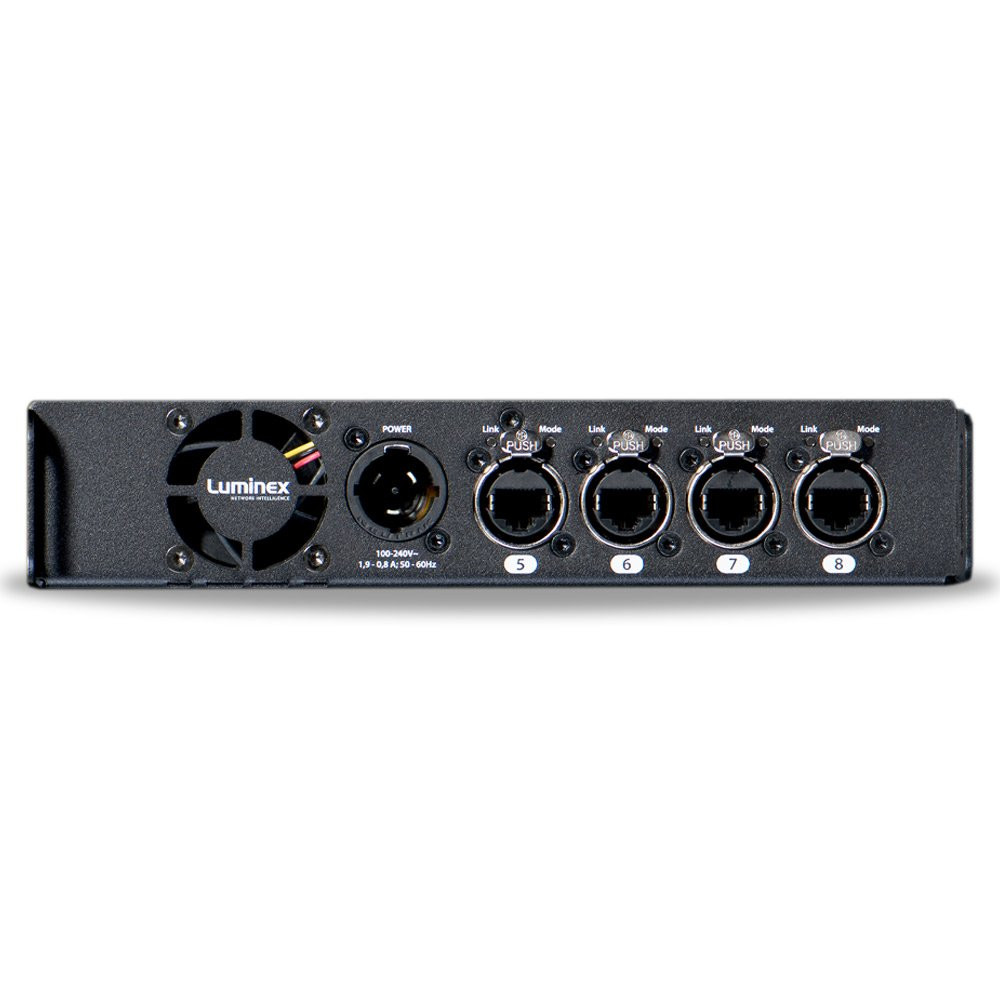

• Power connectivity: 1x Neutrik powerCON TRUE1
• Power input: 100-240VAC, 50-60Hz
• Power consumption: Maximum 20W Maximum 150W with PoE
• Fuse: None
• Backup power input: None
• Backup PoE power input: None
• PoE: Optional on all ports (up to 130W in total)

Protocols

• Supported protocols: Avnu AVB/MILAN, Dante©, RAVENNA/AES67©, Ethersound©, Q-SYS/Q-LAN, REAC©, sACN, ArtNet, MANet2, HogNet, RTTrPL (BlackTraX), IEEE 802.1p CoS (Class of Service), DiffServ (DSCP), PoE (802.3af) (optional), PoE+ (optional), IEEE 1588 PTP V2
• Sound protocol compliance: Yes (low jitter)
• Ethernet compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.3ab Gigabit Ethernet

Configuration

• Display and jog: None
• Configuration: Through the built-in web server
• Status LEDs:
  • Global status LEDs: Power, PoE power, RLinkX and mode
  • Port status LEDs: PoE, MultiLinkX, RLinkX, groups, link/activity and port speed
  • Dark mode available
• Colored RGB LEDs: Yes

Physical

• Mounting: Truss, rack or wall
• Enclosure: Robust metal housing
• Dimensions (W x D x H): 220 x 330 x 44 mm (8,66" x 13" x 1,73")
• Weight: 2,8 kg
• Packaging: 530 x 330 x 80 mm (21" x 13" x 3,15")
• Environment:
  • Operating temperature: 0 to +50 °C (non-PoE version), 0 to +40 °C (PoE version)
  • Storage temperature: -10 to +70 °C
  • Humidity (non condensing): 5 to 95% RH
• Noise level @1m:
  • Max 18dBA (Ambient: 0 – 35°C)
  • Max 24dBA (Ambient: 35 – 50°C)
  • Max 18dBA (PoE <80W, Ambient: 0 – 35°C)
  • Max 24dBA (PoE <80W, Ambient: 35 – 40°C)
  • Max 18dBA (PoE >80W, Ambient: 0 – 30°C)
  • Max 24dBA (PoE >80W, Ambient: 30 – 40°C)
• Certificates/Approvals: cSGSus Mark, CE, CB certificate, RoHS
• Standards: IEC 60950-1, UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, FCC Part 15 CFR 47, CAN/ICES-003, EN 55022, EN 55024 (pending for approval)

Product Codes

• LU 01 00058 (GigaCore 10)
• LU 01 00058-POE (GigaCore 10 + PoE)
• LU 01 00058-NDM (GigaCore 10+ Neutrik DUO MMF)
• LU 01 00058-POE-NDM (GigaCore 10 + Neutrik DUO MMF + PoE)
• LU 01 00058-NQM (GigaCore 10 + Neutrik QUAD MMF)
• LU 01 00058-POE-NQM (GigaCore 10 + Neutrik QUAD MMF + PoE)
• LU 01 00058-NDS (GigaCore 10 + Neutrik DUO SMF)
• LU 01 00058-POE-NDS (GigaCore 10 + Neutrik DUO SMF + PoE)
• LU 01 00058-NQS (GigaCore 10 + Neutrik QUAD SMF)
• LU 01 00058-POE-NQS (GigaCore 10 + Neutrik QUAD SMF + PoE)
• LU 01 00058-F2M (GigaCore 10 + Fiberfox 2 ch MMF)
• LU 01 00058-POE-F2M (GigaCore 10 + Fiberfox 2 ch MMF + PoE)
• LU 01 00058-F4M (GigaCore 10 + Fiberfox 4 ch MMF)
• LU 01 00058-POE-F4M (GigaCore 10 + Fiberfox 4 ch MMF + PoE)
• LU 01 00058-F2S (GigaCore 10 + Fiberfox 2 ch SMF)
• LU 01 00058-POE-F2S (GigaCore 10 + Fiberfox 2 ch SMF + PoE)
• LU 01 00058-F4S (GigaCore 10 + Fiberfox 4 ch SMF)
• LU 01 00058-POE-F4S (GigaCore 10 + Fiberfox 4 ch SMF + PoE)
