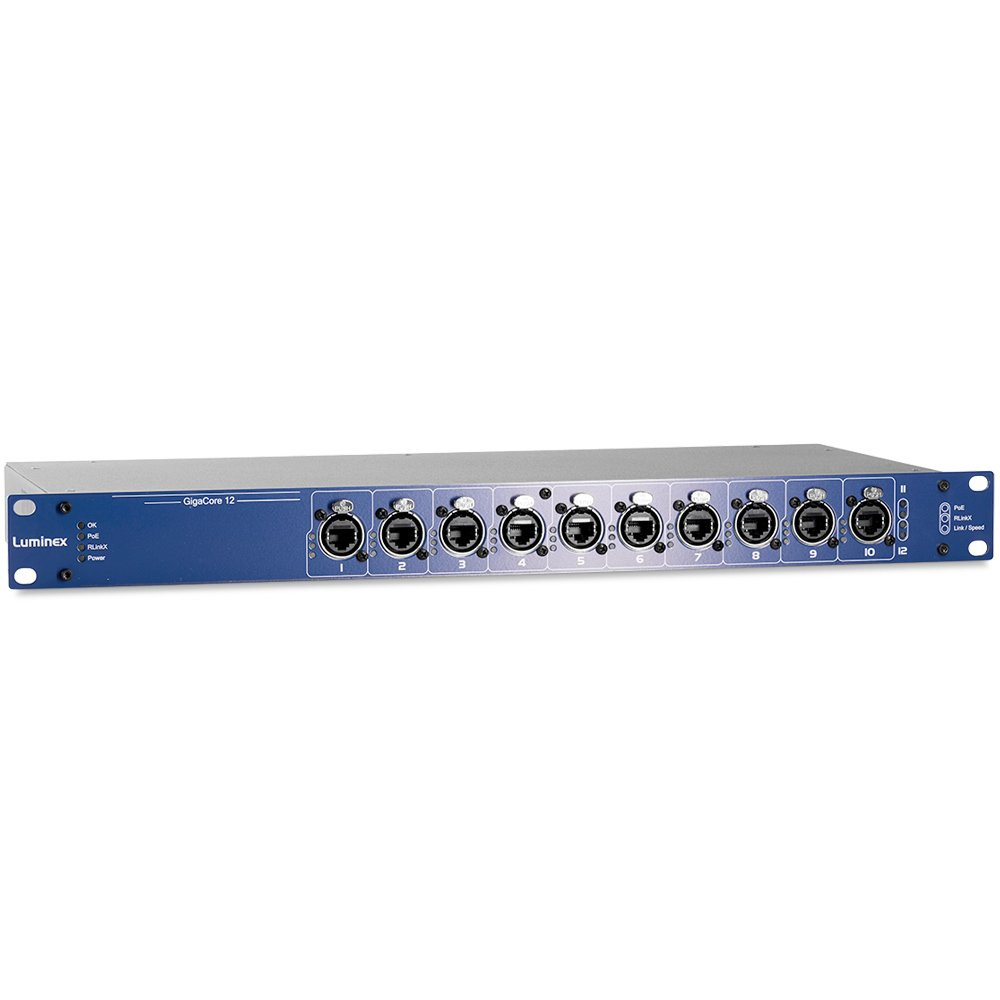

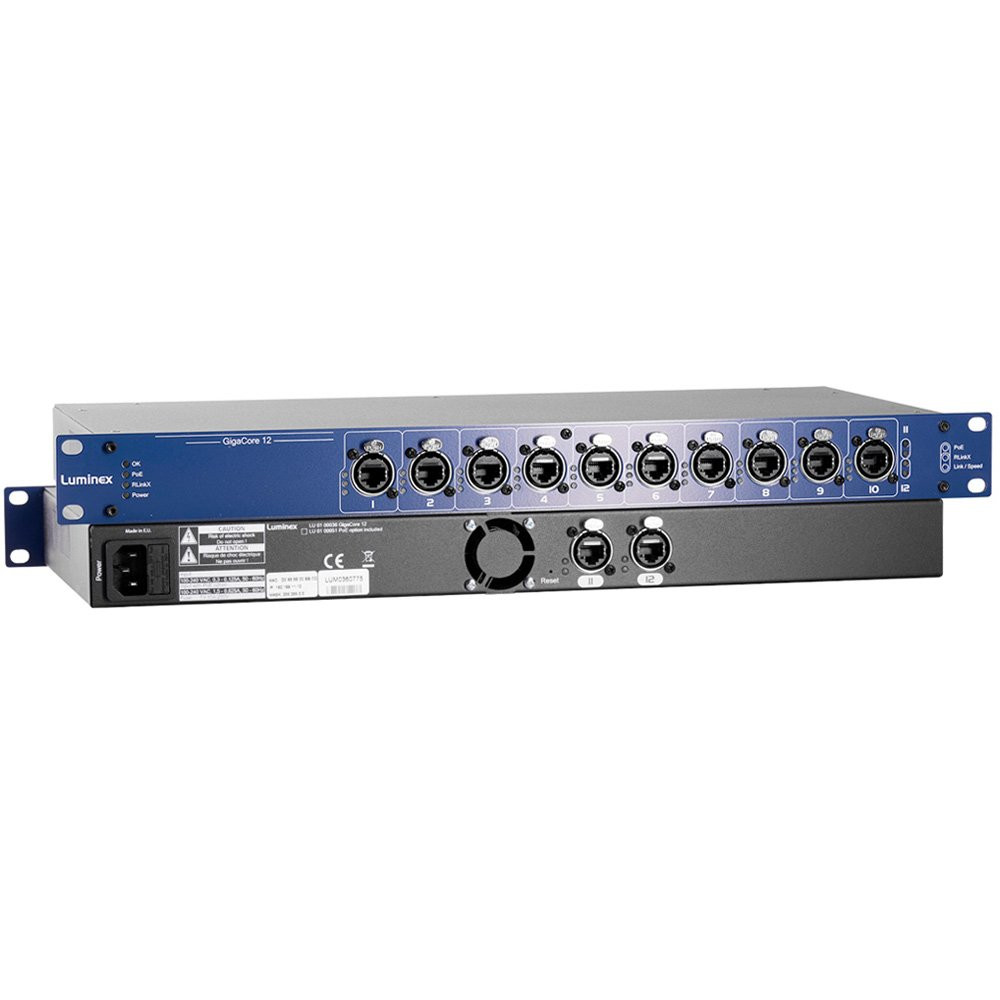

Luminex GigaCore 12

Luminex GigaCore 12

Tailored for AV industry

• Pre-configured settings that are common in the AV industry, such as QoS and IGMP snooping.

Easy set-up

• Easy group function with pre-configured VLAN’s for a quick set-up (without IT knowledge).

Touring approved

• Metal housing and ruggedized Ethercon connectors, ideal for touring and live events.

Converged networking

• Transfer multiple protocols (Dante™, RAVENNA/AES67®, ArtNet, MANet 1&2, sACN,Q-LAN …)

Ultimate link redundancy

• RLinkX redundancy protocol automatically takes over signal in milliseconds in case of a link failure.

PoE+ (optional)

• No need to worry about power plugs anymore: PoE+ powers-up all compatible devices within the network.

Araneo to manage and monitor the complete system

All GigaCore switches can be managed with a single network-wide tool: Araneo

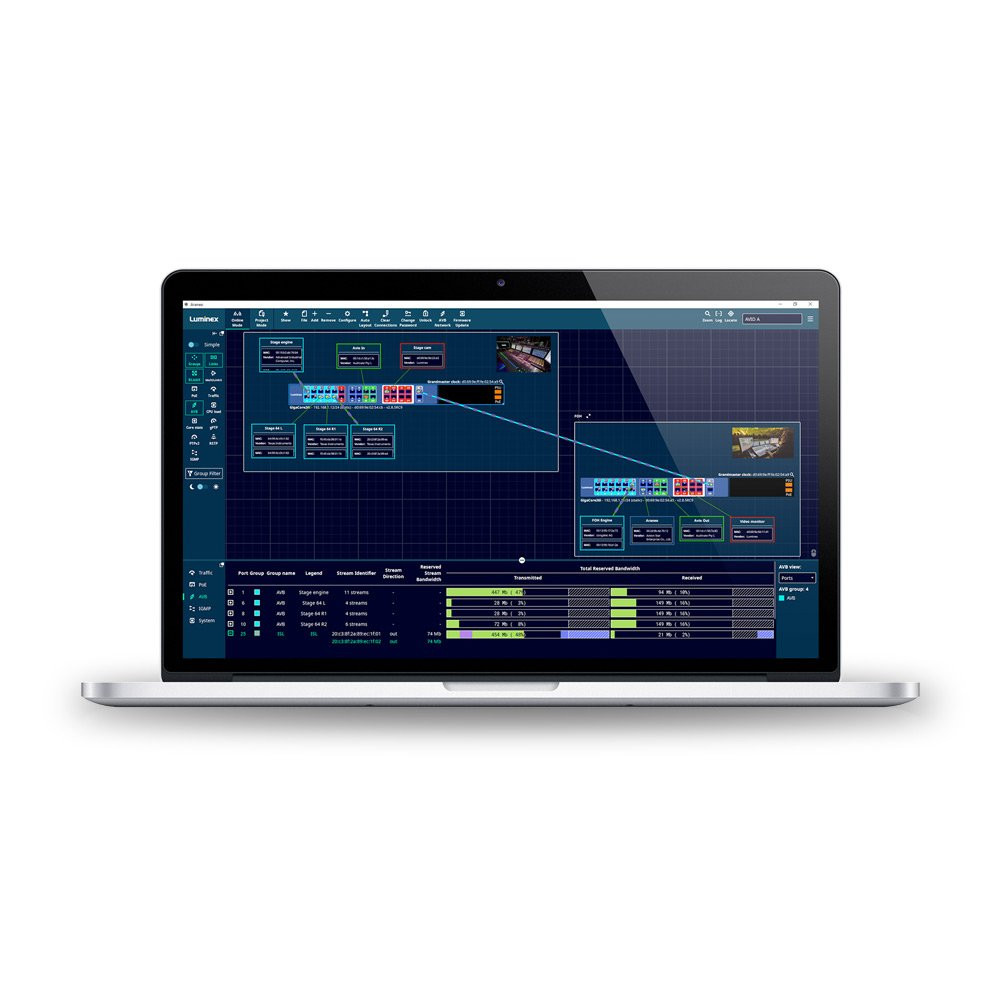

Araneo’s online mode shows everything you need to know about the status of your GigaCore network. Data streams and topology are visualized as are the port status of every GigaCore. Monitor your network with confidence and act before the show gets interrupted!

In the Offline mode, Araneo lets you plan in advance the complete network topology and all Gigacore settings. Reducing network commissioning time to a mere click of a button.

Find out more about Araneo

Luminex's Araneo network software

Focus on being creative again.

Stop wasting time on programming your network or rely on someone else to do it for you.

With Luminex GigaCore switches and only some basic AV knowledge, you can do it all by yourself in just the blink of an eye.

Now you can finally focus on your core business as an AV technician or designer: “being creative”!

Power

• Power connectivity: 1 x IEC (14C) inlet with fuse holder
• Power input: 100-240VAC, 50-60Hz
• Power consumption: Maximum 30W Maximum 180W with PoE
• Fuse: 3.15A 250V Slow Blow
• Backup power input: None
• Backup PoE power input: None
• PoE: Optional on front ports only (up to 160W)

Protocols

• Supported protocols: Avnu AVB/MILAN, Dante©, RAVENNA/AES67©, Ethersound©, Q-SYS/Q-LAN, REAC©, sACN, ArtNet, MANet2, HogNet, RTTrPL (BlackTraX), IEEE 802.1p CoS (Class of Service), DiffServ (DSCP), PoE (802.3af) (optional), PoE+ (optional), IEEE 1588 PTP V2
• Sound protocol compliance: Yes (low jitter)
• Ethernet compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.3ab Gigabit Ethernet

Configuration

• Display and jog: None
• Configuration: Through the built-in web server
• Status LEDs:
  • Global status LEDs: Device, power, PoE power, RLinkX
  • Port status LEDs: PoE, RLinkX, link/activity and port speed
• Colored RGB LEDs: No

Physical

• Mounting: Rack
• Enclosure: Robust metal housing
• Dimensions (W x D x H): 482 x 204,3 x 44 mm (19″ x 8.04″ x 1.73″)
• Weight: 2.8 kg
• Packaging: 545 x 335 x 80 mm (21,5" x 13,2" x 3,15")
• Environment:
  • Operating temperature: 0 to +50 °C
  • Storage temperature: -10 to +70 °C
  • Humidity (non condensing): 5 to 95% RH
• Noise level @1m:
  • Max 30dBA (PoE or Non PoE, Ambient: 0 – 35°C)
  • Max 39dBA (PoE or Non PoE, Ambient: 35 – 50°C)
• Certificates/Approvals: CE, RoHS
• Standards: EN 60950-1, EN 55022, EN 55024

Product Codes

• LU 01 00036 (GigaCore 12)
• LU 01 00036-POE (GigaCore 12 with PoE supply)
