Description
Overview
RME offers several Expansion Boards, that add more or other I/O ports to the internal cards of the Hammerfall, HDSP, HDSPe and DIGI96 series.
The OPTO-X replaces the standard coaxial MADI I/O of the HDSPe MADI FX by an optical MADI I/O.
The AI4S-192 AIO and AO4S-192 AIO add additional analogue inputs and outputs of true studio quality to the HDSP 9632 and the HDSPe AIO.
The Word Clock Module WCM adds a word clock input and two outputs in professional quality to the HDSP 9632, HDSPe RayDAT and the HDSPe AIO.
Compatibility
HDSP 9632 / HDSPe AIO: One AI4S-192 AIO and one AO4S-192 AIO can be connected simultaneously, for a maximum of 6 analogue inputs and outputs. One TEB can be connected to the internal ADAT ports. The WCM adds one word clock input and two outputs. All options can be used at the same time.
HDSP 9652: Up to two TEBs can be used simultaneously. Please note that the TDIF Expansion Board has been discontinued.
Hammerfall DSP Multiface / Digiface Multiface and Digiface use the Hammerfall DSP PCI card. This card has no internal inputs or outputs. Therefore no Expansion Boards can be used.
Input expansion for the RME HDSP 9632 and HDSPe AIO

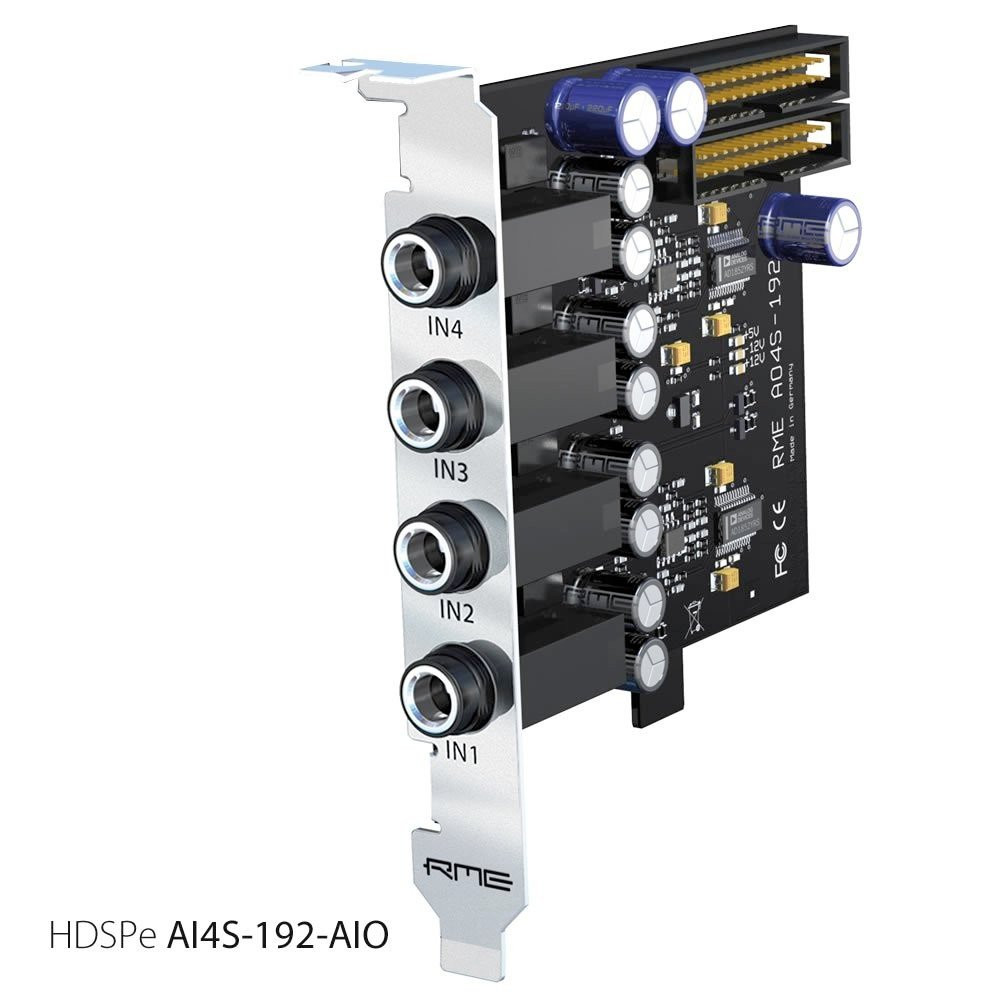

The RME AI4S-192 AIO Expansion Board provides four additional servo-balanced analogue inputs for the HDSP 9632 and HDSPe AIO, designed as a bracket with 4 stereo TRS jacks. With this expansion a maximum of 6 (including the stereo I/O of the card) inputs and/or outputs can be achieved.
The converters offer the same performance as the on-board stereo analogue I/O of the HDSPe AIO: up to 192 kHz, balanced connection and the choice of three different reference levels, selected in the Settings dialog.
This module can be used either on its own or in combination with the AO4S-192 AIO. The display of the channels in TotalMix will change accordingly.
More information can be found in the manual here:
