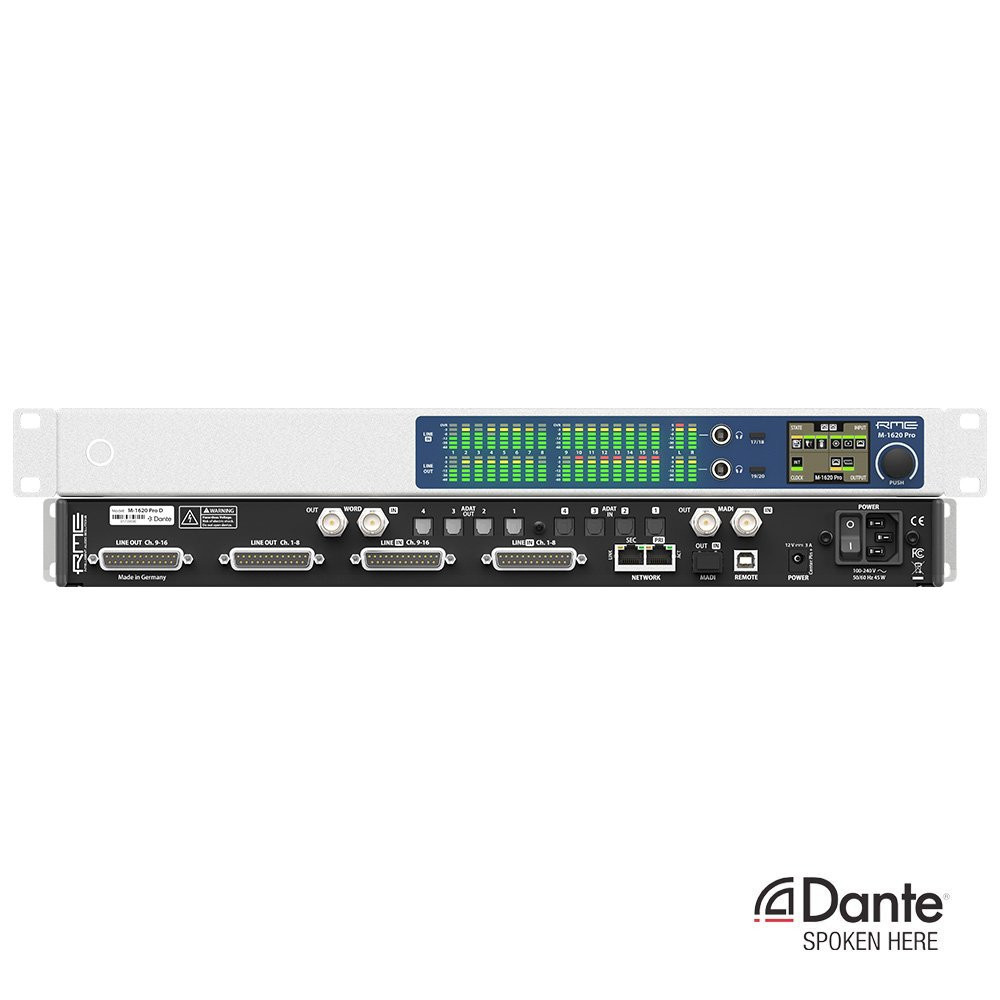

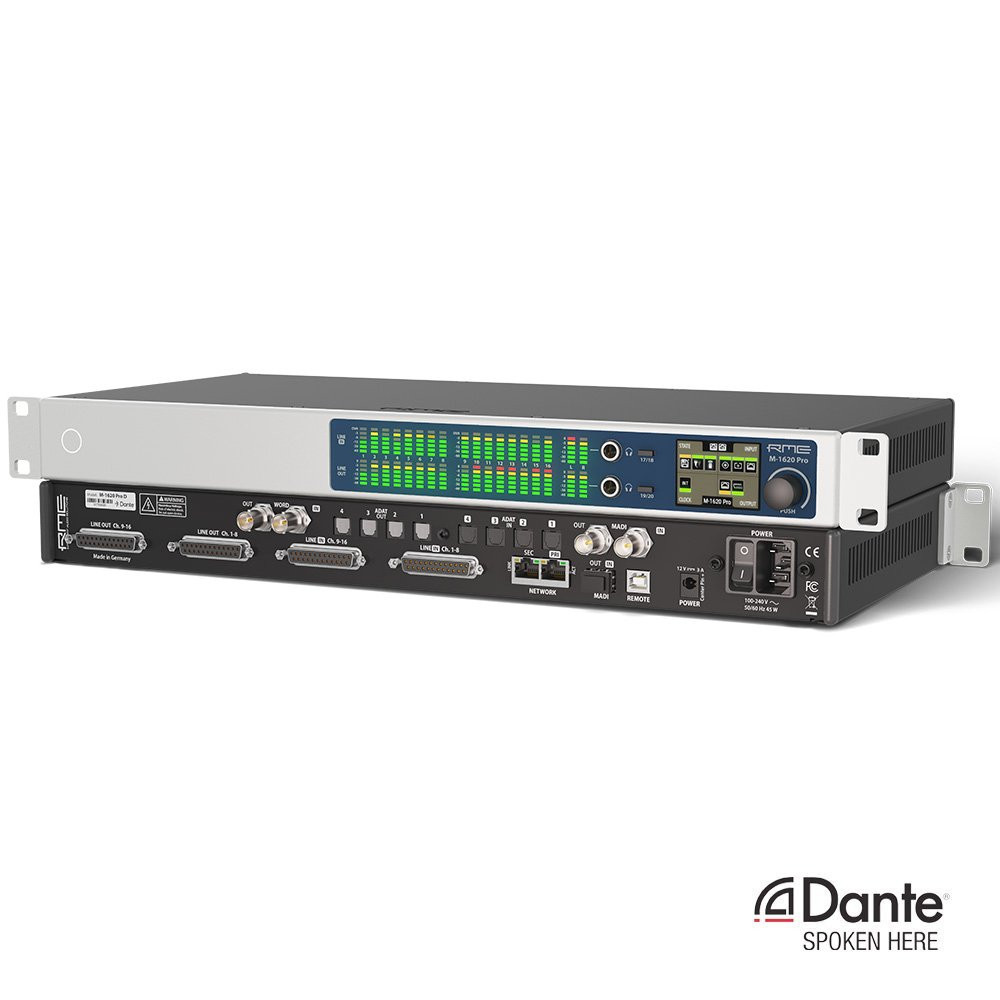

RME M-1620 Pro D (Dante)

£2,956.00

Inc 20% VAT

Out of Stock


Shipping Information

Synthax Audio UK Logo

Free Delivery On All Orders Over £50.00

All orders from our webshop over £50.00 can be shipped with free delivery:

  • For orders over £50.00, this will be via a next working day delivery courier service
  • For orders under £50.00 this will be via First Class Royal Mail postage* (unless a different courier option is selected at checkout)

*Please note: Royal Mail First Class is NOT guaranteed next day delivery. For guaranteed next working day (or Saturday) delivery, please select one of our other courier options (see delivery options below).

Delivery Notifications

You will receive an email to the address you have supplied to us when your order has been dispatched.

Delivery Methods and Timescales

The delivery time scale is specified on the product page to indicate when you should expect to receive your order. If all item(s) are in stock and your order was placed before 2pm, subject to passing necessary checks, your order will be shipped the same day. Orders received just after 2pm are also often dispatched the same day, but this cannot be guaranteed.



Delivery Options

Royal Mail – First Class Recorded Delivery*

  • Delivery Time – We cannot guarantee delivery time via Royal Mail. Whilst items shipped using Royal Mail First Class usually take 1 - 2 days, please note this is NOT a guaranteed next day delivery service. If this is a problem, please select one of our courier service options.

*Only available on orders with a value of less than £50

Courier – Next Working Day Service

  • Price = Free (Orders of £50+) / £9.95 (Orders of less than £50)
  • Delivery Time – Next working day from date of dispatch (see above)

Courier – Pre-noon, Next Working Day Service

  • Price = £9.95 (Orders of £50+) / £19.95 (Orders of less than £50)
  • Delivery Time – Next working day from date of dispatch (see above).

Courier – Saturday Delivery Service

  • Price = £19.95
  • Delivery Time – The first Saturday following date of dispatch (see above). Note that for guaranteed Saturday delivery, orders must be placed before 2pm on the Friday. Orders placed after 2pm may still arrive on Saturday, but this cannot be guaranteed.

Due to the nature of the products we sell, we operate a strict fraud screening process and therefore we are only able to deliver to the billing address.

In the event of a delay, we will contact you either by email or telephone as soon as reasonably possible.

While 99% of UK locations are valid for next day/Saturday delivery, there are a few remote locations which are not covered.

Synthax Audio (UK) cannot deliver outside of the UK and Republic of Ireland*.

*RME products cannot be shipped to the Republic of Ireland.



Missed Deliveries

If you are not in to receive the order at the time delivery is attempted, a card will normally be left to notify you of the missed delivery attempt. This will allow you to either telephone the courier company to arrange a re-delivery at a more convenient time or collect it from your local courier depot or Royal Mail sorting office. For security reasons, all items require a signature.

If for any reason the item is returned to us (e.g. incorrect address specified, multiple failed delivery attempts), then we will inform you immediately by email as soon as we receive the item. From this point forth, you will be given a choice whether you wish us to re-dispatch the item or cancel the order. Please refer to our Cancellations & 14 Day Returns Procedure for more details. For items where delivery failed through no fault of Synthax Audio (UK), you will be liable for the original shipping charge, any courier surcharges and any subsequent delivery charges.



Late Deliveries or Dispatch

We are able to ship almost every order in the specified timescale. However, in very rare circumstances there can be an unforeseen delay. If this does happen, we will make it our priority to get your order dispatched from our warehouse as soon as reasonably possible.

There are also rare cases, beyond our control, when the delivery company itself has a problem which causes a delay in transit. In these situations we will do our utmost to liaise with the relevant delivery company to ensure delivery is completed as swiftly as possible.

Consequential Loss for Late Deliveries

If a delivery is late, then we will provide a refund of any delivery fee that we charged you. We do not provide financial compensation to cover consequential losses, e.g. for time taken off work to receive a delivery, or if the item is intended as a gift and you have to purchase the same item from a more expensive retailer.



Terms of Service

Our full terms of sale can be viewed here.

Customer Rating: (0)

16-Channel Reference-Class
AD/DA Converter With AoIP

  •  Industry-leading specs with SteadyClock FS
  •  2.54” TFT screen with analogue level meters and extensive status feedback
  •  Routing matrix (remote controllable)
  •  Compact 1 HU 19” Device
  •  Re-designed front panel with analogue level meters
  •  Web interface and SSC API for remote control over network or USB
  •  Input level switchable per channel +24 dBu, +19 dBu, +13 dBu @ 0 dBFS
  •  New: AD/DA filters switchable
  •  Inputs AC coupled, fully symmetrical signal path (servo-balanced)
  •  Outputs DC coupled, fully symmetrical signal path ("truly balanced")

Connections

  •  16 x Line-level inputs
  •  16 x Line-level outputs
  •  2 x stereo headphone outputs
  •  2 x Gigabit Dante Ethernet (RJ45) (64 ch.)
  •  1 x MADI Coaxial (BNC) (64 ch.)
  •  1 x MADI Optical (SFP) (64 ch.) (SFP Sold separately)
  •  4 x ADAT I/O
  •  2 x PSU (AC and DC PSU inlets)

Description

RME M1620 Pro D (Dante)

RME proudly introduces the M-1620 Pro D, a state-of-the-art device that converts 16 analogue line-level signals (per channel switchable up to +24 dBu) to and from MADI, ADAT®, and Dante® network technology. This innovative unit is designed with a newly developed front panel that combines LED level meters with a display and includes two separate headphone outputs for monitoring - all within a single-height 19-inch rack device. Cutting-edge converters and flexible internal routing place it at the forefront of any audio network.

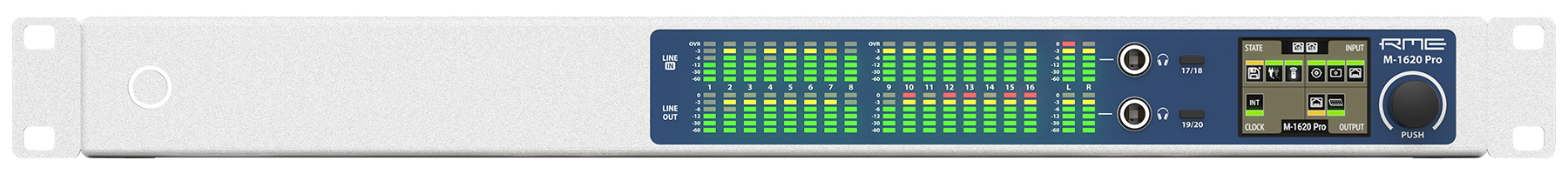

RME M-1620 Pro D front panel (click to enlarge)



Reliability and Redundancy

RME prioritizes reliability by equipping the M-1620 Pro D with built-in redundancy. This includes dual network and dual MADI connections, along with a monitored DC input in addition to the internal AC power supply. A unique system clearly signals when an issue arises, ensuring seamless operation. With full stand-alone capability, users can adjust device settings directly on the unit for quick modifications or to recall entire user-defined presets.



Advanced Features

The M-1620 Pro D allows manual configuration of the converter’s aliasing filters for optimal impulse and frequency response. Jitter on digital input signals is effectively reduced with SteadyClock FS.  Separate Word Clock BNC and coaxial MADI connectors, with optional optical MADI via an SFP module, allow the device to be easily integrated into existing infrastructure.

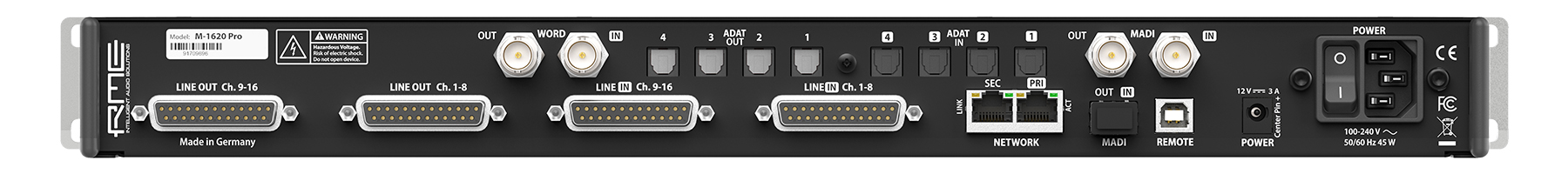

RME M-1620 Pro D rear panel (click to enlarge)



With Dante…

Responding to frequent requests, the M-1620 Pro D integrates 64 channel Dante connectivity, providing direct links to other audio devices via standard ethernet switches.

If redundancy is not required, the device can act as a switch itself and allow daisy-chains of several Dante devices.

Users can record and playback up to 64 channels of any of the M-1620’s analogue and digital I/O on their computer using Audinate’s Dante Virtual Soundcard™ (license not included).



SteadyClock FS

The RME M-1620 Pro also features RME's latest digital clocking and jitter rejection technology, 'SteadyClock FS'.

Originally developed for RME's award-winning ADI-2 Pro FS range of high-end converters, SteadyClock FS reduces intrinsic jitter to a new all-time low, when converting to and from analogue over all digital formats.

All clock modes provide excellent performance and astonishingly high-quality analogue conversion, allowing you to hear your mix exactly as it is.

What's more, RME's digital format conversion occurs without any loss to the signal, and SteadyClock FS ensures your sonic image will never experience any kind of degradation, ensuring the soundstage is replicated to the fullest depth and clarity.



Remote Control and Integration

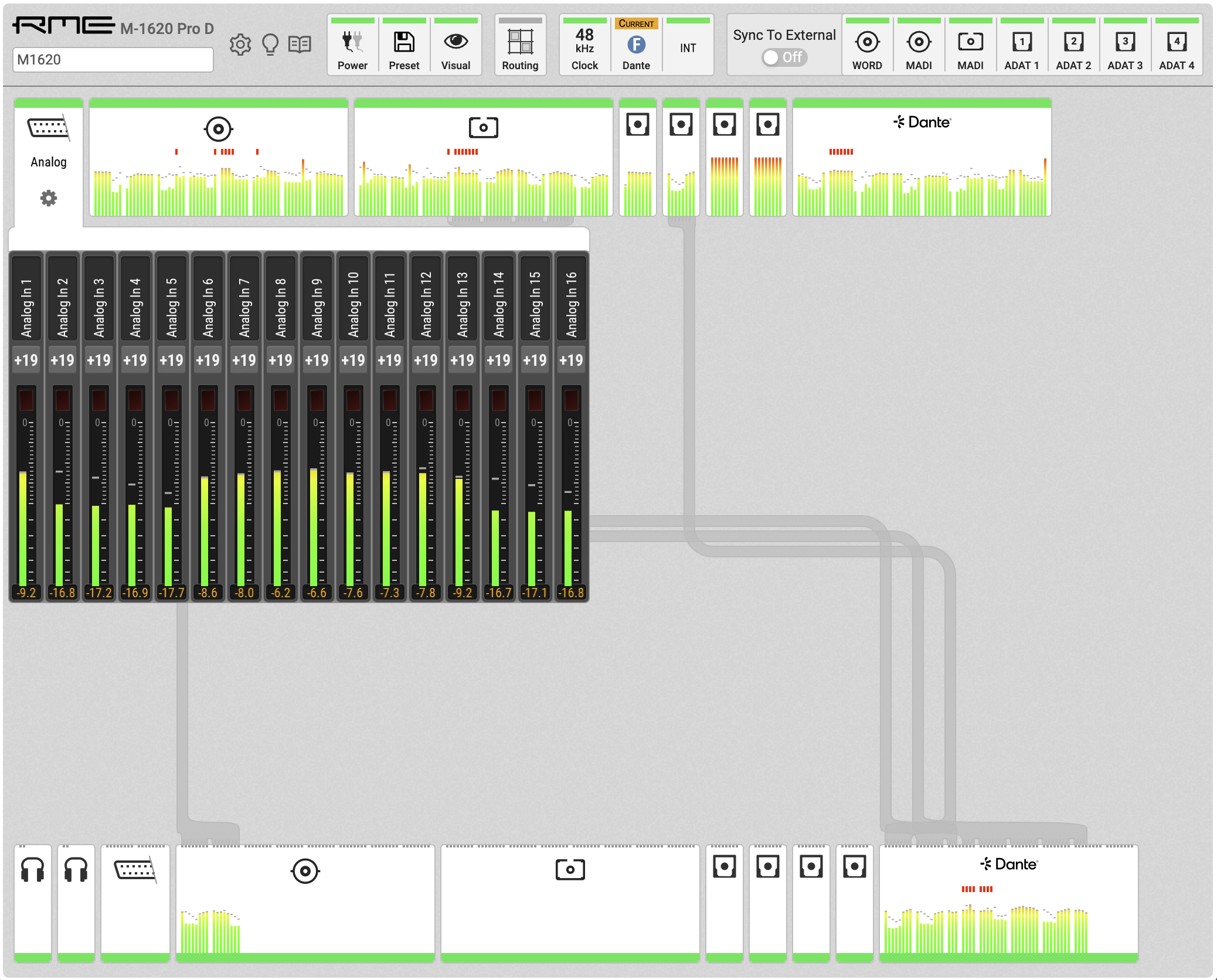

The M-1620 Pro D features a JSON-based API for full integration and remote control from either network port or USB. A web-based remote application offers convenient access to the 240x244 channel routing matrix.

Specification

Line In 1-16:

  • Resolution: 24 bit
  • Input level switchable per channel +24 dBu, +19 dBu, +13 dBu @ 0 dBFS
  • Inputs AC coupled, fully symmetrical signal path (servo-balanced)
  • Input Impedance 9.5 kΩ
  • Signal to Noise ratio (SNR) @ +24 dBu, 44.1 kHz: 117.0 dB RMS unweighted, 120.7 dBA
  • Signal to Noise ratio (SNR) @ +19 dBu: 116.3 dB RMS unweighted, 119.9 dBA
  • Signal to Noise ratio (SNR) @ +13 dBu: 114.7 dB RMS unweighted, 118.3 dBA
  • Frequency response @ 44.1 kHz, -0.1 dB: 5 Hz – 20.5 kHz
  • THD @ -1 dBFS: < -111 dB, < 0.00029%
  • THD+N @ -1 dBFS: < -108 dB, < 0.00039 %
  • Channel separation: > 110 dB



Line Out 1-16:

  • Resolution: 24 bit
  • Output level switchable per channel +24 dBu, +19 dBu, +13 dBu @ 0 dBFS
  • Outputs DC coupled, fully symmetrical signal path ("truly balanced")
  • Output impedance: 200 Ohm balanced, 100 Ohm unbalanced
  • Signal to Noise Ratio (SNR) @ 13 dBu: 119.2 dB RMS unweighted
  • Signal to Noise Ratio (SNR) @ 19 dBu: 119.7 dB RMS unweighted
  • Signal to Noise Ratio (SNR) @ 24 dBu: 119.9 dB RMS unweighted
  • Frequency response @ 44.1 kHz, -0.1 dB: 0 Hz – 20.3 kHz (Sharp Filter, default)
  • Frequency response @ 96 kHz, -0.1 dB: 0 Hz – 30 kHz (Slow Filter, default)
  • Frequency response @ 96 kHz, -0.1 dB: 0 Hz – 44.1 kHz (Sharp Filter)
  • Frequency response @ 192 kHz, -0.1 dB: 0 Hz – 60.5 kHz (Slow Filter, default)
  • Frequency response @ 192 kHz, -0.1 dB: 0 Hz – 85 kHz (Sharp Filter)
  • THD @ 19 dBu: < -120 dB, < 0.0001 %
  • THD+N @ 19 dBu: < -113 dB, < 0.0002 %
  • Channel separation: > 110 dB



Phones 1/2, 3/4:

  • Resolution: 24 Bit
  • Output: 6.3 mm TRS stereo (unbalanced) or mono (balanced) jack
  • Maximum output level +4 dBu / +19 dBu (+10 dBu / +25 dBu in balanced mode)
  • Output level switchable separately for each TRS connector
  • Signal to Noise Ratio (SNR) @ 19 dBu: > 109 dB RMS unweighted, > 111 dB(A)
  • Frequency response @ 44.1 kHz, -0.1 dB: 0 Hz – 20.0 kHz (Sharp Filter, default)
  • Frequency response @ 96 kHz, -0.1 dB: 0 Hz – 20.0 kHz (Slow Filter, default)
  • Frequency response @ 96 kHz, -0.1 dB: 0 Hz – 44.3 kHz (Sharp Filter)
  • Frequency response @ 192 kHz, -0.1 dB: 0 Hz – 43 kHz (Slow Filter, default)
  • Frequency response @ 192 kHz, -0.1 dB: 0 Hz – 85 kHz (Sharp Filter)
  • THD+N @ 4 dBu, 32 Ohms load: < -100 dB, < 0.001 %
  • THD+N @ 19 dBu, 100 Ohms load: < -100 dB, < 0.001 %



Dimensions

Product Dimensions:

• 440 x 44 x 243 mm (17.3 x 1.7 x 9.6 inches)



Packaging Dimensions:

• 560 x 315 x 115 mm (22.1 x 12.4 x 4.5 inches)



Weight:

• 2.8 kg (6.2 lbs)
