RME ADI-2 Pro Anniversary Edition (Sold Out)

Please note that the RME ADI-2 Pro AE is now sold out.
For a similar product, please see the RME ADI-2 Pro.

Ultra-fidelity PCM/DSD 768 kHz AD/DA Converter

Last year RME celebrated their 20th year anniversary, with the German manufacturer announcing no less than four new products at Musikmesse 2016.

One of those new devices was the RME ADI-2 Pro, a feature-packed update to the RME ADI-2, featuring incredibly precise audio quality, powerful headphone amplifiers, plus a host of innovative features that will appeal to both mastering engineers and high-end audio aficionados alike.

With the ADI-2 Pro proving popular in both pro audio and Hifi circles, RME have chosen Musikmesse to unveil their new RME ADI-2 Pro Anniversary Edition.

Strictly limited to 500 units worldwide, the RME ADI-2 Pro AE features the same sound and functionality as its namesake, but comes decked out in an all-black housing, matching the style of audiophile-level HiFi setups.

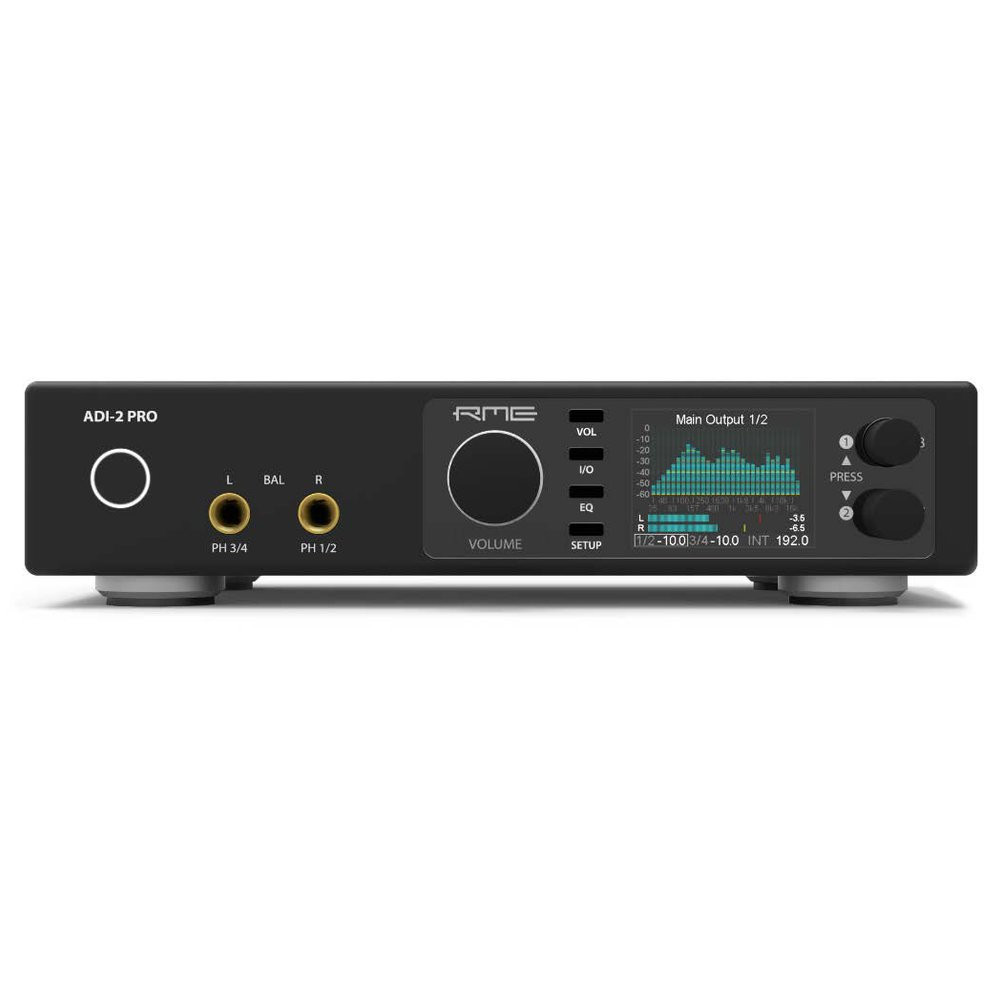

RME ADI-2 Pro AE front panel (click to enlarge)

Recommended Applications

• High-end headphone amplifier

• Universal monitoring controller

• High-class A/D converter

• Digital format converter

• High-end audio interface for computer-based measuring systems

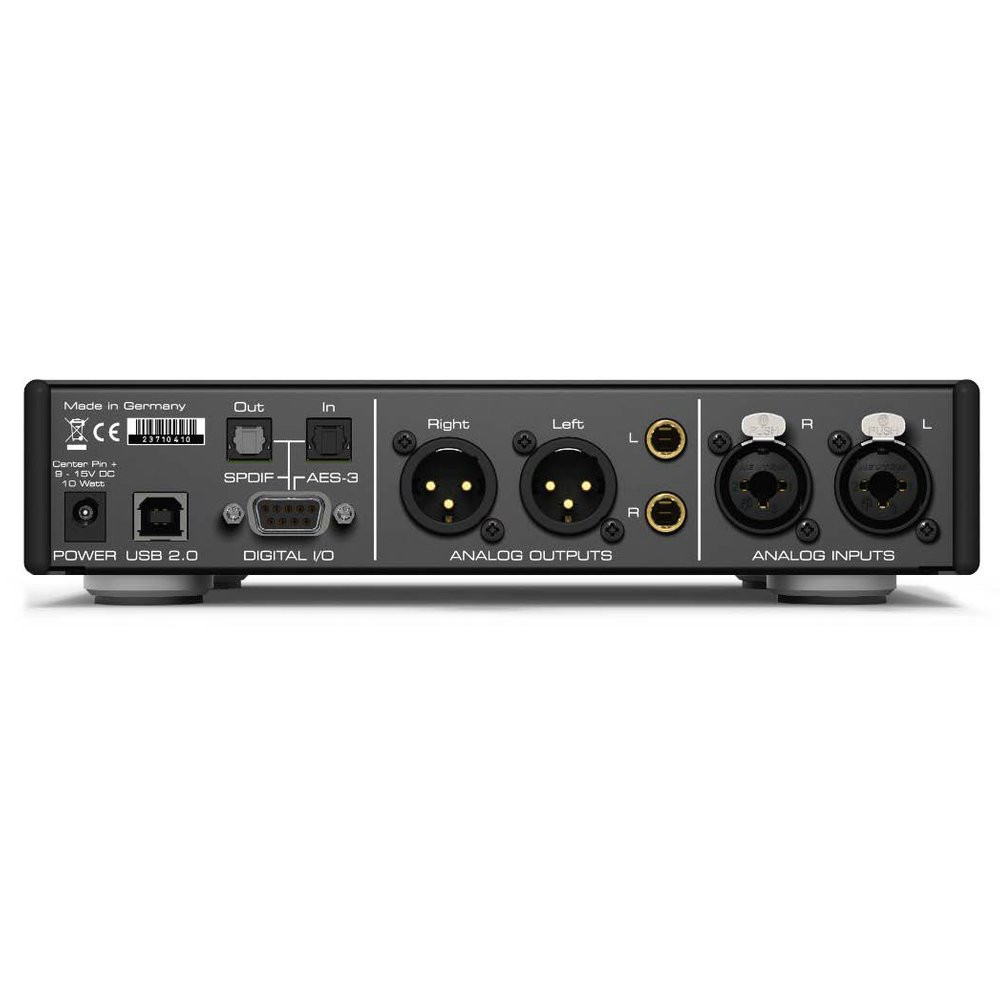

RME ADI-2 Pro AE rear panel (click to enlarge)

Suitable For The Following Users;

• Audiophiles and high-end HiFi enthusiasts
• Professional recording studios
• Ambitious home users
• Measurement laboratories

Connectivity

Differences between the RME ADI-2 Pro and the RME ADI-2 Pro AE

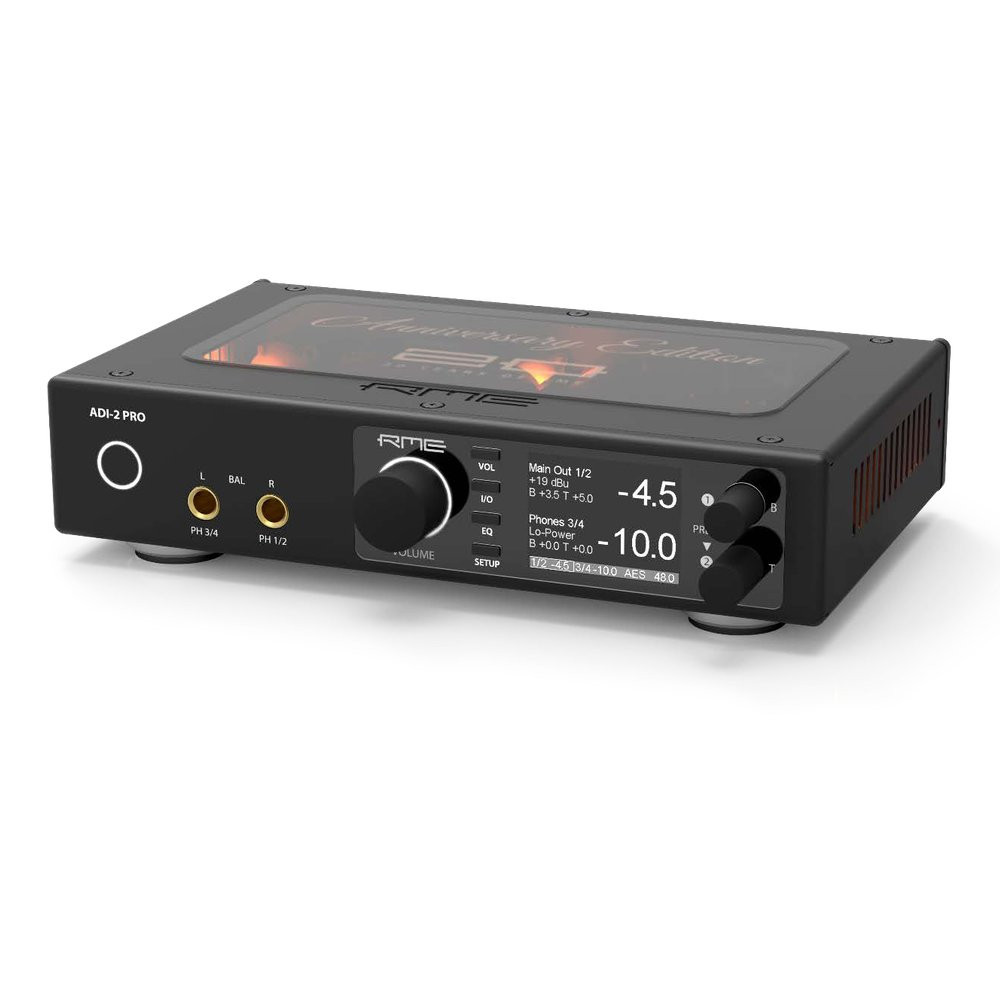

• Three orange LEDs illuminate the PCB and the components.

• Unique see-through top The plexi's inside print (scratch protected) states 'Anniversary Edition, 20 Years of RME'.

• The rear TS double socket has gold-plated contacts, to match the front panel headphones connections.

• An additional metal shield optimizes crosstalk suppression between the left and right XLR inputs. The shield is similar to the one preventing crosstalk from the TS outputs to XLR R input, which is a features of all RME ADI Converters.

• The four rubber feet have been replaced with four stylised Hi-Fi feet with brushed chrome design.

• The four holes on the side of the original, designed to allow for rack ear mounting, have been removed.

• A special sleeve and manual (with additional text and matching photo).

Analog Inputs

XLR
• Input: XLR, servo-balanced
• Input impedance balanced: 18 kOhm, unbalanced: 9 kOhm
• Input sensitivity switchable +24 dBu, +19 dBu, +13 dBu, +4 dBu @ 0 dBFS
• Digital Trim Gain range: 0 dB up to +6 dB
• Signal to Noise ratio (SNR) @ +13/19/24 dBu: 120.x dB RMS unweighted, 124.x dBA
• Signal to Noise ratio (SNR) @ +4 dBu: 119 dB RMS unweighted, 123 dBA
• Frequency response @ 44.1 kHz, -0.1 dB: 5 Hz – 20.5 kHz
• Frequency response @ 96 kHz, -0.5 dB: 3 Hz – 45.5 kHz
• Frequency response @ 192 kHz, -1 dB: 2 Hz – 92.7 kHz
• Frequency response @ 384 kHz, -1 dB: < 1 Hz – 124 kHz
• Frequency response @ 768 kHz, -3 dB: < 1 Hz – 180 kHz
• THD @ -1 dBFS: -120 dB, 0.0001 %
• THD+N @ -1 dBFS: -113 dB, 0.00022 %
• Channel separation: > 110 dB

TSR
As input XLR, but:
• Input: 6.3 mm TRS jack, servo-balanced

Analog Outputs

1/2 XLR
• Output level switchable +24 dBu, +19 dBu, +13 dBu, +4 dBu @ 0 dBFS
• Signal to Noise ratio (SNR) @ +13/19/24 dBu: 117 dB RMS unweighted, 120 dBA
• Signal to Noise ratio (SNR) @ +4 dBu: 115 dB RMS unweighted, 118 dBA
• Frequency response @ 44.1 kHz, -0.1 dB: 0 Hz – 20.2 kHz
• Frequency response @ 96 kHz, -0.5 dB: 0 Hz – 44.9 kHz
• Frequency response @ 192 kHz, -1 dB: 0 Hz – 88 kHz
• THD @ -1 dBFS: -110 dB, 0.00032 %
• THD+N @ -1 dBFS: -108 dB, 0.00039 %
• THD @ -3 dBFS: -116 dB, 0.00016 %
• Channel separation: > 110 dB
• Output impedance: 200 Ohm balanced, 100 Ohm unbalanced

1/2 TS (rear)
As output XLR, but:
• Output: 6.3 mm TS jack, unbalanced
• Maximum output level: +19 dBu
• Signal to Noise ratio (SNR) @ +13/19 dBu: 117 dB RMS unweighted, 120 dBA
• Signal to Noise ratio (SNR) @ +4 dBu: 113 dB RMS unweighted, 117 dBA
• Output impedance: 100 Ohm

Phones 1/2
As Output 1/2 TS, but:
• Output: 6.3 mm TRS jack, unbalanced, stereo
• Output impedance: 0.1 Ohm
• Signal to Noise ratio (SNR) @ +22 dBu: 117 dB RMS unweighted, 120 dBA
• Signal to Noise ratio (SNR) @ +7 dBu: 114 dB RMS unweighted, 118 dBA
• Output level at 0 dBFS, Ref Level +19 dBu, load 100 Ohm or up: +22 dBu (10 V)
• Output level at 0 dBFS, Ref Level +4 dBu, load 8 Ohm or up: +7 dBu (1.73 V)
• THD @ +18 dBu, 32 Ohm load, 1.2 Watt: -110 dB, 0.0003 %
• THD+N @ + 18 dBu, 32 Ohm load: -107 dB, 0.00045 %
• THD @ +14 dBu, 16 Ohm load, 0.94 Watt: -110 d

Output Phones 3/4
As Output Phones 1/2, but:
• Output levels at 0 dBFS: Hi-Power off +7 dBu, Hi-Power On +22 dBu

Balanced Phones mode
As before, but:
• Output levels at 0 dBFS: Hi-Power off +13 dBu (9.8 V), Hi-Power On +28 dBu (19.5 V)
• Output impedance: 0.2 Ohm
• Signal to Noise ratio (SNR) @ +28 dBu: 120 dB RMS unweighted, 123 dBA
• Signal to Noise ratio (SNR) @ +13 dBu: 118.4 dB RMS unweighted, 122 dBA
• Output level at 0 dBFS, Hi-Power On, load 150 Ohm or up: +28 dBu (19.5 V)
• Output level at 0 dBFS, Hi-Power Off, load 8 Ohm or up: +13 dBu (9.8 V)
• Max power @ 0.001% THD: 2.9 W per channel

Digital Inputs

General
• Lock Range: 28 kHz – 200 kHz
• Jitter suppression: > 50 dB (2.4 kHz)
• Jitter when synced to input signal: < 1 ns
• Accepts Consumer and Professional format

AES/EBU
• 1 x XLR, transformer-balanced, galvanically isolated, according to AES3-1992
• High-sensitivity input stage (< 0.3 Vpp)
• SPDIF compatible (IEC 60958)

SPDIF coaxial
• 1 x RCA, transformer-balanced, according to IEC 60958
• High-sensitivity input stage (< 0.3 Vpp)
• AES/EBU compatible (AES3-1992)

SPDIF optical
• 1 x optical, according to IEC 60958
• ADAT compatible

Digital Outputs

AES/EBU
• 1 x XLR, transformer-balanced, galvanically isolated, according to AES3-1992
• Output level 2.7 Vpp
• Format Professional according to AES3-1992 Amendment 4
• Single Wire mode, sample rate 28 kHz up to 200 kHz

SPDIF coaxial
• 1 x RCA, according to IEC 60958
• Output level 0.75 Vpp
• Format Consumer SPDIF according to IEC 60958
• Single Wire mode, sample rate 28 kHz up to 200 kHz

SPDIF optical
• 1 x optical, according to IEC 60958
• Format Consumer (SPDIF) according to IEC 60958
• Sample rate 28 kHz up to 200 kHz

Digital

Clocks: Internal, AES In, SPDIF In, ADAT In
• Low Jitter Design: < 1 ns in PLL mode, all inputs
• Internal clock: < 800 ps Jitter, Random Spread Spectrum
• Jitter suppression of external clocks: > 50 dB (2.4 kHz)
• Effective clock jitter influence on AD and DA conversion: near zero
• PLL ensures zero dropout, even at more than 100 ns jitter
• Additional Digital Bitclock PLL for trouble-free varispeed ADAT operation
• Supported sample rates for external clocks: 28 kHz up to 200
