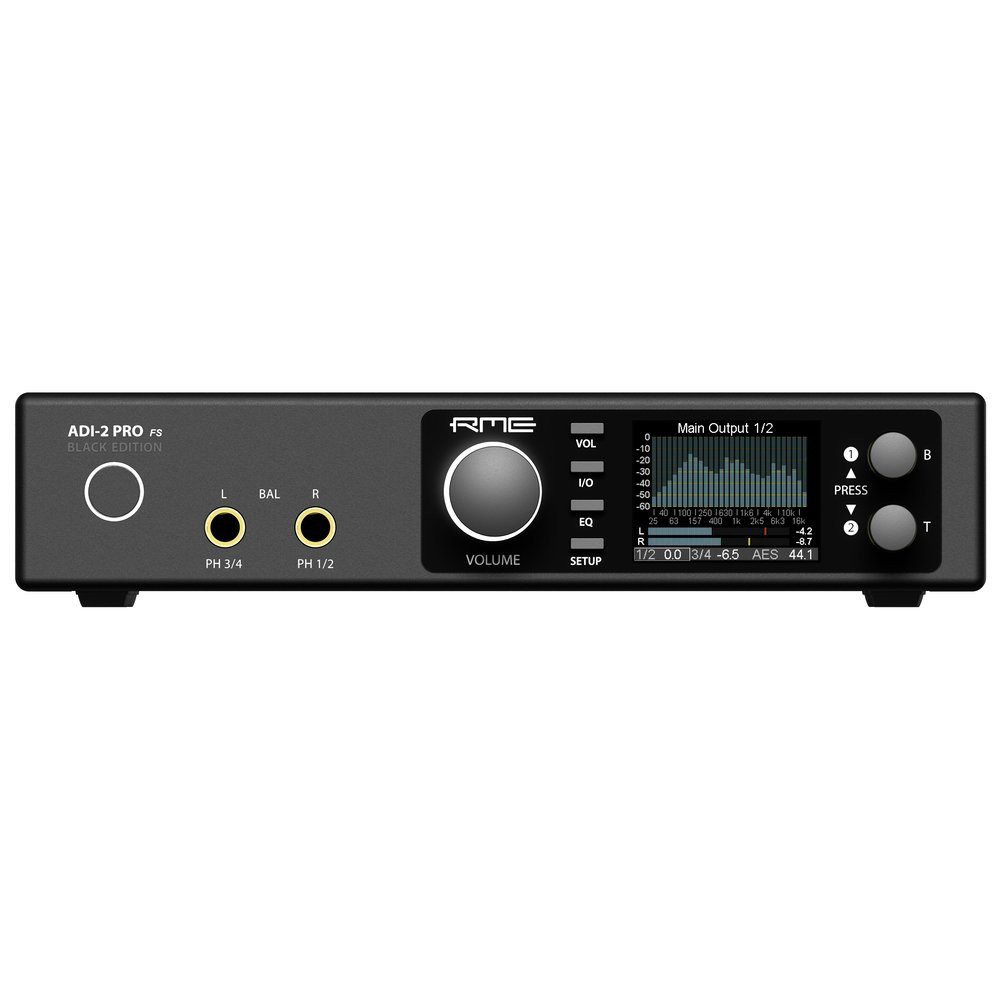

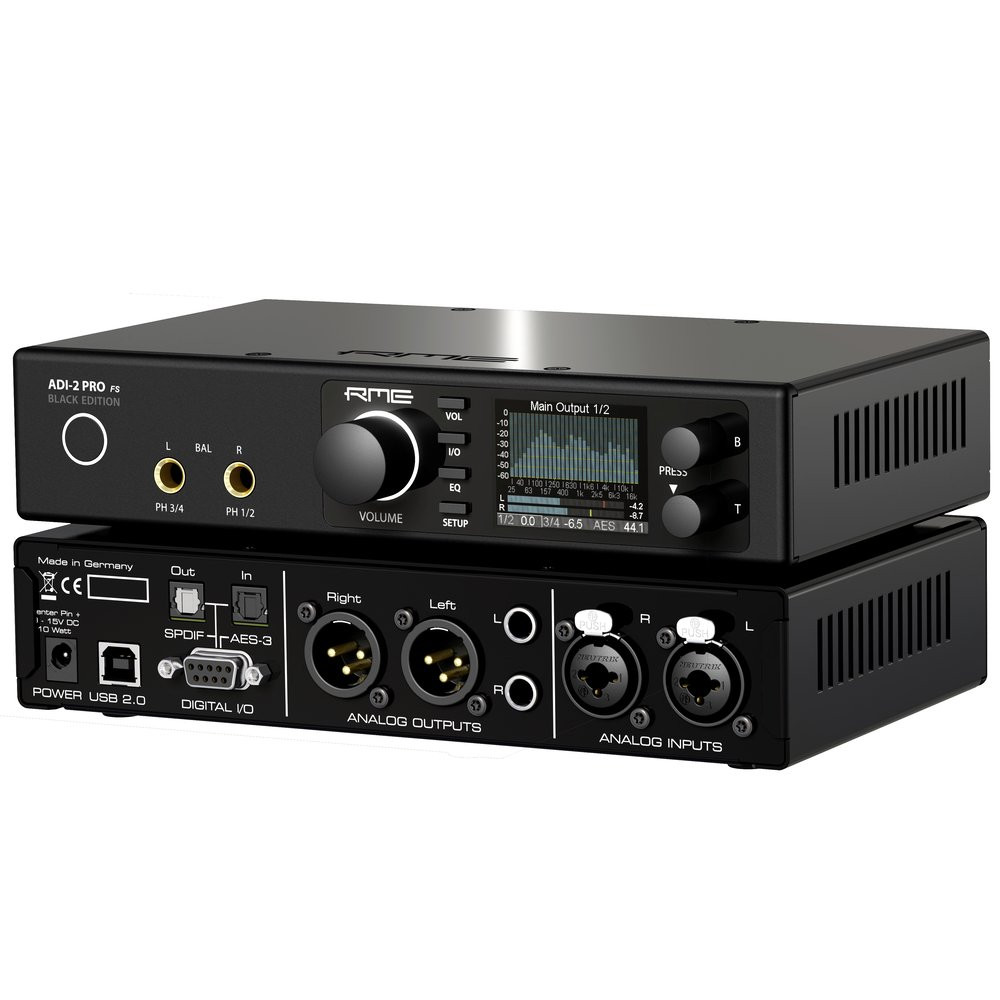

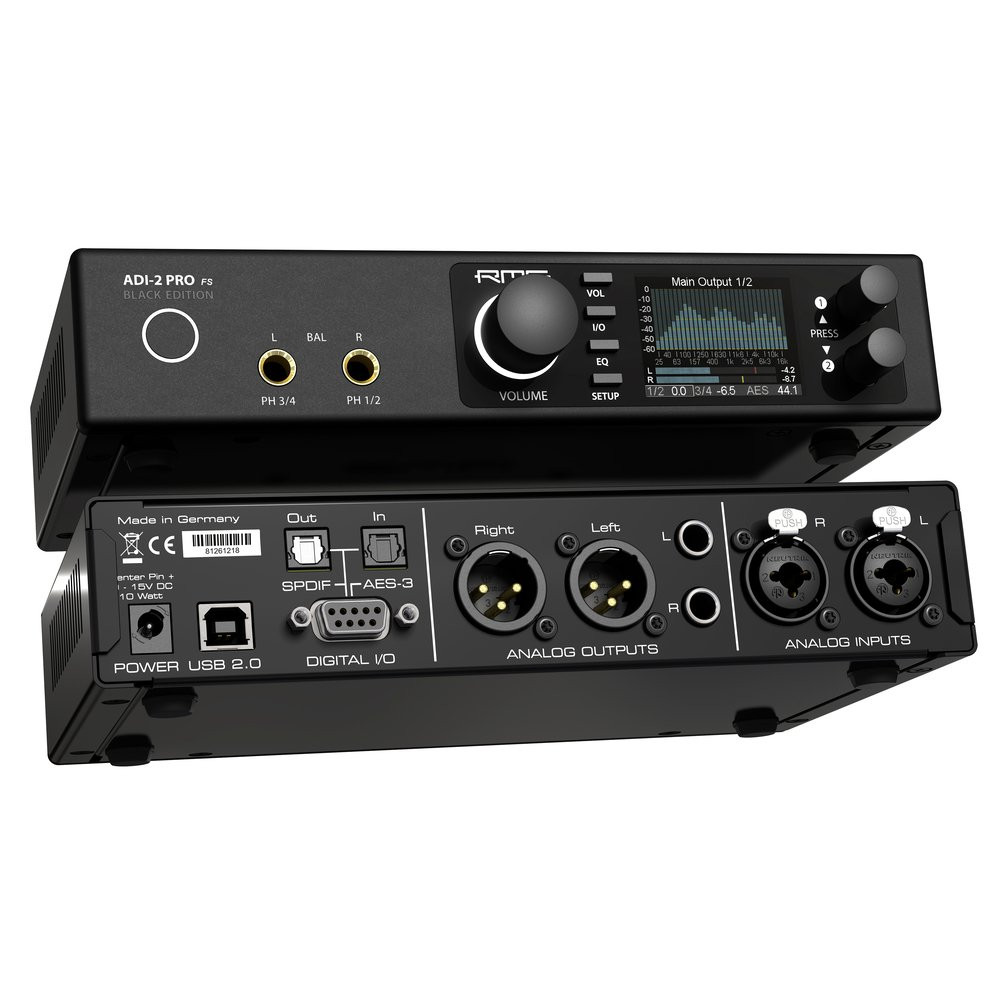

RME ADI-2 Pro FS Black Edition (Sold Out)
£1,496.00
Inc 20% VAT
Limited Edition High-End
Ultra-fidelity AD/DA Converter,
Headphone Amp & USB DAC
Please note that all RME ADI-2 Pro Black Edition units have now been sold.
For a similar product, please see the new version RME ADI-2 Pro FS R BE.
- Black Edition of the RME ADI-2 Pro FS
- Limited to 500 units worldwide
- High-End AD/DA Converter, Headphone Amp & USB DAC
- High-End AD/DA Conversion
- 2 Ch. Analog In / 4 Ch. Analog Out
- XLR (Bal.) and TS (unbal.) outputs
- ADAT or SPDIF I/O optical
- AES/EBU and SPDIF coaxial
- 2x “Extreme Power“ Headphone Outputs
- 1 x USB 2.0
- High-resolution IPS display
The RME ADI-2 Pro FS Black Edition is exclusively available at:
![Click here to visit gear4music.com Gear4Music - Logo](/uploads/redactor/1538045294-Gear4Music - Logo.png)
Description
RME ADI-2 Pro FS - Black Edition
RME’s anniversary reference AD/DA converter is a host of devices all put together into one unit, with a simple and mostly automated way of using it right out of the box. A unit with the industry’s biggest footprint per feature ratio, excellent tech specs, crystal clear and transparent sound signature, and two extremely powerful headphone outputs.
The 'Black Edition', limited to 500 units, has a black front plate and does not support rack mounting.
RME's anniversary reference AD/DA converter is:
- A high-end AD/DA converter in professional studio quality
- A double headphone amplifier in true high-end quality
- A USB DAC like no other - the most versatile and capable one
- A high-end AD/DA frontend and headphone amp for iPad / iPhone
- A multi-format converter (AES, SPDIF, ADAT) with monitoring function
- A DSD record and playback solution
- An AD/DA frontend for audio measurement at up to 768 kHz sample rate
As the most flexible converter available, the ADI-2 Pro FS Black Edition offers balanced/unbalanced analog I/Os, double Extreme Power headphone outputs, SteadyClock FS, 4-stage hardware input and output level control, DSP-based signal processing, external power supply operation, Class Compliant USB compatibility, sample rates up to 768 kHz as well as DSD record and Direct DSD playback (256 / 11.2 MHz).
![](/uploads/redactor/adi-info_09_05_2016.jpg)
Analogue or Digital - Options Galore

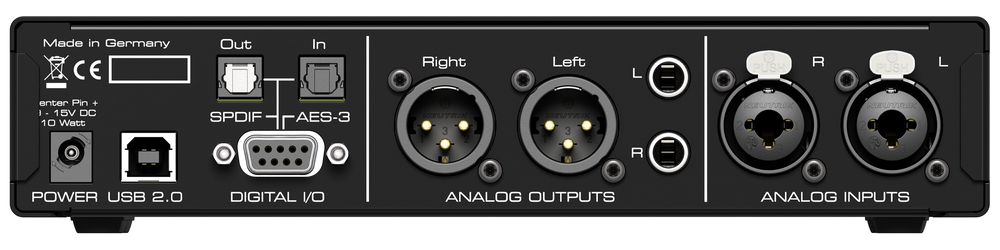

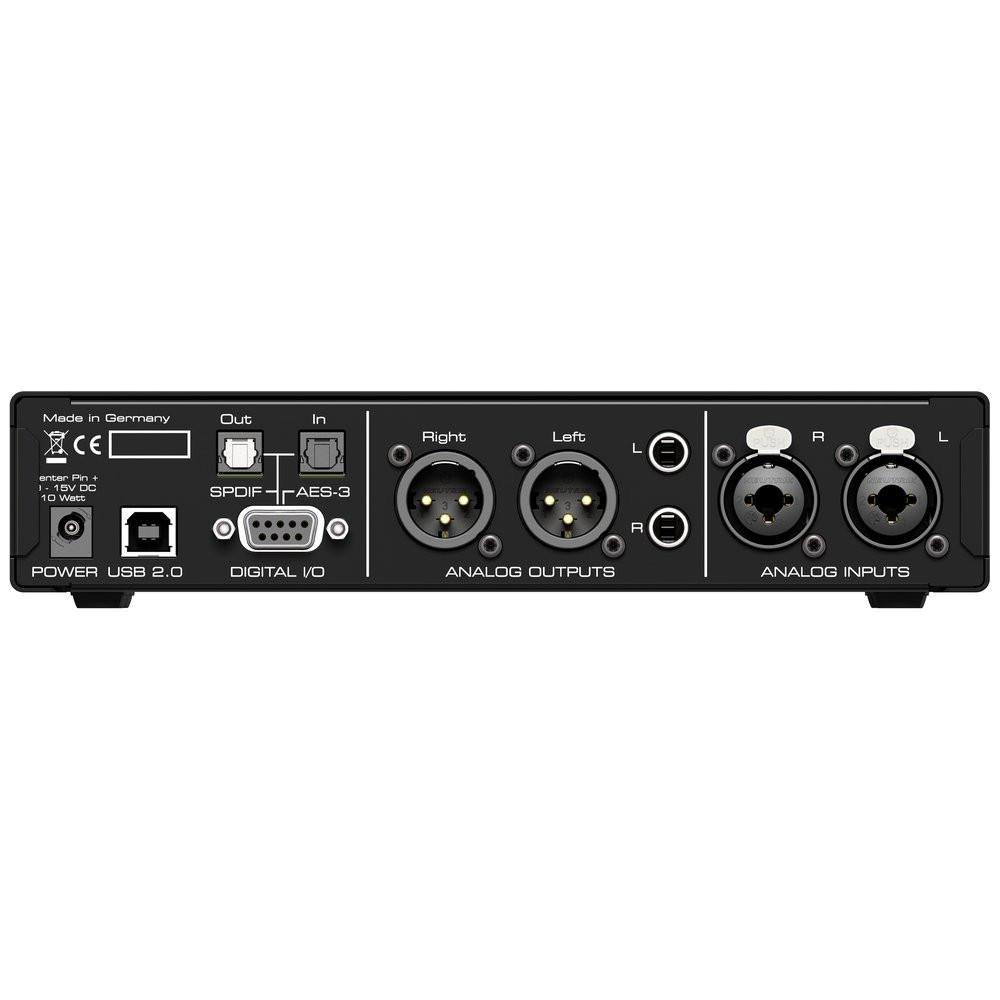

The ADI-2 Pro FS Black Edition includes two servo-balanced analogue inputs on combo XLR / TRS jacks, two separate balanced and unbalanced outputs on XLR and TS, two stereo Extreme Power headphone outputs on the front, an optical SPDIF I/O that also understands ADAT, and coaxial SPDIF (RCA) and AES I/O (XLR) via an included breakout cable. This universal set of I/O options offers superior quality and flexible connectivity to those who take a no-compromise approach to audio.
The USB 2.0 port is fully Class Compliant (UAC 2) for connection with compatible iOS devices, and is also used for firmware updates. Including an external switched power supply with lockable connector, the ADI-2 Pro FS Black Edition can be easily powered from battery, opening up mobile applications as well as galvanically isolated use cases.
As a computer interface the ADI-2 Pro FS Black Edition offers a stereo (2 in / 2 out) and a multichannel mode (6 in / 8 out). Compatibility with Mac OS X comes right out of the box. Under Windows the ADI-2 Pro FS Black Edition uses RME's MADIface series driver, for full WDM and ASIO compatibility and highest performance.

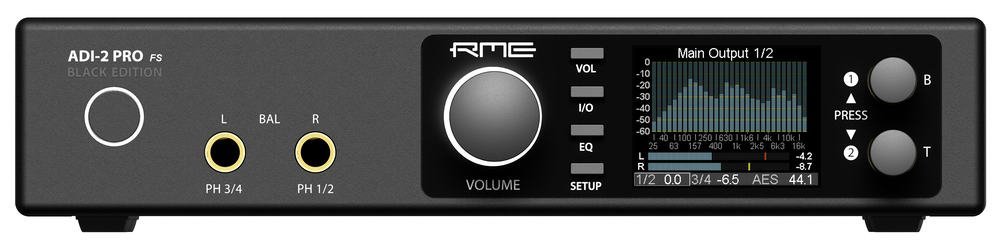

![RME ADI-2 Pro Black Edition - Front-Panel - Synthax Audio UK RME ADI-2 Pro Black Edition - Front-Panel - Synthax Audio UK](/uploads/redactor/1536920034-RME ADI-2 Pro Black Edition - Rear-Panel - Synthax Audio UK.jpg)
Perfect Sound Capture and Reproduction
Aiming for the absolute reference sound, any detail in the ADI-2 Pro FS Black Edition is special and has its own story. The main PCB is an extraordinary 10 layer design with custom copper thickness, guaranteeing finest undisturbed sound as well as ample but separated power for the phones outputs. Internal power supply stages and precise regulators use a super-low-noise design to not degrade performance through the power rails.
Selected SoundPlus operational amplifiers maintain highest SNR, lowest THD and high slew rate under all conditions. The whole analogue circuit design is fully symmetrical and balanced throughout - and DC-coupled. The only capacitors in the signal path perform DC protection at the analogue input sockets, and have been carefully selected to avoid any sonic impact.
The 4-channel AD-converter, supporting 786 kHz sample rate and DSD recording, is used in a dual mono design, with 3 dB improved signal to noise ratio. Two premium DACs are used for two separate stereo outputs. Internal audio processing like EQs, Crossfeed and spectral analysis, is done by a high performance DSP with 2.17 Giga FLOPS (2882 MIPS), delivering enough computing power to work even at 768 kHz sample rate.
For easy operation a high quality Sample Rate Converter has been added, switchable to the AES or SPDIF input, solving any clocking problem between those. And RME's latest SteadyClock III technology ensures perfect jitter reduction and stable clocking, no matter if internal or external clocks are used.
SteadyClock FS - Femtosecond Clock Technology
The ADI-2 Pro FS Black Edition is the second device in RME's range with SteadyClock FS. There is little to improve with SteadyClock, it has earned its accolades over years with flawless operation in numerous RME devices, guaranteeing that the internal clock will produce exactly the same sound as when using an external one.
SteadyClock assures high jitter rejection and is proven to handle all digital interface formats in an exemplary way.
With SteadyClock FS the focus is on reducing the self-jitter of SteadyClock to new lows, by improving its second, analogue PLL circuit, and referencing both Direct Digital Synthesis and PLL to a low phase noise quartz crystal.
The self-jitter measured through DA conversion now reaches levels that usually are only available in master quartz clock mode, while SteadyClock always runs in PLL mode – making sure that the sound is the same whether using internal or external clock.
The low phase noise oscillator driving the updated circuit reaches jitter specs lower than a picosecond (ps), and now you are in the area known as the FemtoSecond.
High Resolution Display Operation
RME have incorporated many unique features, not found on any comparable devices, like 5-band parametric EQs for fully individual phones compensation, adjustable Bass/Treble controls with quick access, a binaural crossfeed function, adjustable loudness filter, selectable AD/DA filters, four discrete I/O reference levels, auto reference level setting, auto balanced phones mode, and many more. The display is not only used to control the unit, but also shows warning and guidance messages.
![](/uploads/redactor/RME-ADI-2-Pro-Display_09_05_2016.jpg)
Professional features such as M/S Processing, stereo width and phase reversal up to full control and storage of all settings are included, as well as RME's famous Spectral Analyzer, a 30-band biquad filtered analysis tool offering unprecedented musical visualization, perfectly complementing the high-resolution IPS display.
“Extreme Power “ Headphone Output
There is no use in boasting about -110 dB THD, when such values are not available in real world operation - for example when a 32 ohm headphone is connected. RME's engineers therefore designed a new headphone output stage that brings the full performance of the premium DAC to the phone jack - even when using low impedance headphones. The Extreme Power design excels with 0.1 Ohm output impedance, a maximum output level of +22 dBu, and a maximum output power of 1.5 Watts - per channel!
![RME ADI-2 Pro Black Edition - Front-Panel - Synthax Audio UK RME ADI-2 Pro Black Edition - Front-Panel - Synthax Audio UK](/uploads/redactor/1536920119-RME ADI-2 Pro Black Edition - Front-Panel - Synthax Audio UK.jpg)
The ADI-2 Pro FS Black Edition's two, fully separated stereo headphone outputs deliver the same 120 dBA SNR performance as the line outputs, for a full hum and noise free listening experience. THD is far below -100 dB (0.001%) even at full power, for the most clear and detailed soundstage possible. The Extreme Power design also incorporates current limiting, power surveillance, overload detection and DC protection. A low power mode and a high power mode are provided, for a perfect match from IEM up to planar.
Having two stereo outputs, balanced headphone operation is possible. As RME's engineers were not satisfied with the existing techniques they developed a new Advanced Balanced mode for the ADI-2 Pro FS, that removes most limitations of standard balanced operation, and turns this mode into a a fully new experience. The exclusive Advanced Balanced mode delivers a balanced signal path from the DAC straight to the phone, with 3 dB gain in Signal to Noise Ratio, smoothed out deviations in components, optimized frequency response, super low output impedance (0.2 Ohms), and a maximum output level of +28 (twenty eight) dBu.
Lights Out!
When the AutoDark function is selected, the display, function keys and volume knob lights are automatically switched off after 10 seconds of the ADI-2 Pro FS Black Edition being idle. The lights will come to life when you touch any button.
This feature helps you with one less visual distraction when mixing or mastering.
The Anniversary Converter
The ADI-2 Pro is RME's reference AD/DA converter, USB DAC, USB interface and headphone amp. It's numerous use cases make it an ideal choice in many fields, from the home user appreciating innovative solutions offering highest sound quality, the studio owner asking for reference AD/DA conversion, the Hi-Fi enthusiast demanding a flexible yet high-end headphone amplifier, up to the industry using the portable device as front-end for measurement systems.
20 years of RME - cumulated into a precious unit, that once heard and used one will never give away. Promised.
Specifications
Analog Inputs
XLR
• Input: XLR, servo-balanced
• Input impedance balanced: 18 kOhm, unbalanced: 9 kOhm
• Input sensitivity switchable +24 dBu, +19 dBu, +13 dBu, +4 dBu @ 0 dBFS
• Digital Trim Gain range: 0 dB up to +6 dB
• Signal to Noise ratio (SNR) @ +13/19/24 dBu: 120.x dB RMS unweighted, 124.x dBA
• Signal to Noise ratio (SNR) @ +4 dBu: 119 dB RMS unweighted, 123 dBA
• Frequency response @ 44.1 kHz, -0.1 dB: 5 Hz – 20.5 kHz
• Frequency response @ 96 kHz, -0.5 dB: 3 Hz – 45.5 kHz
• Frequency response @ 192 kHz, -1 dB: 2 Hz – 92.7 kHz
• Frequency response @ 384 kHz, -1 dB: < 1 Hz – 124 kHz
• Frequency response @ 768 kHz, -3 dB: < 1 Hz – 180 kHz
• THD @ -1 dBFS: -120 dB, 0.0001 %
• THD+N @ -1 dBFS: -113 dB, 0.00022 %
• Channel separation: > 110 dB
TRS
As input XLR, but:
• Input: 6.3 mm TRS jack, servo-balanced
Analog Outputs
1/2 XLR
• Output level switchable +24 dBu, +19 dBu, +13 dBu, +4 dBu @ 0 dBFS
• Signal to Noise ratio (SNR) @ +13/19/24 dBu: 117 dB RMS unweighted, 120 dBA
• Signal to Noise ratio (SNR) @ +4 dBu: 115 dB RMS unweighted, 118 dBA
• Frequency response @ 44.1 kHz, -0.1 dB: 0 Hz – 20.2 kHz
• Frequency response @ 96 kHz, -0.5 dB: 0 Hz – 44.9 kHz
• Frequency response @ 192 kHz, -1 dB: 0 Hz – 88 kHz
• THD @ -1 dBFS: -110 dB, 0.00032 %
• THD+N @ -1 dBFS: -108 dB, 0.00039 %
• THD @ -3 dBFS: -116 dB, 0.00016 %
• Channel separation: > 110 dB
• Output impedance: 200 Ohm balanced, 100 Ohm unbalanced
1/2 TS (rear)
As output XLR, but:
• Output: 6.3 mm TS jack, unbalanced
• Maximum output level: +19 dBu
• Signal to Noise ratio (SNR) @ +13/19 dBu: 117 dB RMS unweighted, 120 dBA
• Signal to Noise ratio (SNR) @ +4 dBu: 113 dB RMS unweighted, 117 dBA
• Output impedance: 100 Ohm
Phones 1/2
As Output 1/2 TS, but:
• Output: 6.3 mm TRS jack, unbalanced, stereo
• Output impedance: 0.1 Ohm
• Signal to Noise ratio (SNR) @ +22 dBu: 117 dB RMS unweighted, 120 dBA
• Signal to Noise ratio (SNR) @ +7 dBu: 114 dB RMS unweighted, 118 dBA
• Output level at 0 dBFS, Ref Level +19 dBu, load 100 Ohm or up: +22 dBu (10 V)
• Output level at 0 dBFS, Ref Level +4 dBu, load 8 Ohm or up: +7 dBu (1.73 V)
• THD @ +18 dBu, 32 Ohm load, 1.2 Watt: -110 dB, 0.0003 %
• THD+N @ + 18 dBu, 32 Ohm load: -107 dB, 0.00045 %
• THD @ +14 dBu, 16 Ohm load, 0.94 Watt: -110 d
Output Phones 3/4
As Output Phones 1/2, but:
• Output levels at 0 dBFS: Hi-Power off +7 dBu, Hi-Power On +22 dBu
Balanced Phones mode
As before, but:
• Output levels at 0 dBFS: Hi-Power off +13 dBu (9.8 V), Hi-Power On +28 dBu (19.5 V)
• Output impedance: 0.2 Ohm
• Signal to Noise ratio (SNR) @ +28 dBu: 120 dB RMS unweighted, 123 dBA
• Signal to Noise ratio (SNR) @ +13 dBu: 118.4 dB RMS unweighted, 122 dBA
• Output level at 0 dBFS, Hi-Power On, load 150 Ohm or up: +28 dBu (19.5 V)
• Output level at 0 dBFS, Hi-Power Off, load 8 Ohm or up: +13 dBu (9.8 V)
• Max power @ 0.001% THD: 2.9 W per channel
Digital Inputs
General
• Lock Range: 28 kHz – 200 kHz
• Jitter suppression: > 50 dB (2.4 kHz)
• Jitter when synced to input signal: < 1 ns
• Accepts Consumer and Professional format
AES/EBU
• 1 x XLR, transformer-balanced, galvanically isolated, according to AES3-1992
• High-sensitivity input stage (< 0.3 Vpp)
• SPDIF compatible (IEC 60958)
SPDIF coaxial
• 1 x RCA, transformer-balanced, according to IEC 60958
• High-sensitivity input stage (< 0.3 Vpp)
• AES/EBU compatible (AES3-1992)
SPDIF optical
• 1 x optical, according to IEC 60958
• ADAT compatible
Digital Outputs
AES/EBU
• 1 x XLR, transformer-balanced, galvanically isolated, according to AES3-1992
• Output level 2.7 Vpp
• Format Professional according to AES3-1992 Amendment 4
• Single Wire mode, sample rate 28 kHz up to 200 kHz
SPDIF coaxial
• 1 x RCA, according to IEC 60958
• Output level 0.75 Vpp
• Format Consumer SPDIF according to IEC 60958
• Single Wire mode, sample rate 28 kHz up to 200 kHz
SPDIF optical
• 1 x optical, according to IEC 60958
• Format Consumer (SPDIF) according to IEC 60958
• Sample rate 28 kHz up to 200 kHz
Digital
Clocks: Internal, AES In, SPDIF In, ADAT In
• Low Jitter Design: < 1 ns in PLL mode, all inputs
• Internal clock: < 800 ps Jitter, Random Spread Spectrum
• Jitter suppression of external clocks: > 50 dB (2.4 kHz)
• Effective clock jitter influence on AD and DA conversion: near zero
• PLL ensures zero dropout, even at more than 100 ns jitter
• Additional Digital Bitclock PLL for trouble-free varispeed ADAT operation
• Supported sample rates for external clocks: 28 kHz up to 200
General
• Standby power consumption: 50 mW
• Idle power consumption: 10 Watts, Max. power consumption: 22 Watts
• Idle current at 12 V: 850 mA (10 Watts)
• Dimensions (WxHxD): 215 x 44 x 130 mm (8.5" x 1.73" x 5.1")
• Weight: 1.0 kg ( 2.2 lbs)
• Temperature range: +5° up to +50° Celsius (41° F up to 122°F)
• Relative humidity: < 75%, non condensing
