RME ADI-642 (Discontinued)

Overview

The ADI-642, an 8-Channel format converter from MADI to AES and vice versa, is the latest addition to RMEs successful MADI series. Amongst other applications, the unit can serve as ideal AES/EBU frontend for the Hammerfall DSP MADI PCI card. Up to 192 kHz at 24-Bit are supported. Its most outstanding feature is an easy-to-use 72 x 74 routing matrix, which can assign an individual input channel to every single output channel, allowing free configuration of all 64 MADI channels and the 8 AES channels. Additional features include:

• Direct support for MADI Double and Quad Wire
• Automatic Delay Compensation when using more than one unit
• Analogue stereo monitor output, up to 192 kHz
• Detailed status display for MADI and AES
• Completely remote controlable via MIDI
• Transfer of MIDI data via MADI
• SteadyClock for maximum jitter reduction and clock regeneration

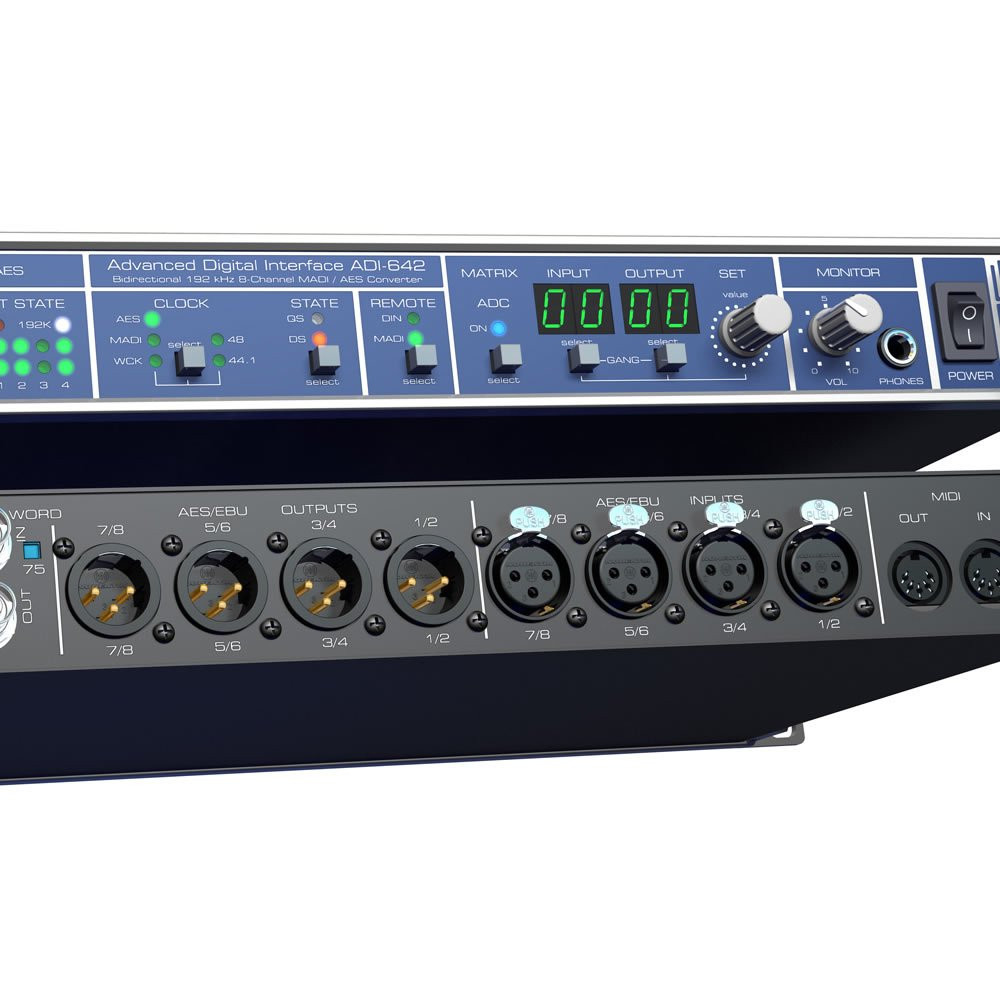

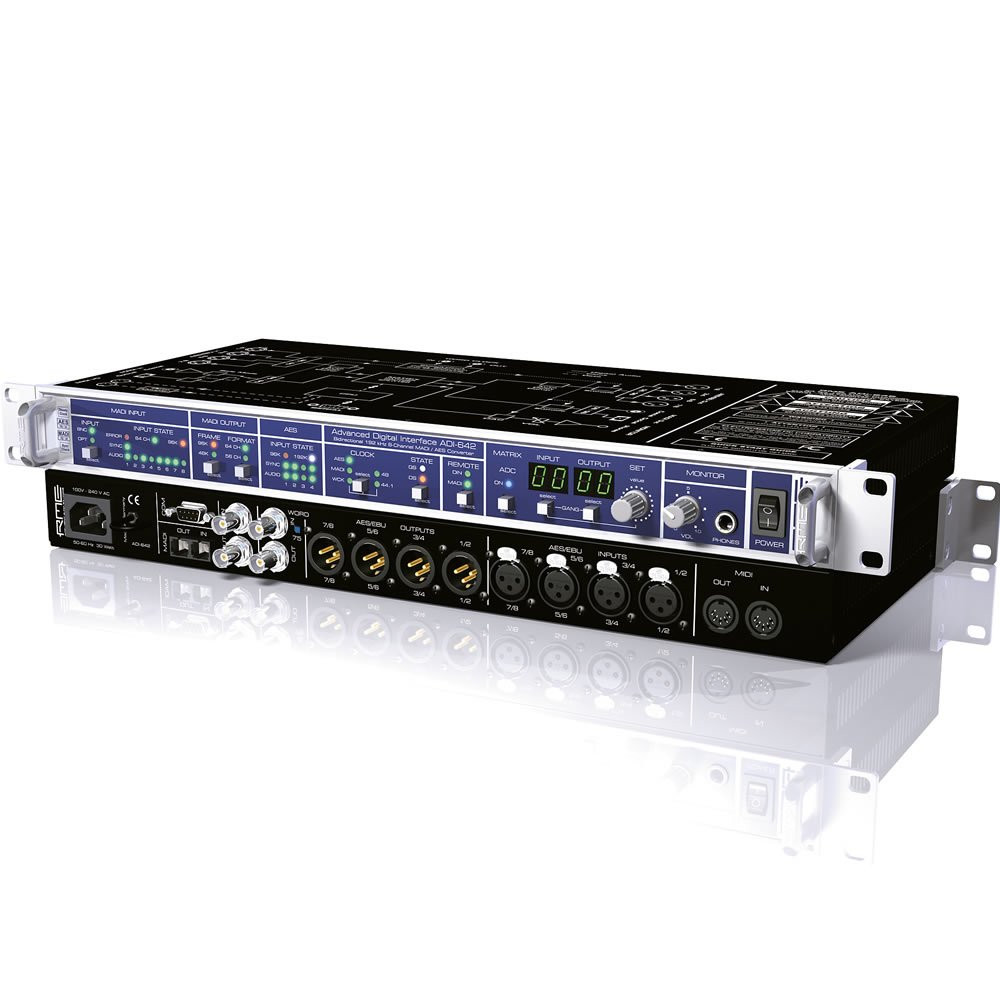

The compact unit with 19" width and 1 unit height serves as format converter MADI to/from AES ( Schematic View). MADI handles 64 channels of 24-Bit audio at sampling frequencies up to 48kHz, 32 channels up to 96kHz, and 16 channels up to 192kHz. All channels are transferred across a single cable, either coaxial (BNC) or optical network cable. In both cases, cable lengths of more than 100 meters can be achieved. The AES/EBU channels are provided via 4 XLR inputs and outputs, respectively. The ADI-642 accepts 56 channels and 64 channels as well as 96k frame at its input, and can be set to generate those formats at its output. This way the ADI-642 even serves as perfect interface between otherwise incompatible MADI devices.

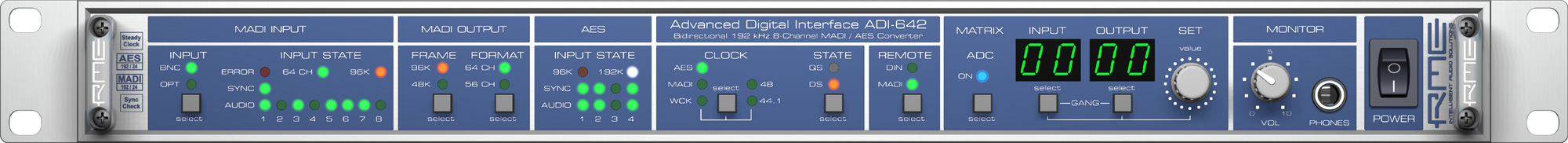

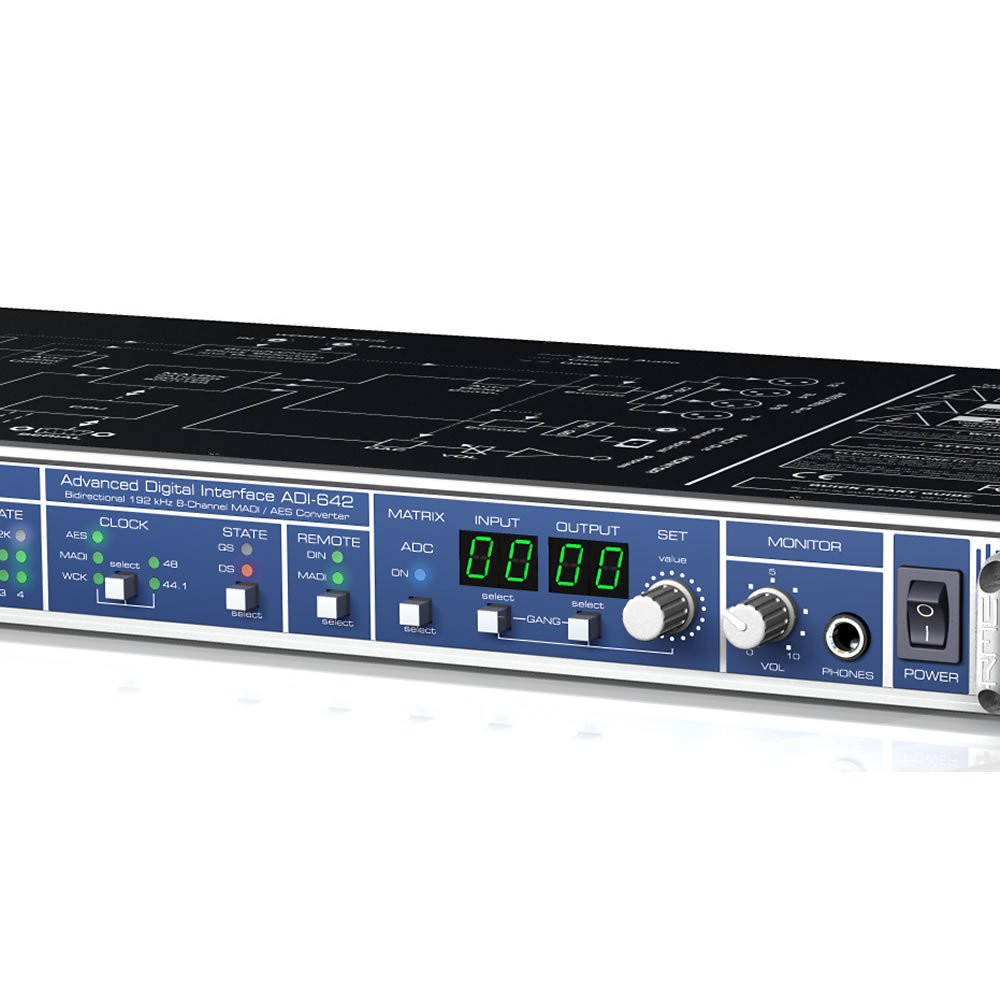

RME ADI-642 Front Panel - Click To Enlarge

Features

A fully automatic input selection between optical and coaxial input offers a useful redundancy mode for critical applications. Extensive status displays give information about Lock and Sync states, audio content and the physical quality of the incoming signal.

The ADI-642 supplies word clock in Single, Double and Quad Speed, distributes Double Wire 96kHz signals into the MADI data stream and to the AES ports, and even supports the double MADI sample rate (96K frame). The SyncAlign® and SyncCheck® technologies known from other RME products ensure perfect synchronization and clear detection of errors. Also, multiple units can be stacked and operated together, using word clock to produce sample-alignment across all units. All settings are stored when the unit is switched off.

Additionally the ADI-642 features an easy-to-use 72 x 74 Matrix Router. An input signal can be assigned to every output channel, both for AES and MADI. This not only allows free signal routing during format conversion, but also forwarding and routing of signals within the same format. An input signal can also be distributed to any number of outputs. With more than one ADI-642, several MADI signals can be combined (merged) to one MADI stream.

16 MIDI channels can be transferred across MADI (even with 64 audio channels). The device can be fully remote controlled and configured via MIDI, and all status displays can be queried through MIDI. Each ADI-642 can be given a separate ID, allowing separate remote controllability of various devices with only one MIDI channel.

Application examples include:

• AES/EBU frontend for RME's HDSP MADI
• AES/EBU breakout box for any MADI device
• Digital Multicore, allowing signal transfer across long distances with a single cable
• MADI coaxial/optical or vice versa converter
• MADI redistributor, patchbay and router
• AES/MADI inserter
• Madi Merger

RME's SteadyClock^(TM) lets the ADI-642 use MADI without an additional word clock connection, and guarantees excellent clock quality in every situation. Due to the highly efficient jitter reduction, any clock signal (even AES and Word Clock) can be improved and refreshed, and subsequently be used as reference clock at the word clock output. Intelligent Clock Control (ICC) will retain the last valid sample frequency in case of a loss of the input signal.

The analogue monitor output operates in stereo and has a low impedance. It can be used as line and headphone output and supports 192 kHz at 112 dBA SNR. The routing matrix can assign any of the 36 stereo input pairs to the monitor output.

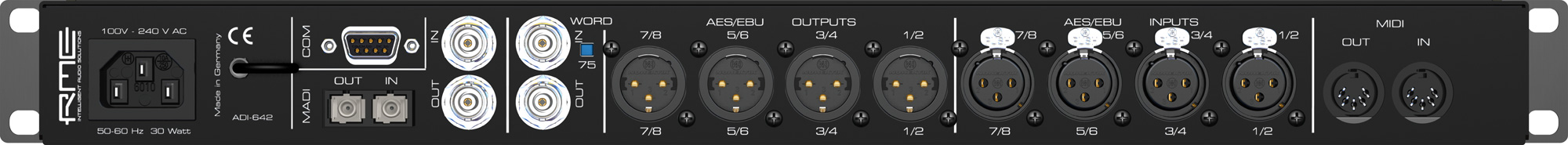

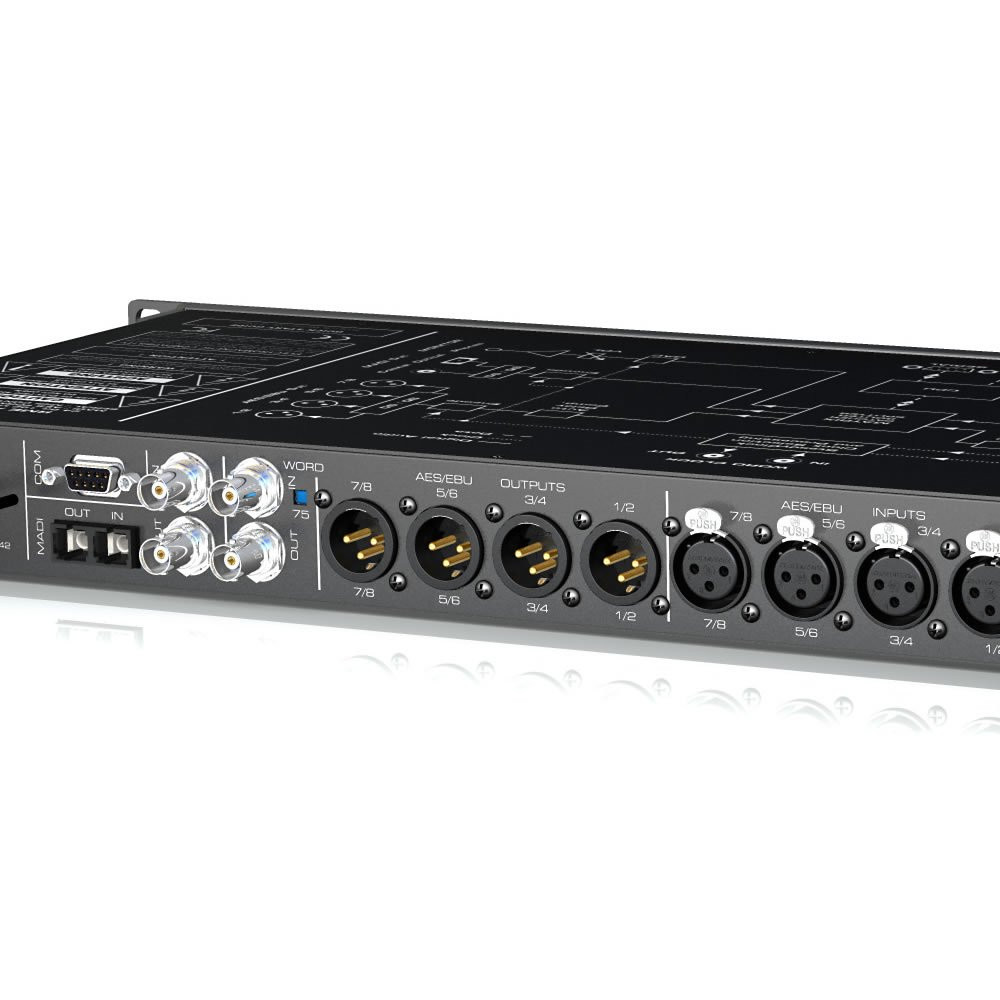

RME ADI-642 Rear Panel - Click To Enlarge

Auto Delay Compensation

A typical application example is the use of a HDSP MADI PCI-card in a computer with the ADI-642 as external AES interface (schematic view). As MADI transmits 64 channels, up to eight ADI-642 can be used to provide all 64 channels via 32 AES I/Os.

The integrated Matrix Router makes such a setup easy to be configured. The MADI signal is passed through from device to device. When passing through the MADI signal, a delay of a few samples per ADI-642 occurs, causing the AES inputs and outputs to show an offset.

This problem is fixed by the Automatic Delay Compensation. Each ADI-642 automatically detects which unit it is within the chain, and corrects the AES input and output data so that all AES I/Os operate sample-aligned. The additional Auto Configuration mode sets up all ADI-642 to use consecutive AES I/Os. A manual configuration via each unit's Matrix is not required.

The ADI-642 is compatible to MADI interfaces of companies like Sony, Merging, Lawo, Euphonix, Stagetec, Jünger, Audio Service, AMS and others.

• Schematic View
• Input MADI: 1 x BNC, 1 x optical
• Output MADI: 1 x BNC, 1 x optical
• Input AES/EBU: 4 x XLR, electrically isolated, highly sensitive input stage (< 0.3 Vpp), SPDIF compatible
• Output AES/EBU: 4 x XLR, transformer balanced, 5 Vpp
• Input word clock: BNC, Signal Adaptation Circuit (functional from 1.2 Vpp)
• Output word clock: BNC, low impedance driver stage, 4 Vpp into 75 Ohms, short-circuit-proof
• MIDI input and output: via two 5-pin DIN jacks

• Sync sources: MADI, AES, word clock, internal
• Varipitch: by input signal or word clock
• Sample frequencies: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, variable (sync/word clock)
• Sample rate range: MADI: 32 - 192 kHz, word clock: 27 kHz - 200 kHz, AES: 28 kHz - 200 kHz
• Jitter: Internal clock < 1 ns, external clocks < 1 ns
• Jitter suppression: >30 dB (2.4 kHz)
• Jitter sensitivity: all PLLs operate error-free even at 100 ns
• Power supply: Internal switching mode PS, 100V - 240V AC, 20 Watt
