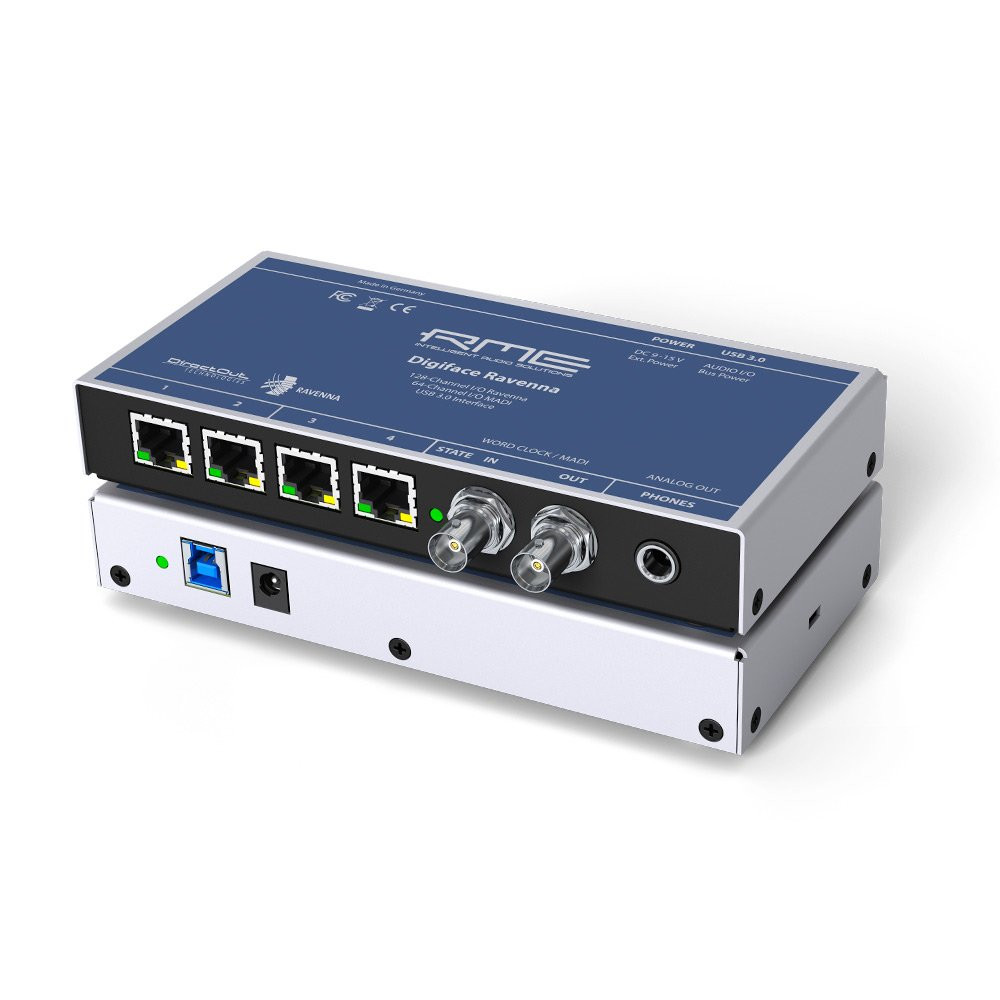

RME Digiface Ravenna

£1,913.00

Inc 20% VAT

Out of Stock

Available to Pre-Order (expected Feb 2023)


Shipping Information

Synthax Audio UK Logo

Free Delivery On All Orders Over £50.00

All orders from our webshop over £50.00 can be shipped with free delivery:

  • For orders over £50.00, this will be via a next working day delivery courier service
  • For orders under £50.00 this will be via First Class Royal Mail postage* (unless a different courier option is selected at checkout)

*Please note: Royal Mail First Class is NOT guaranteed next day delivery. For guaranteed next working day (or Saturday) delivery, please select one of our other courier options (see delivery options below).

Delivery Notifications

You will receive an email to the address you have supplied to us when your order has been dispatched.

Delivery Methods and Timescales

The delivery time scale is specified on the product page to indicate when you should expect to receive your order. If all item(s) are in stock and your order was placed before 2pm, subject to passing necessary checks, your order will be shipped the same day. Orders received just after 2pm are also often dispatched the same day, but this cannot be guaranteed.



Delivery Options

Royal Mail – First Class Recorded Delivery*

  • Delivery Time – We cannot guarantee delivery time via Royal Mail. Whilst items shipped using Royal Mail First Class usually take 1 - 2 days, please note this is NOT a guaranteed next day delivery service. If this is a problem, please select one of our courier service options.

*Only available on orders with a value of less than £50

Courier – Next Working Day Service

  • Price = Free (Orders of £50+) / £9.95 (Orders of less than £50)
  • Delivery Time – Next working day from date of dispatch (see above)

Courier – Pre-noon, Next Working Day Service

  • Price = £9.95 (Orders of £50+) / £19.95 (Orders of less than £50)
  • Delivery Time – Next working day from date of dispatch (see above).

Courier – Saturday Delivery Service

  • Price = £19.95
  • Delivery Time – The first Saturday following date of dispatch (see above). Note that for guaranteed Saturday delivery, orders must be placed before 2pm on the Friday. Orders placed after 2pm may still arrive on Saturday, but this cannot be guaranteed.

Due to the nature of the products we sell, we operate a strict fraud screening process and therefore we are only able to deliver to the billing address.

In the event of a delay, we will contact you either by email or telephone as soon as reasonably possible.

While 99% of UK locations are valid for next day/Saturday delivery, there are a few remote locations which are not covered.

Synthax Audio (UK) cannot deliver outside of the UK and Republic of Ireland*.

*RME products cannot be shipped to the Republic of Ireland.



Missed Deliveries

If you are not in to receive the order at the time delivery is attempted, a card will normally be left to notify you of the missed delivery attempt. This will allow you to either telephone the courier company to arrange a re-delivery at a more convenient time or collect it from your local courier depot or Royal Mail sorting office. For security reasons, all items require a signature.

If for any reason the item is returned to us (e.g. incorrect address specified, multiple failed delivery attempts), then we will inform you immediately by email as soon as we receive the item. From this point forth, you will be given a choice whether you wish us to re-dispatch the item or cancel the order. Please refer to our Cancellations & 14 Day Returns Procedure for more details. For items where delivery failed through no fault of Synthax Audio (UK), you will be liable for the original shipping charge, any courier surcharges and any subsequent delivery charges.



Late Deliveries or Dispatch

We are able to ship almost every order in the specified timescale. However, in very rare circumstances there can be an unforeseen delay. If this does happen, we will make it our priority to get your order dispatched from our warehouse as soon as reasonably possible.

There are also rare cases, beyond our control, when the delivery company itself has a problem which causes a delay in transit. In these situations we will do our utmost to liaise with the relevant delivery company to ensure delivery is completed as swiftly as possible.

Consequential Loss for Late Deliveries

If a delivery is late, then we will provide a refund of any delivery fee that we charged you. We do not provide financial compensation to cover consequential losses, e.g. for time taken off work to receive a delivery, or if the item is intended as a gift and you have to purchase the same item from a more expensive retailer.



Terms of Service

Our full terms of sale can be viewed here.

Customer Rating: (0)

256-Channel 192 kHz
USB Audio Interface

Connectivity

  •  128 input / 128 output channels

  •  64 / 128 Ravenna I/O

  •  64 MADI I/O or word clock I/O

  •  Analogue out (phones)

  •  USB 3.0

  •  Standalone operation
  • Powerable via USB Bus-power or Mains

Description

RME Digiface Ravenna

The Digiface Ravenna is a lightweight, portable audio interface, based on the proven Digiface Dante equipped with a RAVENNA module developed by DirectOut and features with everything that RME is famous for: USB 3, MADI, TotalMix FX and outstanding options in both USB and stand-alone operation.

The device allows the transmission of up to 128 RAVENNA channels as well as 64 MADI channels via a single USB 3.0 connection. RME thus expands its Digiface series with a powerful RAVENNA model for USB and standalone operation.

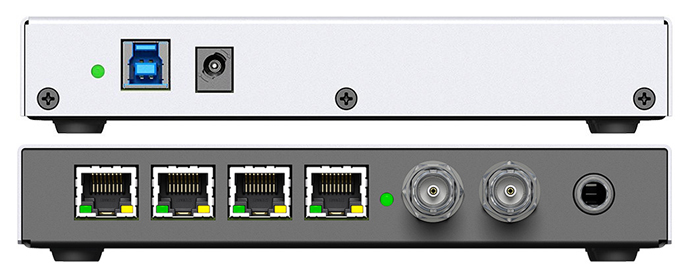

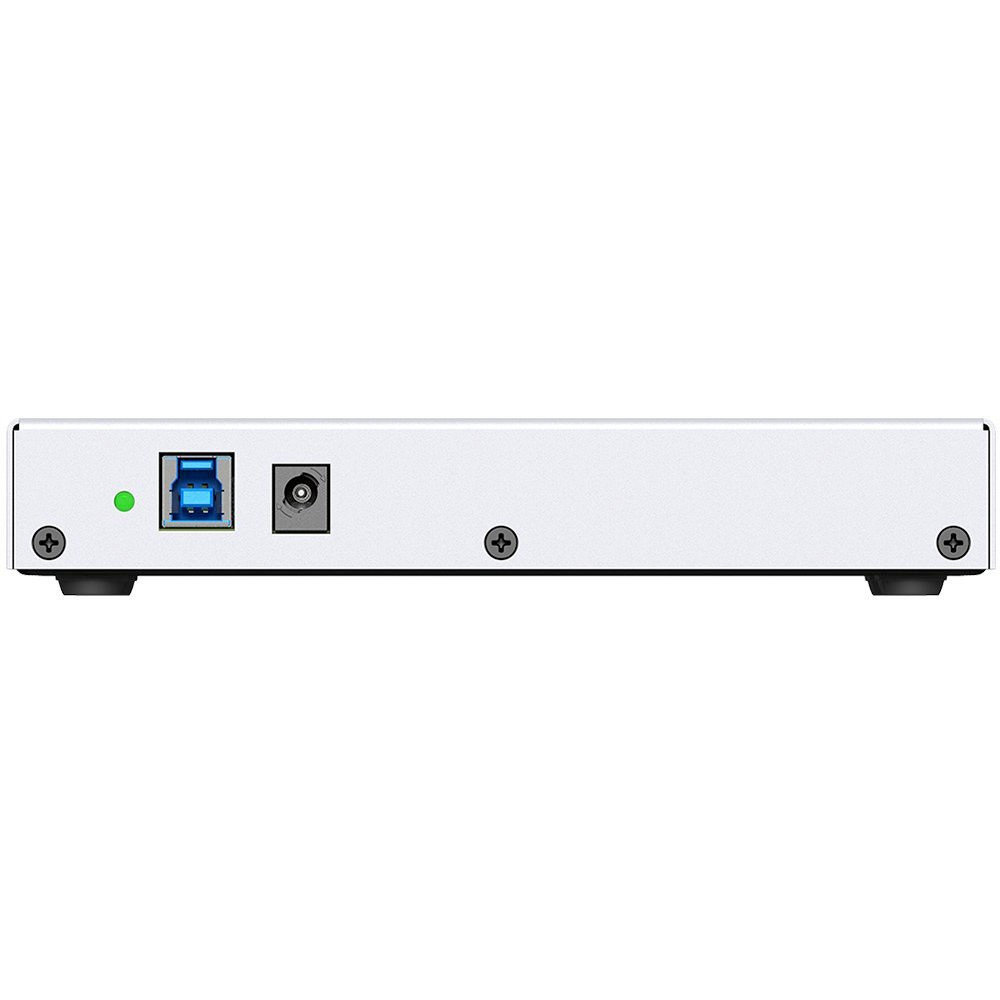

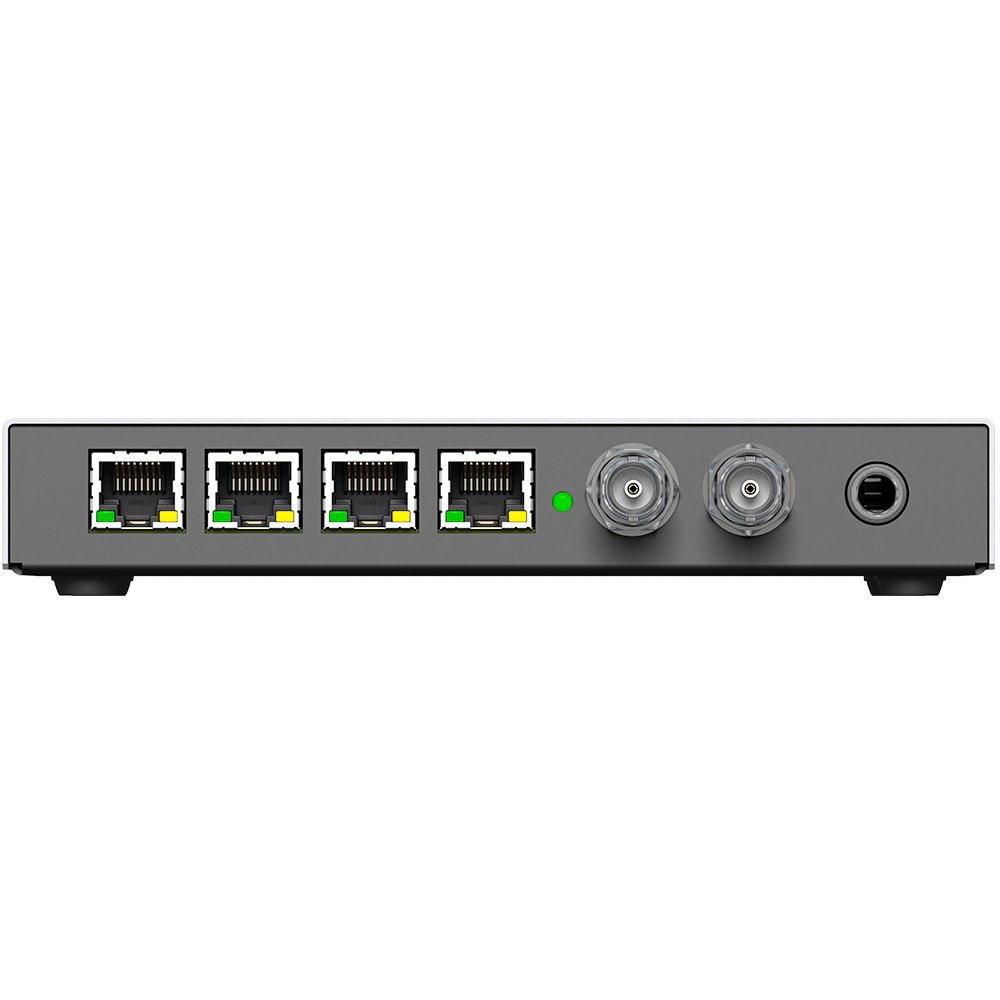

RME Digiface Ravenna front and back panels

Connectivity & Features

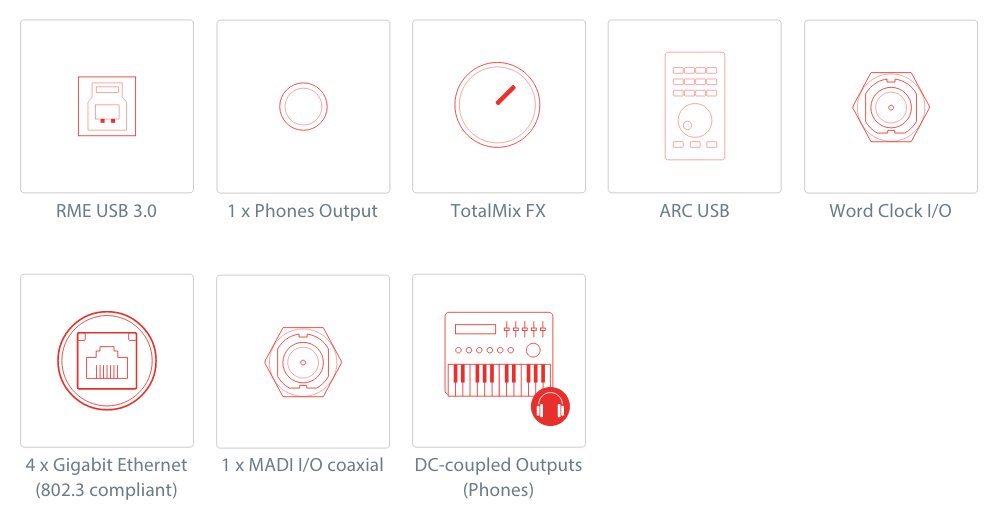

RME Digiface Ravenna connectivity diagram

(click to enlarge)

Mobile RAVENNA Solution via USB

The combination of RME’s renowned drivers (Mac/Windows) and DirectOut’s RAVENNA implementation offer a reliable and flexible networked computer audio interface. Equipped with the latest TotalMix FX it can not only route, but also mix as many independent submixes as outputs are available.

The included high quality phones output offers a quick listen to any audio channel, but can also be used as line output to provide an additional analog stereo mixdown.

RME Audio Core Value

RAVENNA & MADI

RME made the two BNC sockets for word clock I/O switchable to MADI I/O, with up to 64 channels. The total sum of Ravenna and MADI, 128 channels, are transferred via USB 3.0 and handled via the included RAVENNA web server or RME's TotalMix FX, for full and struggle-free control of all audio.

On the network side, the interface features a full-fledged RAVENNA stack with AES67 and ST2110-30/31 support and redundant audio-over-IP streaming as per ST2022-7. In addition, the interface can also be used as a mobile 64-channel RAVENNA/MADI converter without a USB connection to a computer. The coaxial MADI I/O connectors may also be configured to work as word clock sync I/O.

RME Digiface Ravenna - Overview Video

See more videos at Synthax TV



TotalMix FX and TotalMix Remote

Like all the latest RME interfaces, the Digiface Series also includes the powerful digital real-time mixer TotalMix FX. It allows for practically unlimited mixing and routing operations, with all inputs and playback channels simultaneously, to any hardware outputs.

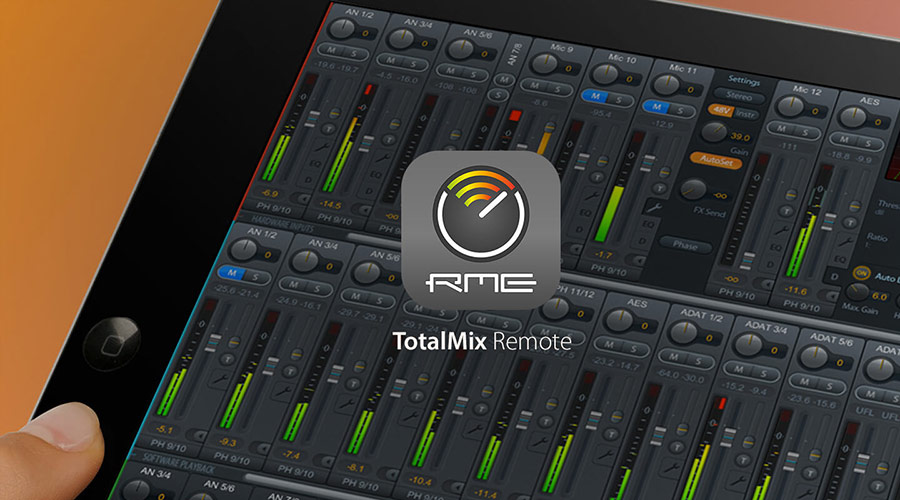

RME TotalMix Remote promo image

The Digiface Series includes a dedicated Control Room section with Talkback, Main/Phones, fader groups, mute groups, complete remote controllability via Mackie or OSC protocol, and much more. The Digiface Series does not support DSP based effects (FX) like EQ or reverb.


Additionally RME’s latest software, TotalMix Remote, enhances the power of RME interfaces by enabling remote control via iOS, PC or Mac. With a straightforward set up process — simply enter the IP address of the computer you would like to control with TotalMix Remote and get going — users can quickly adjust any aspect of TotalMix FX on a host system while walking around the studio with their tablet, or from a control room located elsewhere in the facility.



TotalMix FX - Mixing/Routing with superior features for Studio and Live Work Since 2001

TotalMix added unlimited routing and mixing to RME‘s audio interfaces. Its unique capability to create as many independent submixes as output channels available turned it into the most flexible and powerful mixer of its kind.

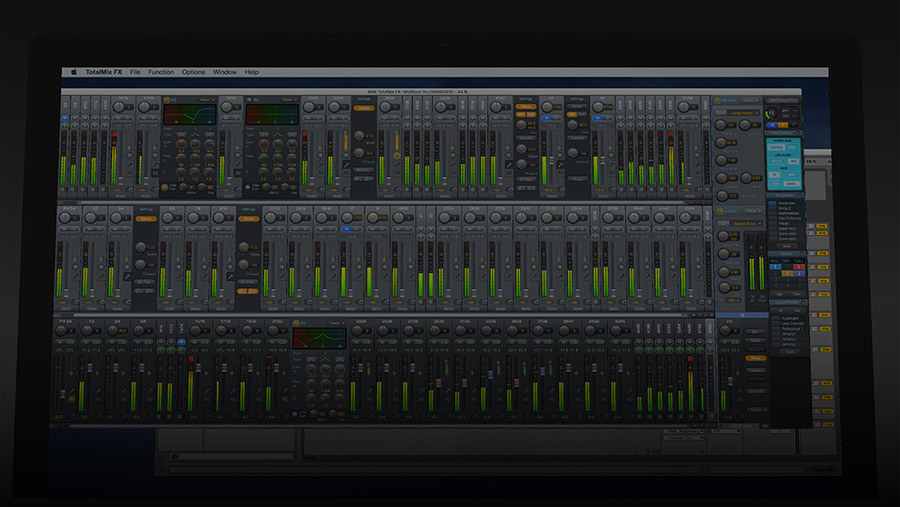

RME TotalMix FX Software Mixer



RME USB - Transport audio with lowest latency and industry leading stability

Use your RME audio interface on Mac and PC with reliable, stable, and regularly updated drivers for our products. RME Audio develops its own interface core, it’s not dependent on 3rd parties for upgrades, modifications or bug fixes, so customers can use latest operating systems without interruption or delay."



DigiCheck - The Secret Weapon of High Resolution Audio Measurements

RME Audio interfaces not only provide you with a professional digital audio interface, but also with a free available software tool: DigiCheck, for metering, testing, measuring and analyzing digital audio streams.

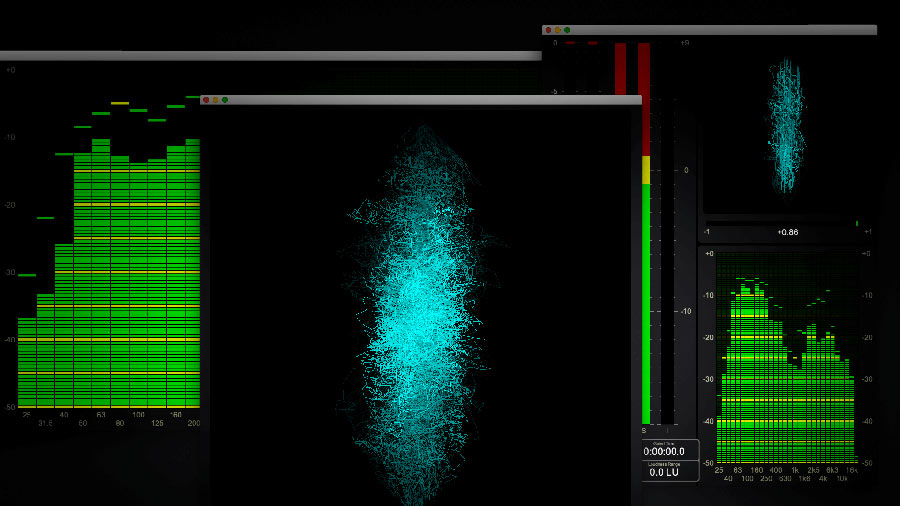

RME DIGICheck NG interface

Specification

Gigabit Ethernet Port

  • RJ45
  • 100 Mbit/s, 1 Gbit/s
  • Standard port LEDs: yellow connected, green data transmission
  • Supports straight and crossover cables (Auto MDI-X)
  • Network-based remote control of the unit (TotalMix Remote)


RAVENNA Module

  • Supports RAVENNA, AES67, ST 2110-30 / -31, ST 2022-7
  • Network Layer 3
  • Modes: Switched and Redundancy according to ST 2022-7
  • 32 streams
  • 128 channels Single Speed, 64 channels Double Speed, 32 channels Quad Speed
  • Clock sources: PTP, Internal
  • Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz, +/-12.5 %
  • Routing: Channel-based routing matrix
  • Configuration: Browser GUI, globcon control, NMOS IS-04 / IS-05


MADI Input

  • Coaxial via BNC, 75 Ohm, according to AES10-1991
  • High-sensitivity input stage (< 0.2 Vpp)
  • Accepts 56 channel and 64 channel mode, plus 96k Frame
  • Standard: up to 64 channels 24 bit 48 kHz
  • S/MUX: up to 32 channels 24 bit 96 kHz
  • S/MUX4: up to 16 channels 24 bit 192 kHz
  • Lock range: 25 kHz – 54 kHz


MADI Output

  • Coaxial via BNC, 75 Ohm, according to AES10-1991
  • Output voltage 400 mVpp
  • Cable length: up to 50 m
  • Generates 56 channel and 64 channel mode, plus 96k Frame
  • Standard: up to 64 channels 24 bit 48 kHz
  • S/MUX / 96k Frame: up to 32 channels 24 bit 96 kHz
  • S/MUX4: up to 16 channels 24 bit 192 kHz


Output Analogue Phones 129/130

  • Dynamic range (DR): 110 dB RMS unweighted, 113 dBA
  • Frequency response @ 44.1 kHz, -0.5 dB: 0 Hz – 20.8 kHz
  • Frequency response @ 96 kHz, -0.5 dB: 0 Hz – 45 kHz
  • Frequency response @ 192 kHz, -1 dB: 0 Hz - 89 kHz
  • THD @ -1 dBFS: - 96 dB, 0.0016 %
  • THD+N @ -1 dBFS: -95 dB, 0.0017 %
  • Channel separation: > 100 dB
  • Output: 6.3 mm TRS jack, unbalanced
  • Output impedance: 2 Ohm
  • Output level at 0 dBFS, 1 kOhm load: +9.5 dBu
  • Max power @ 0.1% THD: 50 mW


Word Clock In

  • BNC, not terminated (10 kOhm)
  • Switchable internal termination 75 Ohm
  • Automatic Double/Quad Speed detection and conversion to Single Speed


Word Clock Out

  • BNC
  • Max level: 5 Vss
  • Level with termination 75 Ohm: 4.0 Vss
  • Internal impedance: 10 Ohm
  • Output Analogue Phones 129/130
  • Dynamic range (DR): 110 dB RMS unweighted, 113 dBA
  • Frequency response @ 44.1 kHz, -0.5 dB: 0 Hz – 20.8 kHz
  • Frequency response @ 96 kHz, -0.5 dB: 0 Hz – 45 kHz
  • Frequency response @ 192 kHz, -1 dB: 0 Hz - 89 kHz
  • THD@-1dBFS:-96dB,0.0016%
  • THD+N @ -1 dBFS: -95 dB, 0.0017 %
  • Channel separation: > 100 dB
  • Output: 6.3 mm TRS jack, unbalanced
  • Output impedance: 2 Ohm
  • Output level at 0 dBFS, 1 kOhm load: +9.5 dBu
  • Max power @ 0.1% THD: 50 mW


Digital

  • Clocks: Internal, RAVENNA (PTP), word, MADI
  • Supported sample rates: 44.1 kHz up to 192 kHz
