Description

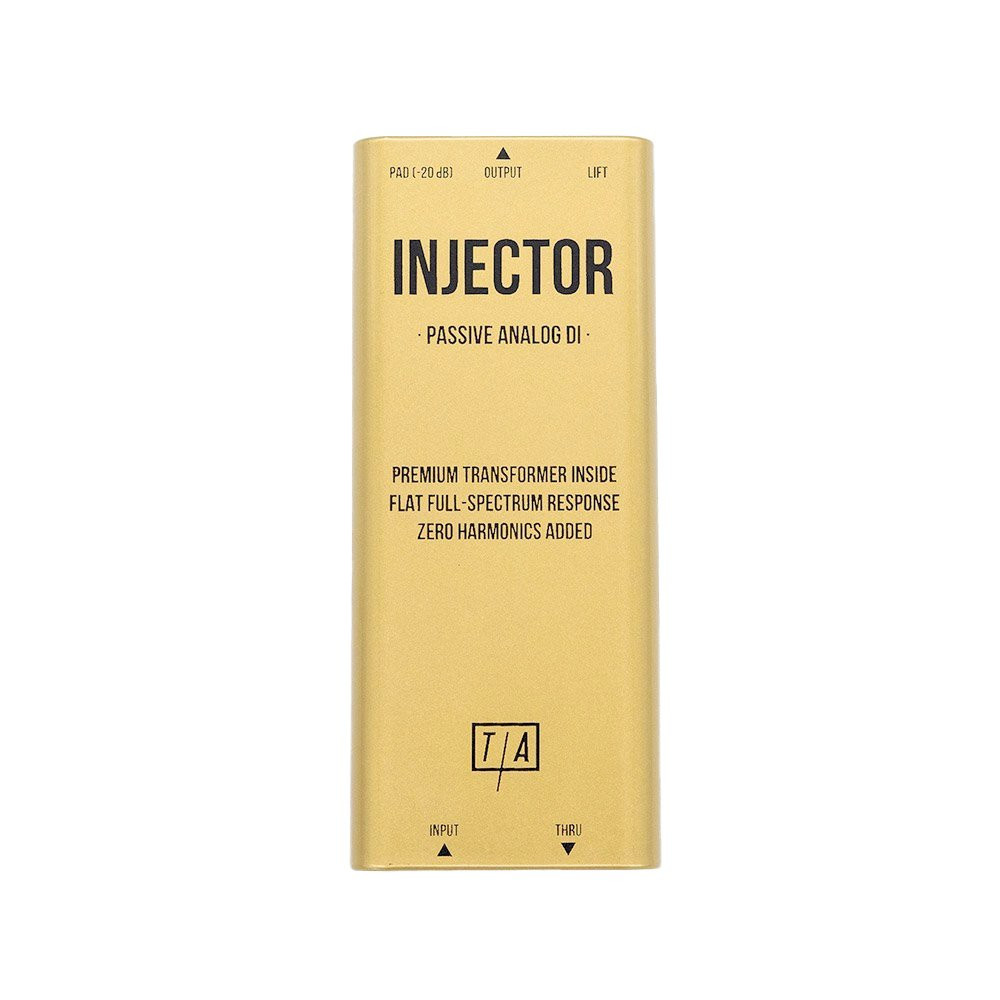

Passive DI Box
An ultra-high quality, passive direct injection box and best friend of Tierra Audio's Flavours Preamps, perfect for to boosting and squeezing the most out of their creative possibilities.
Designed and handmade in Spain with the highest quality materials, Injector delivers impeccable results, with a noise level below the best DI on the market and with the guarantee of quality and design that TIERRA Audio grants.
This time Tierra keeps the signal clean...
Injector becomes the most reliable and
transparent option to pick up the maximum detail of the sound and the
colouring of the Flavours Preamps but also for line and instrument
signals.
The perfect complement to the recording chain that makes
impedance matching as easy as possible and at the same time respects the
tone of the instruments.
Equipped with a
Lundahl transformer of the highest quality, Injector produces a
completely flat signal, without distortion or harmonic distortion and
above all, without noise. Bright and flashy on the outside, discreet and quiet on the inside.
Combine it with the Flavours Preamps and elevate your sound.
Whether in your home studio or in a professional studio, you're always trying to add that extra bit of flavour to your instruments or tracks in the mix.
And, we know, that often goes hand in hand with using analogue hardware or software emulators. Because yes, we all love the sound of a transformer, don't we?
Injector allows you to use Tierra Audio Flavours Preamps with signals taken from your DAW or instruments, in an absolutely reliable and honest way.
So you get all the colouring and personality of analogue circuits, and best of all, without spending a fortune.
Specification
- Type: Passive
- No. of channels: 1
- Input: 1

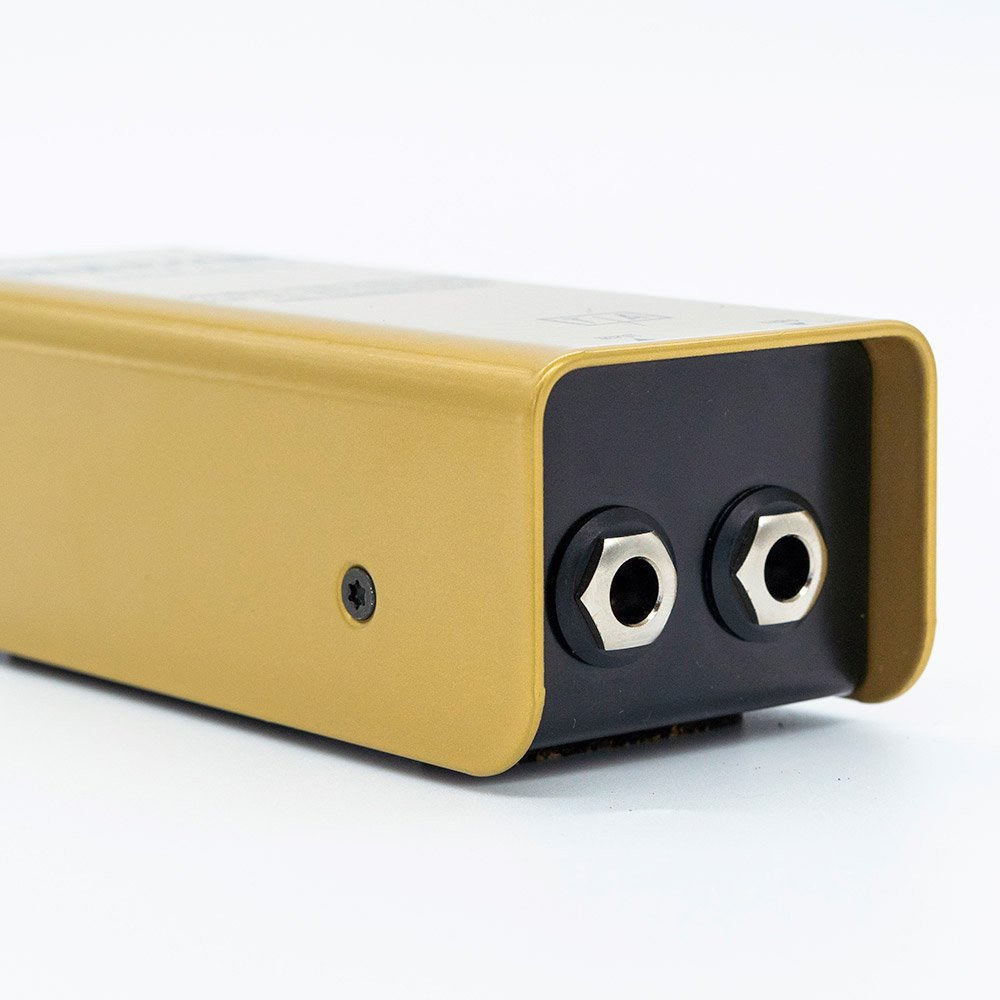

- Input Connectors: 6.3 mm jack
- Input impedance: (@ 1 kHz) 62000 Ohm(s)
- Input pad: 0 / -20 dB
- Outputs: 1
- THRU outputs/channel: 1

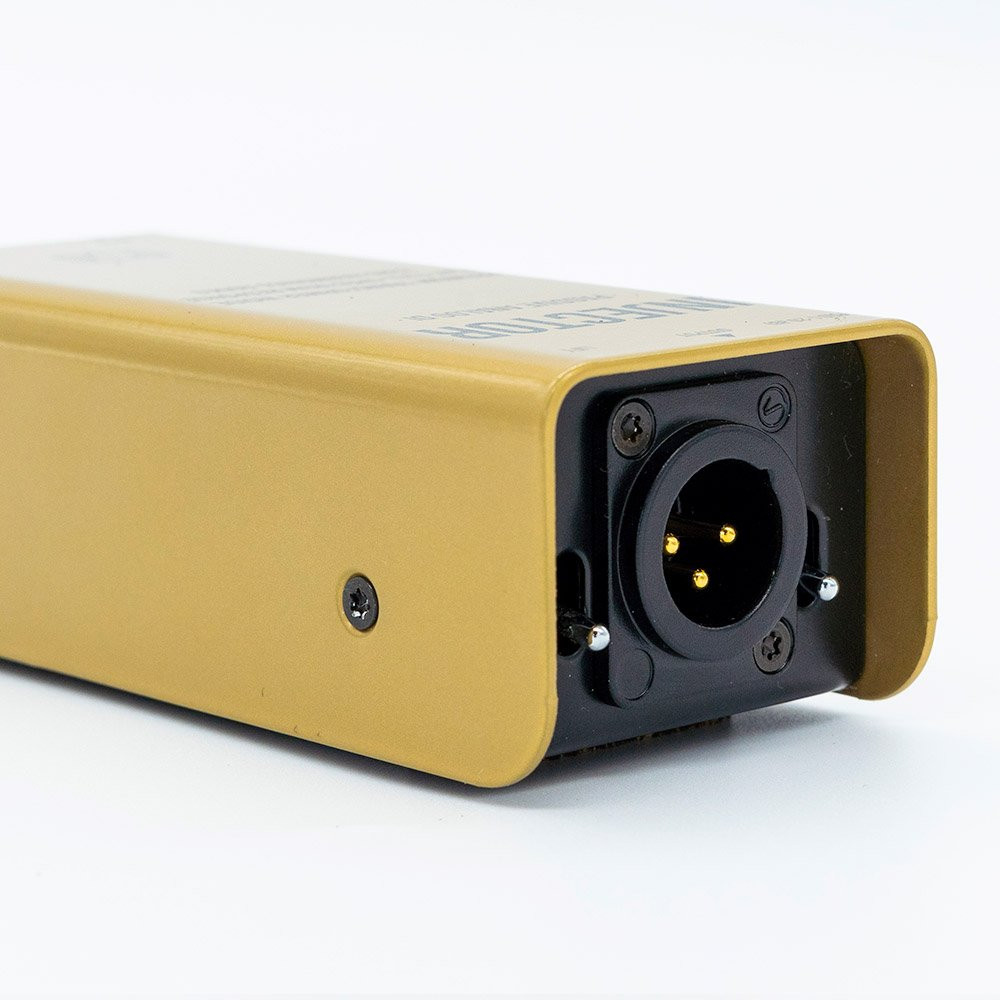

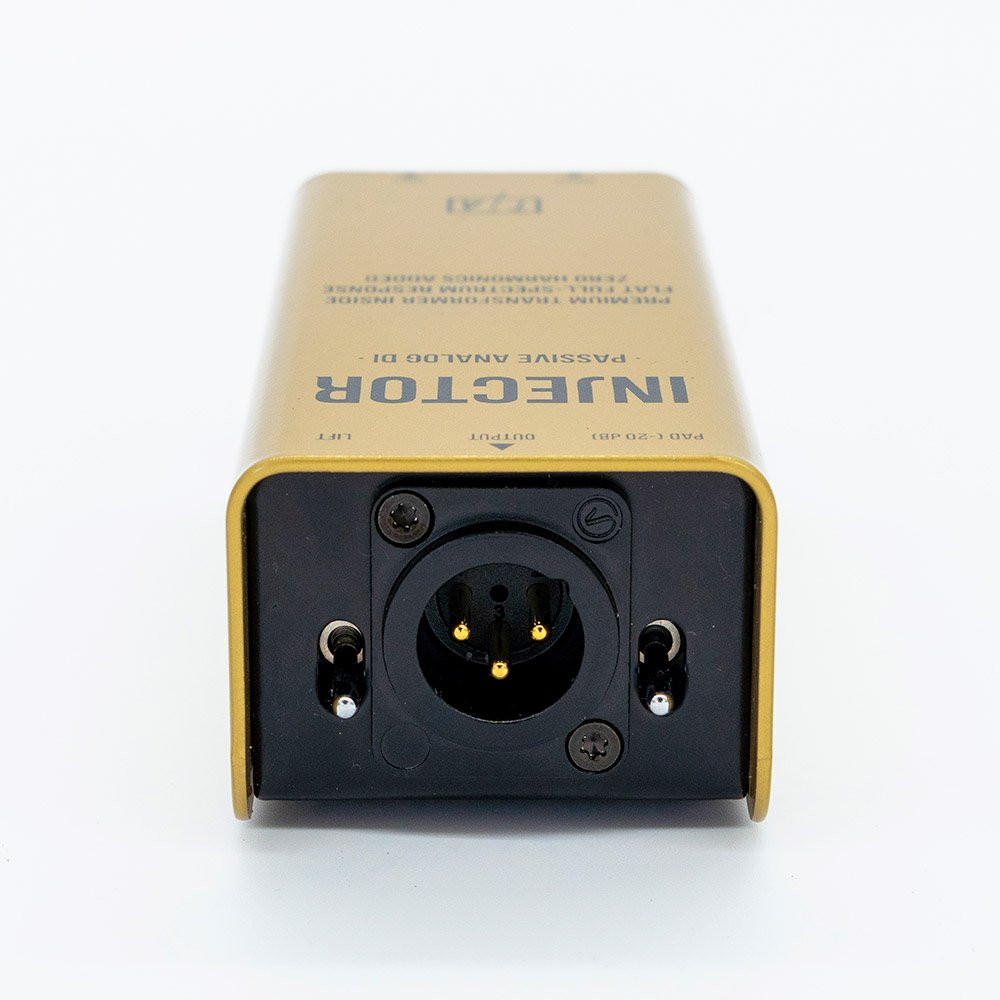

- Output connectors: XLR
- Output impedance: 600 Ohm(s)
- Frequency response: 20 - 20000 Hz +0 / -0,1 dB
- Transformer balanced: Yes
- Ratio: 10:1
- Controls: Attenuator, Ground-Lift
- Cabinet material: Steel
- Width: 128mm
- Depth: 44mm
- Height: 54mm
- Weight: 0,422kg
- THD: 0,0006% @ +4 dBu, 1 kHz
- Distortion (THD+N): 0,001% @ +4 dBu, 1 kHz
- Impedance Ratio (Input-Output): 103:1
- Transformer: Lundahl
- Phase deviation: 0 @ 30 Hz to 10 kHz
